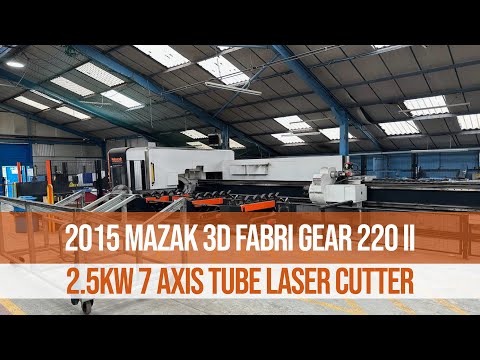

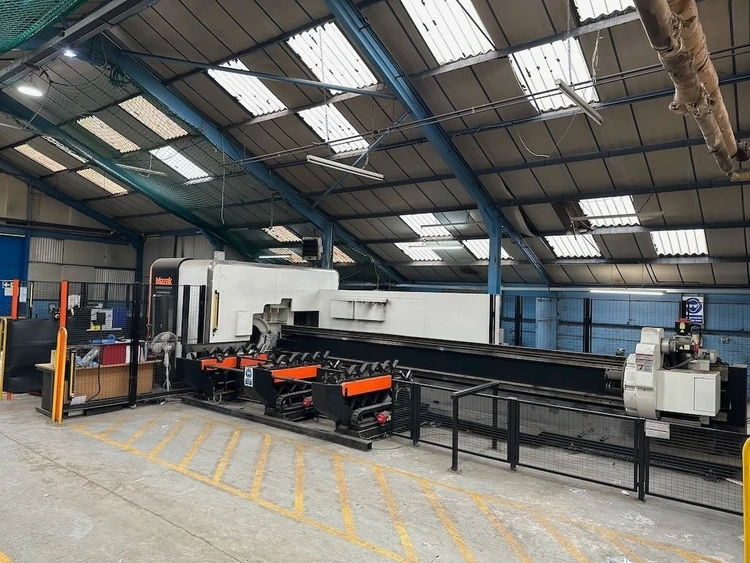

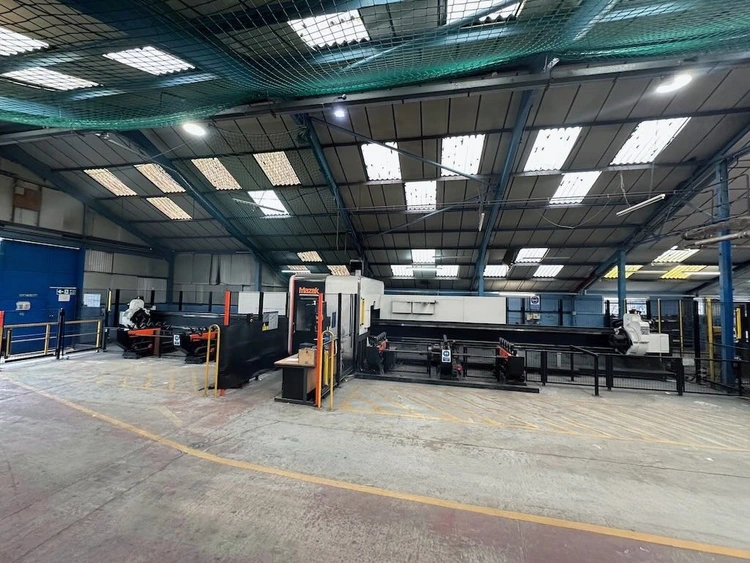

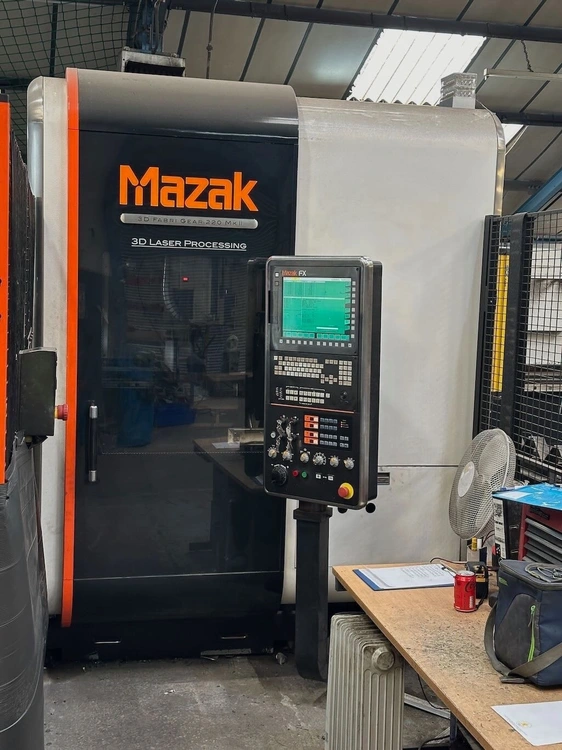

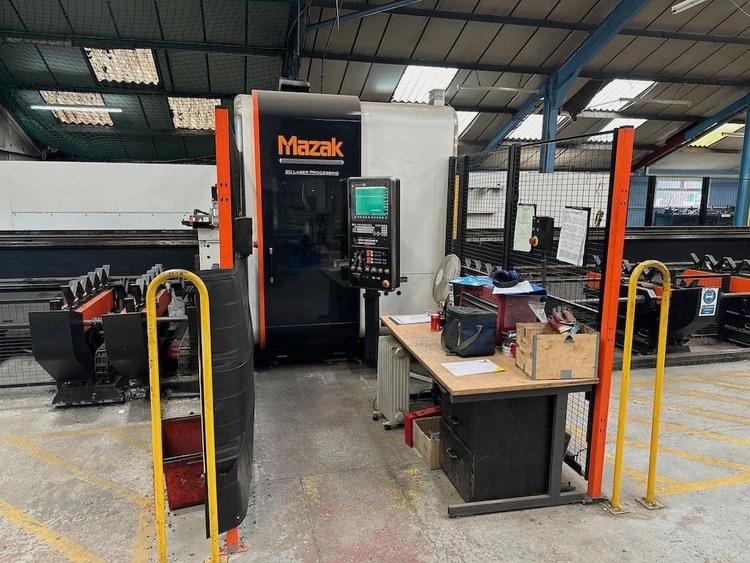

USED 2015 MAZAK 3D FABRI GEAR 220 II - 7 Axis Tube Laser

Send Inquiry

Overview

Type
Laser Cutters
Manufacturer
MAZAK
Model
3D FABRI GEAR 220 II
Year
2015
Stock #
18
Status
for sale

Description

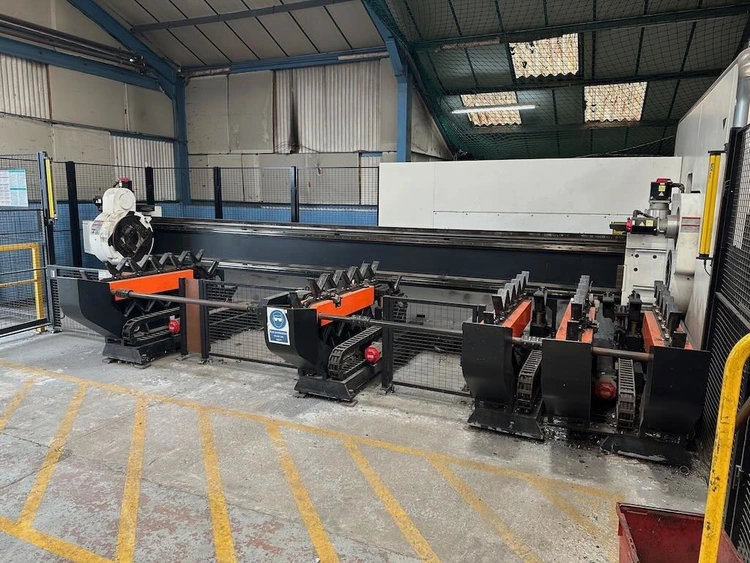

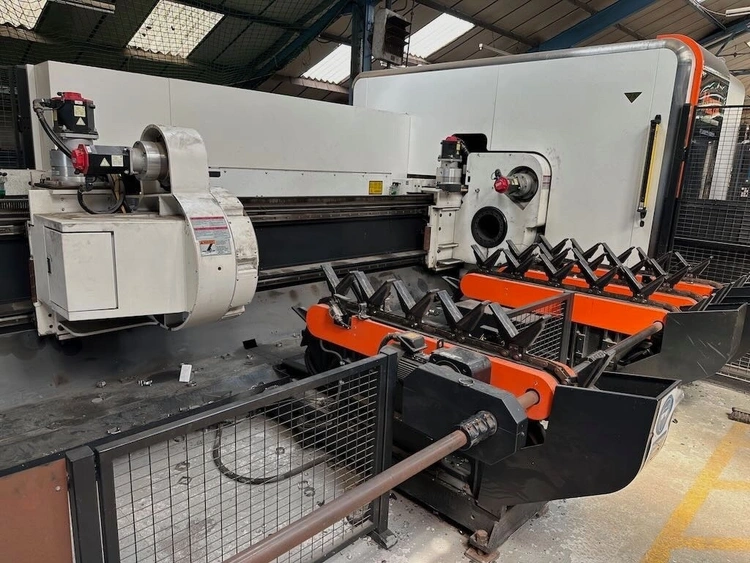

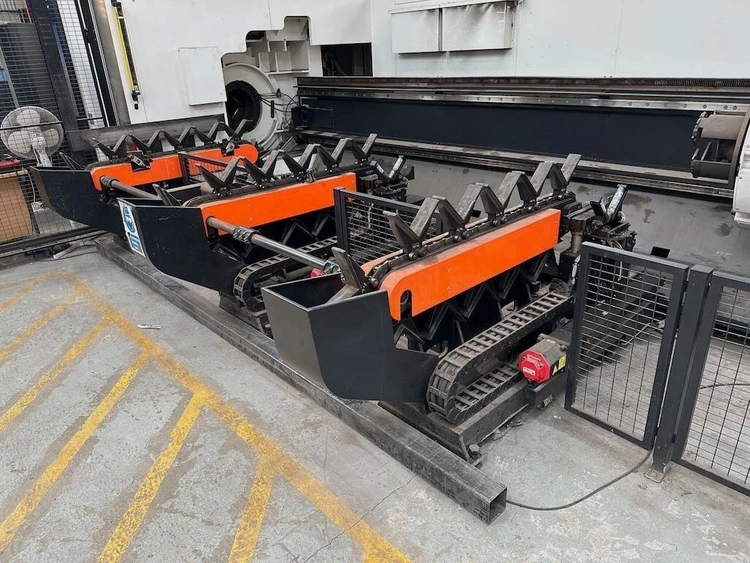

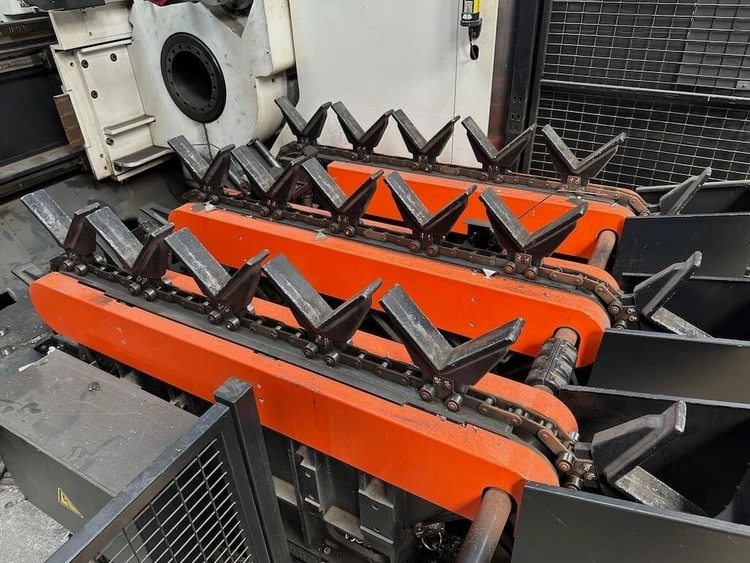

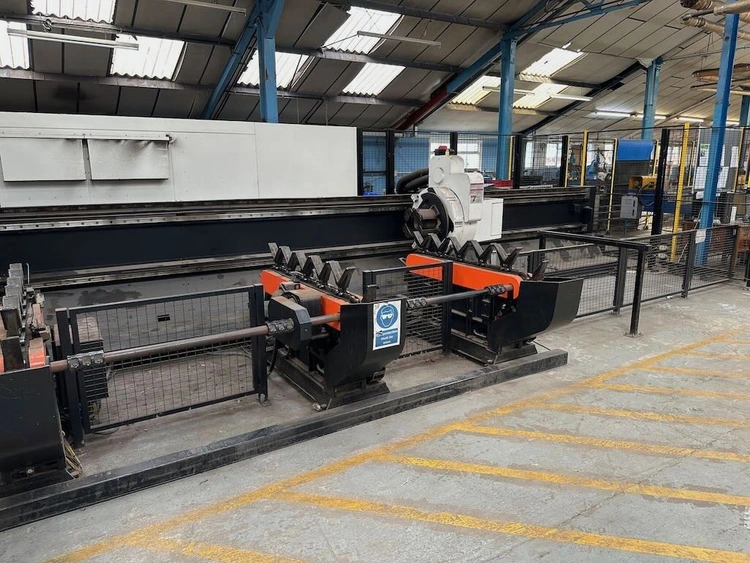

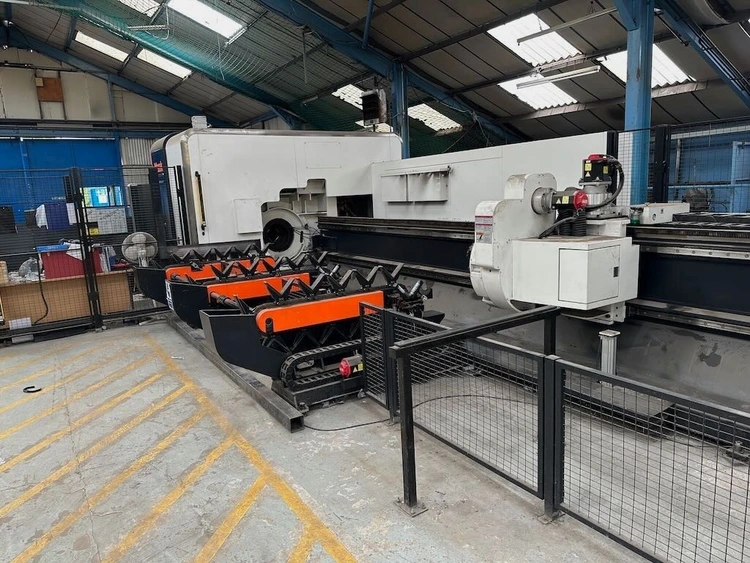

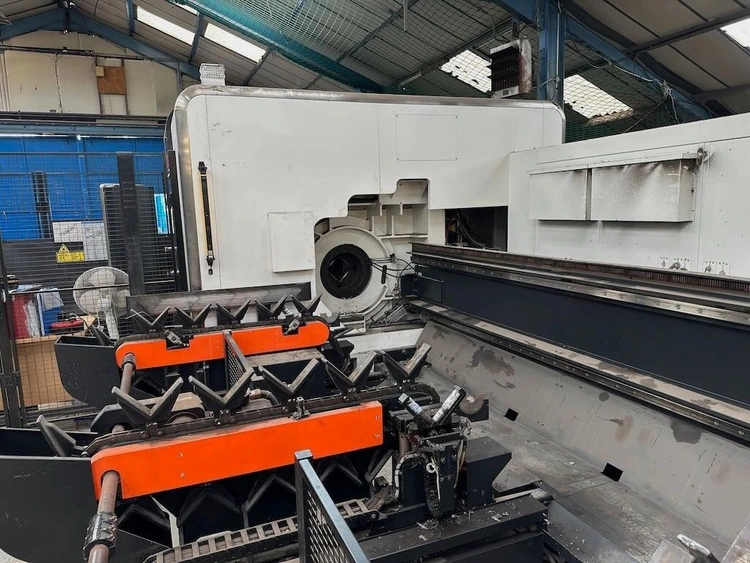

For Sale: 2015 3D FABRI GEAR 220 II cuts a wide variety of tubes and pipes, including round, square, rectangular and triangular. It can also process I and H beams, C-channel, angle iron and additional user-defined shapes from mild or stainless steel. 7 Axis 3D 2.5kW LASER, 6m Load, 6m Unload

Specifications

Sheet-W8.6604"
Sheet-L315.39"
Wattage2.5kw
IPM3937ipm
X356.5"
Y38.78"
Z14.57"

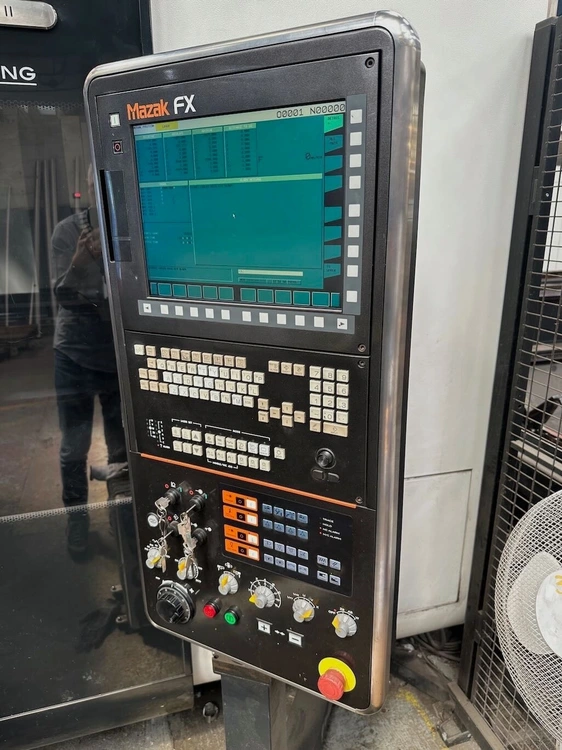

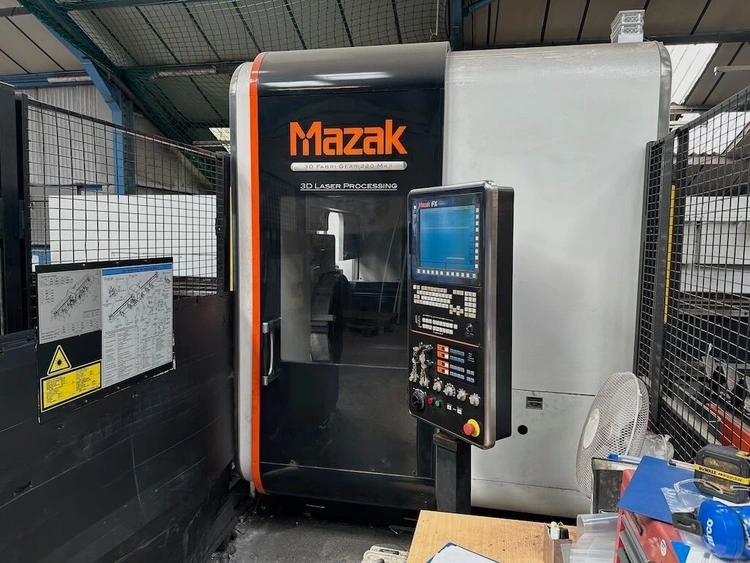

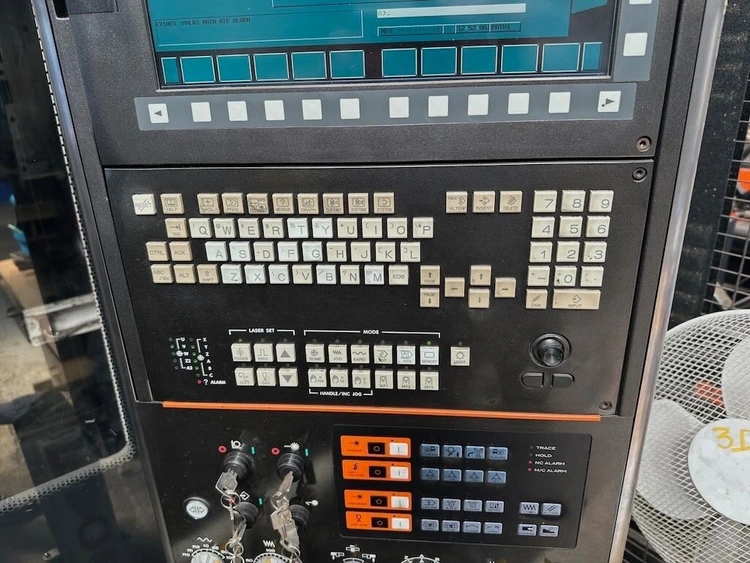

ControlCNC (Mazak FX Control Unit)

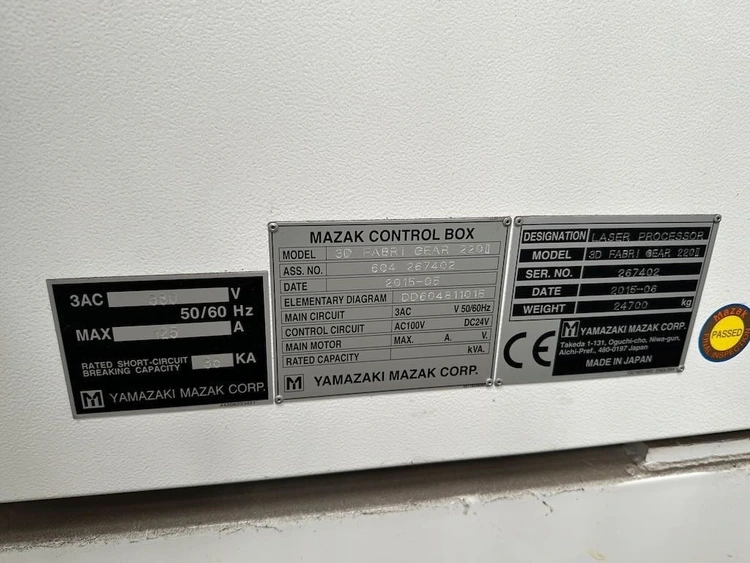

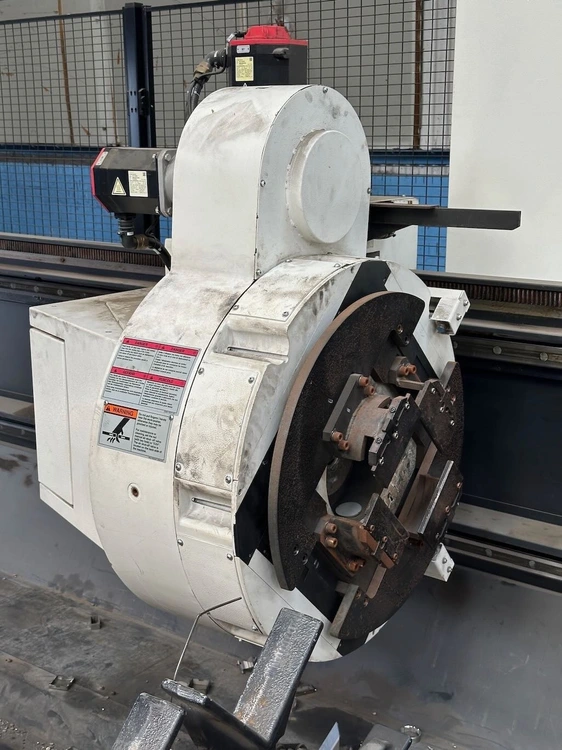

Manufacturer: Mazak Model: Mazak Fabri-gear 220 II Serial No.: 24700 Control: Mazak FX Control Unit Control Display Cutting Hours: 360 Machine on Resonator Hours: 18,000 Laser Output: 2.5kW Laser Gas: He, N2, CO₂ Max. Material Thicknesses: Mild Steel: 21.9964mm, Stainless: 9.9822mm, Aluminium: 7.9756mm Max. Workpiece Length (Load/Unload): 8001mm Max Material Dia (Round): 219.964mm Max Material Dia (Square): 152.4mm Max Workpiece Weight: 356kg Stroke X Chuck (Left/Right): 9055.19mm Stroke U Chuck (Left/Right): 8989.06mm Stroke V Chuck (Left/Right): 2314.956mm Stroke Y Head (Back/Forth): 985.012mm Stroke Z Head (Up/Down): 370.078mm Stroke A Head Rotation: ±99,999.999° Stroke B Head Swing: ±135°
