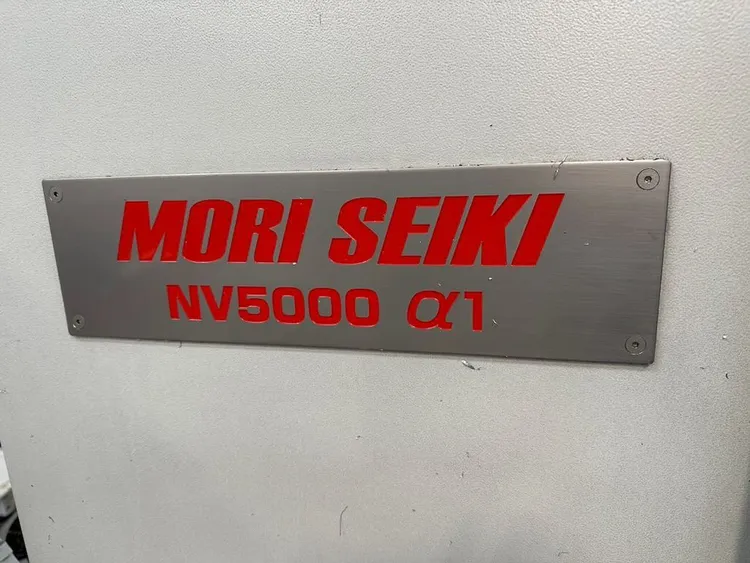

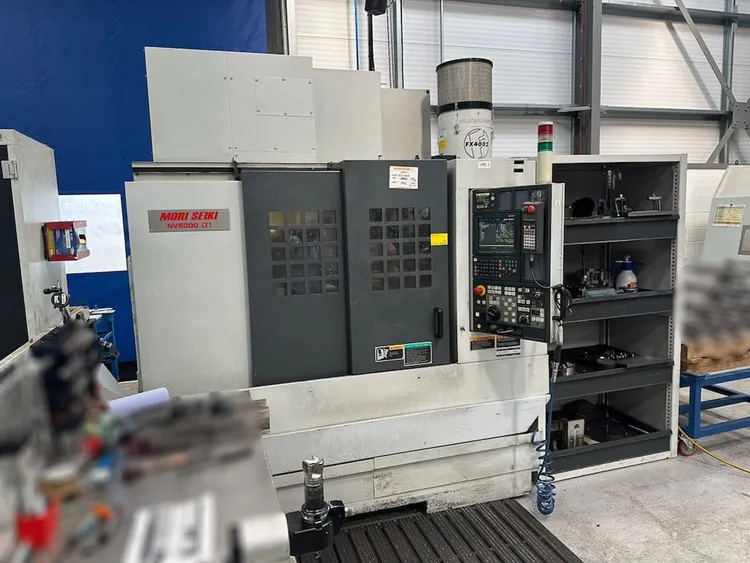

USED MORI SEIKI NV5000

£12,500
Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
MORI SEIKI
Model
NV5000
Stock #
48
Status
for sale

Description

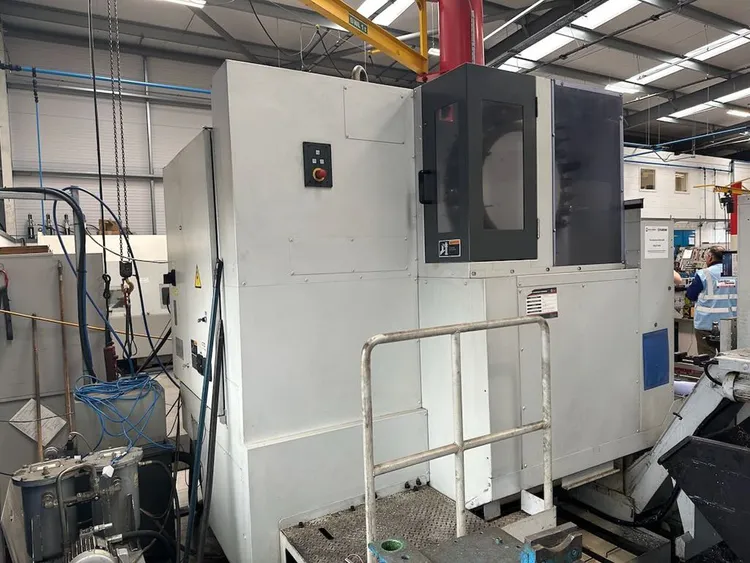

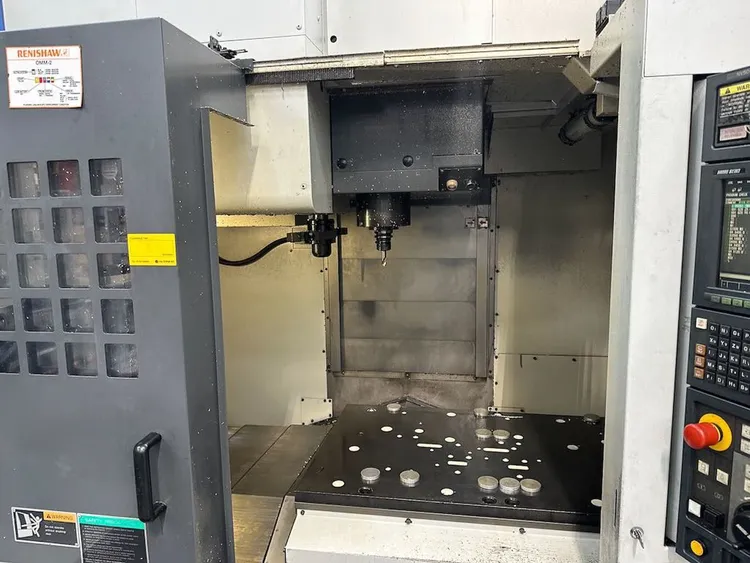

MORI SEIKI NV5000 vertical machining centre in used condition. Ideal for precision work and efficient operations. Contact for additional details and availability.

Specifications

X30.98"
Y20"
Z20"
Power81.79hp
RPM14000rpm

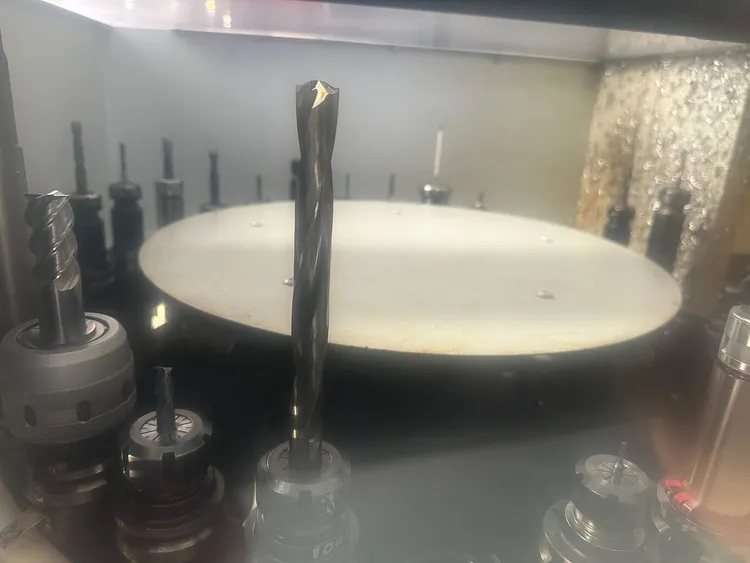

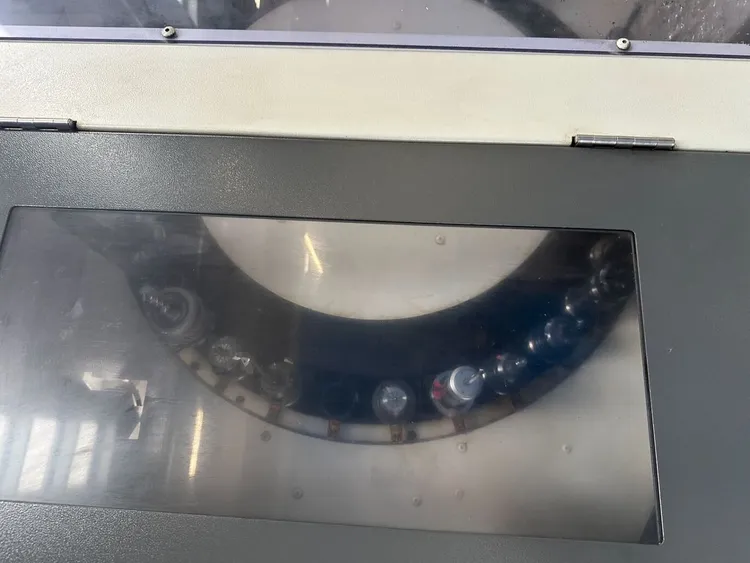

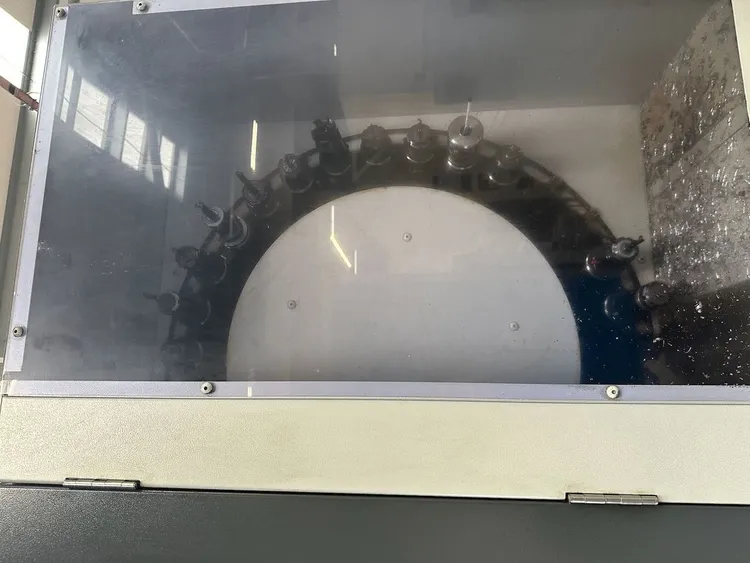

# ATC30
TaperBT40
Table-W23.62"
Table-L43.31"
# Axis4

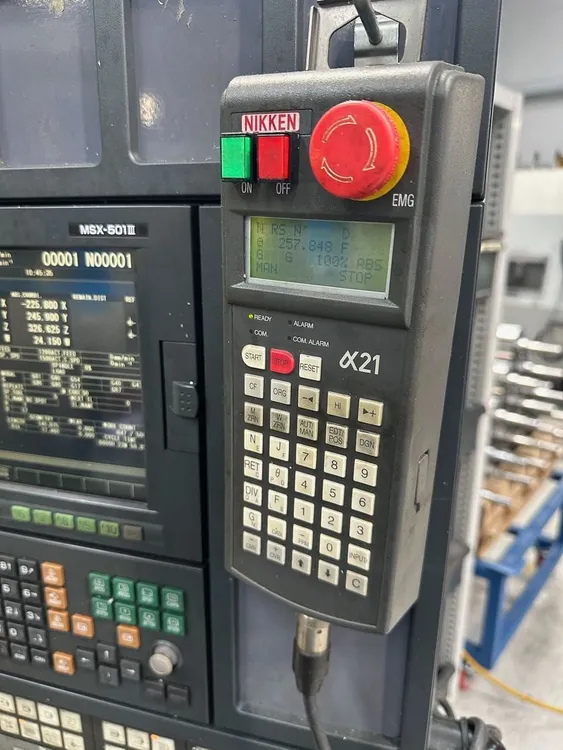

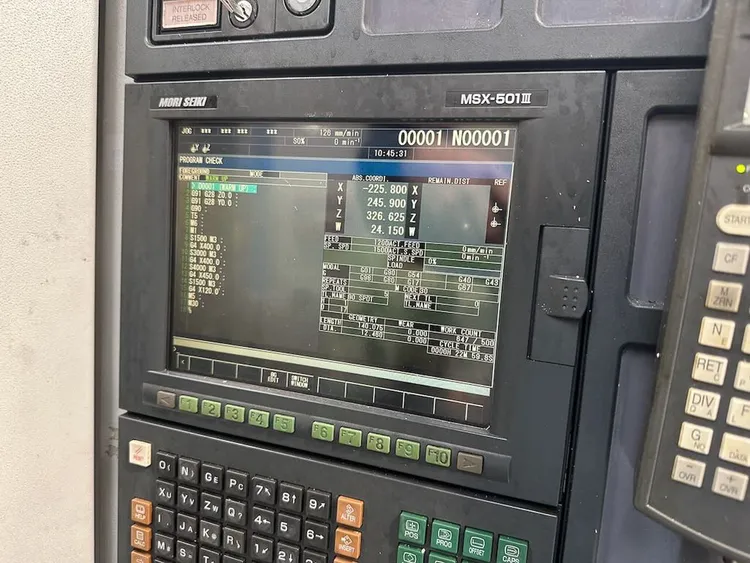

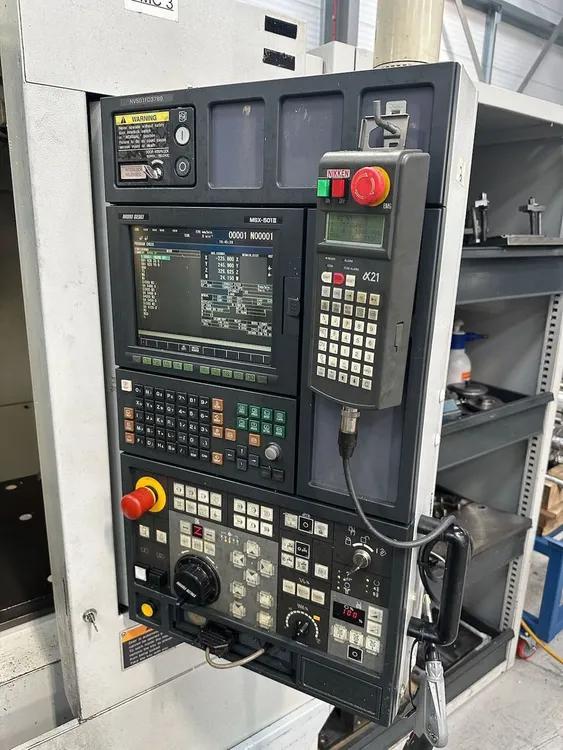

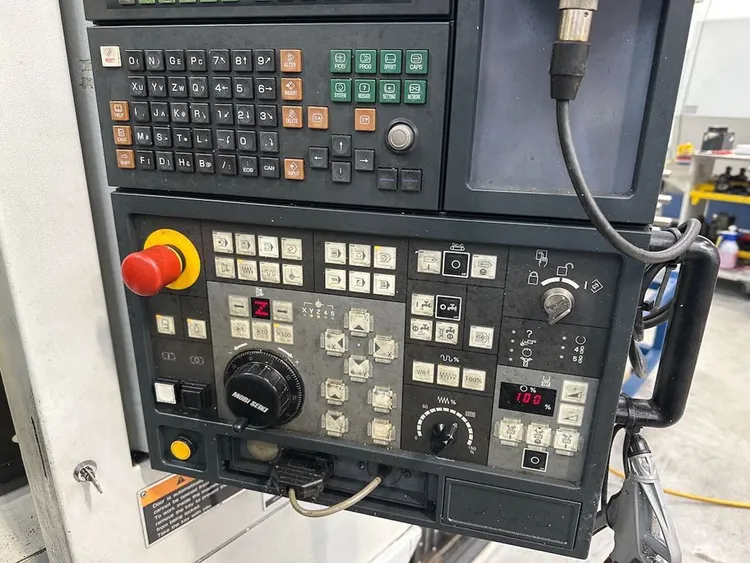

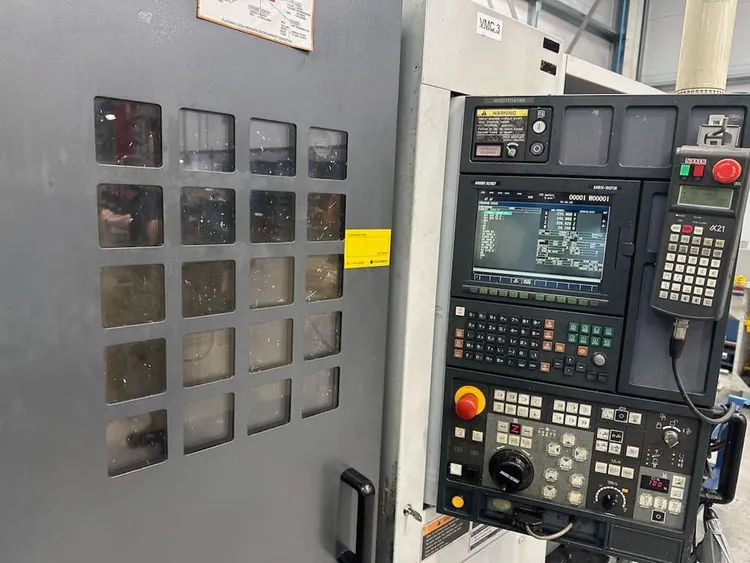

ControlCNC (MSX-501 III)
Dimensions 2788mm x 3040mm x 2700mm "
Weight6350KG

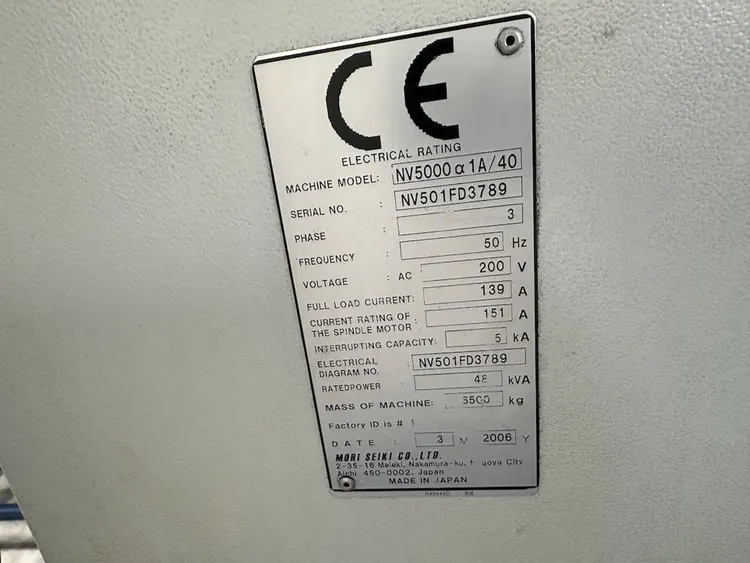

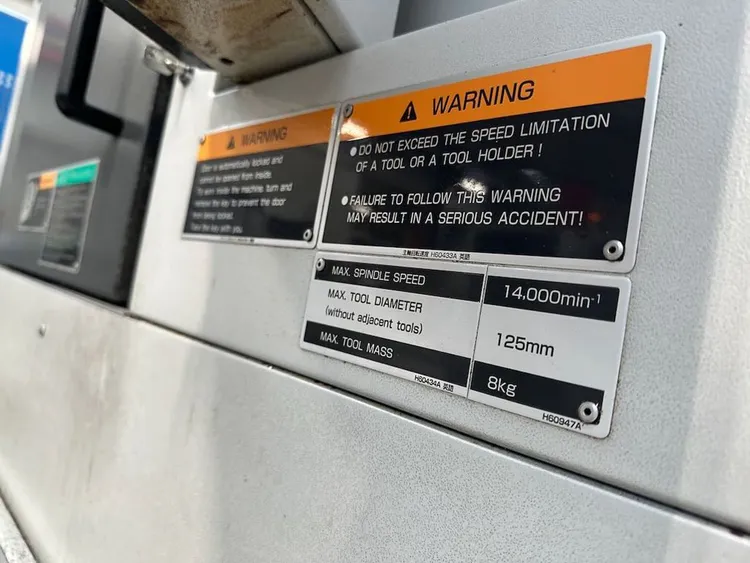

Brand: MORI SEIKI Year: 2006 Model: NV 5000 Application type: Milling Weight: 6350KG Dimensions: 2788mm x 3040mm x 2603mm (W x D x H) Control Unit: Model: MSX-501 III Number of Spindles: 1 Max Spindle Speed: 14,000 rpm Max Tool Diameter: 125mm Max Tool Mass: 8kg Number of Axis: 4 X-Axis Movement: 787mm Y-Axis Movement: 508mm Z Axis Movement: 508mm Workpiece Weight: 300kg Table Length: 1100mm Table Width: 600mm Tool Slots: 30 Tool Holder Type: BT40 Electronic Connection: 400 V Power Consumption: 61 kVA NOT INCLUDED Filtermist FX4002

Equipped With

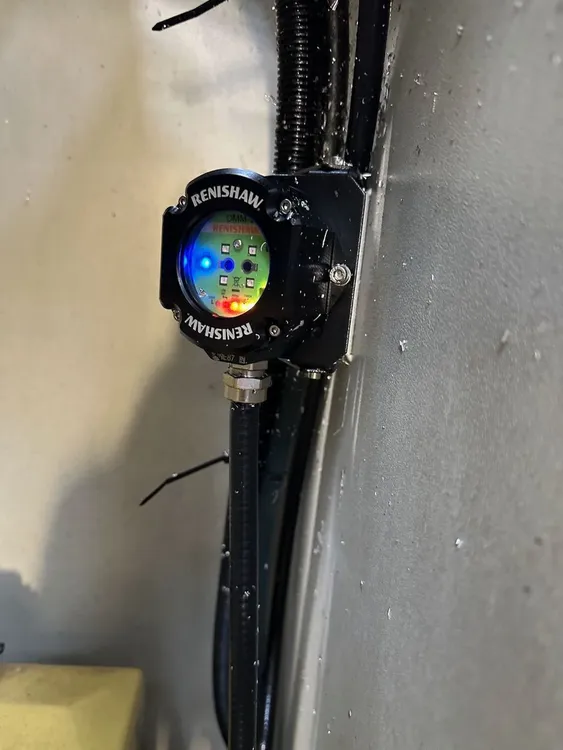

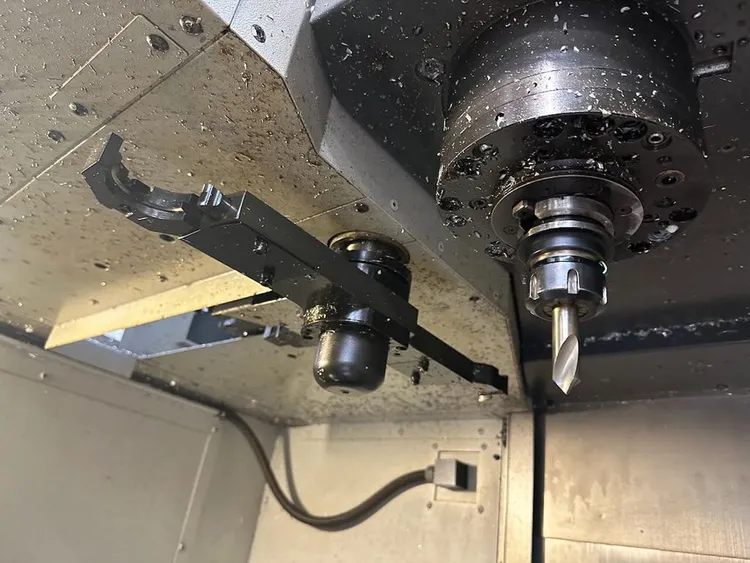

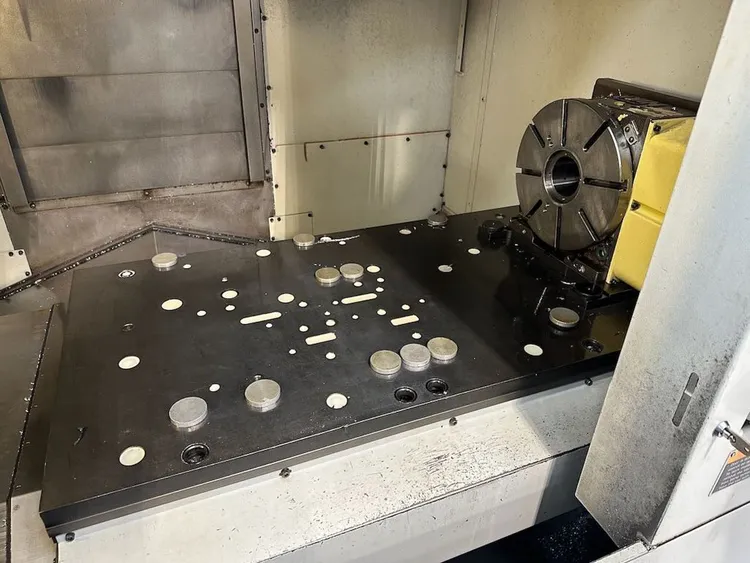

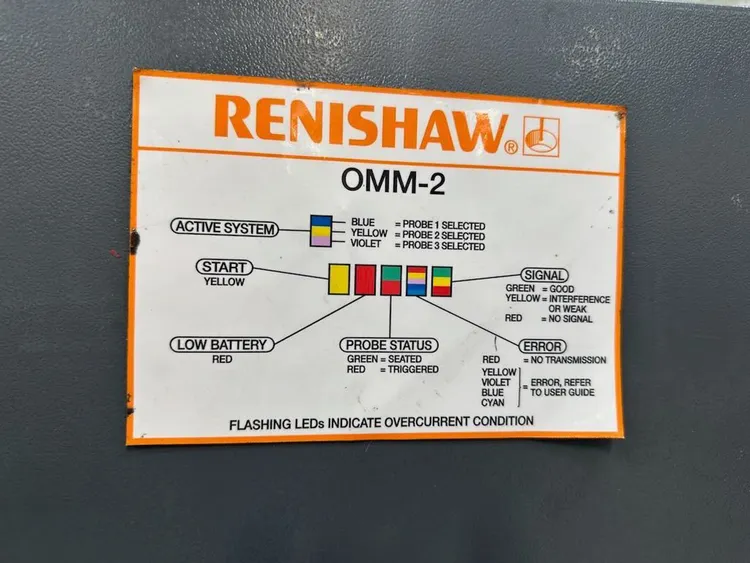

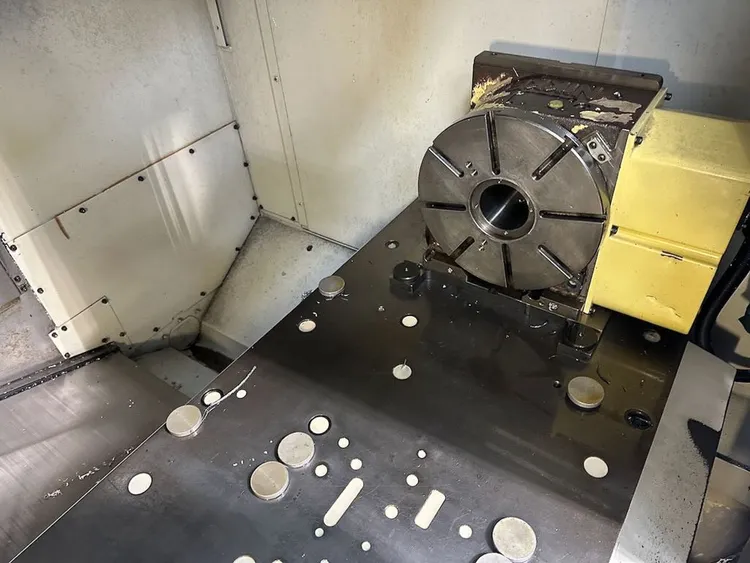

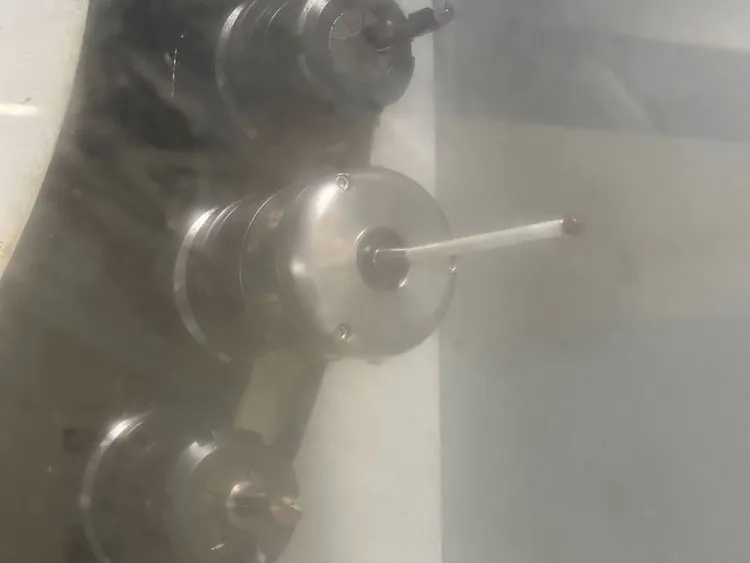

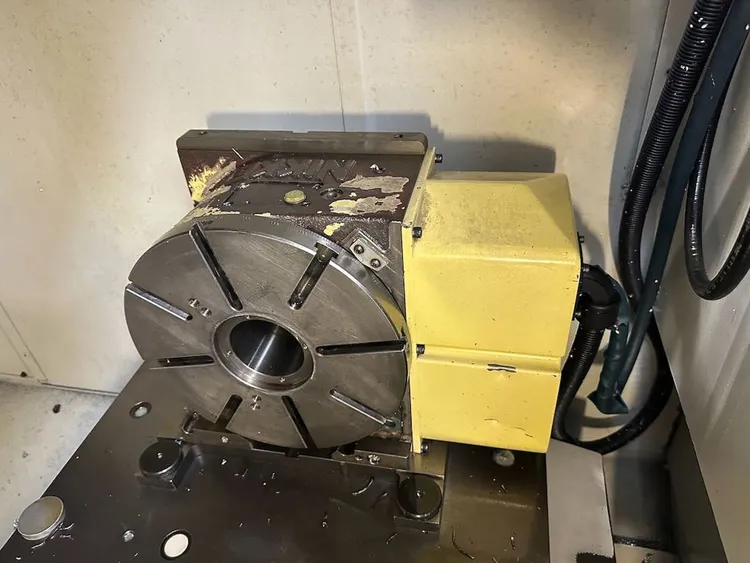

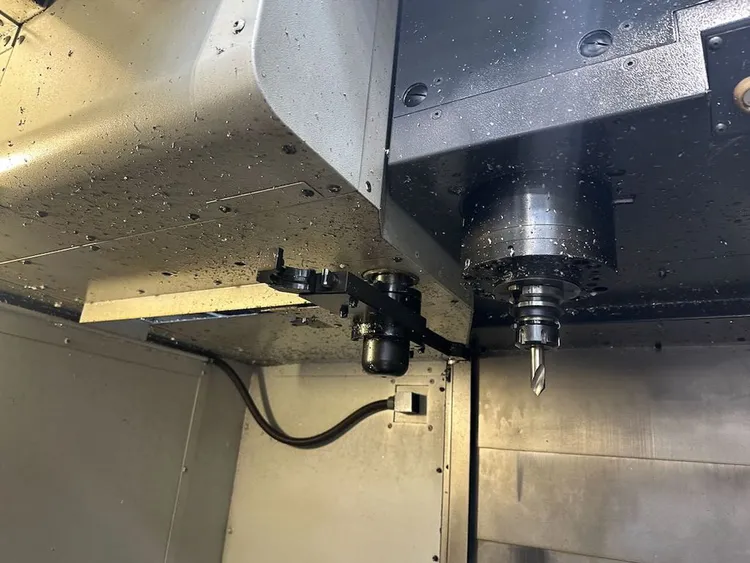

Renishaw OMP60 Touch Probe Nikken 4th Axis Selection of Spindle Tooling
