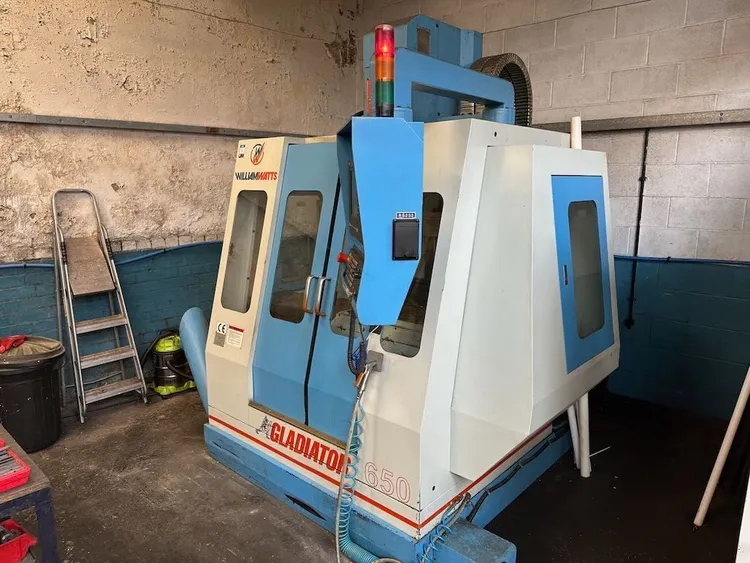

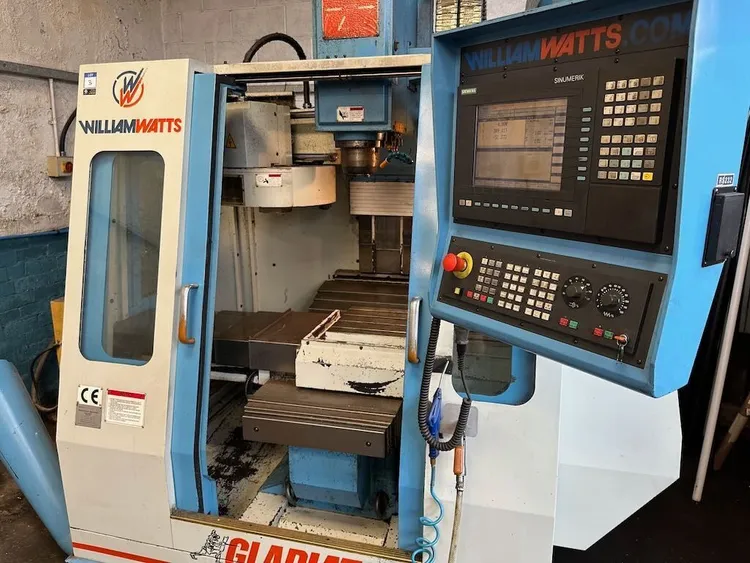

USED William Watts Gladiator 650

£4,200
Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
William Watts
Model
Gladiator 650
Status
for sale

Description

William Watts Gladiator 650 Vertical Machining Center in used condition. Ideal for precision tasks, this dependable unit combines rugged build with accurate performance for industrial applications.

Specifications

X25.59"
Y18.11"
Z19.68"
Power7.3616hp
RPM608000rpm
# ATC1624
TaperBT#40 (CAT#40 / DIN#40, 69871, 69872)
Table-W15.15"
Table-L33.46"
Dimensions 123.62 x 85.03 x 98.43 (SEMI) or 124.40 x 107.48 x 98.43 (FULL) "
Weight3100 kgs

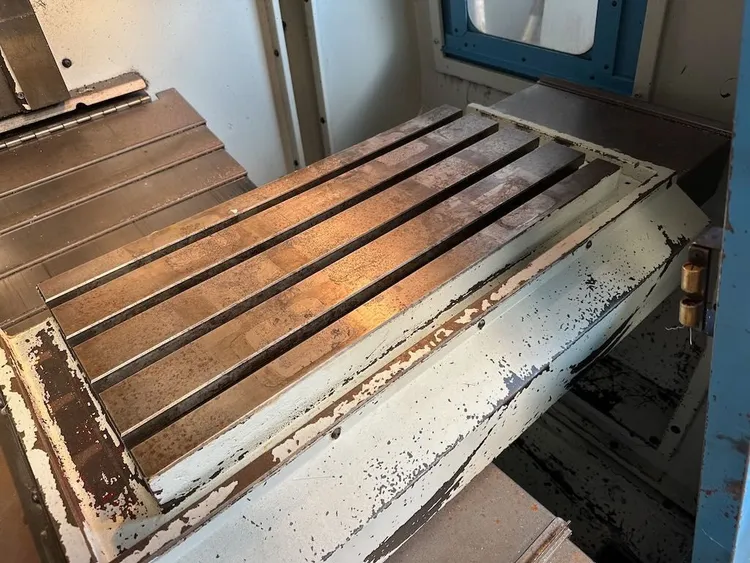

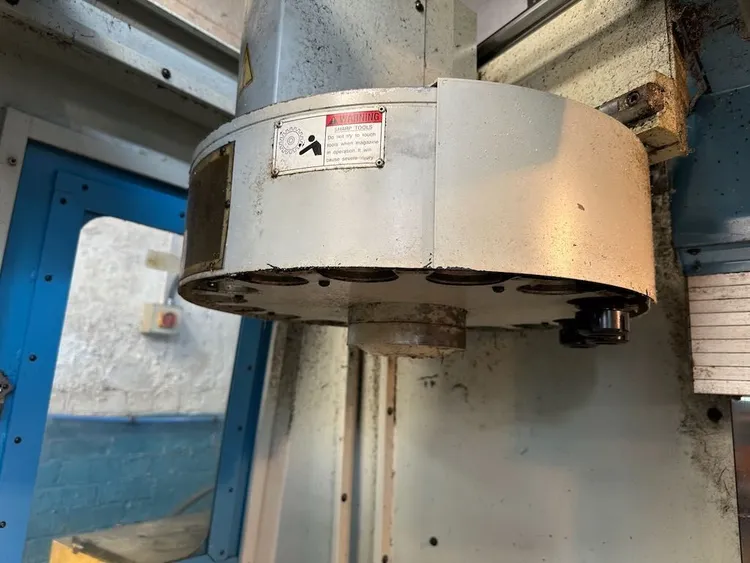

Model: VMC-650 Work Table Size: 385mm x 850mm T-Slots: 18mm x 4 x 80mm / Precisely Ground Max Table Load: 350kgs X/Y/Z Axis Travel: 650mm x 460mm x 500mm Positioning Accuracy: 0.003mm / 300mm Repeatability: ±0.003mm Spindle Nose to Table: 82 – 582mm Spindle Centre to Column: 480mm Spindle Taper: BT#40 (CAT#40 / DIN#40, 69871, 69872) Spindle Speed Range: 60 – 8000rpm Spindle Type: AC Spindle Motor, Infinitely Variable Tool Holder: DIN 69871 Type B compatible (Optional) Spindle Diameter: Ø65mm Feed Rate: 1 – 5000mm/min Rapid Traverse Rate: X/Y = 12m/min, Z = 10m/min Coolant System: Nil ATC Type: GENOVA Type 16 ATC (Optional Arm Type 24 ATC) Max Tool Diameter: Ø80mm Tool Change Type: Bi-directional random, shortest path Max Tool Weight: 7kgs / pc Spindle Motor Power: 3.7 / 5.5kW – 9 / 12kW (Depends on CNC/AC Servo) Feed Motor Power: 0.5 – 3.5kW (Depends on CNC/AC Servo) Coolant Motor: 1/4HP Lubrication Motor: 1/4HP Machine Dimensions (SEMI): 3140mm x 2160mm x 2500mm Machine Dimensions (FULL): 3160mm x 2730mm x 2500mm Net Weight: 3100kgs
