USED William Watts Gladiator 850

Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
William Watts
Model
Gladiator 850
Stock #
73
Status
pending sale

Description

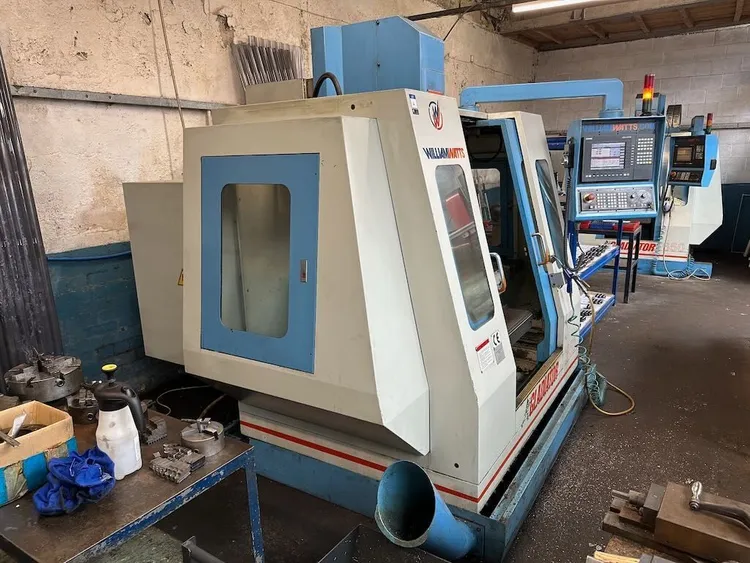

William Watts Gladiator 850 Vertical Machining Center in used condition, available now. Ideal for efficient, precise machining tasks. Act quickly to add this reliable machine to your production line.

Specifications

X33.46"
Y19.68"
Z19.68"
Power4.9hp
RPM8000rpm
# ATC16
TaperBT#40 (CAT#40 / DIN#40,69871,69872)
Table-W16.73"
Table-L41.33"
# Axis3
Dimensions 136.22 x 111.02 x 100.39 "
Weight8377.56

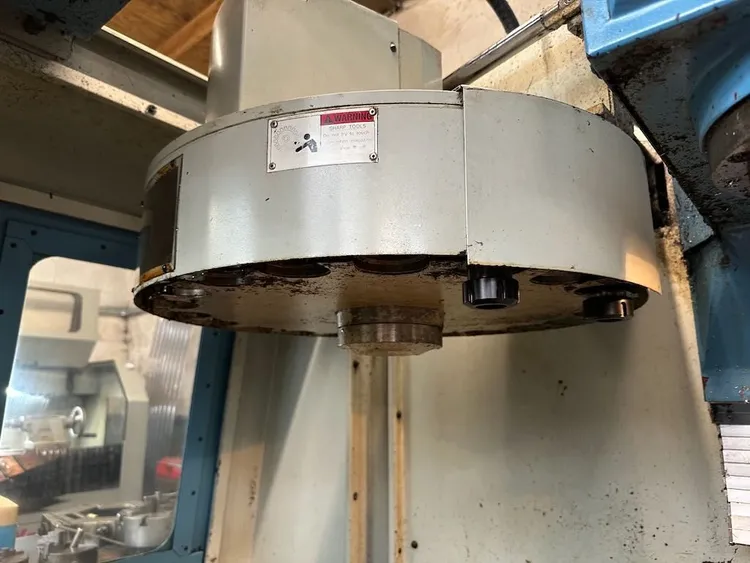

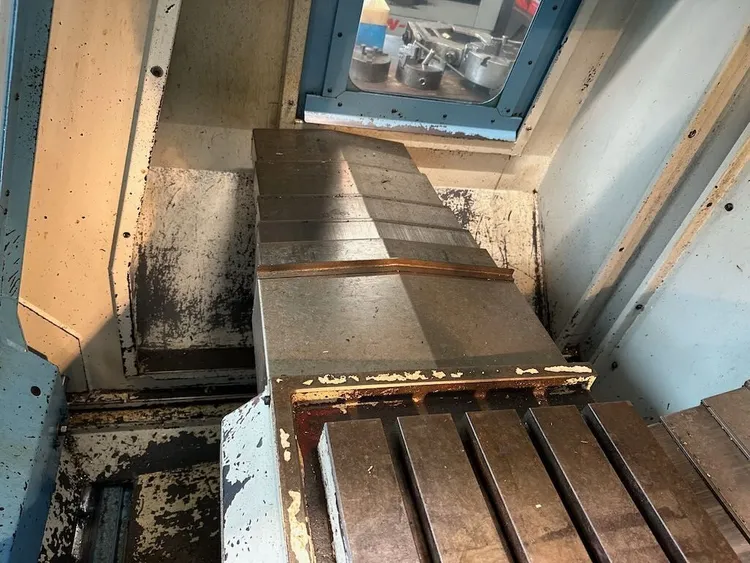

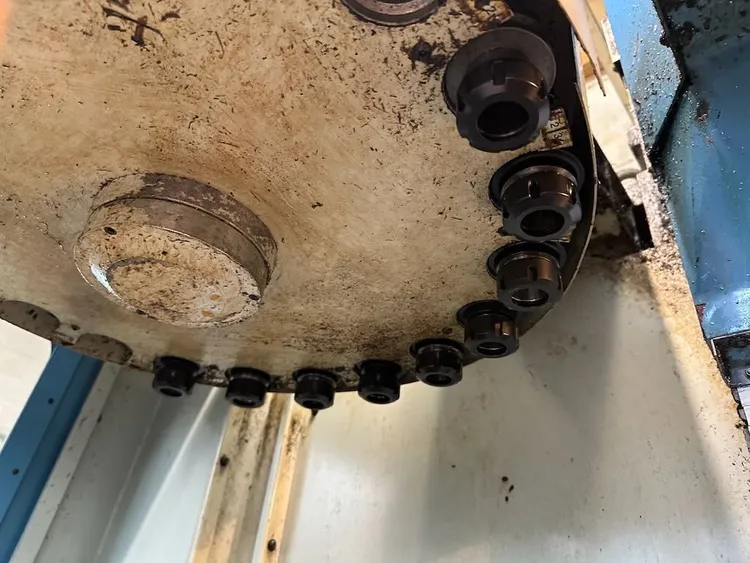

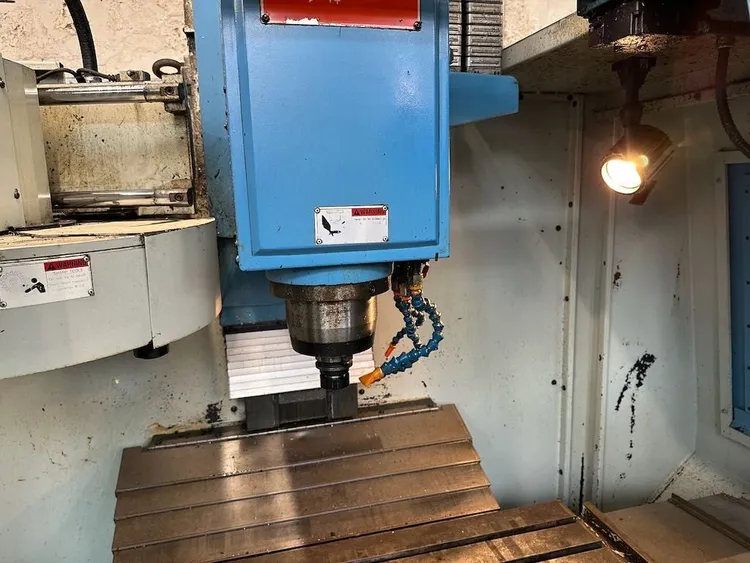

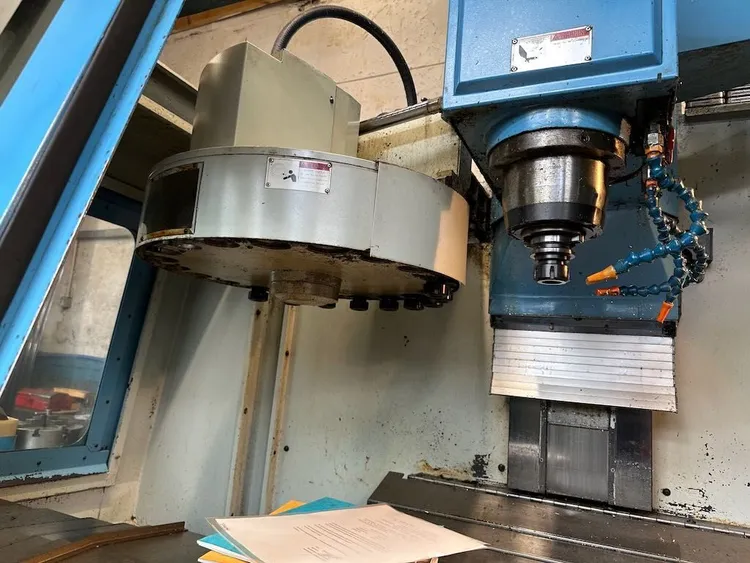

Model: VMC-850 Work Table Size: 425mm x 1050mm T-Slots: 18mm x 4 x 80mm / Precisely Ground Max Table Load: 500kgs X/Y/Z Axis Travel: 850mm x 500mm x 500mm Positioning Accuracy: 0.003mm / 300mm Repeatability: ±0.003mm Spindle Nose to Table: 132 – 632mm Spindle Centre to Column: 510mm Spindle Taper: BT#40 (CAT#40 / DIN#40, 69871, 69872) Spindle Speed Range: 60 – 8000rpm Spindle Type: AC Spindle Motor, Infinitely Variable Tool Holder: DIN 69871 Type B compatible (Optional) Spindle Diameter: Ø65mm Feed Rate: 1 – 5000mm/min Rapid Traverse Rate: X/Y = 12m/min, Z = 10m/min Coolant System: Nil ATC Type: GENOVA Type 16 ATC (Optional Arm Type 24 ATC) Max Tool Diameter: Ø80mm Tool Change Type: Bi-directional random, shortest path Max Tool Weight: 7kgs / pc Spindle Motor Power: 3.7 / 5.5kW – 9 / 12kW (Depends on CNC/AC Servo) Feed Motor Power: 0.5 – 3.5kW (Depends on CNC/AC Servo) Coolant Motor: 1/4HP + CH4-20 Lubrication Motor: 1/4HP Machine Dimensions (SEMI): 3460mm x 2820mm x 2550mm Machine Dimensions (FULL): 3730mm x 3055mm x 2550mm Net Weight: 3800kgs
