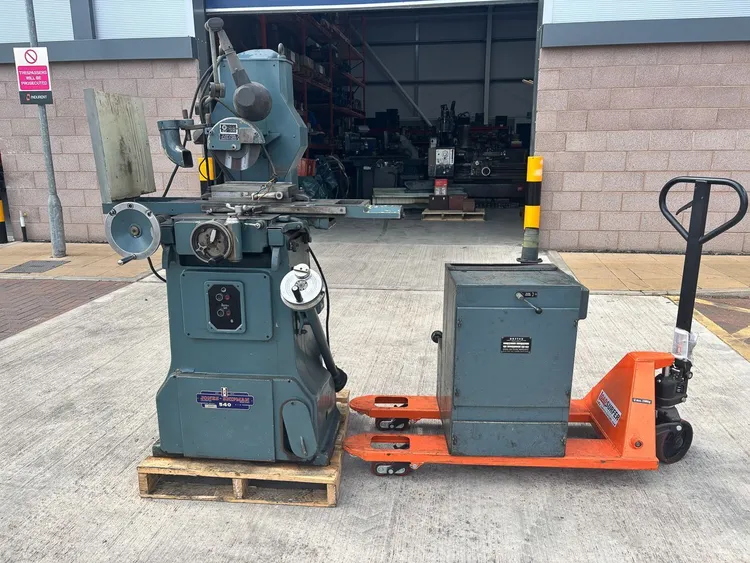

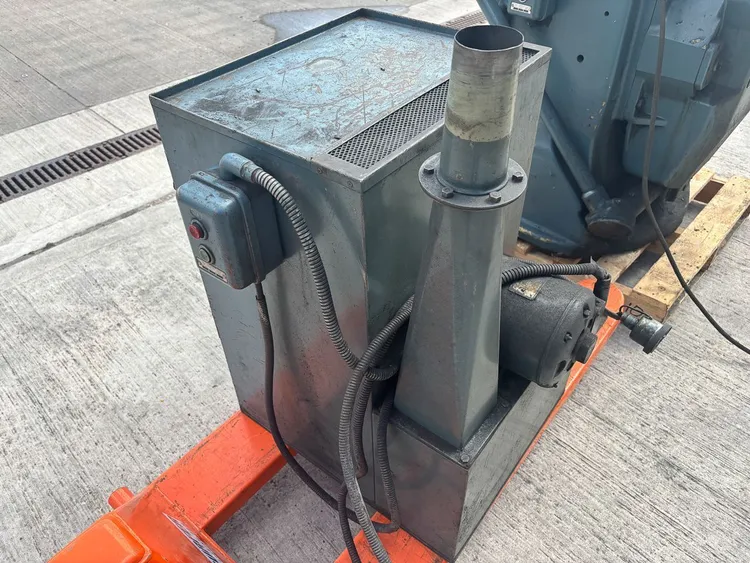

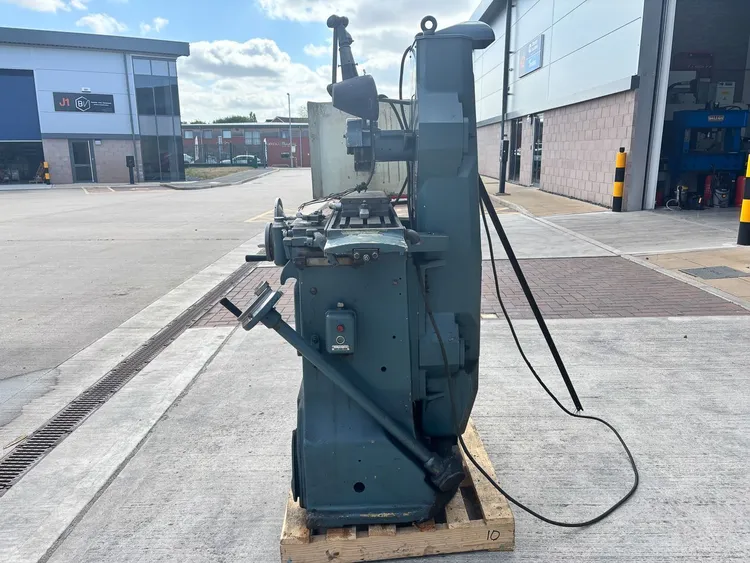

USED JONES & SHIPMAN 540 with Extraction

£750
Send Inquiry

Overview

Type
Reciprocating Surface Grinders
Manufacturer
JONES & SHIPMAN
Model
540
Status
for sale

Description

JONES & SHIPMAN 540 Reciprocating Surface Grinder, used condition, ideal for precision surface grinding tasks. Reliable performance suitable for various workshop needs. Efficiently handles demanding workloads, ensuring superior results every time.

Specifications

Table-W5.98425"
Table-L17.9921"
Horz/Vert'Horz'
Power2.01153hp
Grinding Wheel Width0.511811"
Grinding Wheel Dia.7.08661"
Weight915Kg
Table size: 457 x 152mm Longitudinal travel of table: 483mm Total cross traverse of table: 168mm Traverse speed range per min: 1,5 – 18m Table traverse per revolution of handwheel: 60mm Grinding wheel size (standard): 180 x 13 x 31mm - 75mm bore. Grinding wheel size (max): 180 x 25 x 31mm - 75mm bore Speed of grinding wheel: 3000rpm Wheelhead motor: 1.5kW Hydraulic pump motor: 0.55kW Manual rise & fall to Wheelhead Weight: 915Kg
