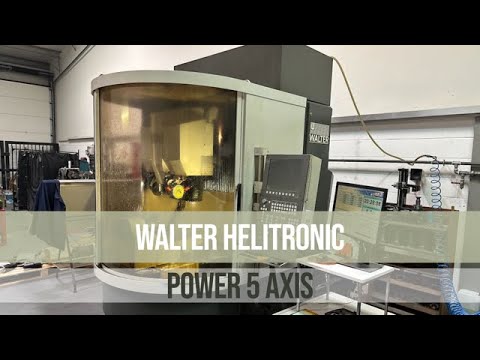

USED WALTER HELITRONIC POWER

Send Inquiry

Overview

Type
Tool & Cutter Grinders
Manufacturer
WALTER
Model
HELITRONIC POWER
Status
for sale

Description

Specifications

# Axis5
Centers350mm
Grinding Wheel Dia.200mm
Power11.5kw
Max RPM10500rpm
ControlCNC (HMC-500)
Dimensions 2427 x 2930 x 2273mm "
Weight4600kg
Specifications Maximum X axis feed: 470mm Maximum Y axis feed: 320mm Maximum Z axis feed: 660mm C rotary axis: 200 degrees Maximum diameter of the workpiece: 320mm Maximum workpiece length in face grinding: 280mm Spindle speed range: 0-9500 rpm Height in the centre of the machine (with/without worktable): 145/190mm Total power requirements: 25kW
