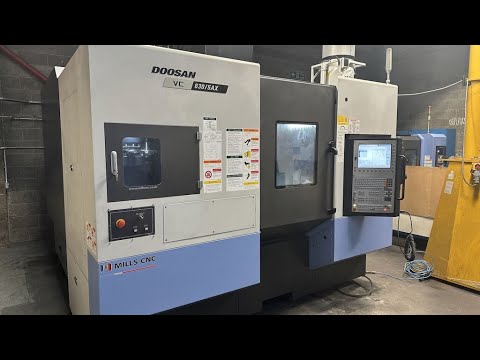

USED 2019 DOOSAN VC 630/5AX - Immaculate Machine with very low hours

Send Inquiry

Overview

Type
Vertical Machining Centers (5-Axis or More)
Manufacturer
DOOSAN
Model
VC 630/5AX
Year
2019
Stock #
78
Status
for sale

Description

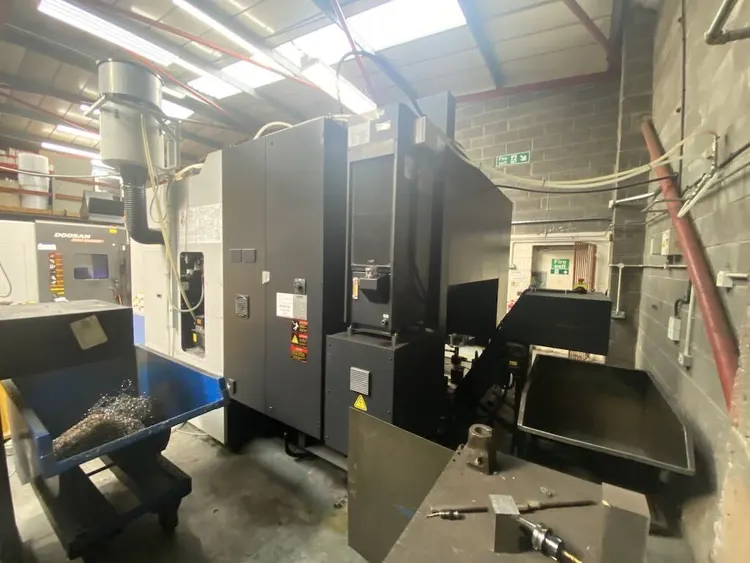

Excellent condition with only 825 Spindle hours, Doosan 5 Axis Vertical Machining Centre, with Heidenhain TNC640 Control, 60 ATC, Filtermist FX7002, Renishaw RMP600 Spindle and Touch Probe, LNS Swarf Conveyor, and Chip Hopper. Cut 99% Aluminium 1% Steel. Machine on only 3621 hours

Specifications

X25.59"
Y30.12"
Z20.47"
# Axis5
Power30kw
RPM12000rpm
# ATC60
TaperBT-40
ControlCNC (Heidenhain TNC640)
Dimensions 141.7 x 141.7 "
Weight12500 kg
Travels
• X axis travel: 650 mm
• Y axis travel: 765 mm
• Z axis travel: 520 mm Rotary Table
• Table diameter: 630 mm
 • A axis travel: +30 to minus 120 degrees
 • C axis travel: 360 degrees continuous
• Maximum table load: 500 kg
 • Maximum component diameter: approx 730 mm Rotaries: A axis +30° to −120°, C axis 360°. Spindle to table: 210 to 730 mm Rapid feeds: X 40 m/min, Y 40 m/min, Z 36 m/min
