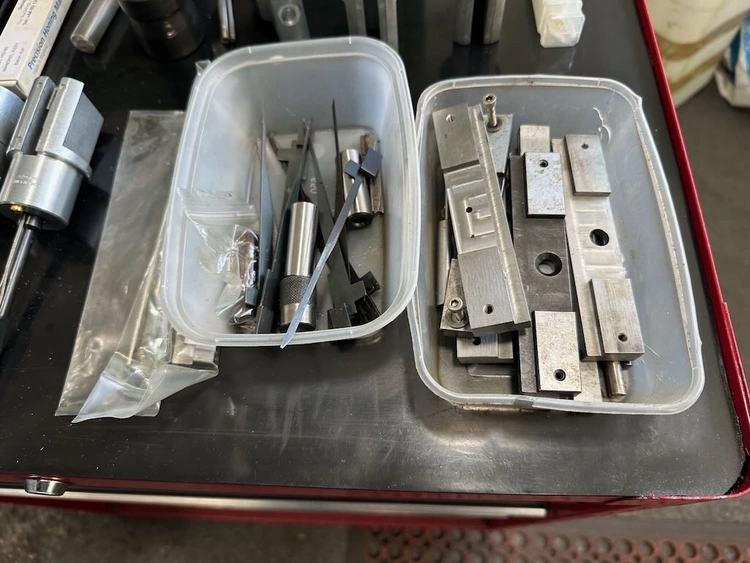

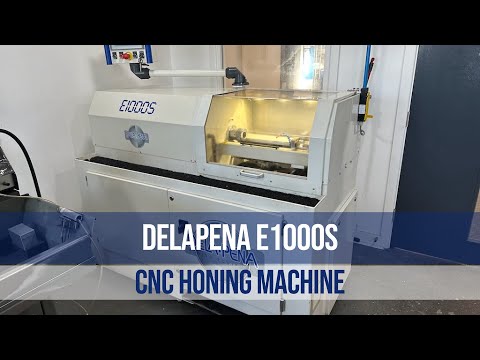

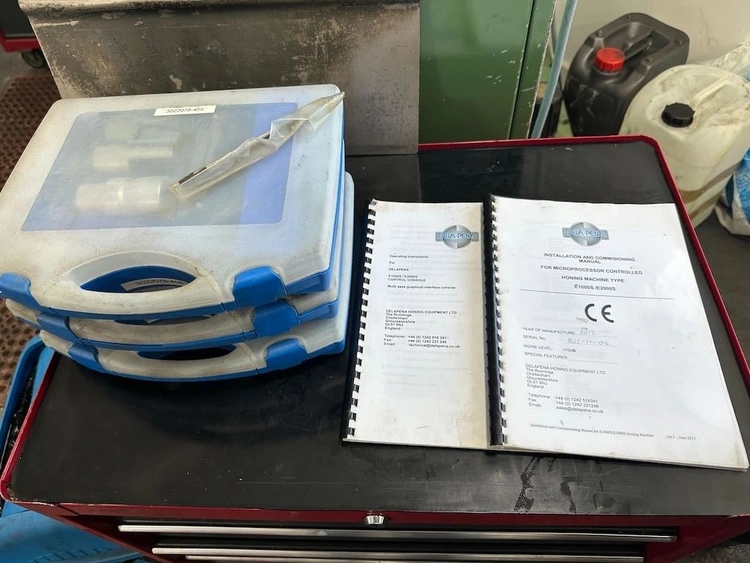

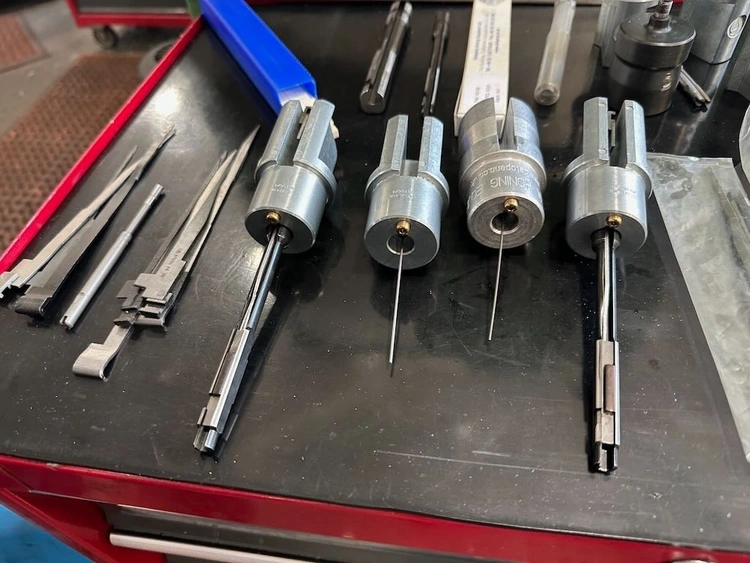

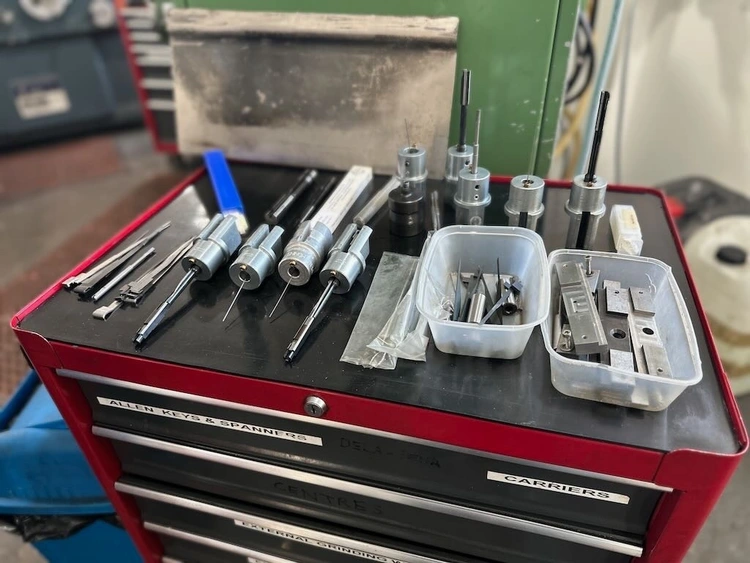

USED 2013 2013 DELAPENA E1000S, Acessotries Package and in nexcellent condtion

Send Inquiry

Overview

Type
Honing Machines
Manufacturer
DELAPENA
Model
E1000S
Year
2013
Stock #
79
Status
for sale

Description

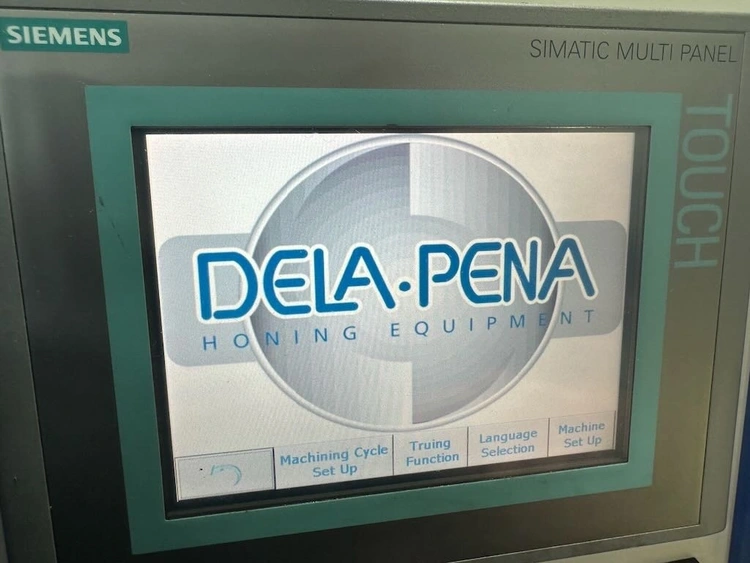

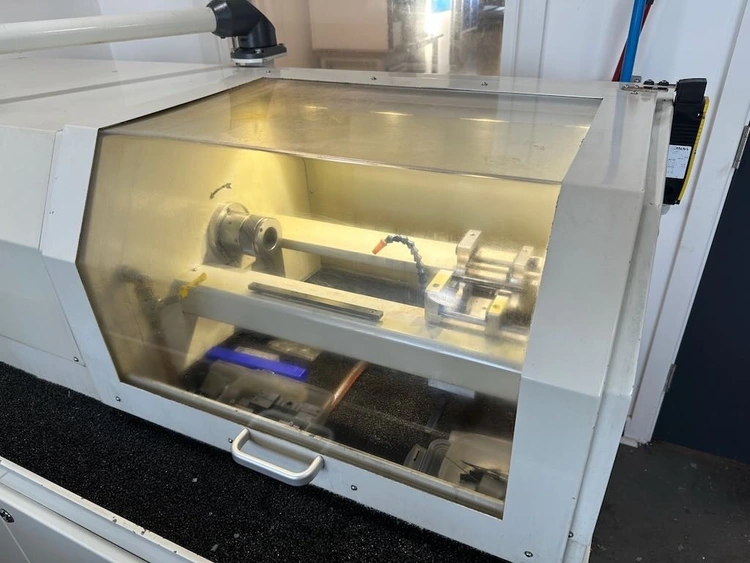

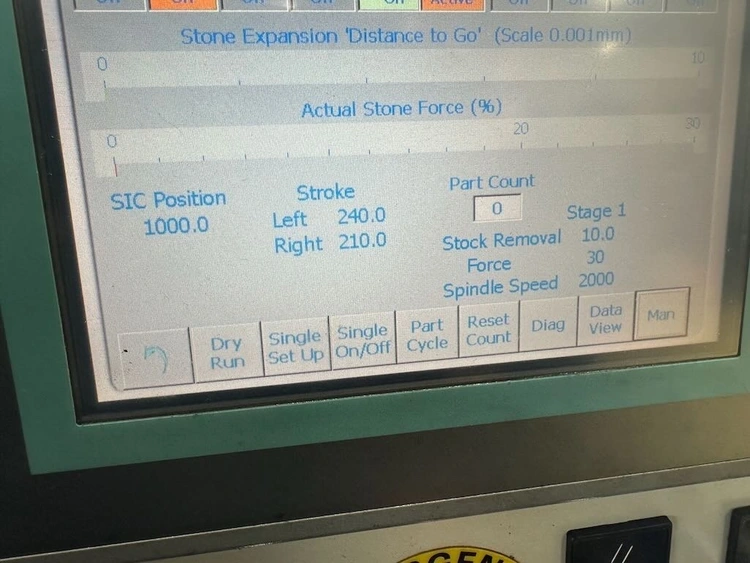

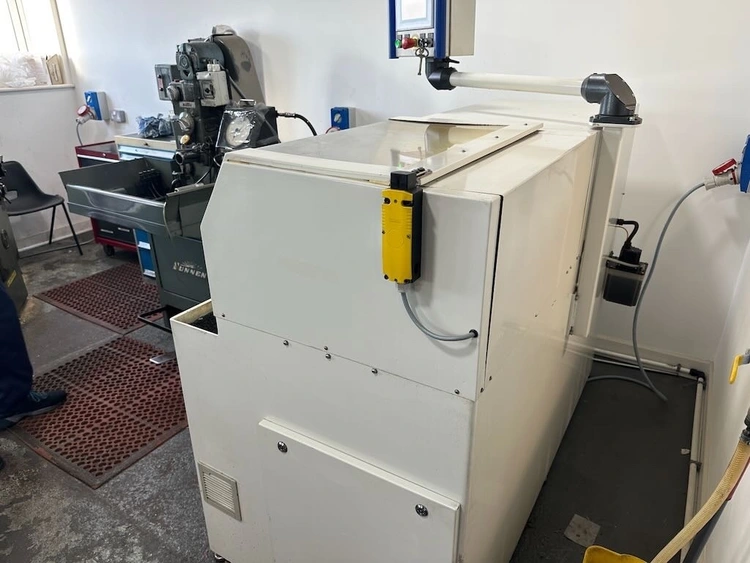

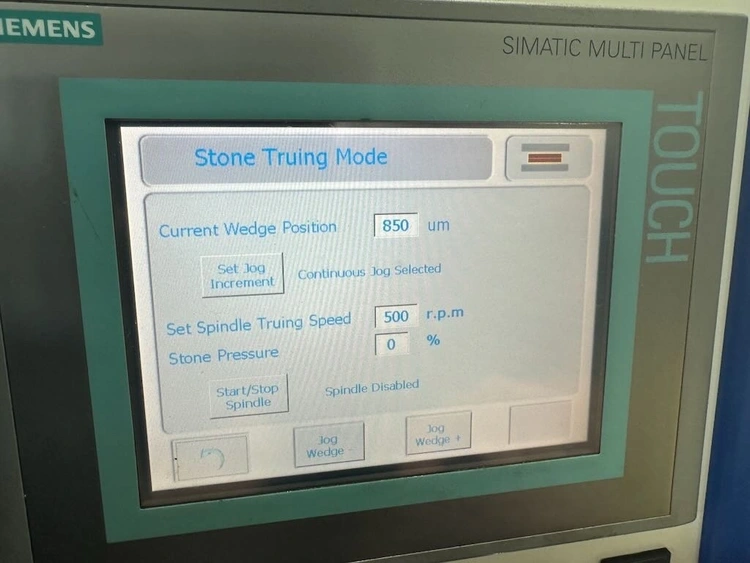

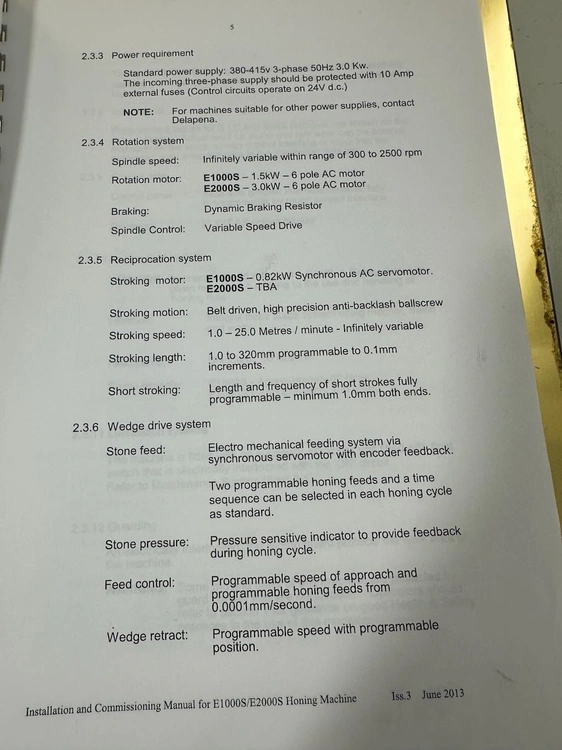

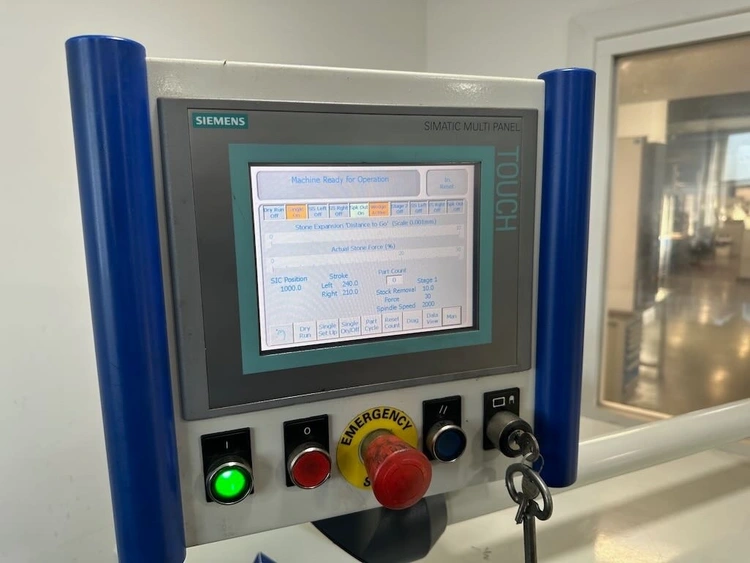

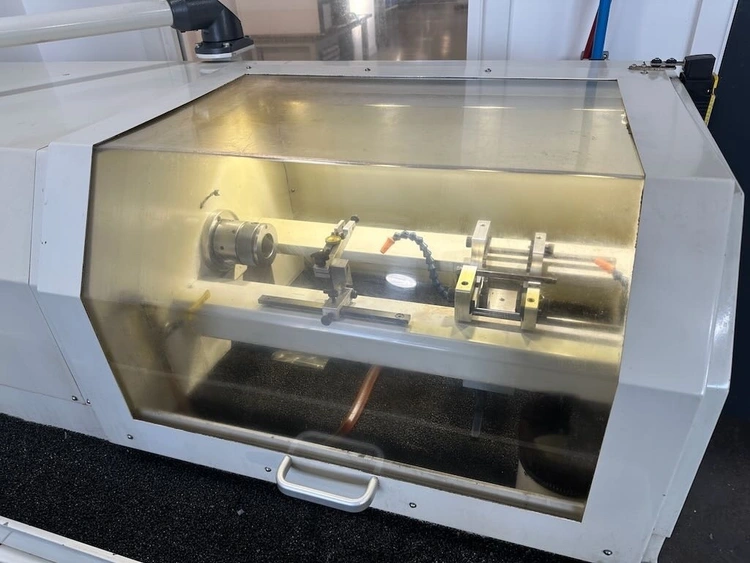

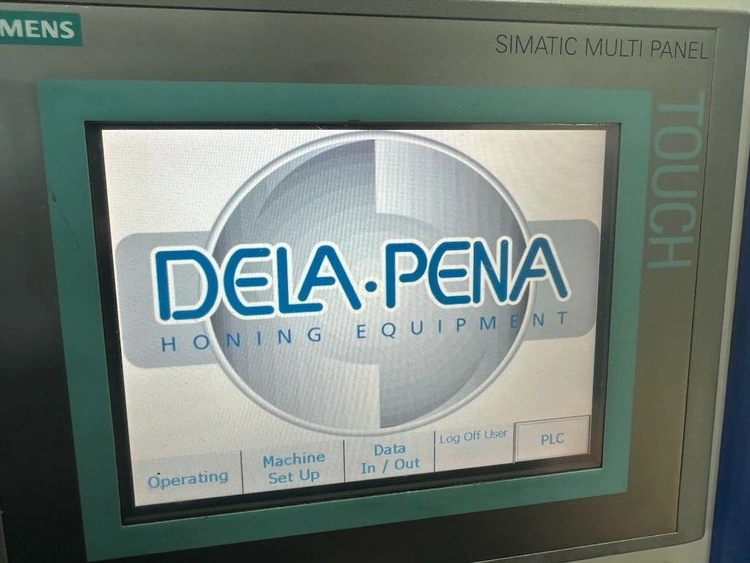

The Delapena 1000S CNC Honing Machine was bought for a contract that fell through. In excellent condition and has hardly been used. Suitable For: Precision internal bore honing Delapena 1000S CNC Honing Machine – Specifications Capacity Honing diameter range: approx. 1.14 mm – 80 mm (application dependent) Maximum stroke length: approx. 320 mm Stroke speed: 1 – 25 m/min (fully adjustable) Spindle Spindle speed range: 300 – 2,500 rpm (infinitely variable) Typical spindle motor power: approx. 1.5 kW – 3 kW (model dependent) Feed & Accuracy Programmable stroking and feed control Incremental feed resolution down to 0.1 micron Honing accuracy capable below 1 micron (depending on tooling & application) Control System CNC control with touchscreen HMI Conversational programming interface USB program loading Remote diagnostic capability (where fitted) Construction & Features Heavy-duty industrial machine structure Servo-controlled stroking and rotational feed Precision positioning for bore finishing Designed for repeatable, high-accuracy honing cycles Electrical 380 – 415V, 3-phase, 50 Hz (standard industrial supply) Approximate Machine Data Machine weight: approx. 700 kg Compact footprint for workshop installation Typical Applications High-precision bore finishing Automotive, aerospace, hydraulic, medical, tooling components Production and prototype environments Notes Specific details may vary slightly by build specification Ideal for precision finishing of bores where ultra-fine tolerance and surface finish are required Includes Tooling and Manuals And can be loaded to suitable transport free of charge.
