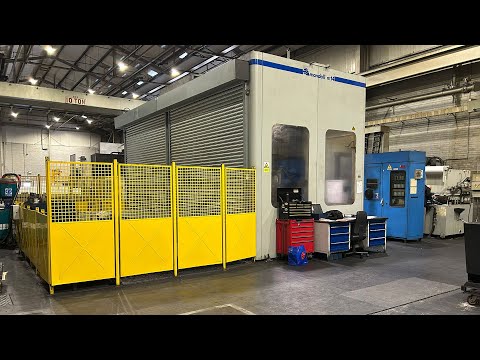

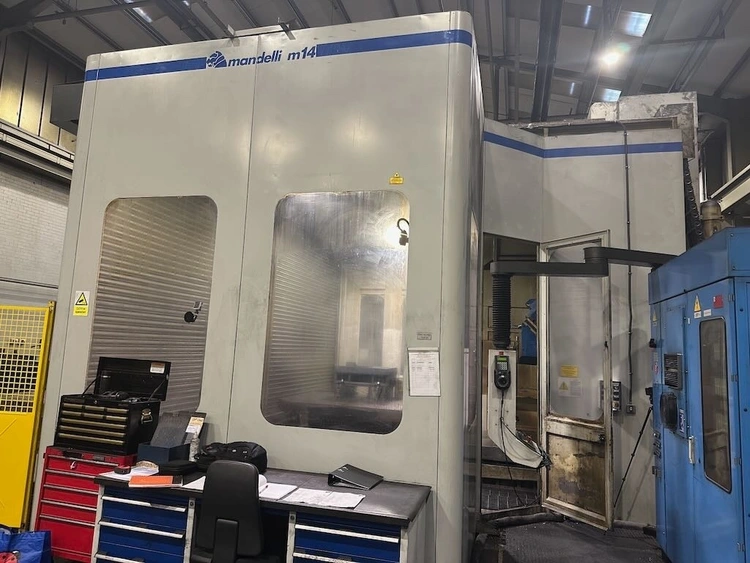

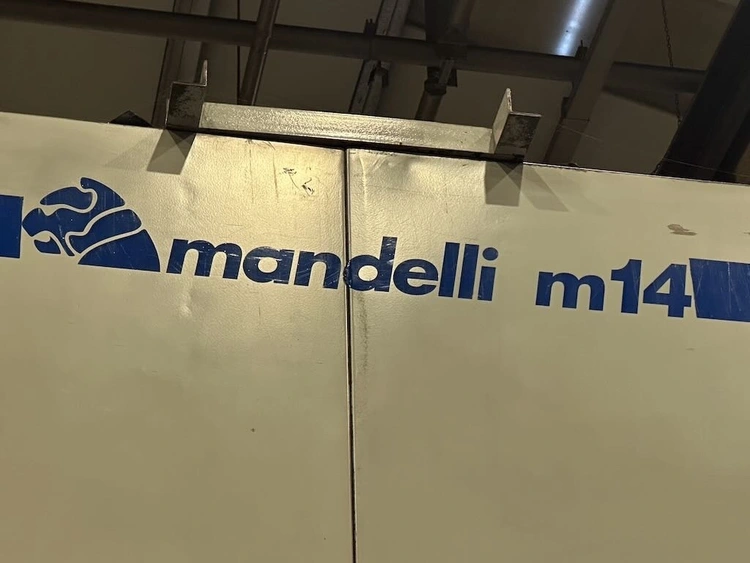

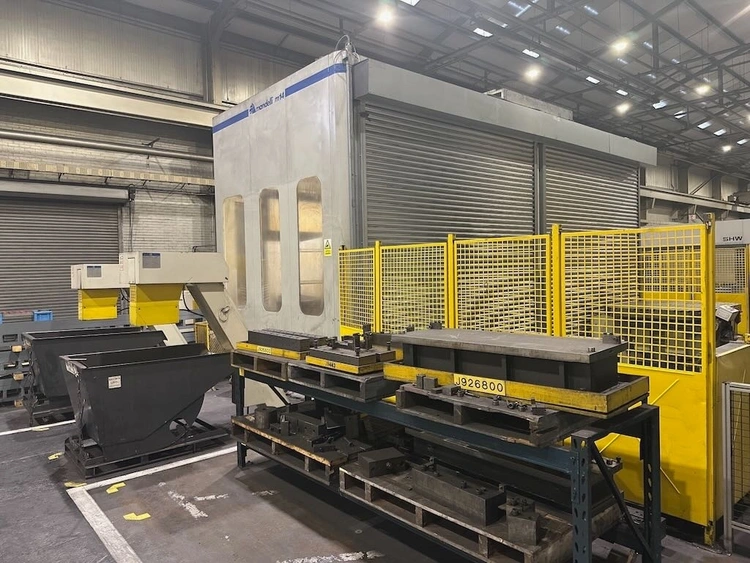

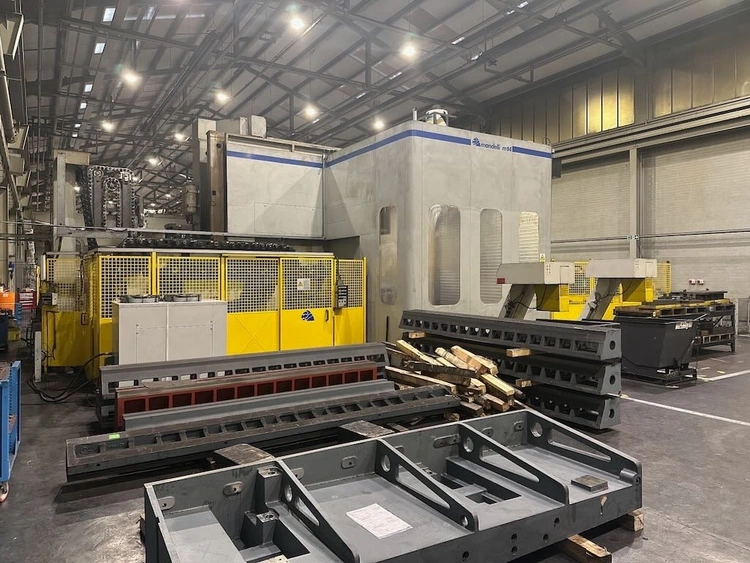

USED 1999 Mandelli M14 5 Axis Twin Pallet Machining Centre, Complete With 2 No Right-Angled Heads To Allow 5 Face Machining

Send Inquiry

Overview

Type
Horizontal Machining Centers
Manufacturer
MANDELLI
Model
M14
Year
1999
Status
for sale

Description

This large-capacity, rare machine is currently in full production and remains in daily use within a leading UK precision engineering PLC. Maintained to high operational standards, it will be available for release at the end of the first quarter of 2026. This represents an exceptional opportunity to acquire a premium machine that has been operated in a controlled, professional production environment. Please contact us to make an appointment to view.

Specifications

X157.48"
Y98.43"
Z86.61"
Power40kw
RPM3000rpm
# ATC100
TaperSK50
Pallet-W78.74"
Pallet-L62.99"
# Axis5

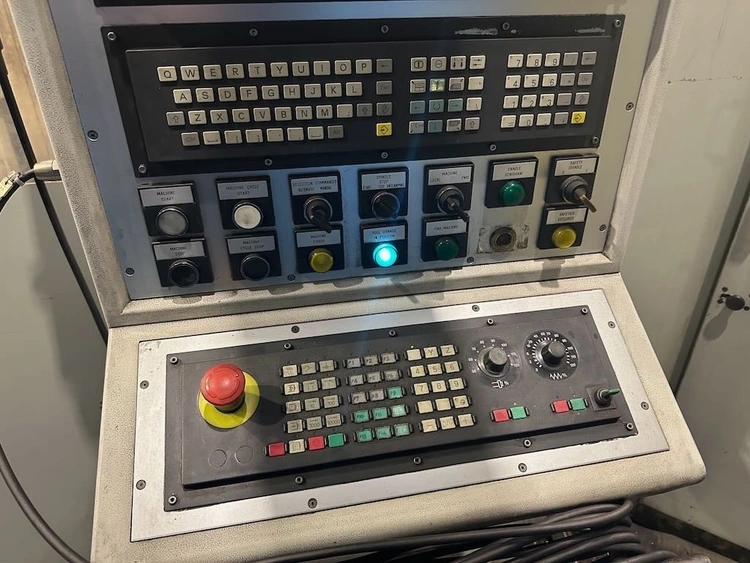

ControlCNC (Siemens Sinumerik 840D)
Dimensions 512 x 433 x 193 "
Weight80,000kg Approx

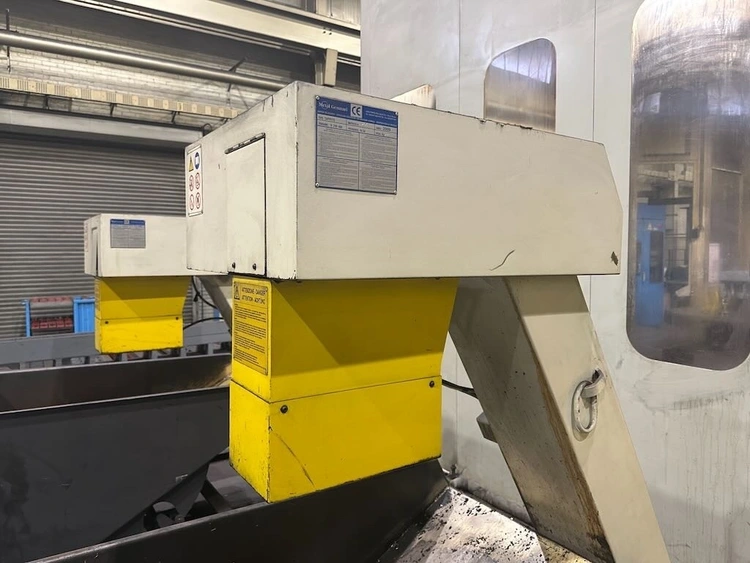

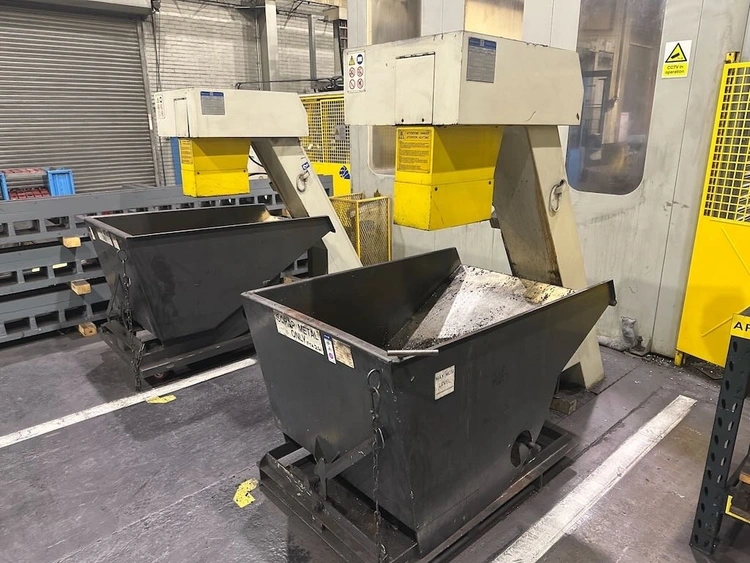

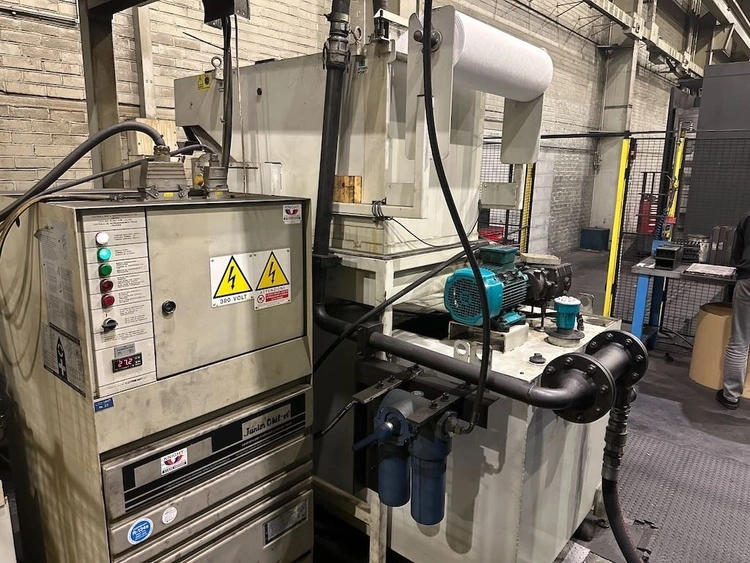

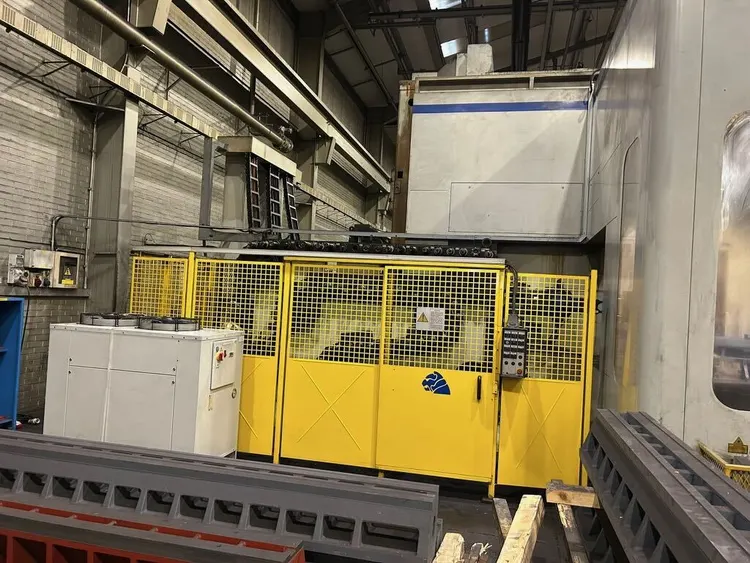

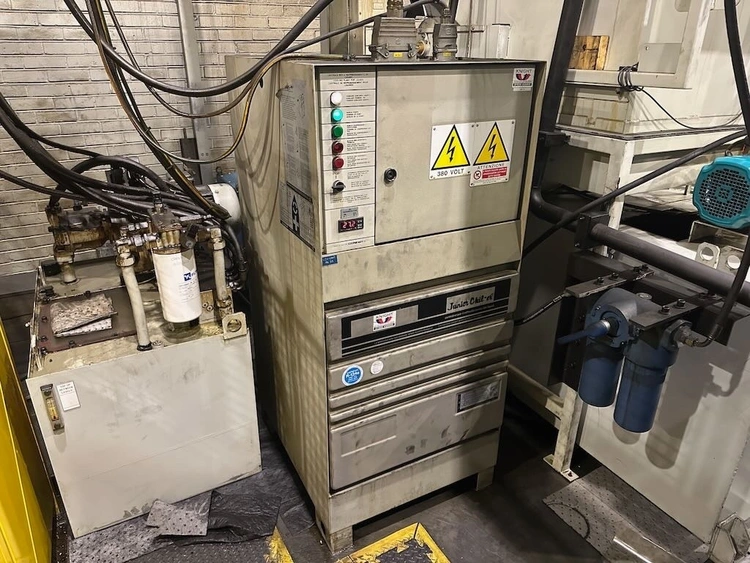

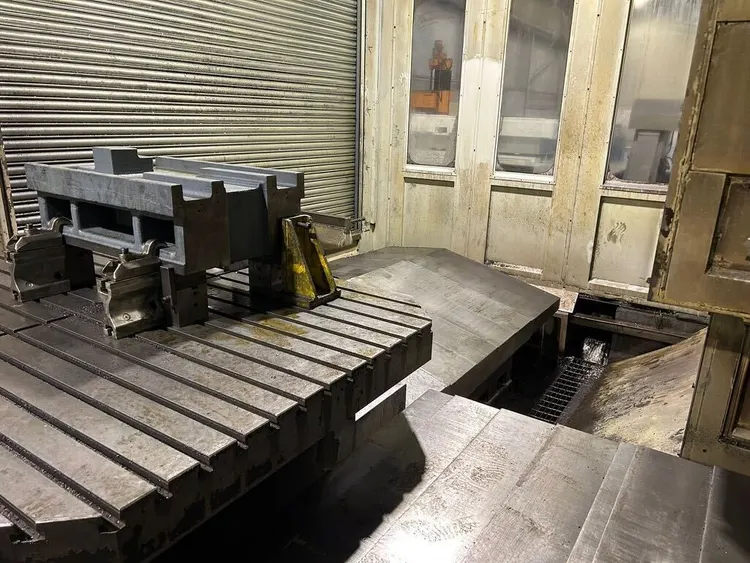

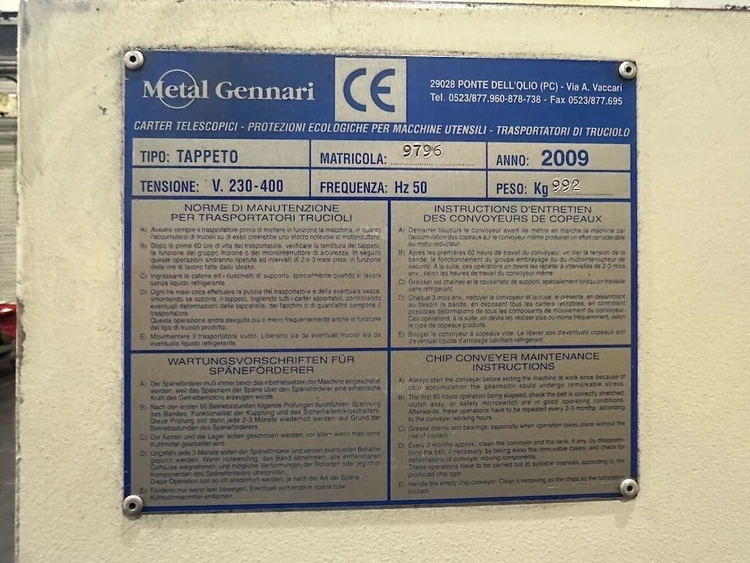

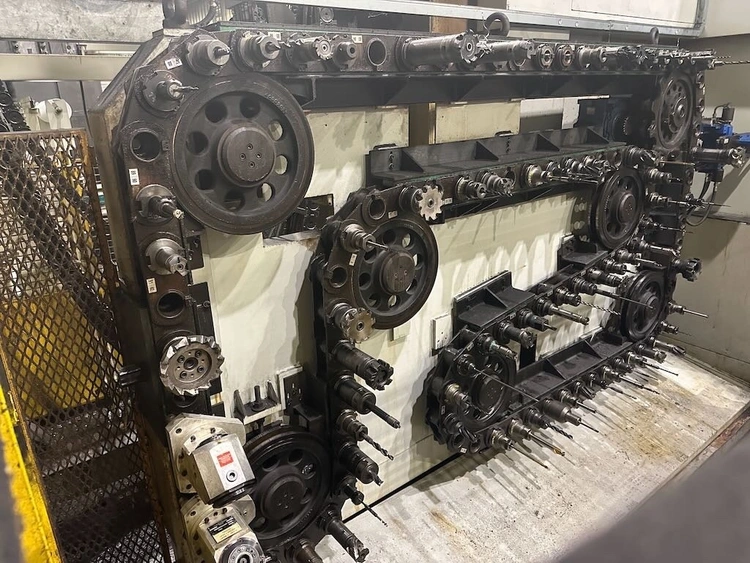

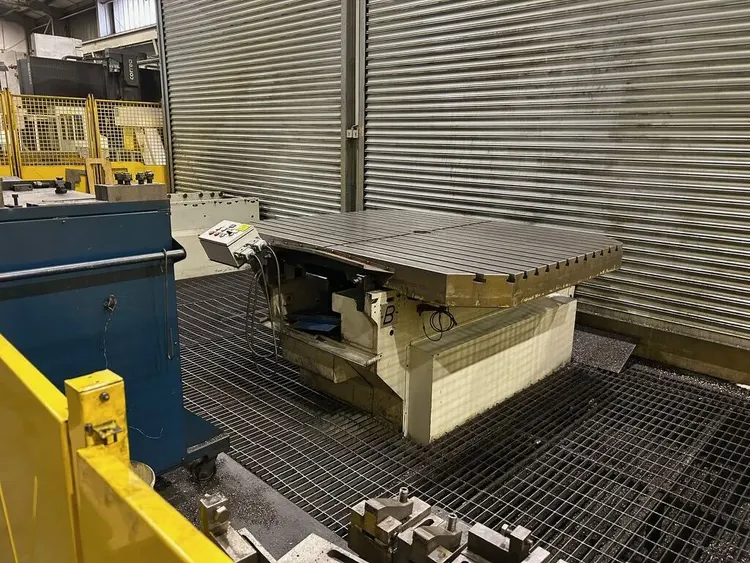

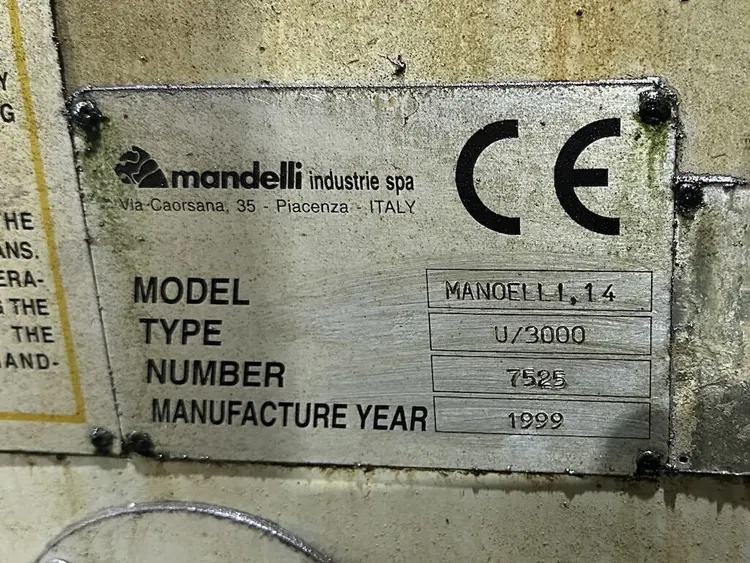

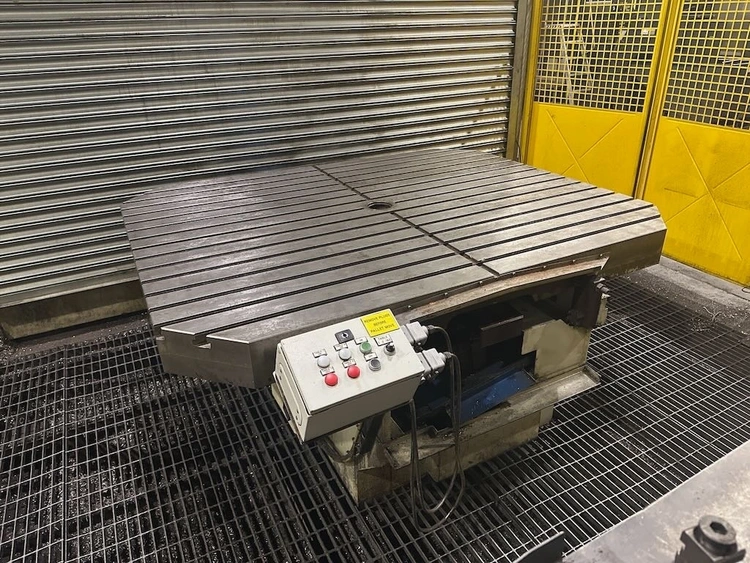

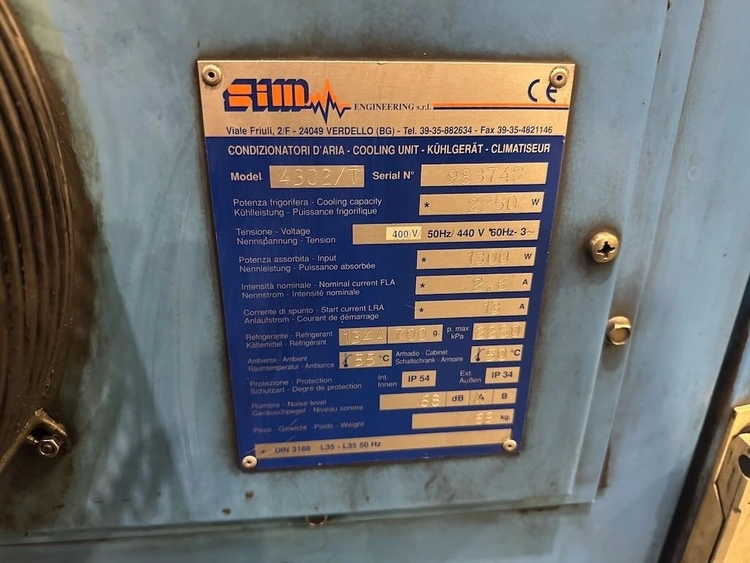

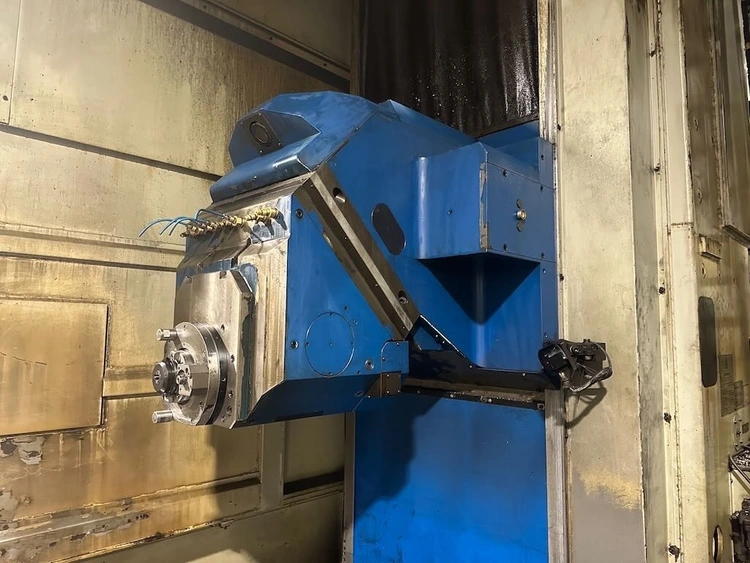

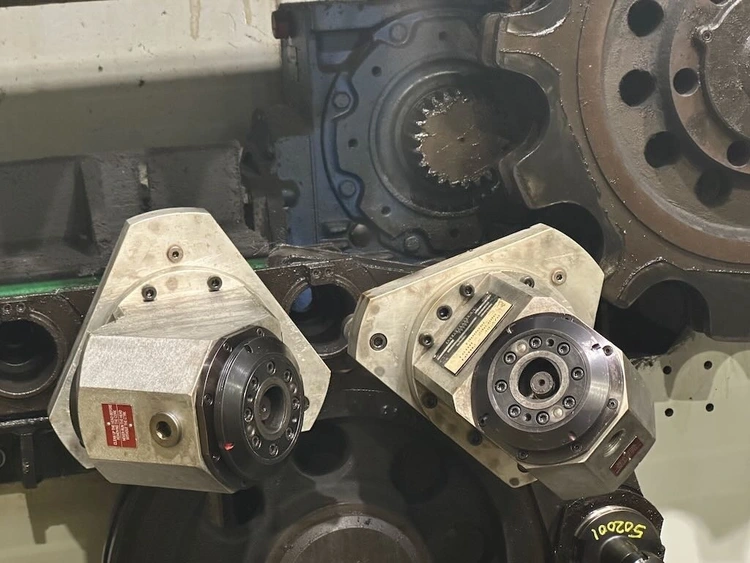

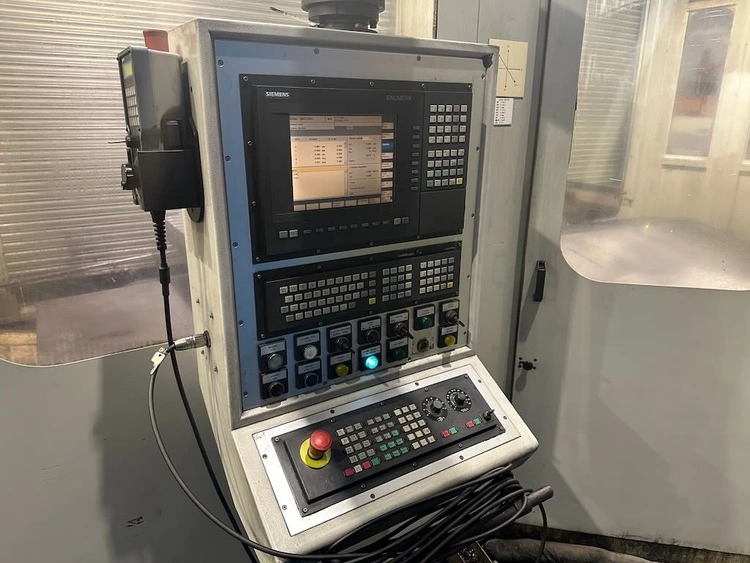

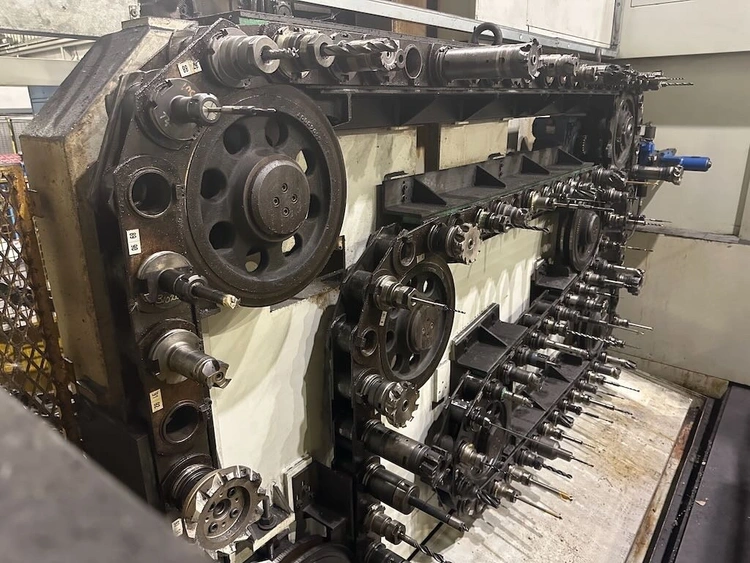

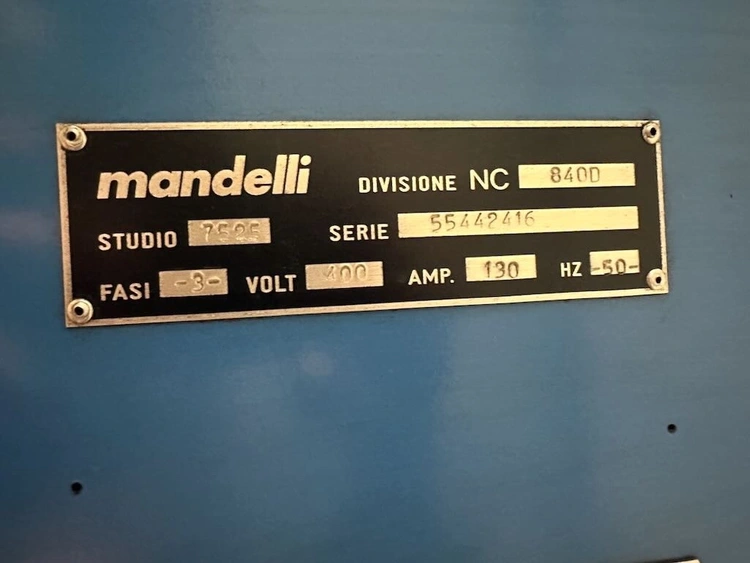

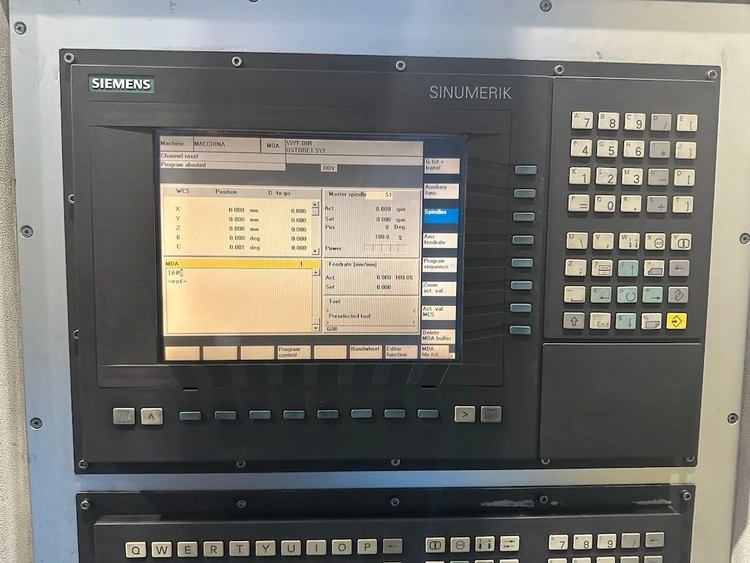

CNC Control: Siemens Sinumerik 840D Serial No: 7525 MFD: March 1999 Pallet Size: 2000 x 1600mm Max Pallet Load; 8000kg X Axis Traverse: 4000mm Y Axis Traverse: 2500mm Z Axis Traverse: 2200mm Feeds: 5 – 15000mm/min Rapids: 15m/min Maximum Component Diameter: 3200mm Maximum Height of Component: 2500mm B Axis Rotation: 0.001 Degrees Rapids: 3 rpm Head Rotation: 90 Degrees From Horizontal to Vertical Spindle Speeds: 20 – 3000rpm Spindle Taper: 50 Spindle Motor: 40Kw ATC: 100 Positions Swarf Conveyor: 2 No Metal Gennari Coolant: Flood & Through Spindle Foot Print: 13m x 11m x 4.9m High of Floor, Maximum Foundation Depth: 2.4m Approximate Weight: 80 Ton Complete With: Renishaw Probing 2 off Capto C4 Right Angled Heads SK50 Tooling Package Interlock Guards Paper Filtration System Chiller
