USED 2006 HAAS VF-3 Vertical Macining Centre with Haas HRT160 4th Axis

£14,950
Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
HAAS
Model
VF-3
Year
2006
Stock #
80
Status
for sale

Description

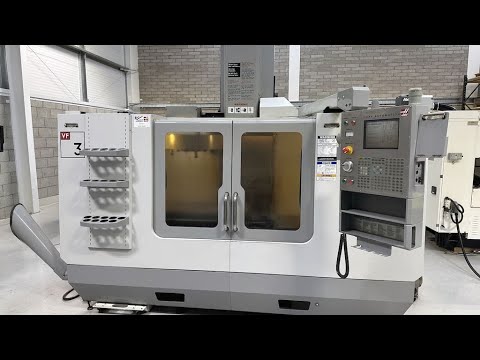

2006 Haas VF-3 vertical machining centre in good original condition, fitted with a Haas HRT160 4th axis rotary table. The VF-3 is a proven, rigid machine offering generous travels and reliable performance for general machining, subcontract work, and light to medium production. The addition of the Haas HRT160 provides full 4th-axis capability, allowing multi-sided machining in a single setup, improving accuracy and reducing cycle times. Fully integrated with the Haas control.

Specifications

X39.96"
Y19.98"
Z25"
Power20hp
RPM8100rpm
# ATC20
TaperCAT 40
Table-W46.97"
Table-L17.99"
# Axis4
ControlCNC ('HAAS')
Weight5600 kg
Machine Specification Travels: • X: 1,016 mm • Y: 508 mm • Z: 635 mm Table: • Size: 1,219 × 457 mm • Max load: approx. 1,600 kg Spindle: • CAT 40 taper • 8,100 rpm • 20 hp Vector drive • Gearbox Tool Changer: • 20 + 1 station umbrella type Feed Rates: • Rapid traverse: 25.4 m/min • Cutting feed: up to 12.7 m/min Coolant: • Flood coolant system Electrical: • 400V / 50Hz / 3 phase Approx. Machine Weight: • 5,600 – 5,800 kg 4th Axis – Haas HRT160 • Platter diameter: 160 mm • Servo-driven, fully integrated with Haas control • Vertical or horizontal mounting • Positioning accuracy: approx. ±10 arc-seconds • Repeatability: approx. ±5 arc-seconds Swarf Auger Tooling Package (21 Tools) Manual
