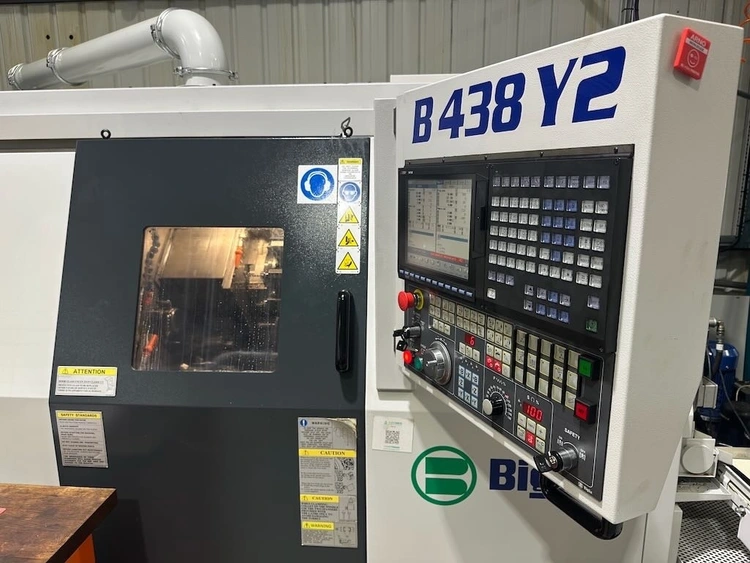

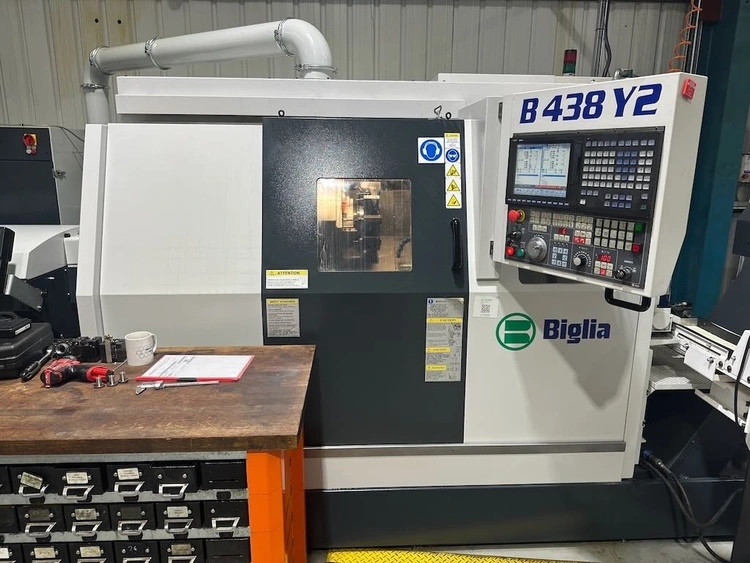

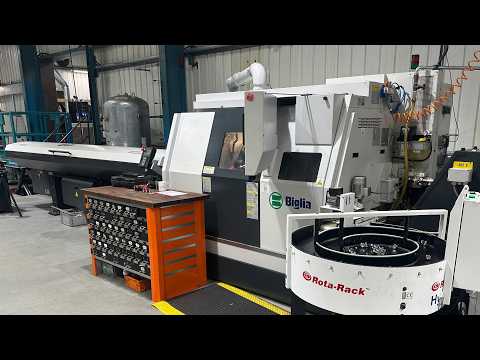

USED 2020 Biglia B438Y2 Twin-Spindle CNC Turning Centre with LNS ALPHA 538 4m Barfeed and Tooling Package

Send Inquiry

Overview

Type
5-Axis or More CNC Lathes
Manufacturer
BIGLIA
Model
B438Y2
Year
2020
Stock #
89
Status
for sale

Description

Biglia B438Y2 Twin-Spindle CNC Turning Centre with LNS ALPHA 538 4m Barfeed and Tooling Package, Ideal for subcontract machining of Precision turned components, Automotive/aerospace parts, Small to medium diameter bar work, Components requiring front and back machining in one cycle. The machine is in excellent condition and can be viewed in Production.

Specifications

# Axis5
Swing5.5"
Machining Length3.94"
Bar Capacity1.496"
Power14.751hp
Max RPM7000rpm
Turning Dia3.937"
Tailstock'Yes'

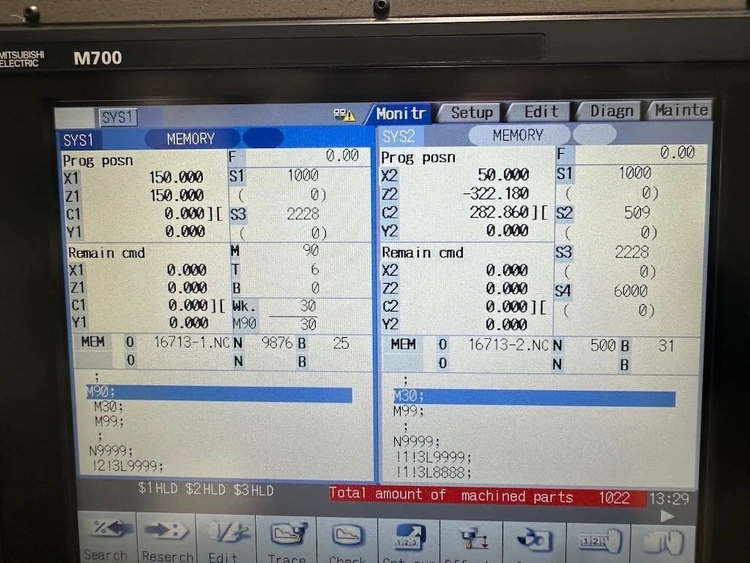

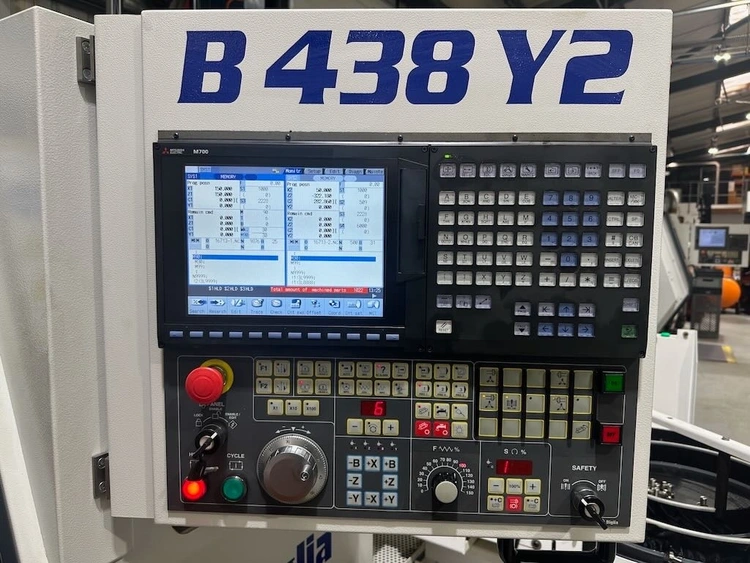

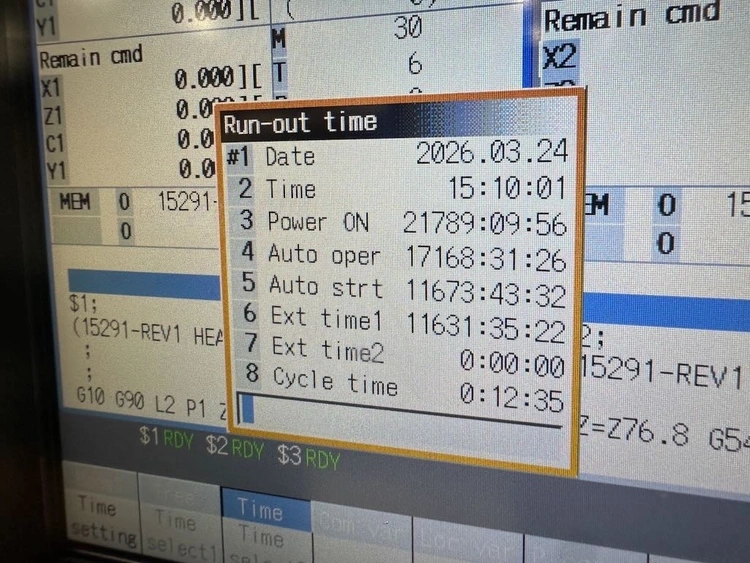

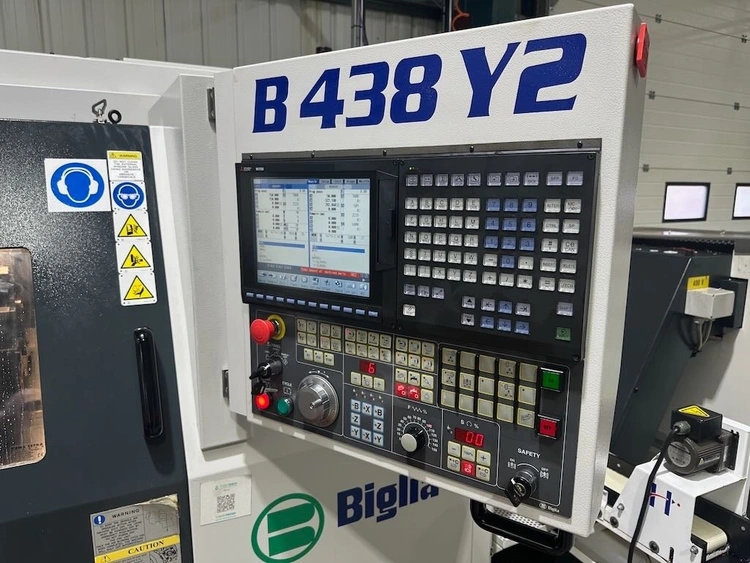

ControlCNC (Mitsubishi M700 series)
Weight9920.801 lbs

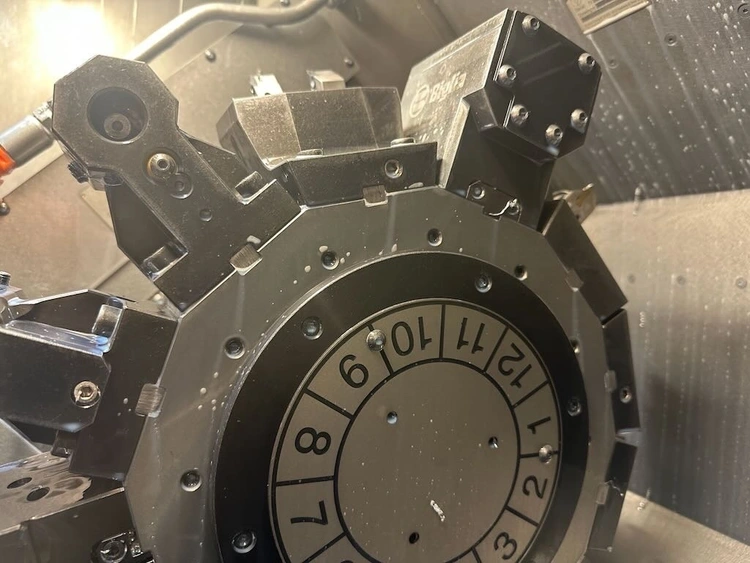

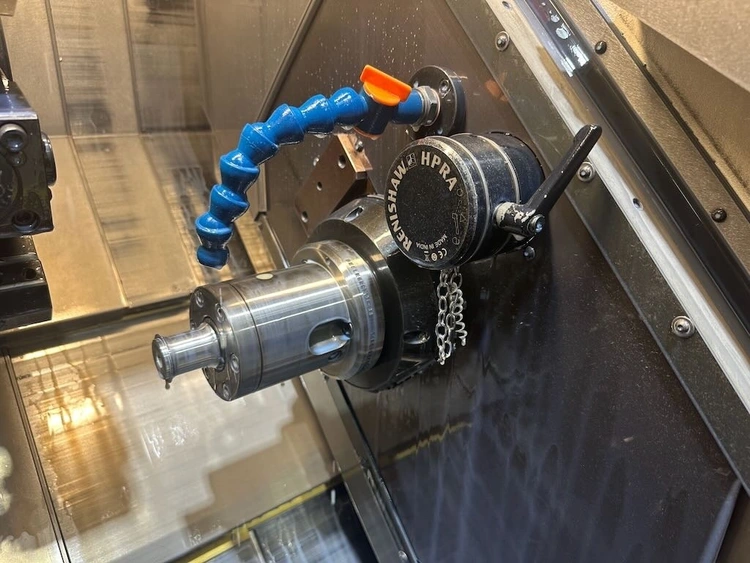

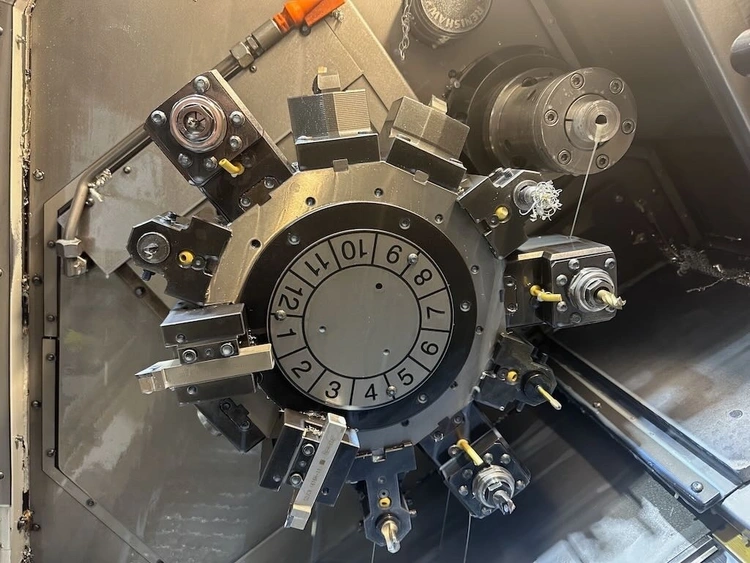

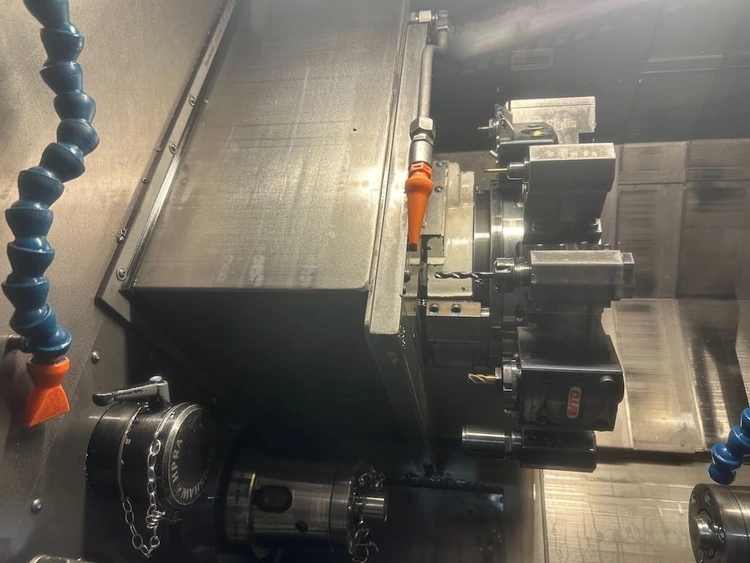

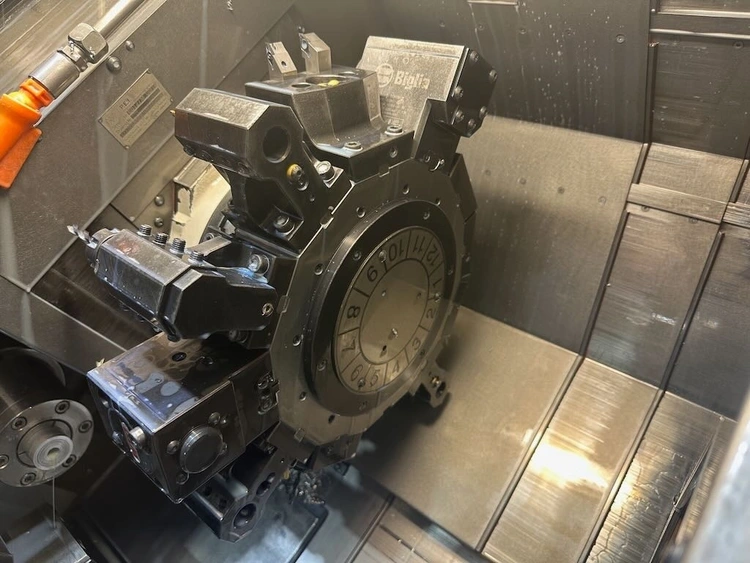

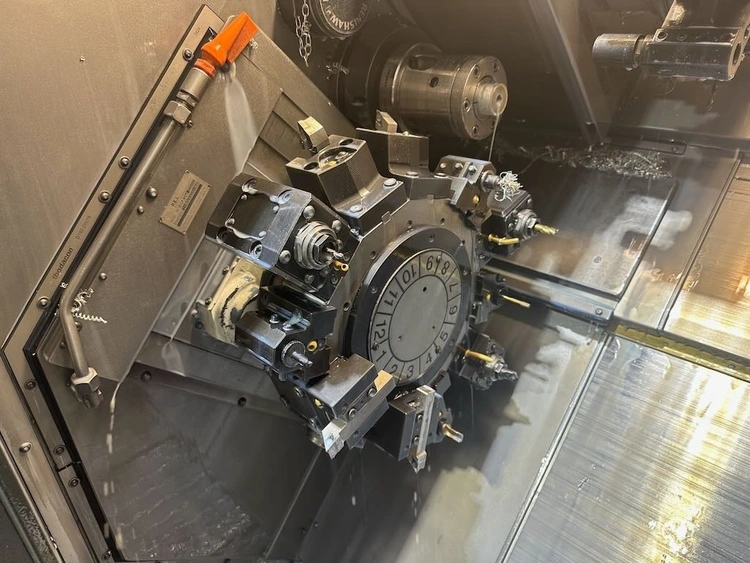

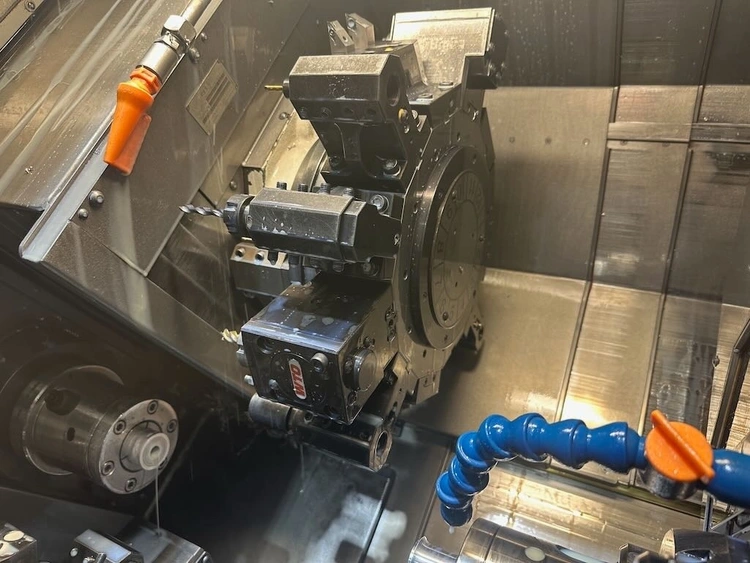

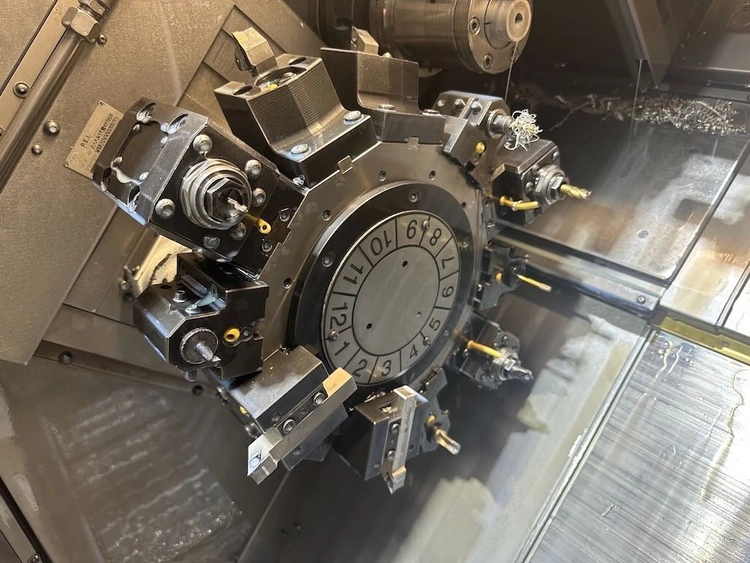

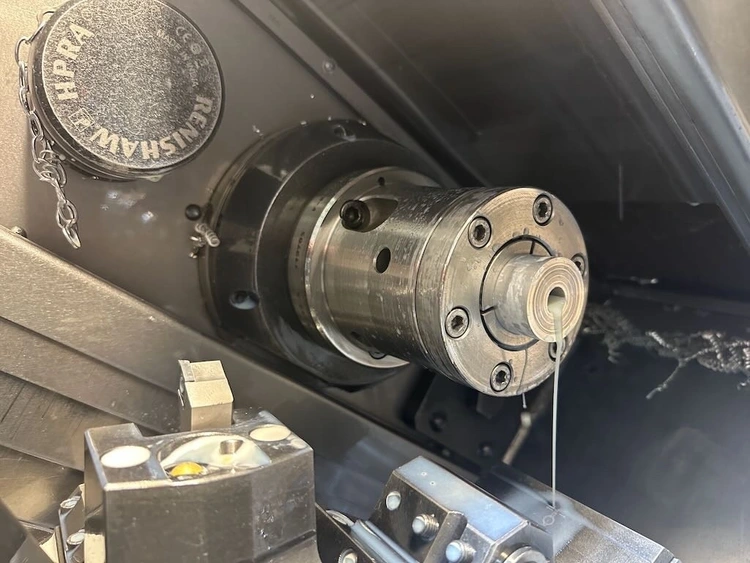

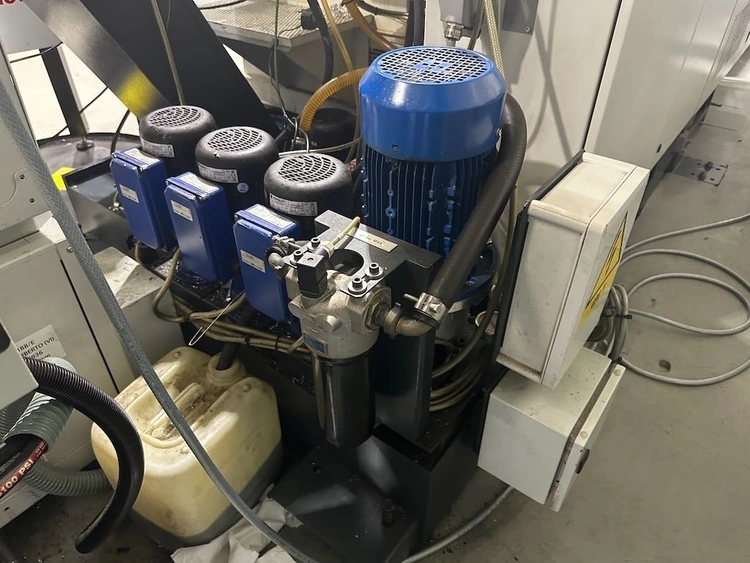

Biglia B438Y2 Twin-Spindle CNC Turning Centre Make: Biglia Model: B438Y2 Type: Twin-spindle, twin-turret CNC turning centre with Y-axis Control: Mitsubishi M700 series Capacity Maximum bar capacity: 38 mm Maximum machining diameter: 100 mm Maximum turning length: 100 mm Maximum swing over bed: approx. 140 mm Spindle specification Main spindle Maximum spindle speed: 7,000 rpm Spindle motor: 11 kW Spindle bore: approx. 47.5 mm Sub-spindle Maximum spindle speed: 7,000 rpm Spindle motor: 11 kW Bar capacity (sub-spindle): approx. 37.5 mm Turrets & tooling Twin 12-station turrets Live tooling on both turrets C-axis on the main and sub spindle Live tool power: approx. 4.6 kW Twin Y-axis configuration Axis travels X-axis travel: approx. 85 mm Z-axis travel: approx. 300 mm Y-axis travel: approx. ±25 mm (both turrets) General specification Designed for bar-fed production Suitable for high-volume precision turned parts Compact footprint Approximate machine weight: 4,500 – 4,700 kg Electronic tool-probing system swing over arm type with double head 40 bar high-pressure pump Oil separator for coolant Coolant wash gun Live Centre kit, parallel to sub-spindle Coordinate conversion and rigid tapping Auto power off Collet Chuck 42mm to suit main spindle (39mm) Tl 81-00095 Collet Chuck 42mm to suit main spindle (36mm) Tl34-000128C Radial Driven tool (ER20) Tl34-000129C Axial Driven Looi (ER20) Radial single-sided, twin static tool 16mm Double-sided single static tool 16mm /0063-00003 Boring Bar/U drill Holder for through Coolant Double Boring bar holder 20mm LNS 538 5-38mm Bar Capacity Max lengths up to 4m Please note: The Rota-Rack and JVONNE BRIQUE Unit are NOT included.

Equipped With

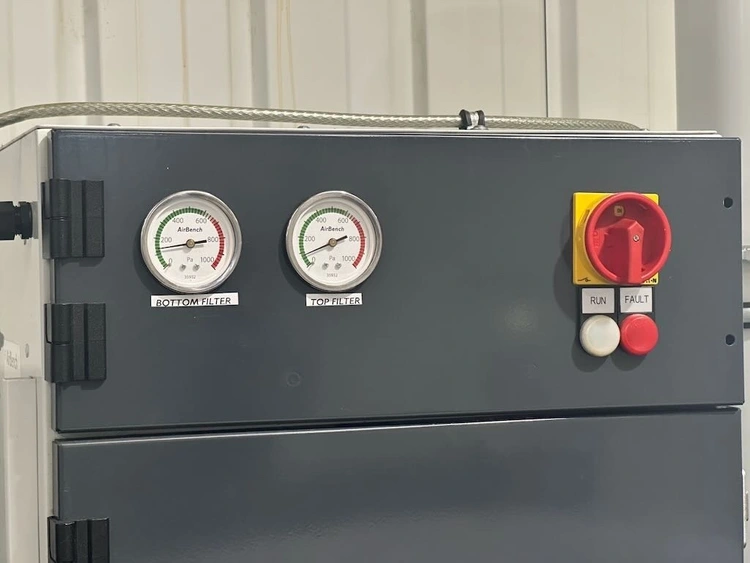

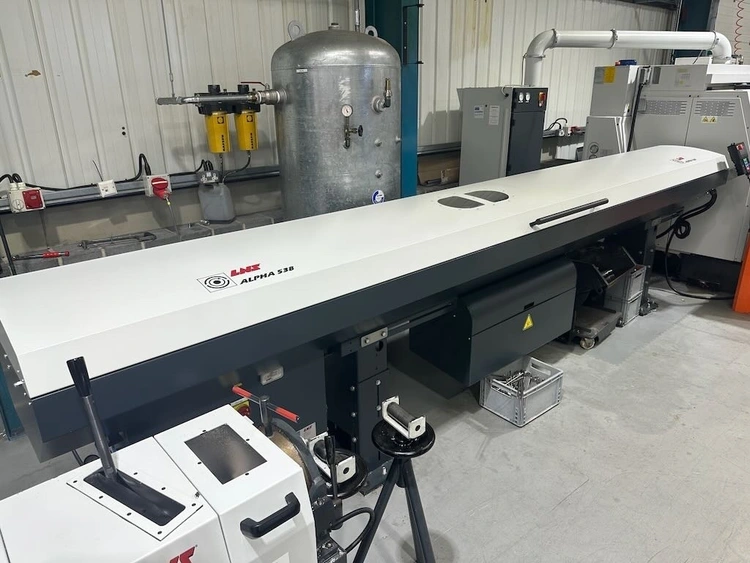

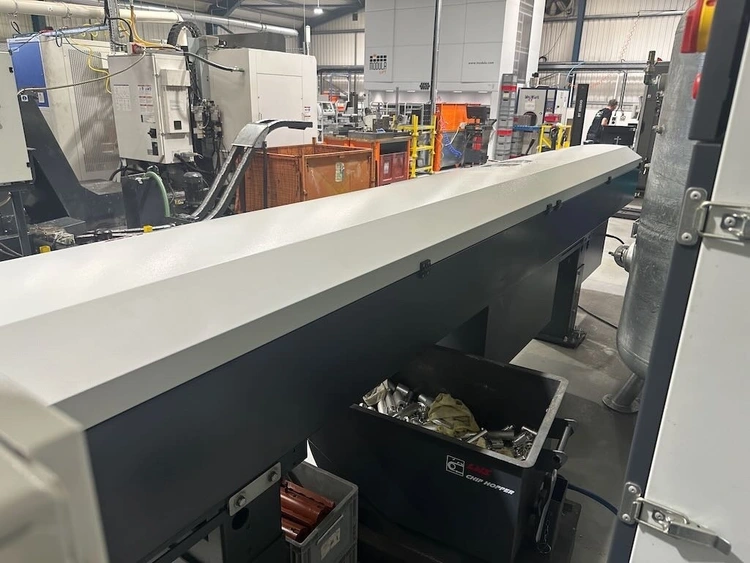

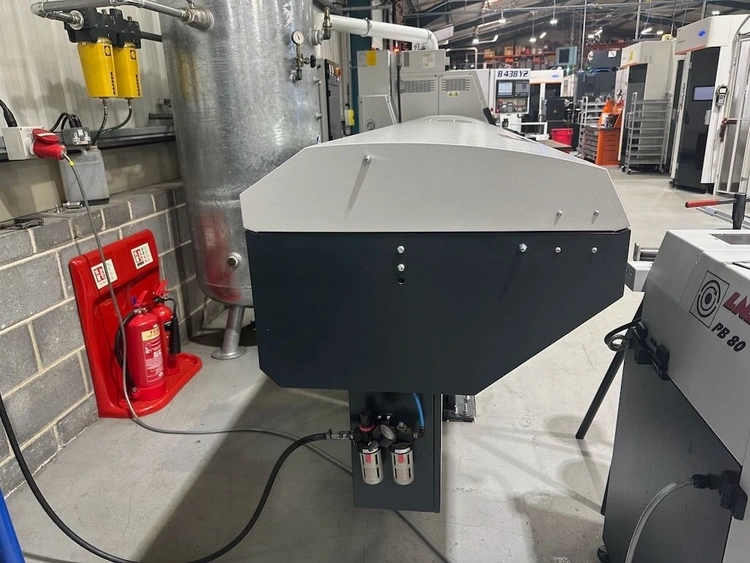

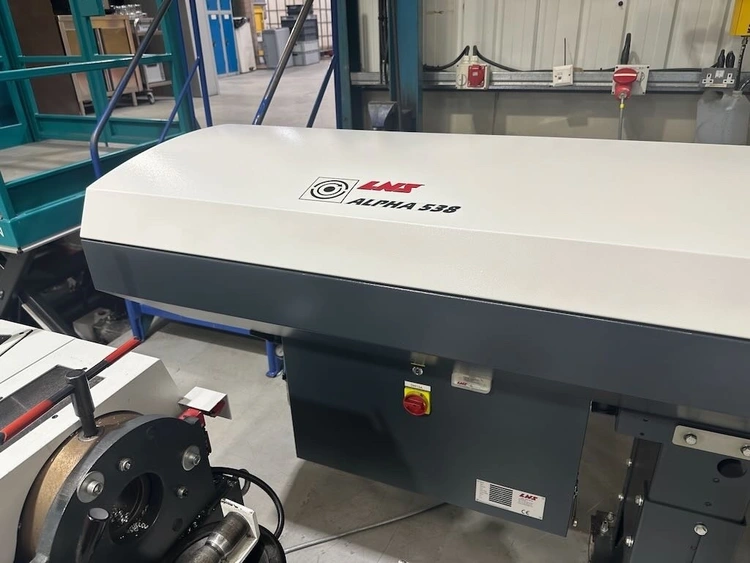

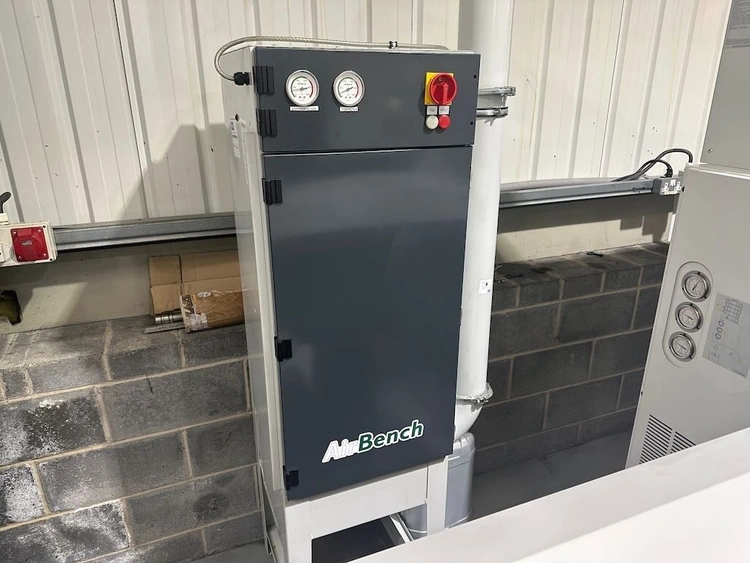

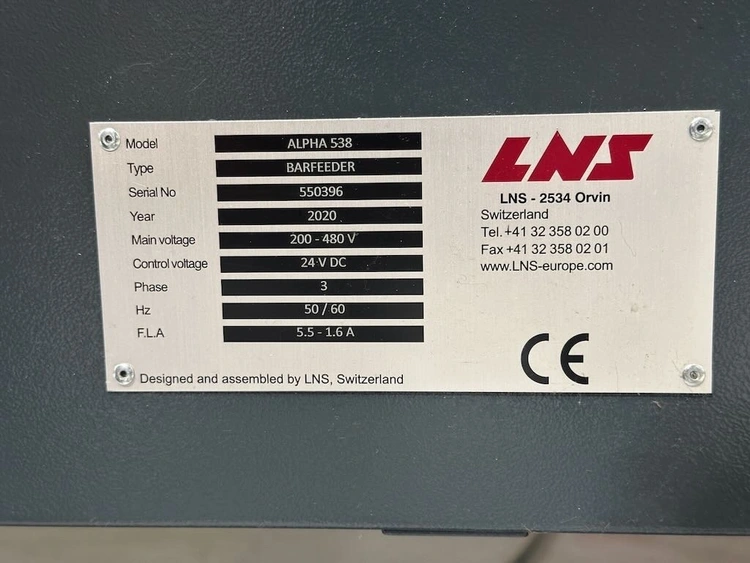

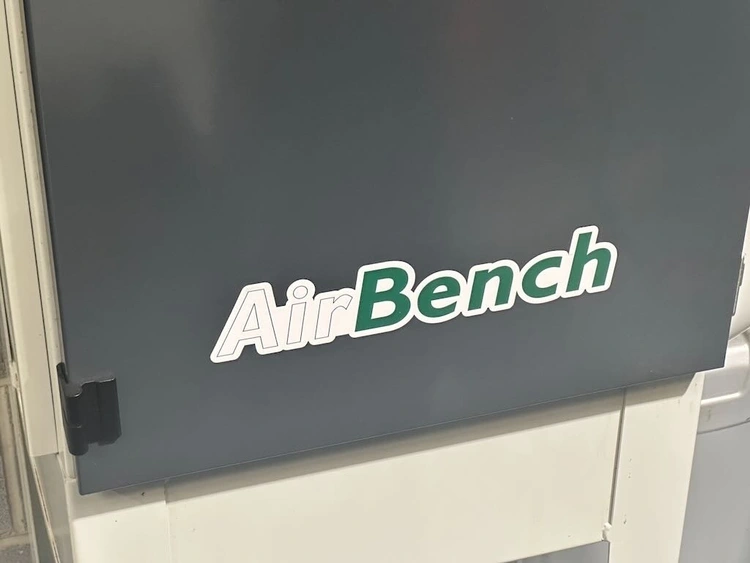

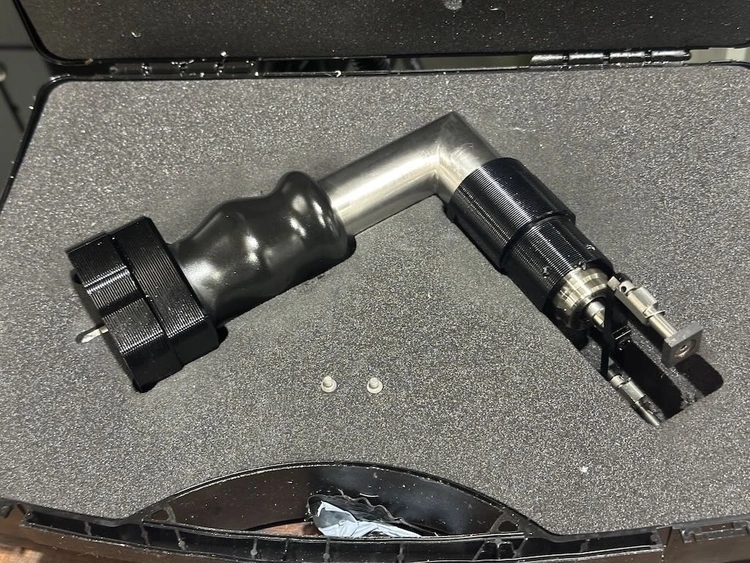

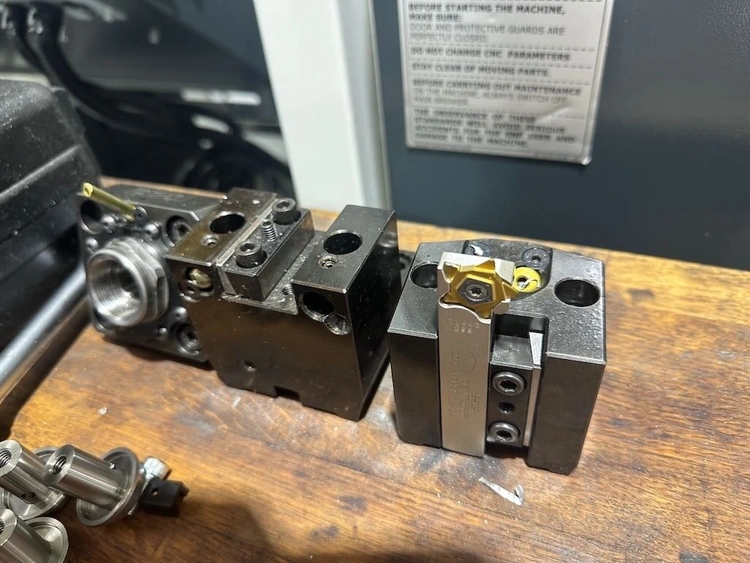

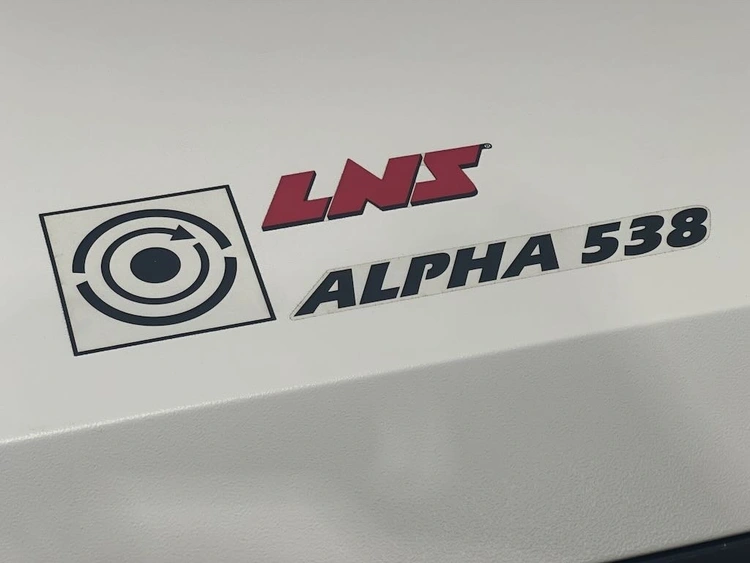

4m LNS Bar Feed Tooling Package. Tool Presetter Airbench Filtermist Unit Tail Stock Unit
