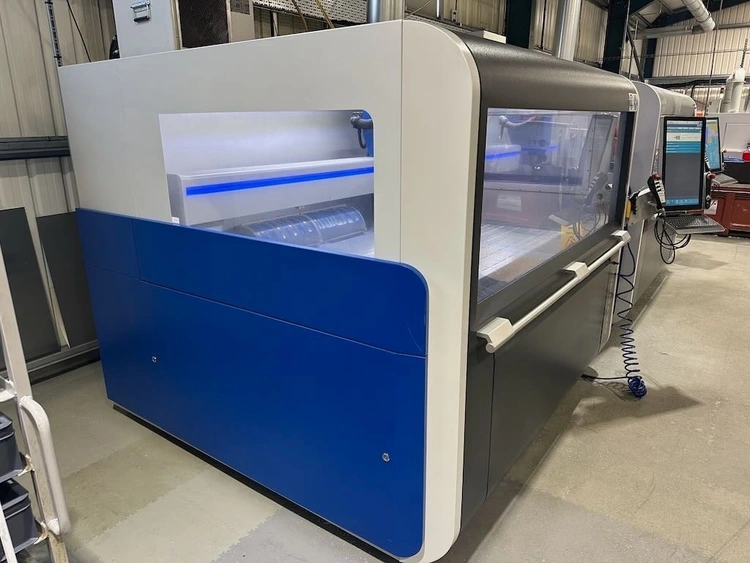

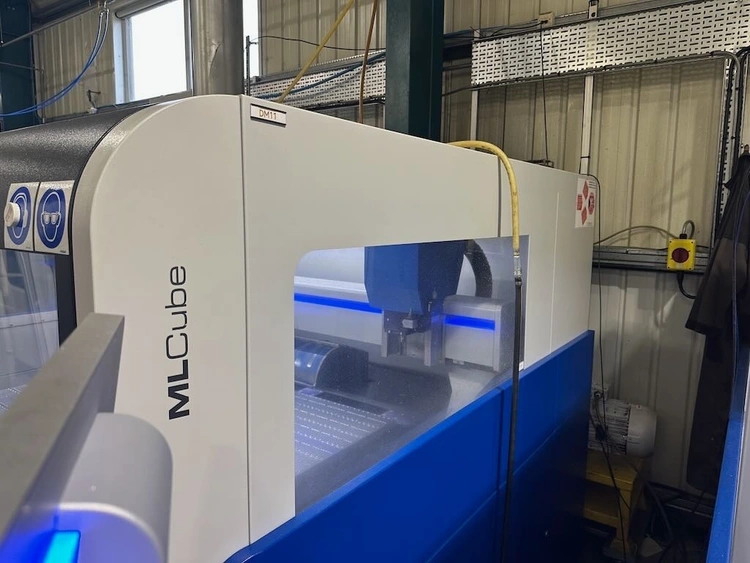

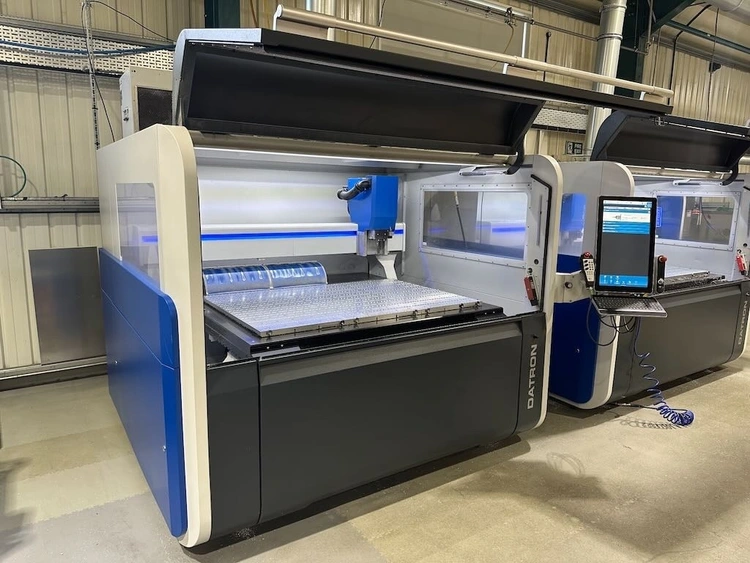

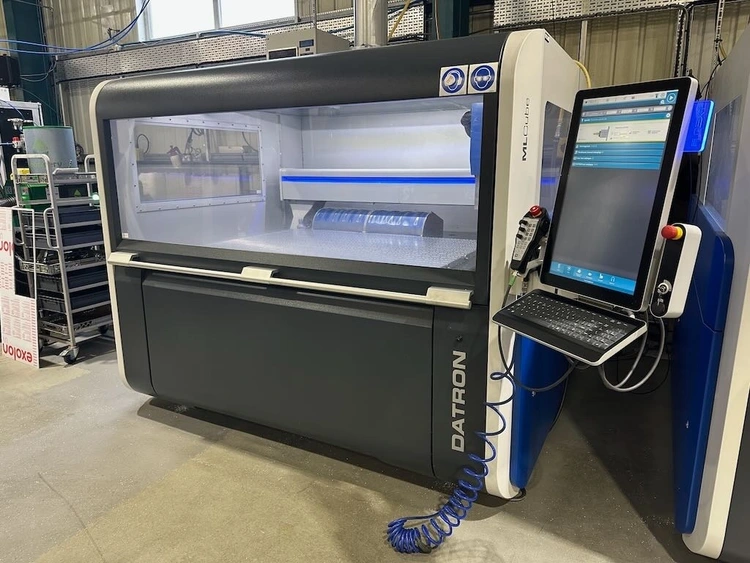

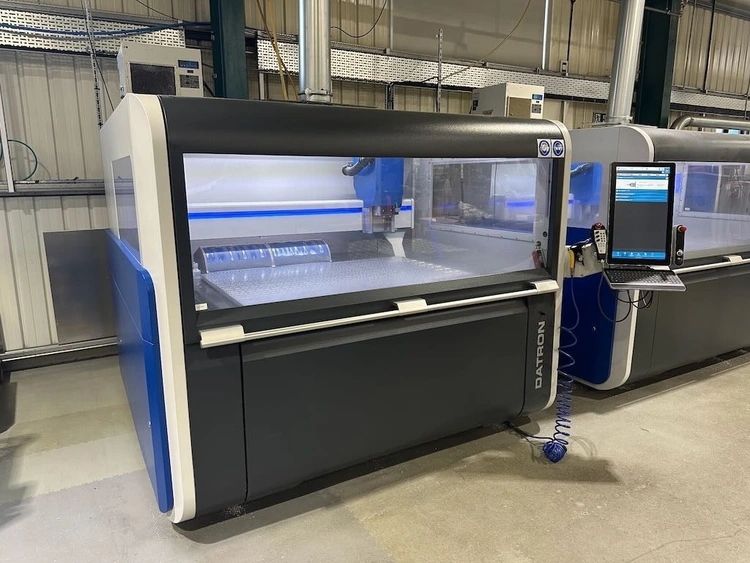

USED 2020 DATRON MLCUBE B Gantry-type milling machine

Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
DATRON
Model
MLCUBE
Year
2020
Stock #
88
Status
for sale

Description

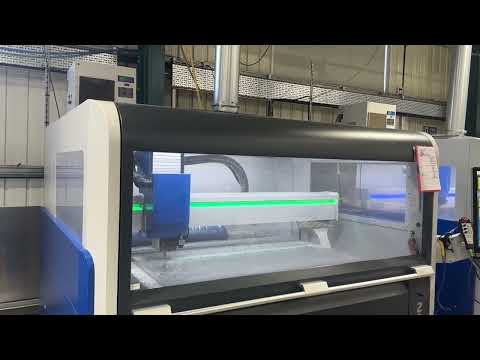

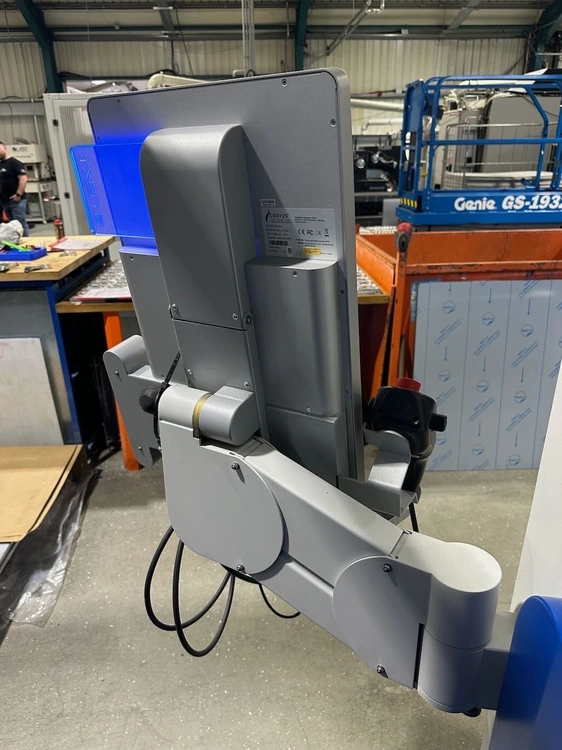

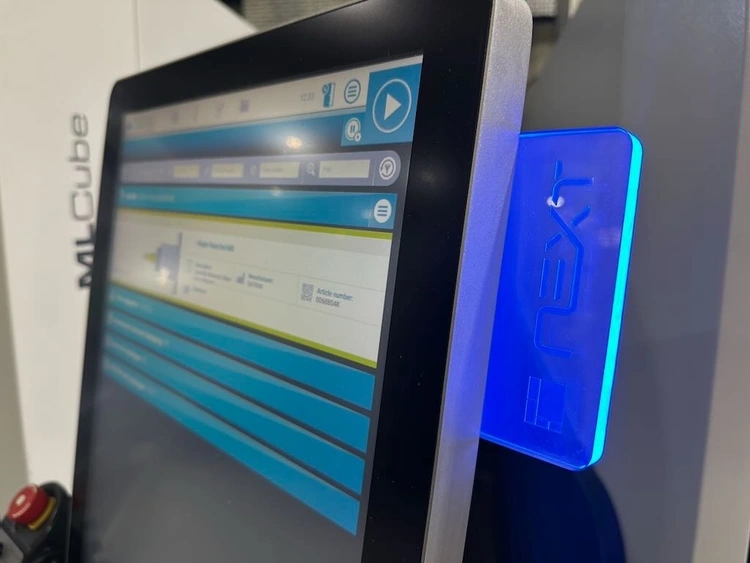

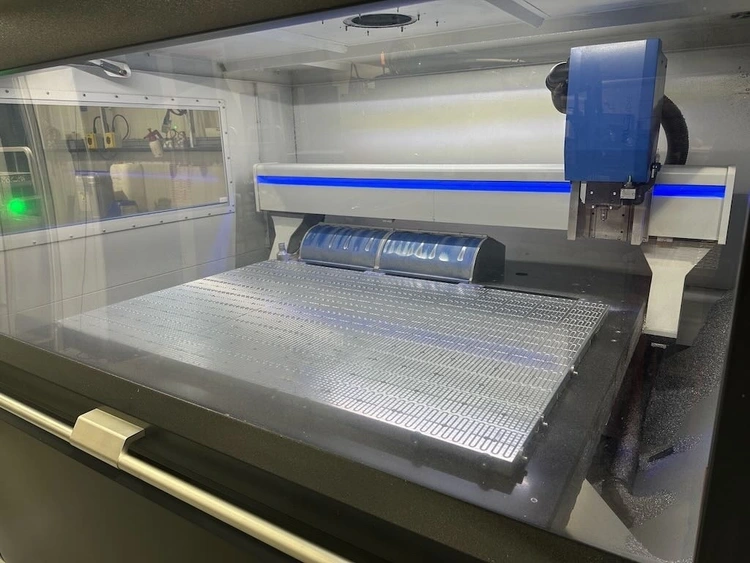

The DATRON MLCube B is a high-speed CNC machining centre designed for large-format precision machining within a compact footprint. With a 1,520 mm X-axis travel and high-frequency spindle speeds up to 40,000 rpm, the machine is ideal for aluminium plate work, nested components and precision subcontract machining. The rigid polymer-concrete table, DATRON next touchscreen control and fast tool-change system make it suitable for both production and prototype environments

Specifications

X59.8425"
Y45.2756"
Z9.64567"
Power4.02hp
RPM40000rpm
# ATC24
TaperDirect clamp or HSK-E25
Table-W1500mm
Table-L1000mm
# Axis3
Dimensions 94.88189 x 89.763779 x 76.77165 "
Weight2500kg

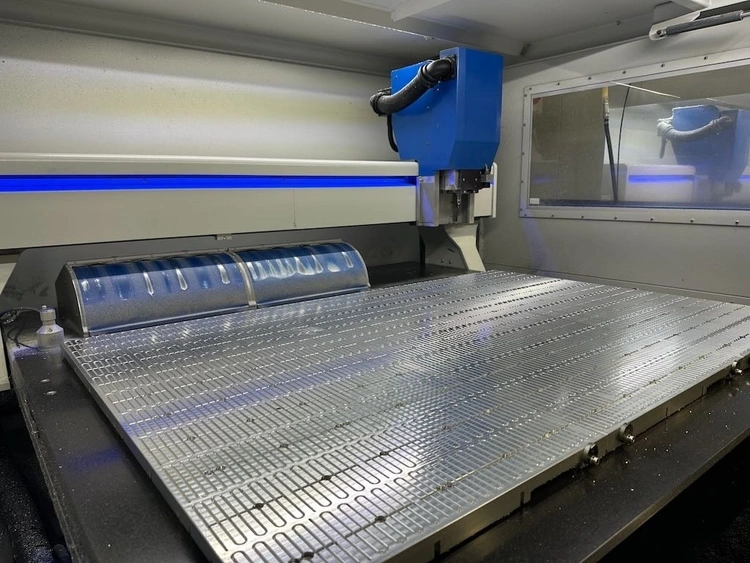

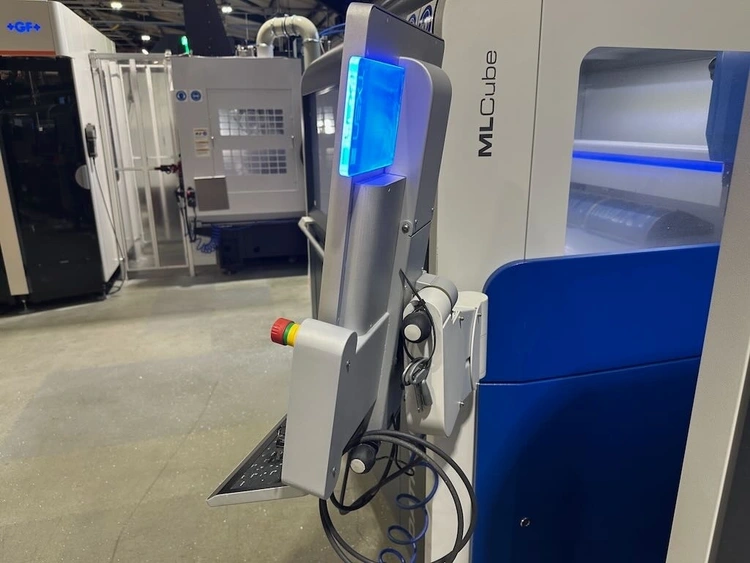

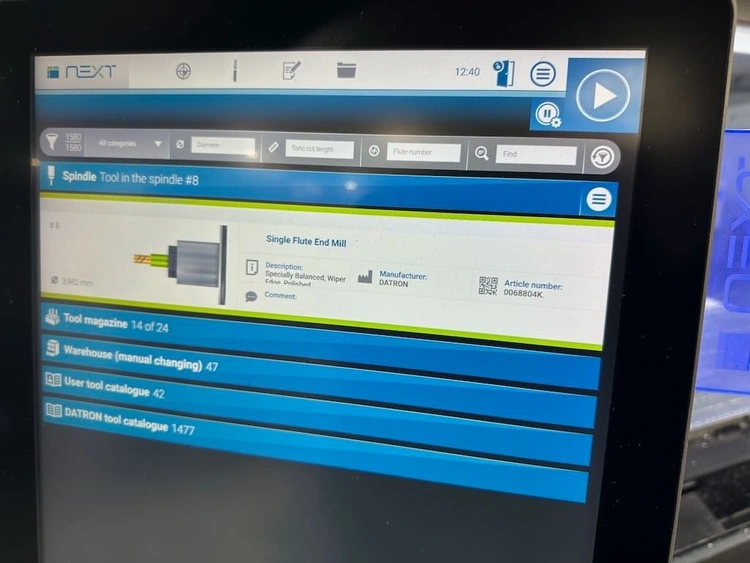

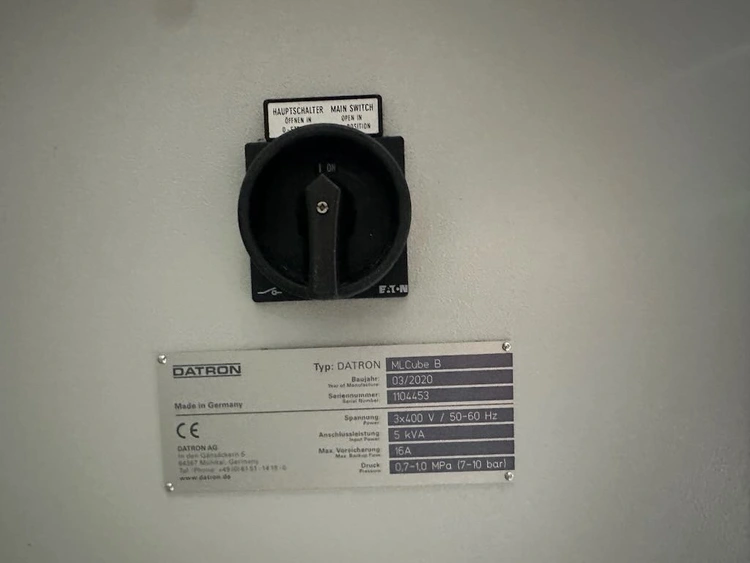

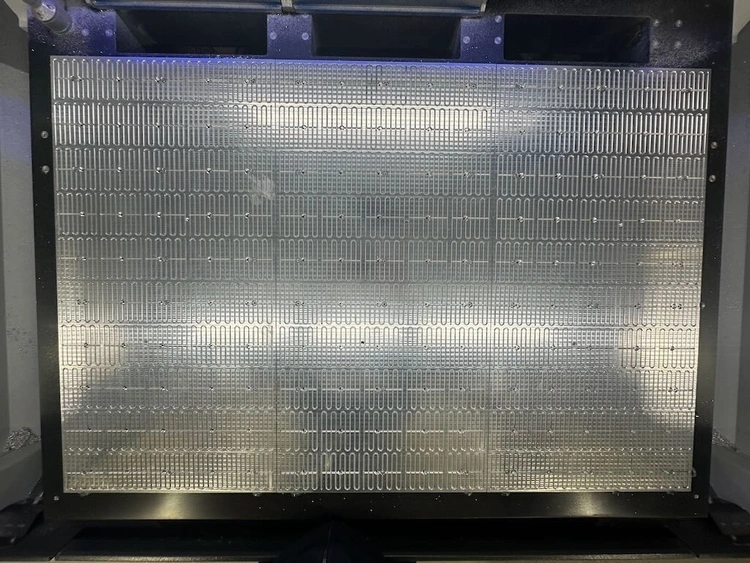

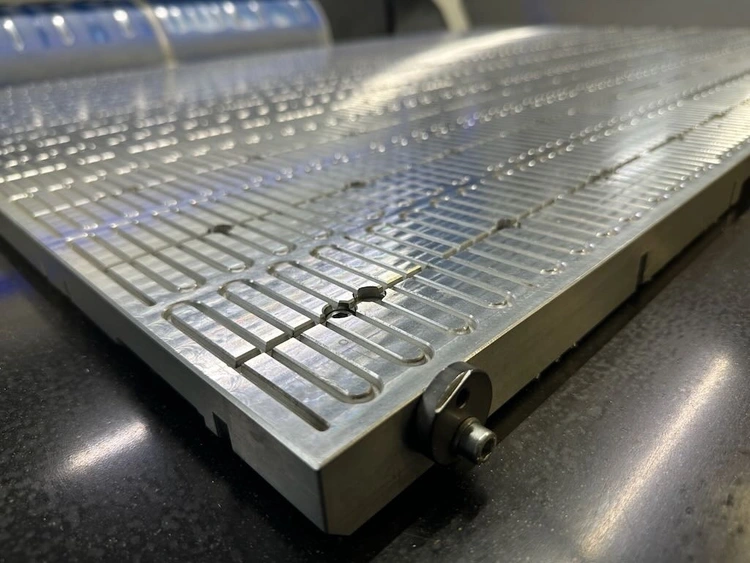

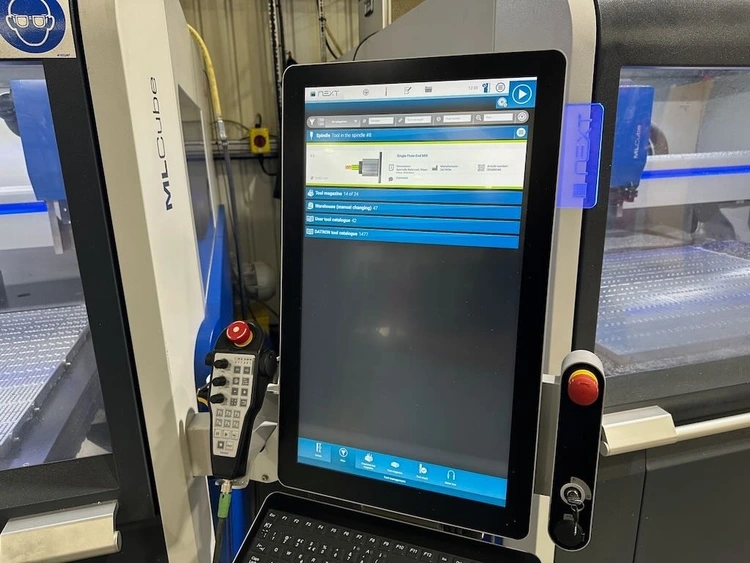

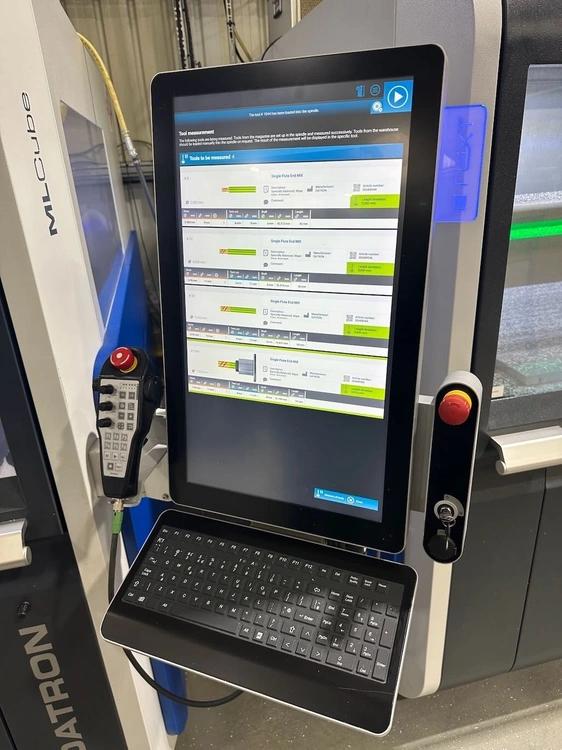

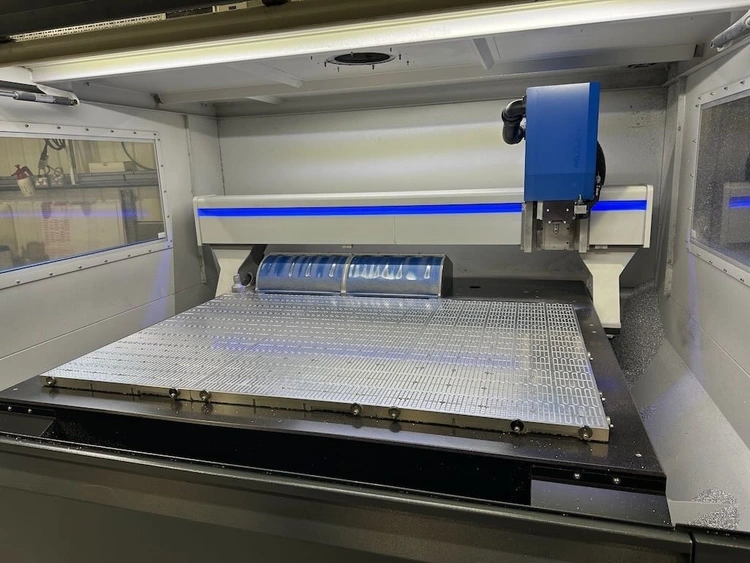

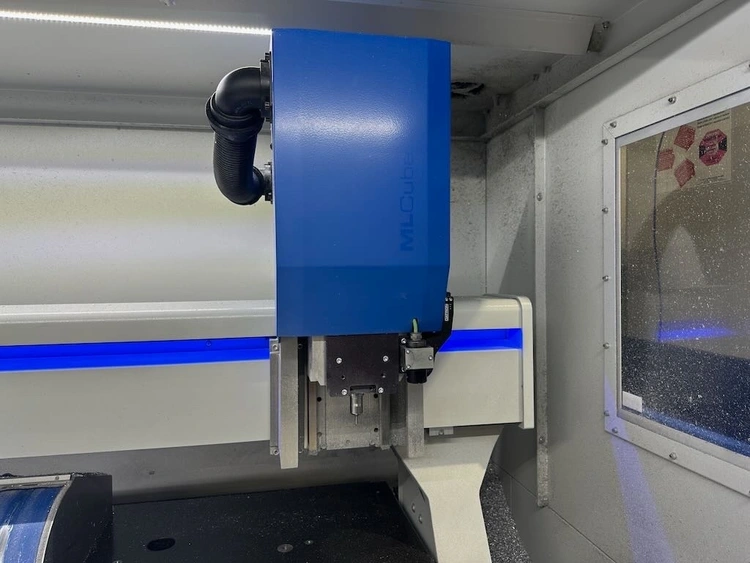

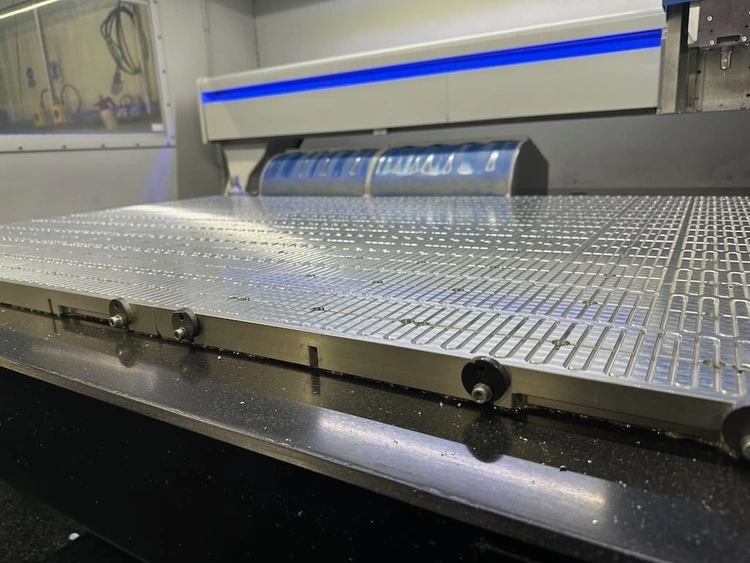

2020 DATRON MLCube B High-Speed CNC Machining Centre Make: DATRON Model: MLCube B Year: 2020 Type: High-speed 3-axis CNC vertical machining centre / gantry-type milling machine Control: DATRON next CNC control Capacity & travels X-axis travel: 1,520 mm Y-axis travel: 1,150 mm Z-axis travel: 245 mm Working area: approx. 1,500 x 1,000 x 200 mm Gantry clearance: approx. 200 mm Spindle specification High-frequency precision spindle Maximum spindle speed: up to 40,000 rpm Spindle power range: approx. 0.6 – 3.0 kW (model dependent) Tool interface: Direct clamp or HSK-E25 Toolchanger & control Automatic tool changer: up to 24 tools DATRON next touchscreen CNC control Integrated tool length measuring system Z-height probing/part referencing Table & construction Polymer-concrete machine table for rigidity and accuracy Designed for vacuum table or clamping systems Ideal for sheet material, aluminium plate, plastics and composites Speeds & general specification Rapid feed rate: up to 22 m/min Approximate machine footprint: 2,410 x 2,280 x 1,950 mm Approximate machine weight: 2,500 kg 400V 3-phase power supply Typical applications Ideal for: Aluminium plate machining Front panels and enclosures Large flat components Nested parts production Plastics and composite materials Precision subcontract machining
