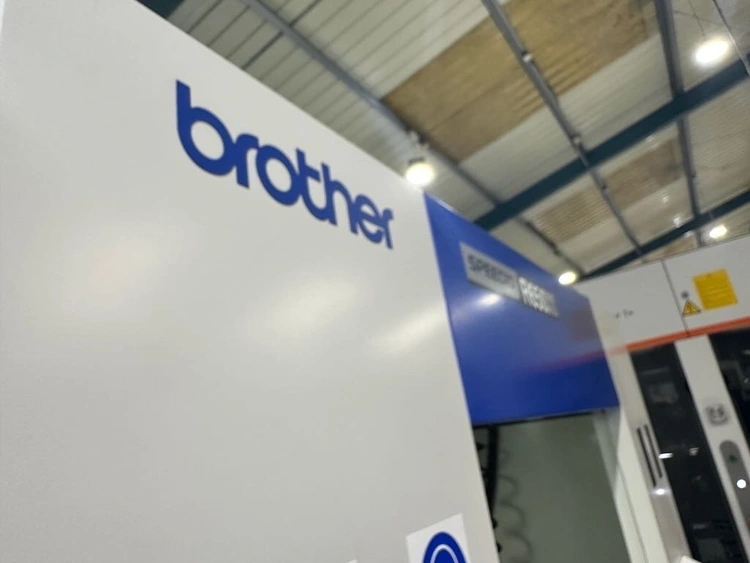

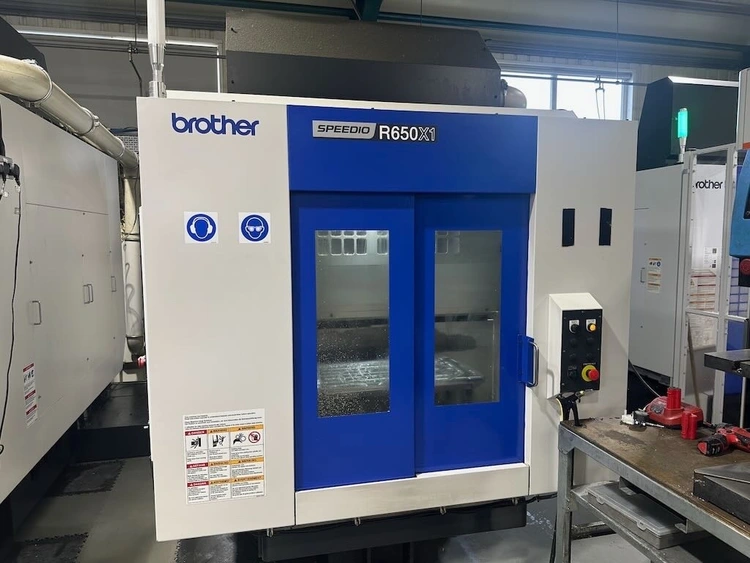

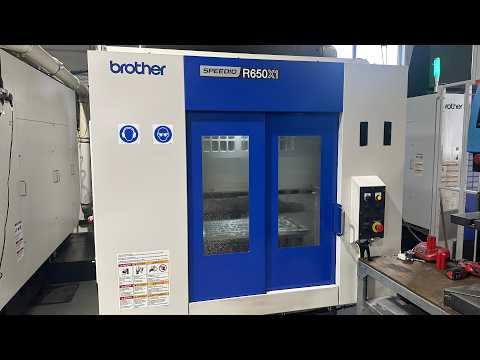

USED 2016 BROTHER R650X1 3 Axis High-speed vertical machining centre with twin-pallet (QT table) system

Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
BROTHER
Model
R650X1
Year
2016
Stock #
91
Status
for sale

Description

Specifications

X25.6"
Y15.7"
Z12"
Power10hp
RPM16000rpm
# ATC22
TaperBT30
Table-W23.6"
Table-L15.7"
# Axis3

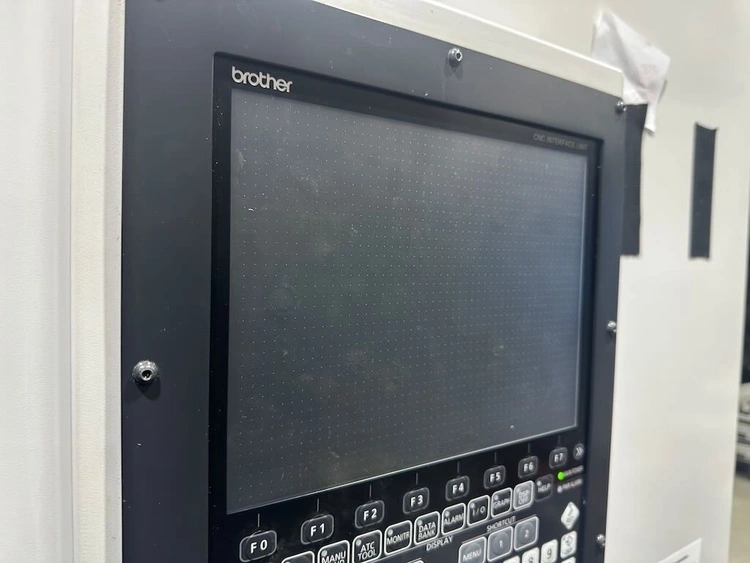

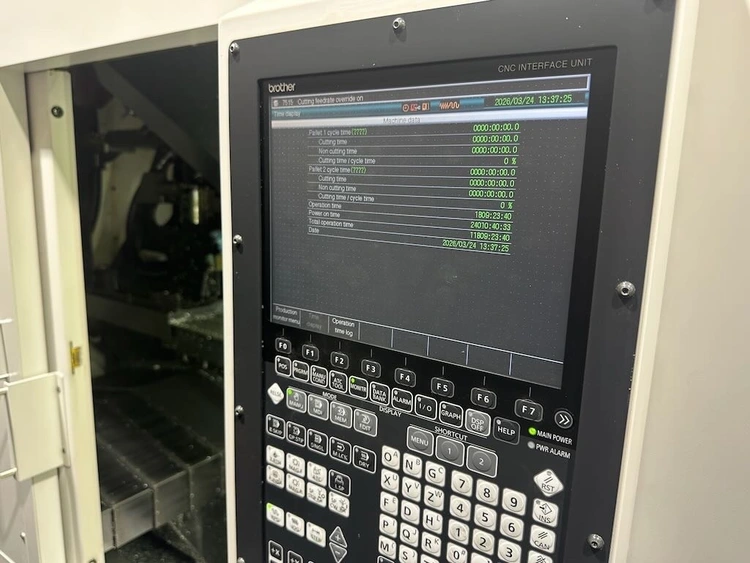

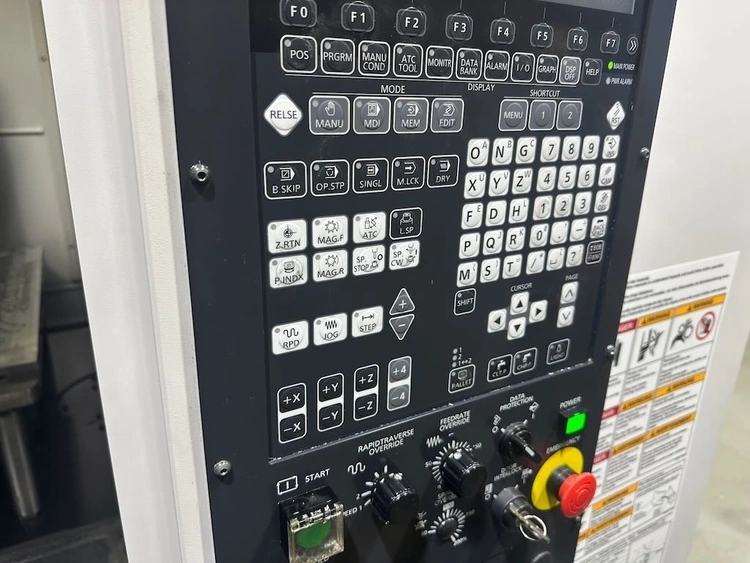

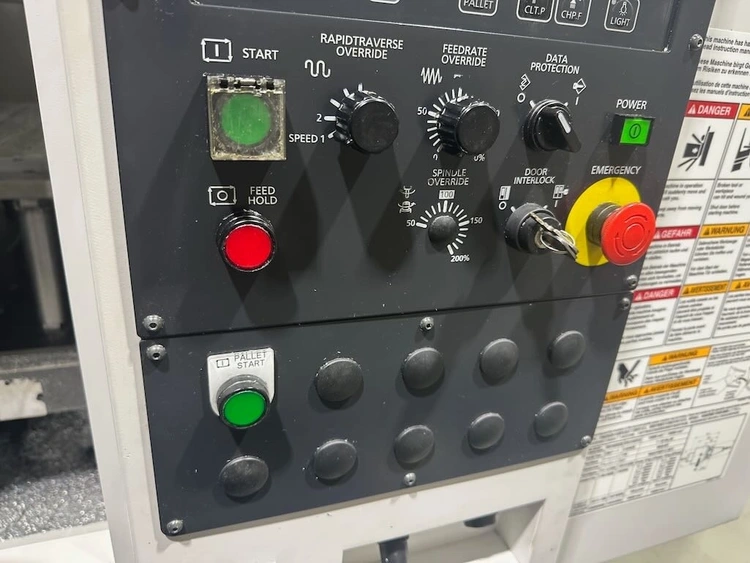

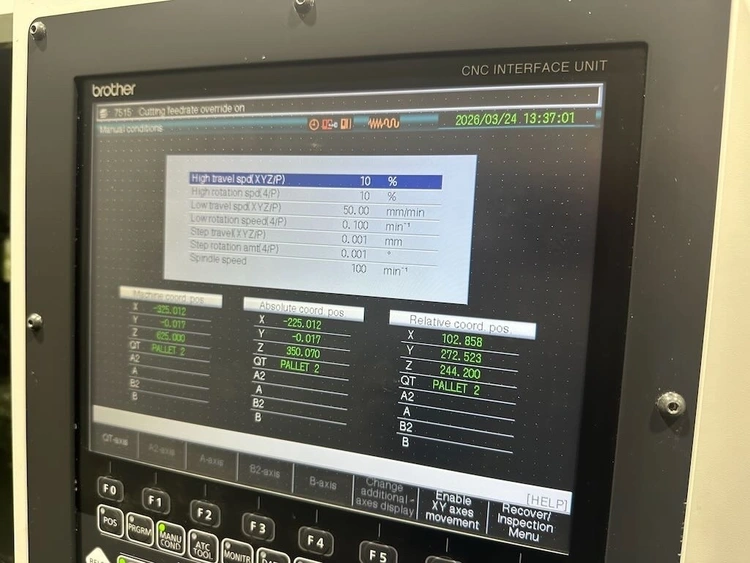

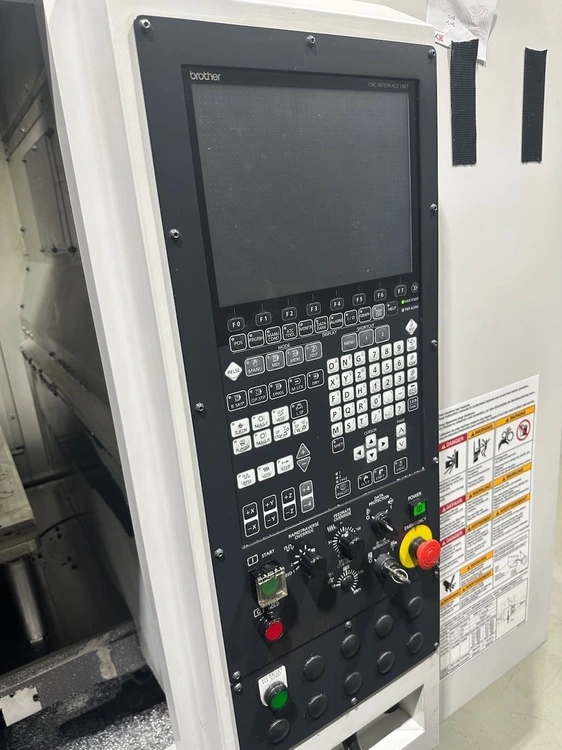

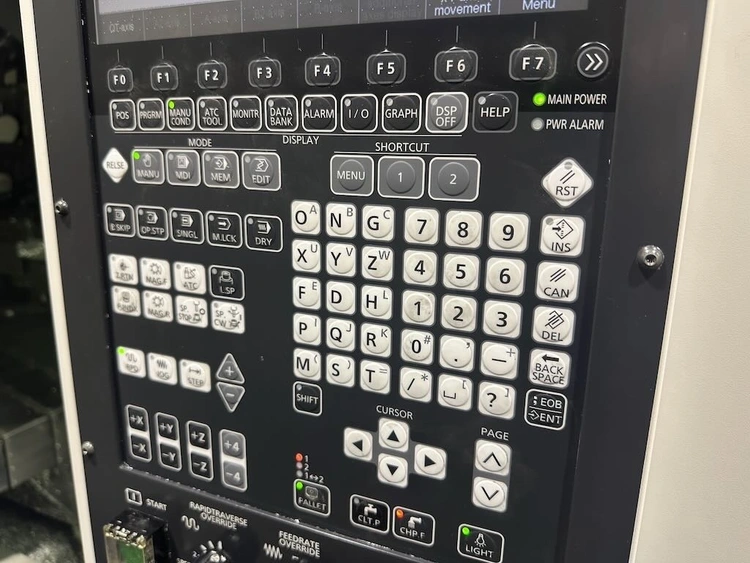

ControlCNC (Brother CNC-C00)
Dimensions 69.7 x 63.8 x 89.8 in "
Weight2270kg

Equipped With

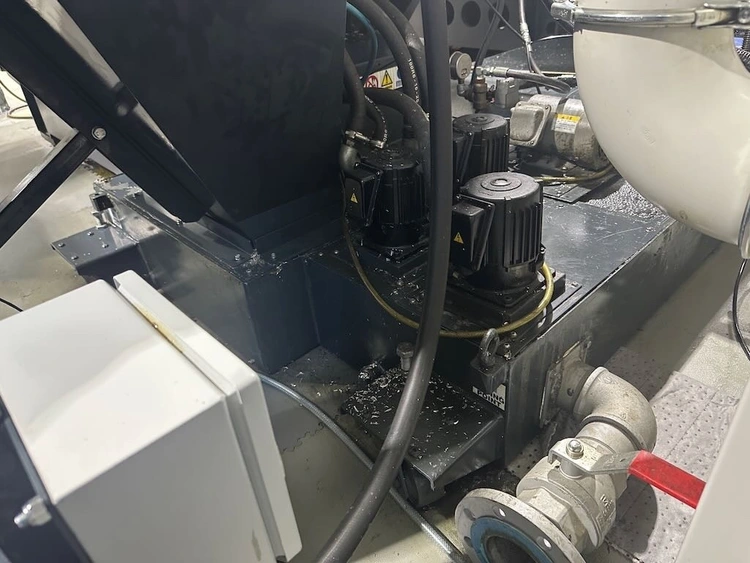

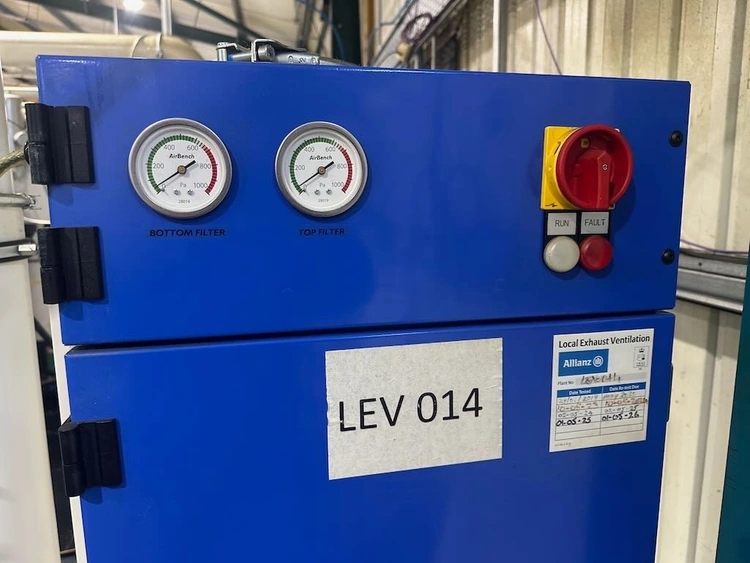

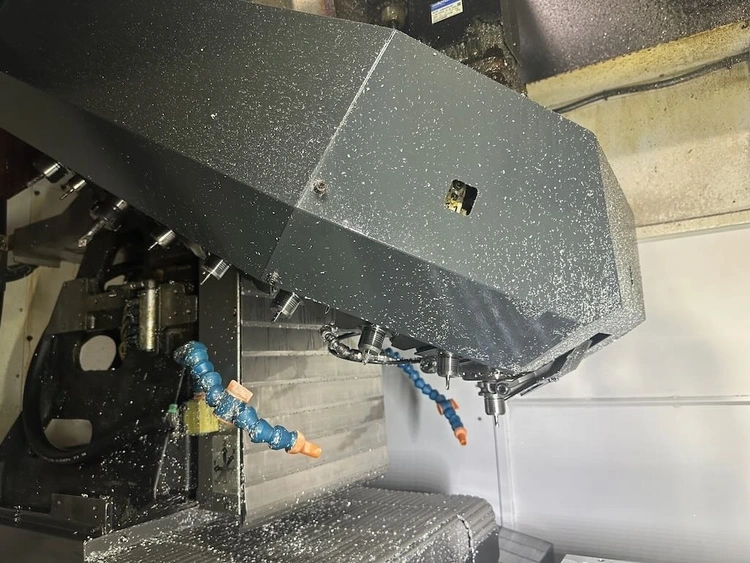

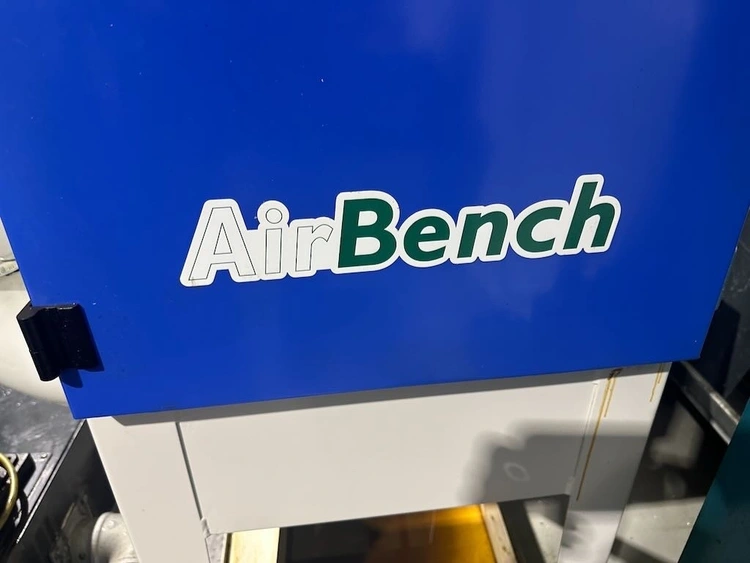

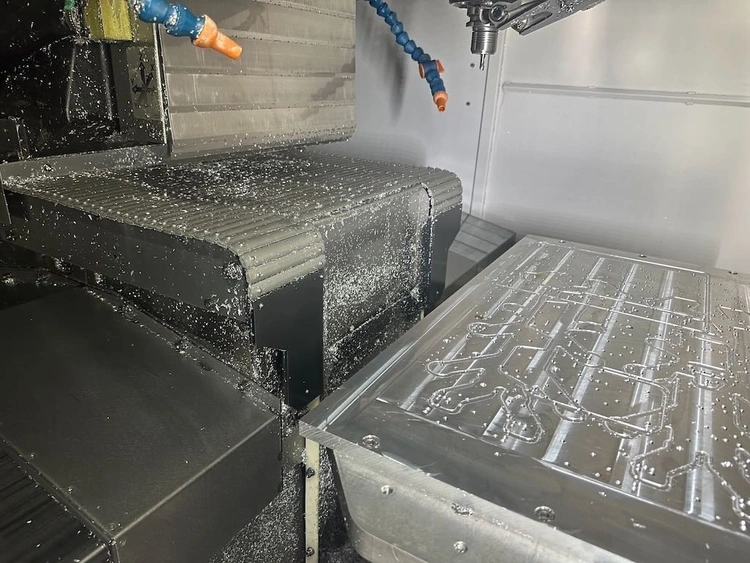

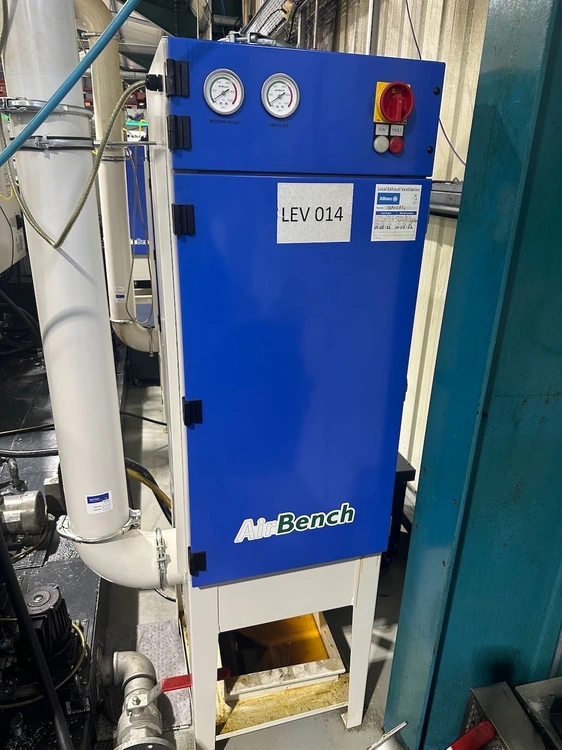

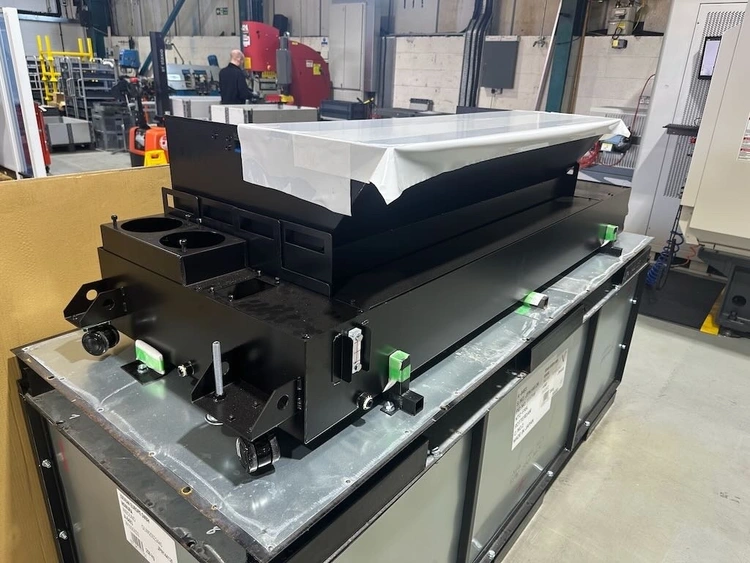

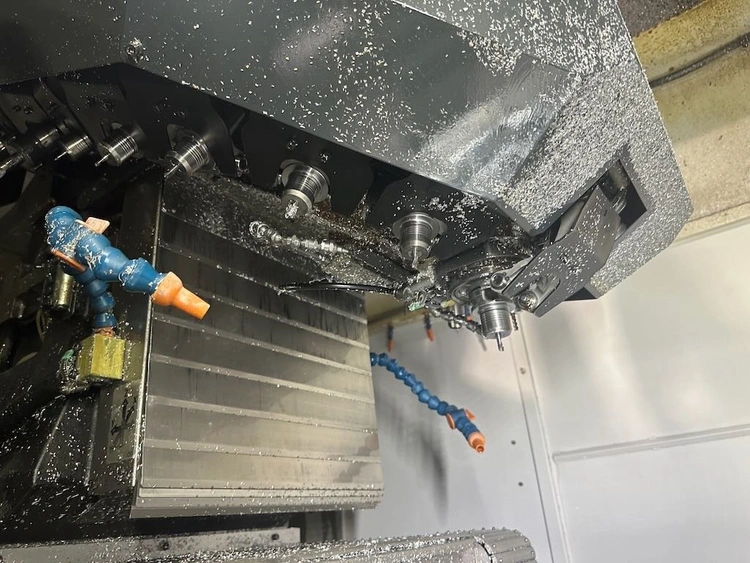

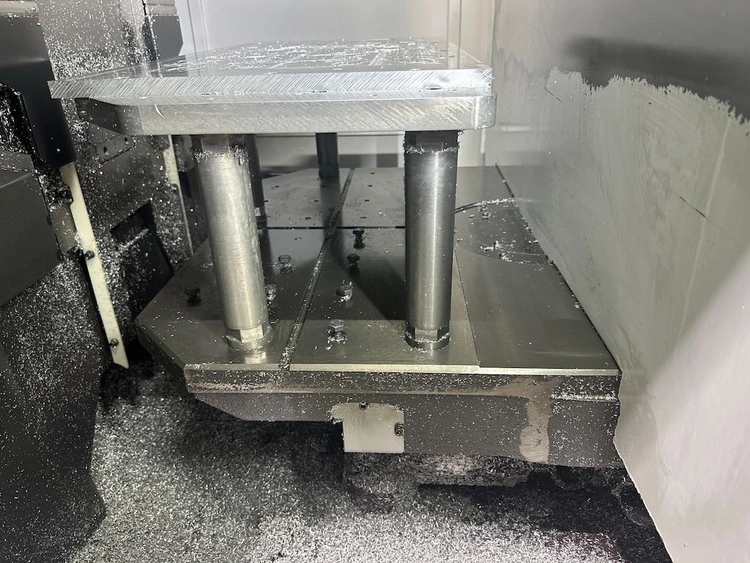

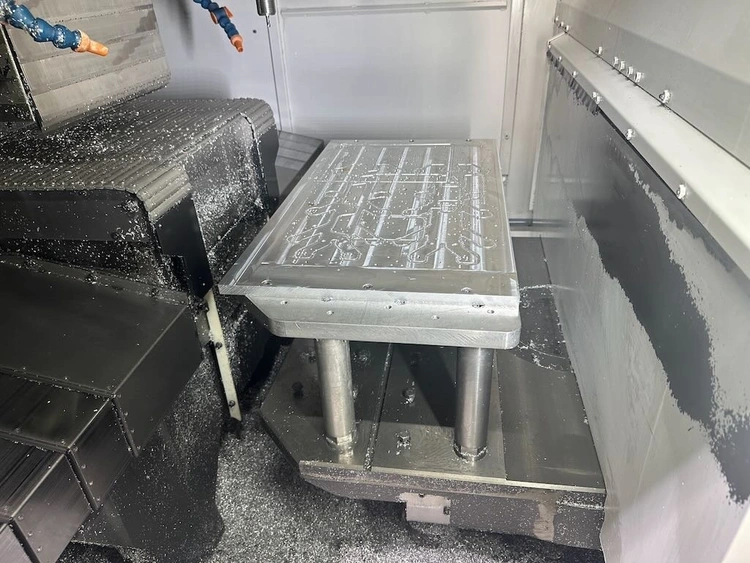

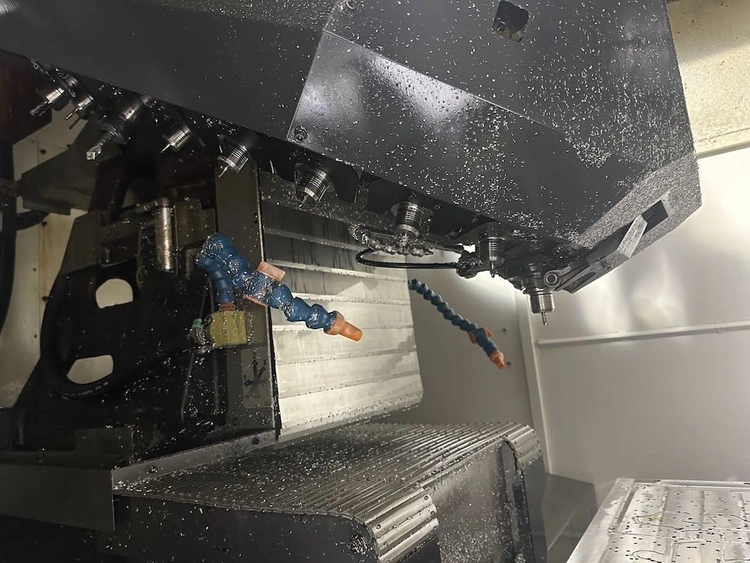

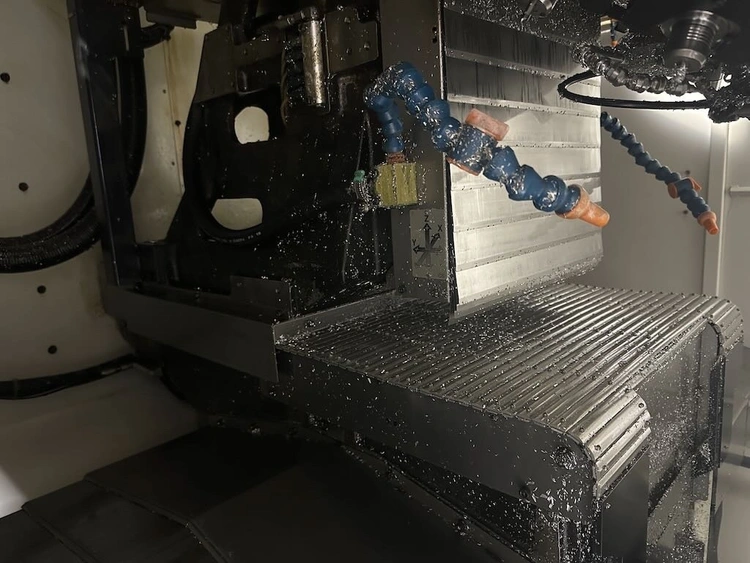

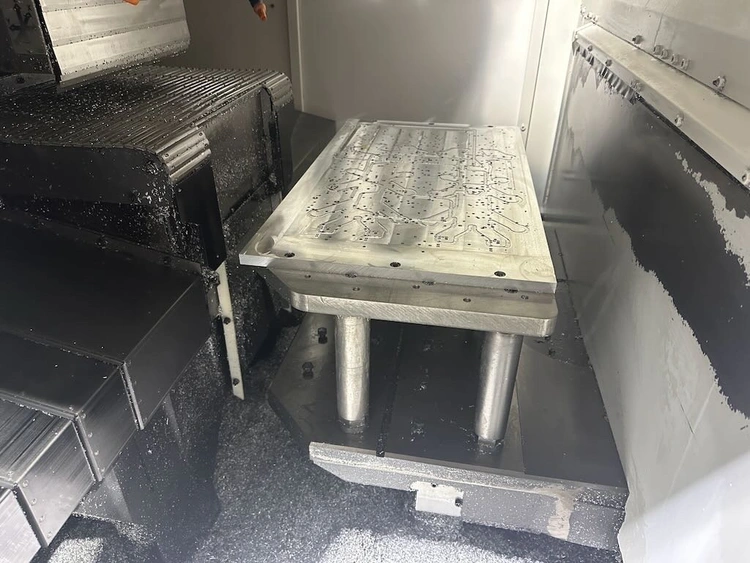

Brother R650X1 Speedio High-Speed CNC Machining Centre Type: High-speed vertical machining centre with twin-pallet (QT table) system Control: Brother CNC-C00 control system Capacity & travels X-axis travel: 650 mm Y-axis travel: 400 mm Z-axis travel: 305 mm Distance table to spindle nose: approx. 250 – 555 mm Work area (per pallet): 600 x 400 mm Twin-pallet system 2-face pallet (QT table) system Pallet change time: approx. 3.4 seconds Maximum load capacity: 200 kg per pallet (up to 300 kg optional) Maximum turning diameter: approx. 1,250 mm Spindle specification Optional spindle: 16,000 rpm high-speed version 15 bar Through Spindle Coolant BT30 Toolchanger & speeds Tool magazine capacity: 22 tools Tool-to-tool time: approx. 0.8 – 0.9 seconds Chip-to-chip time: approx. 1.6 – 1.7 seconds Rapid traverse (X/Y/Z): 50 m/min General specification High-speed production machining centre Compact footprint: approx. 1,837 x 3,248 mm Ethernet / USB / RS232 connectivity AIR BENCH Filtermist Unit Includes Brand New Coolant Tank, as the current tank is part of a Cell Coolant system. Full service history
