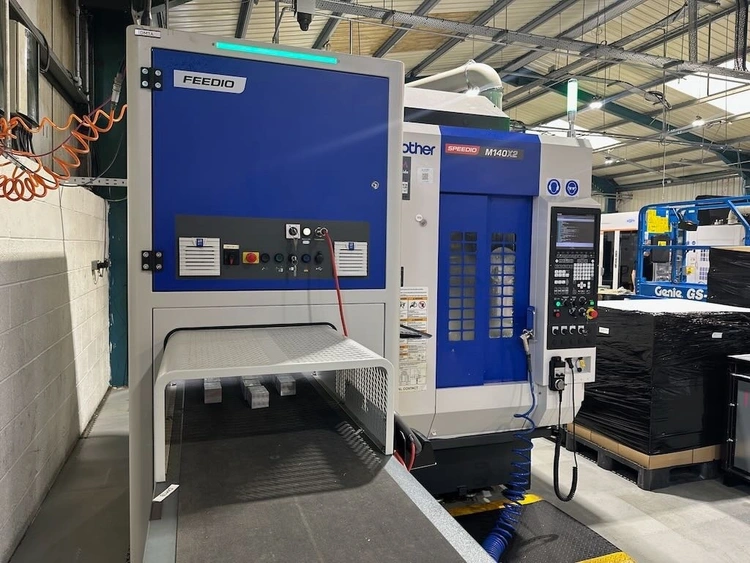

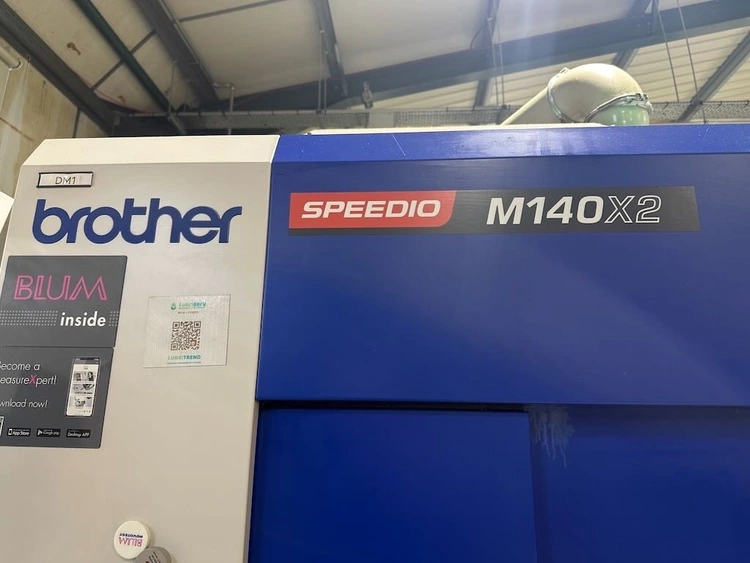

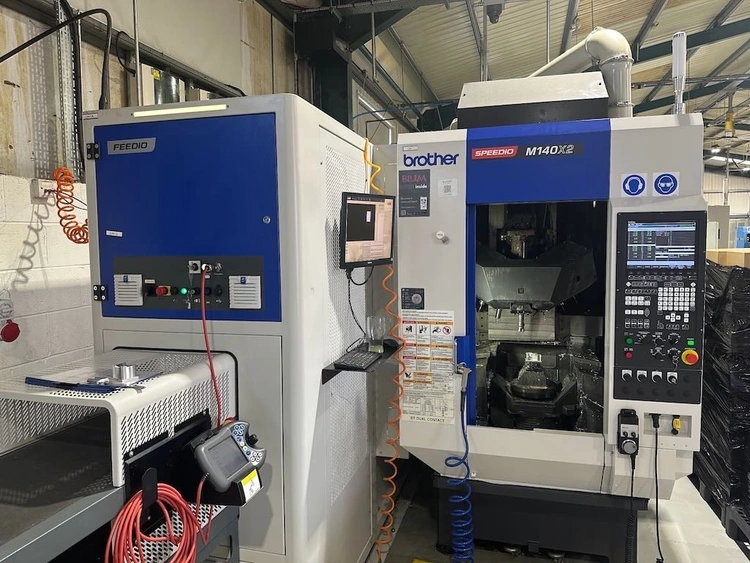

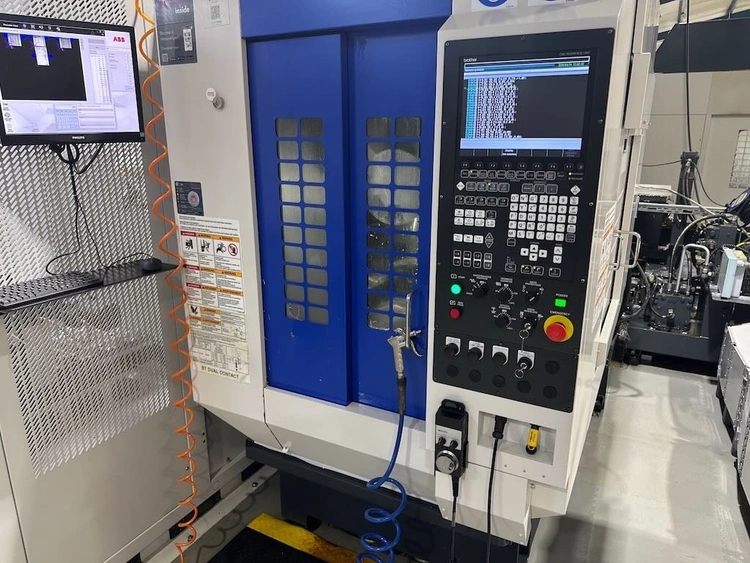

USED 2019 Brother Speedio M140X2 5-Axis CNC Machining Centre with Feedio SC3000 ABB Robot Automation System

Send Inquiry

Overview

Type
Vertical Machining Centers (5-Axis or More)
Manufacturer
BROTHER
Model
SPEEDIO M140X2
Year
2019
Stock #
94
Status
for sale

Description

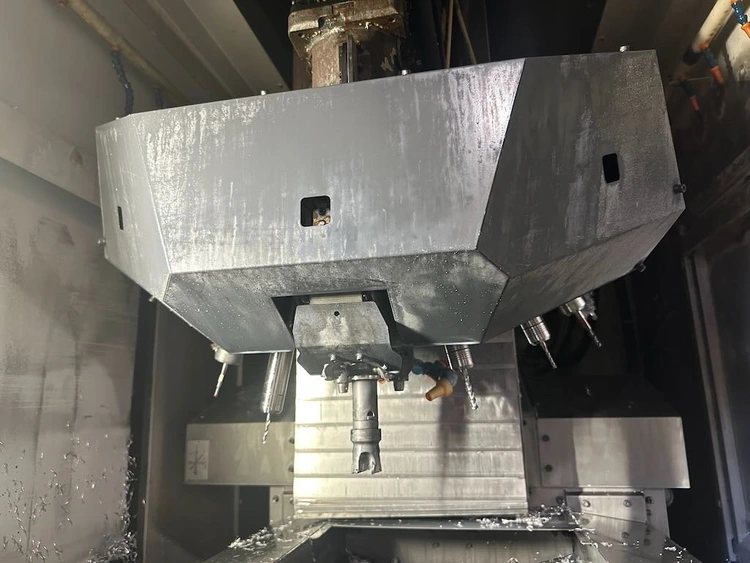

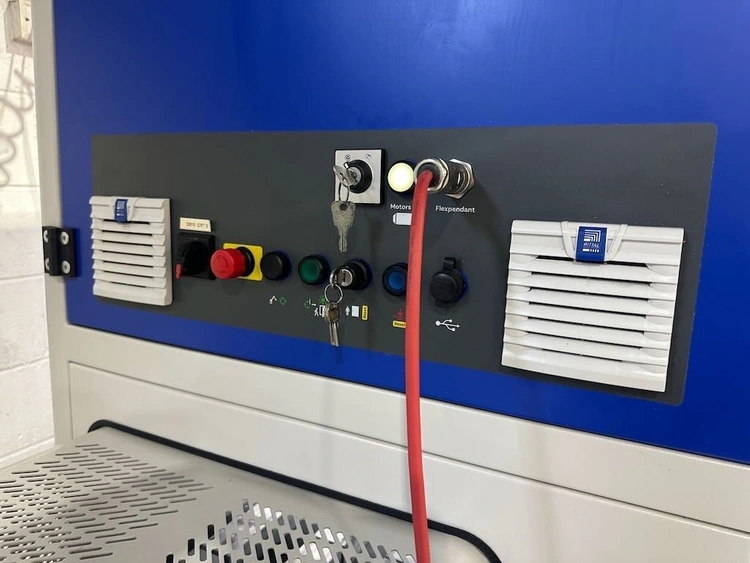

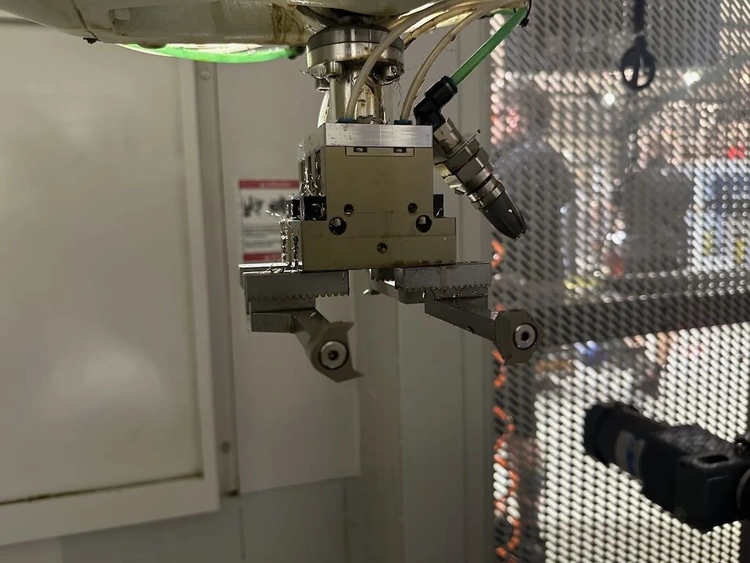

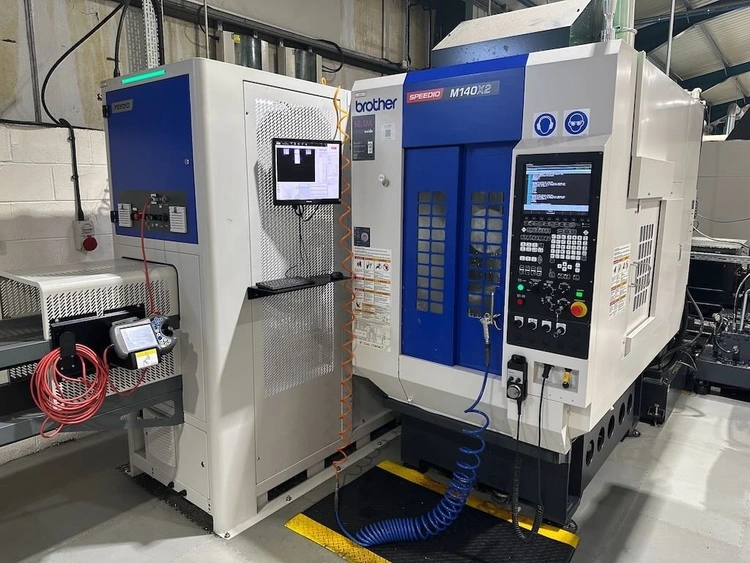

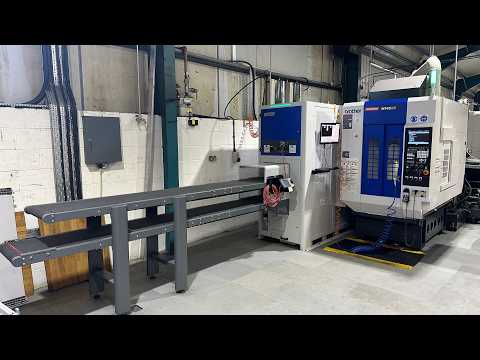

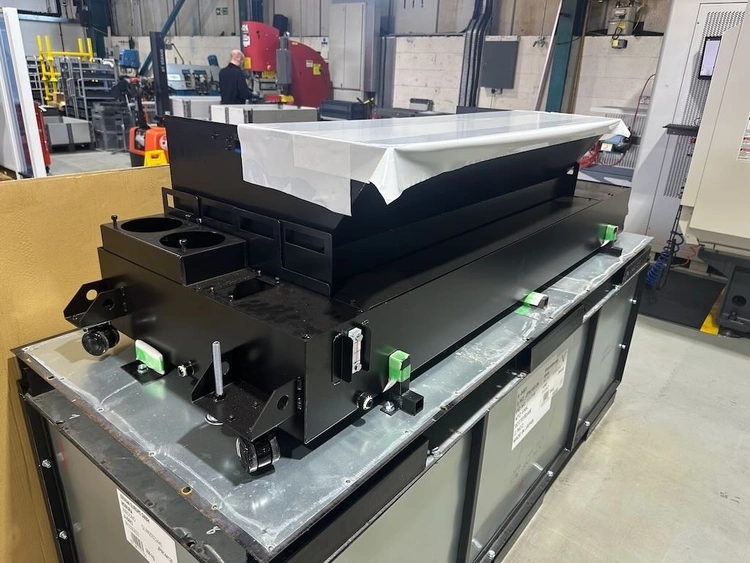

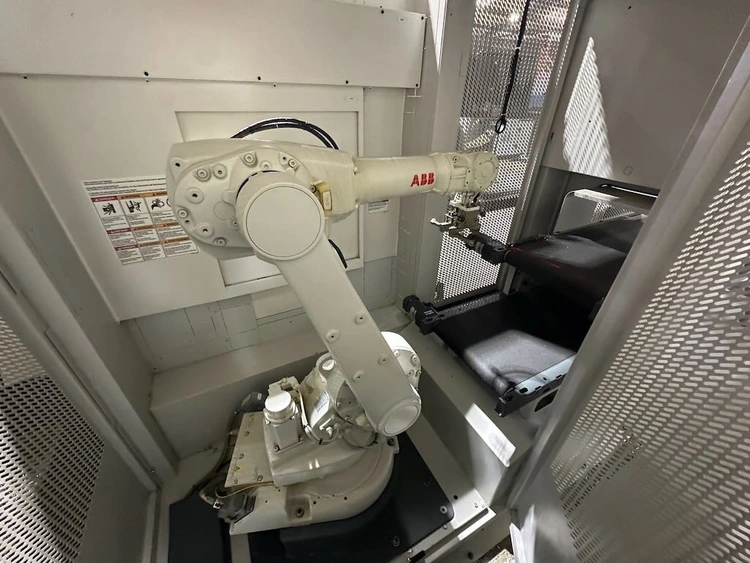

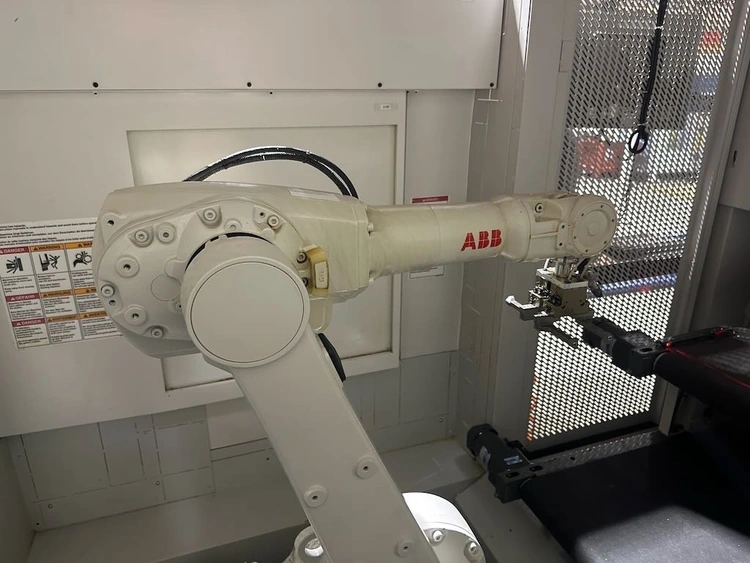

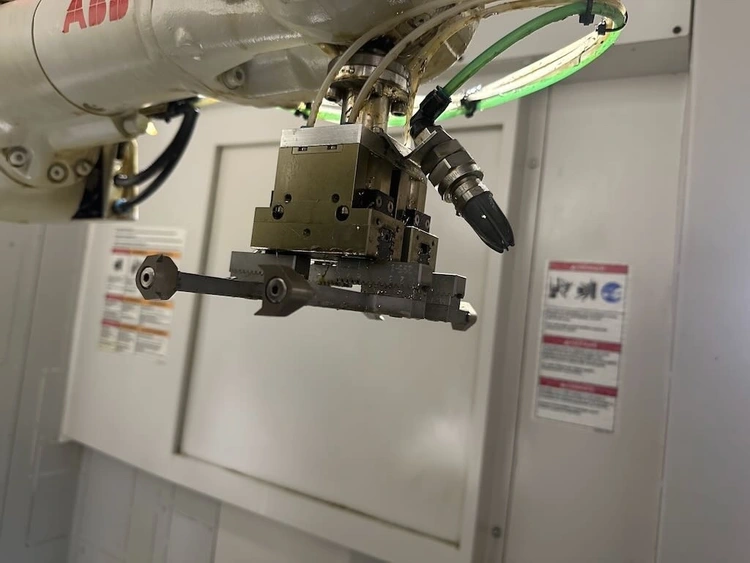

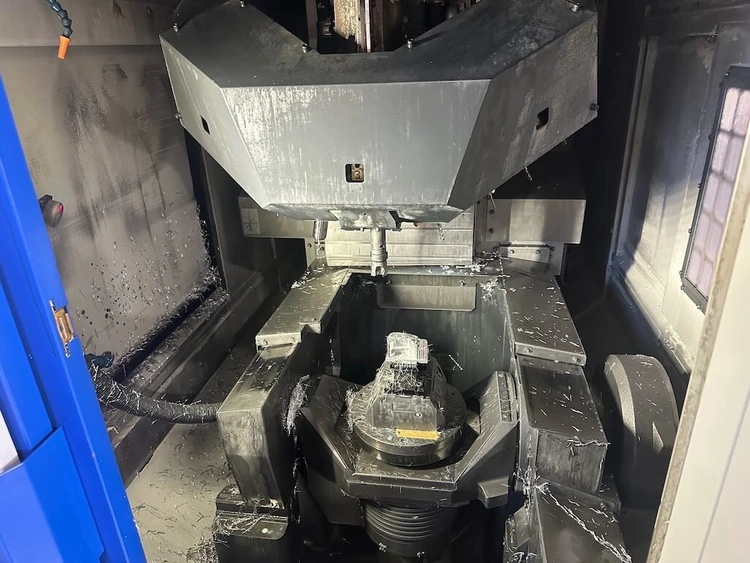

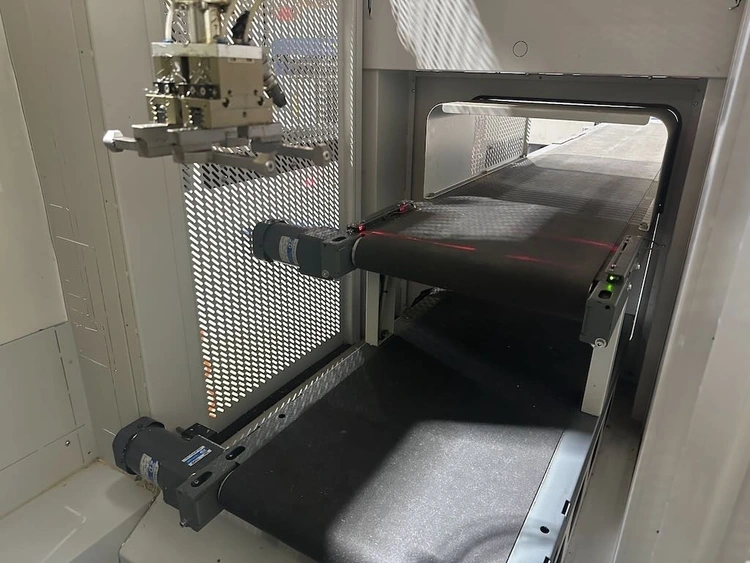

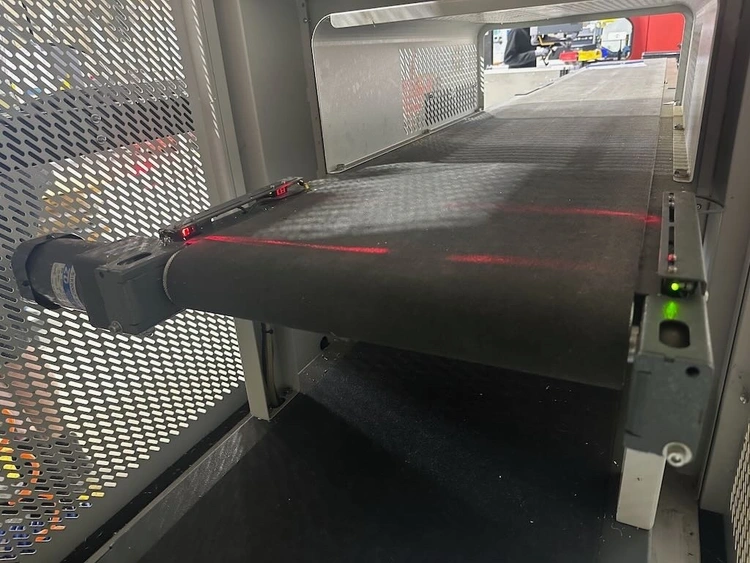

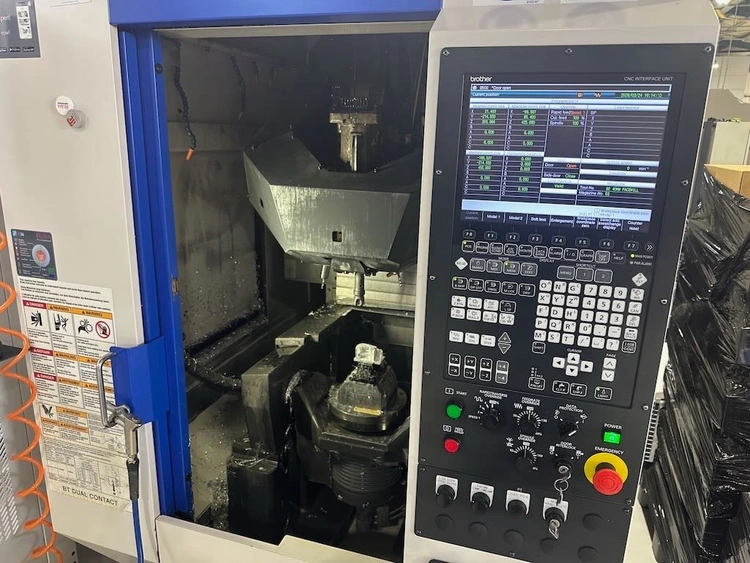

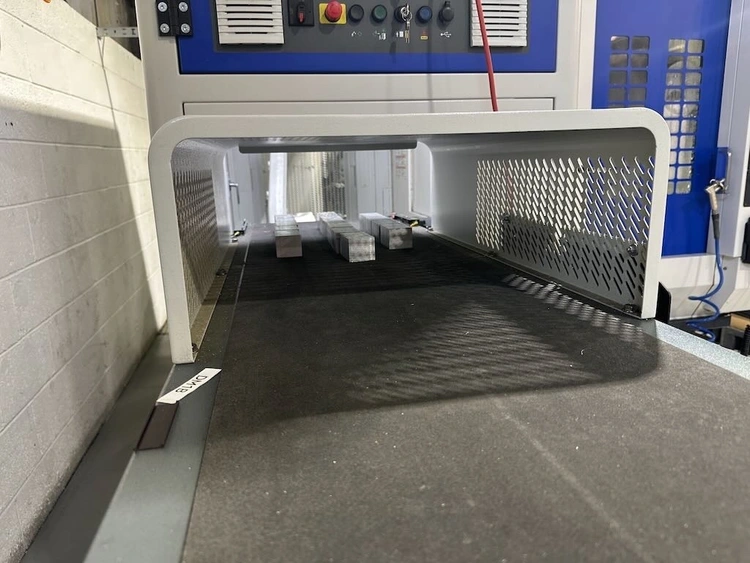

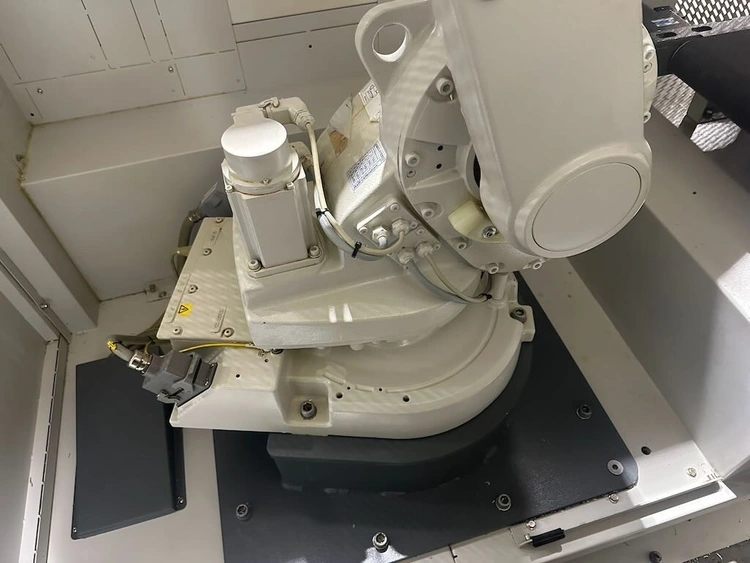

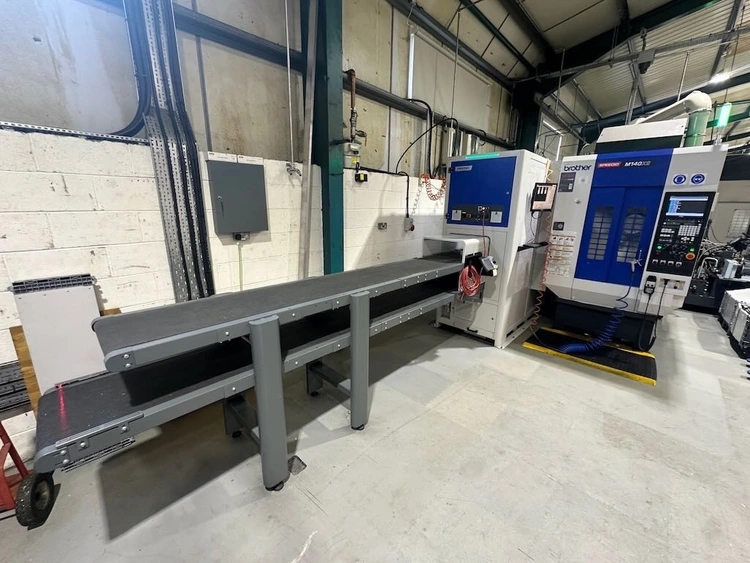

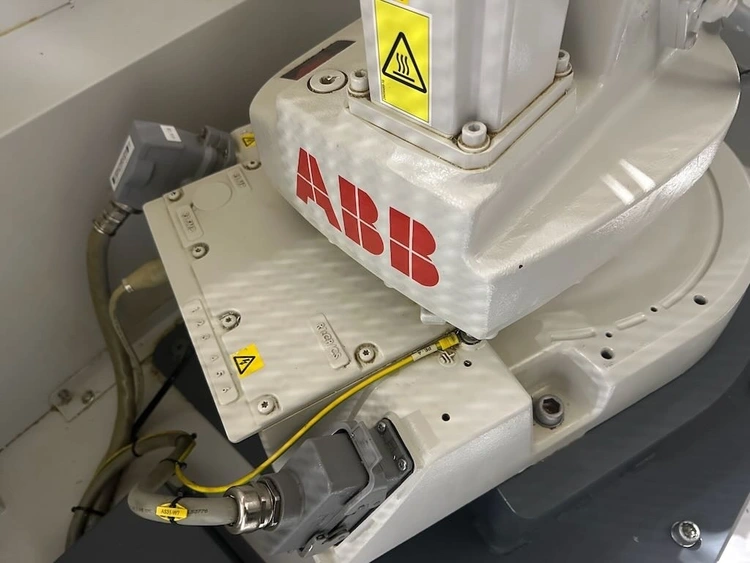

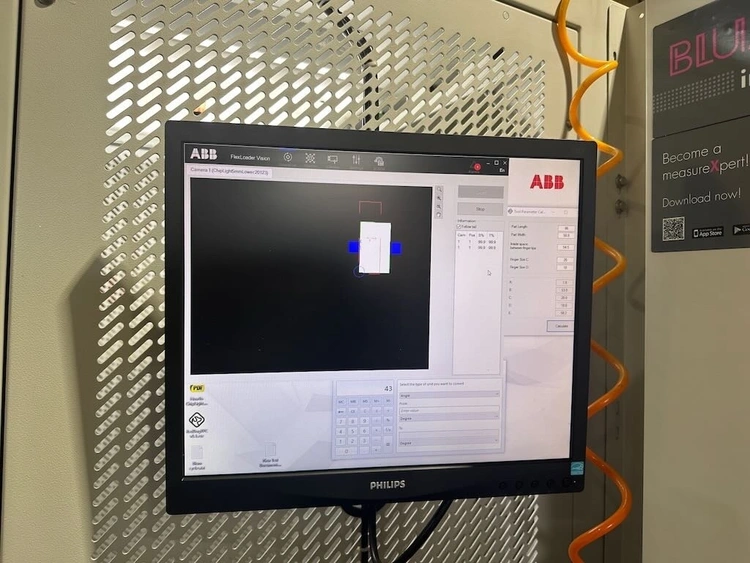

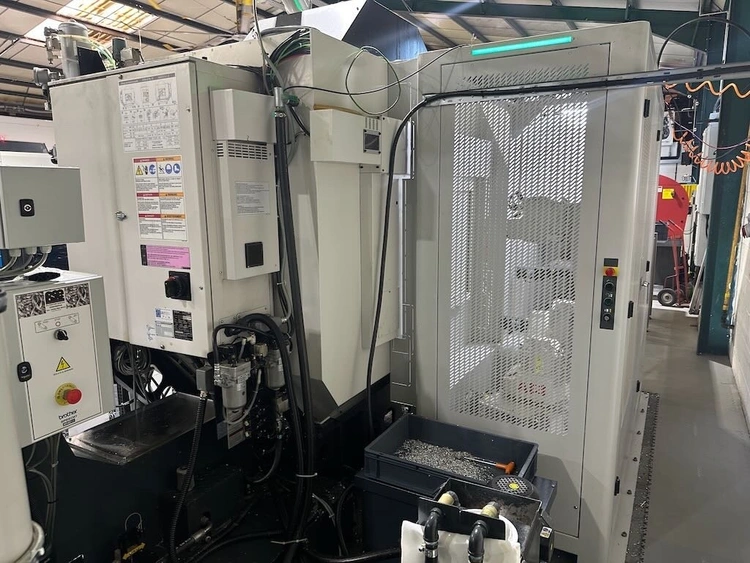

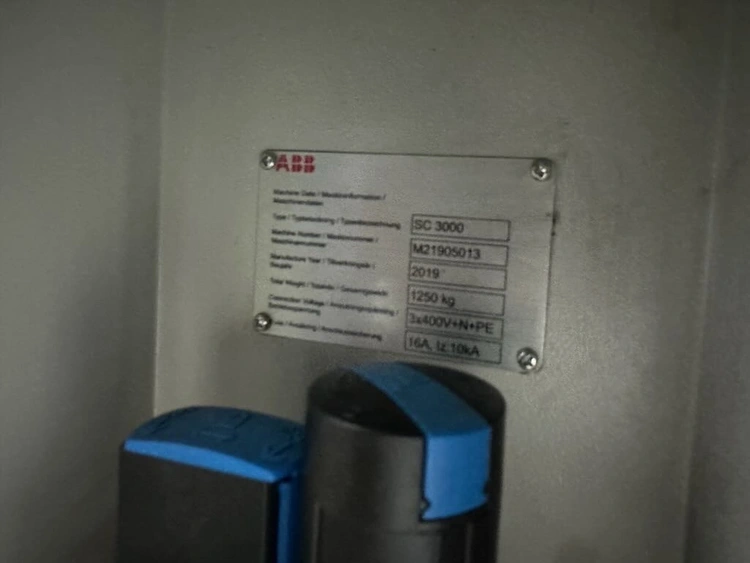

The Brother Speedio M140X2 is a compact 5-axis CNC machining centre designed for high-speed production of small precision components. Featuring a BBT30 high-speed spindle, 22-tool automatic toolchanger and integrated C-axis turning capability, the machine allows complex parts to be machined in a single setup. With rapid traverse rates of 50 m/min and extremely fast tool-change times, the M140X2 is ideal for subcontract engineering and high-precision production work. The ABB FlexLoader SC3000 (Feedio SC3000) is a compact robot automation system designed for CNC machine tending. Supplied as a complete pre-engineered cell, the system allows automatic loading and unloading of one or two machines and is ideal for subcontract engineering and production environments looking to increase productivity and run unattended machining.

Specifications

X7.87402"
Y17.3228"
Z12.0079"
# Axis5
Power13.53hp
RPM16000rpm
# ATC22
TaperBBT30
Dimensions 50.3937 x 150.708 "
Weight5952.48

Equipped With

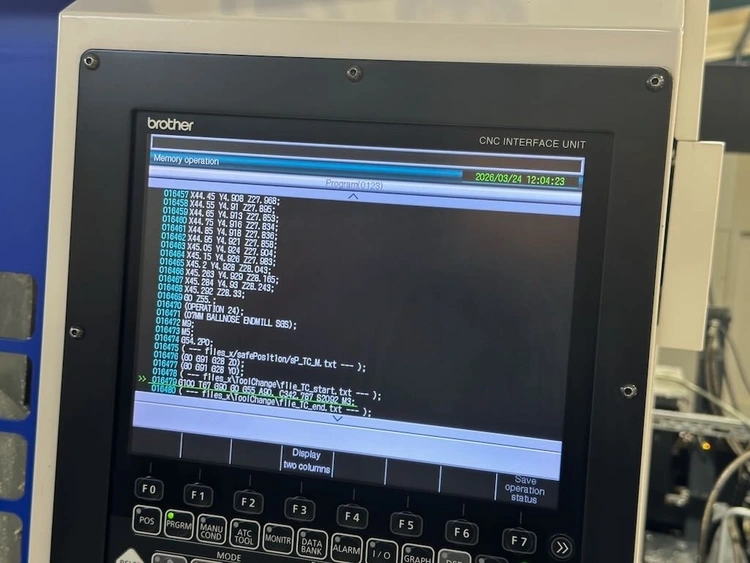

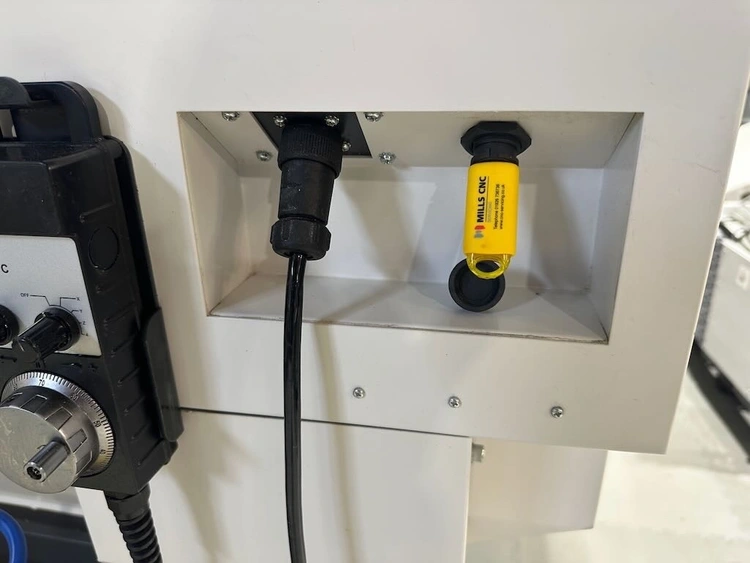

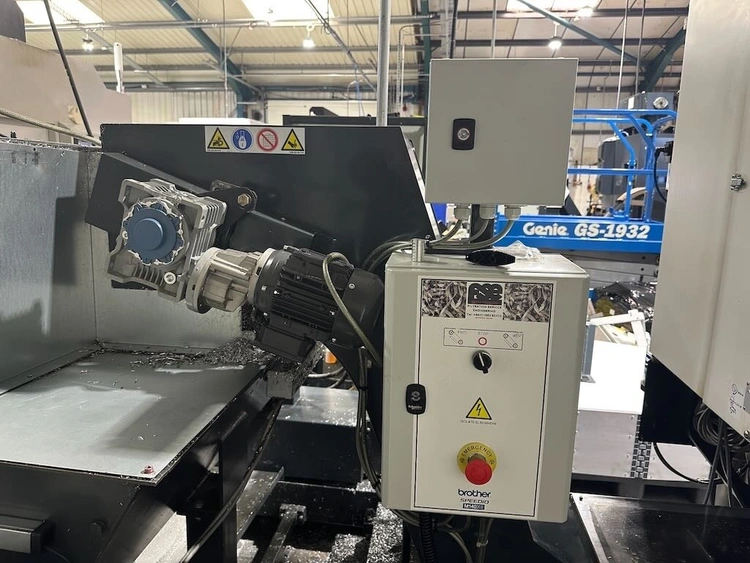

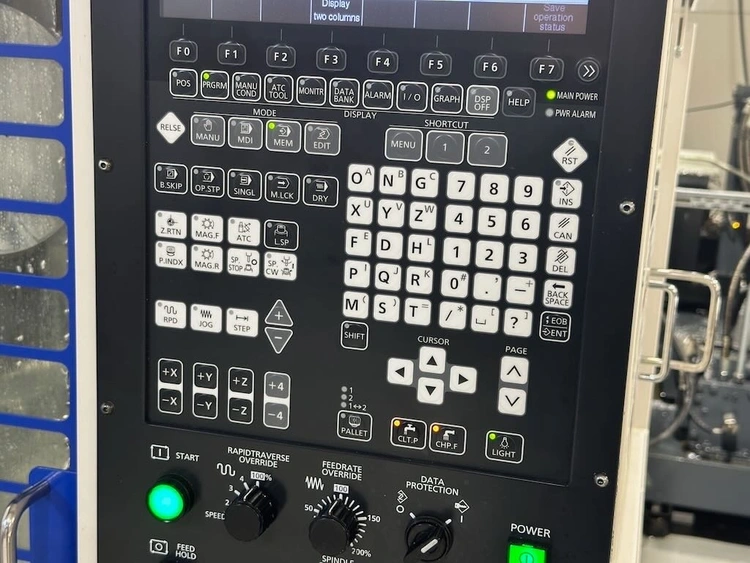

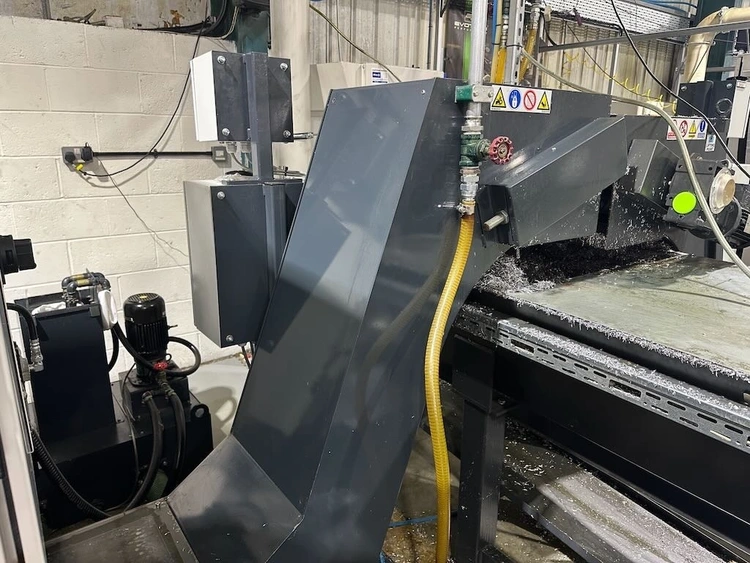

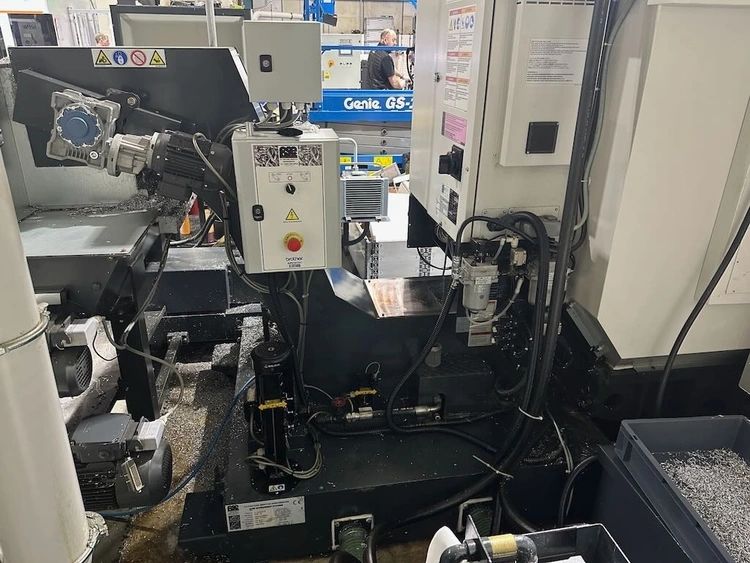

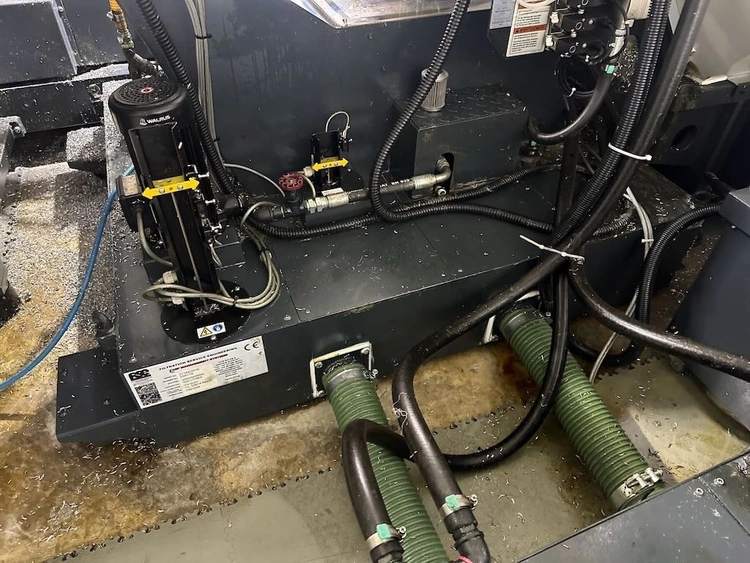

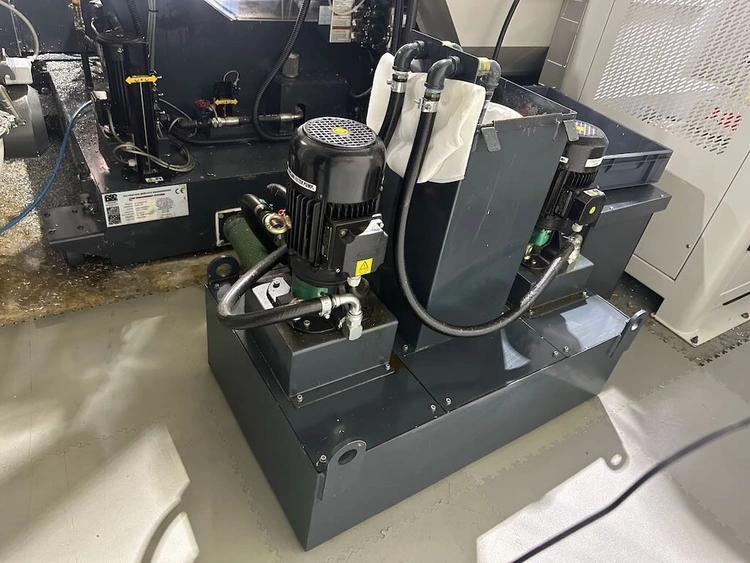

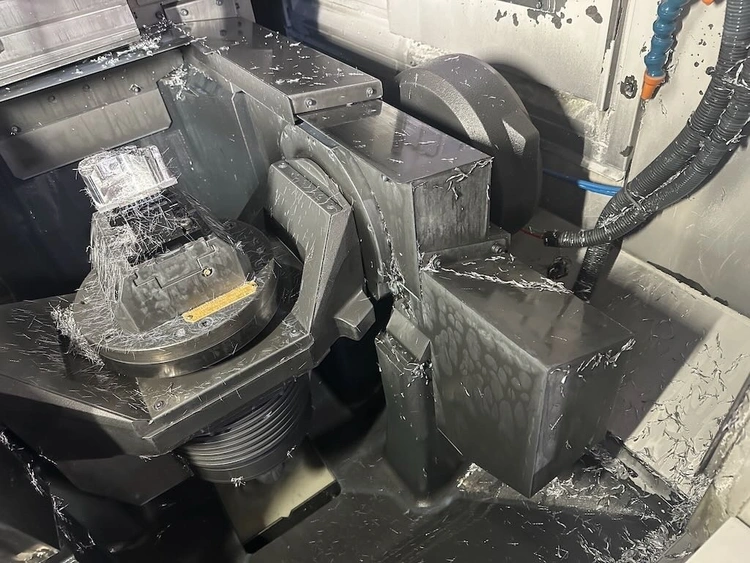

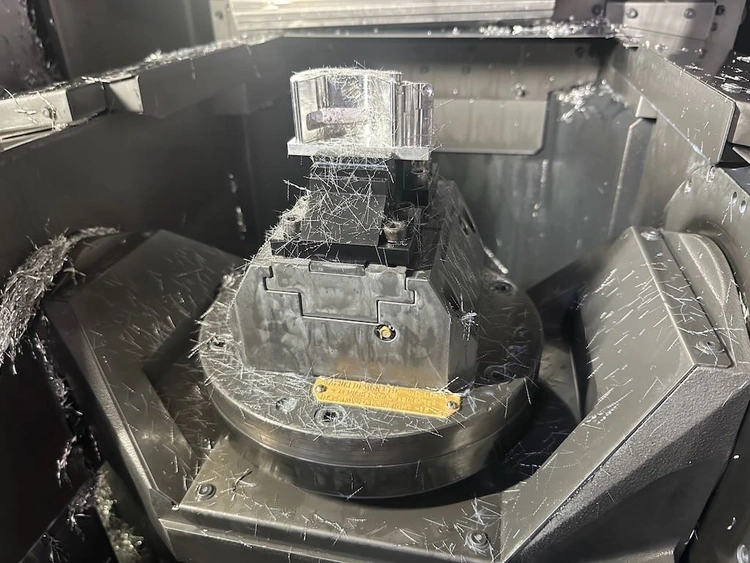

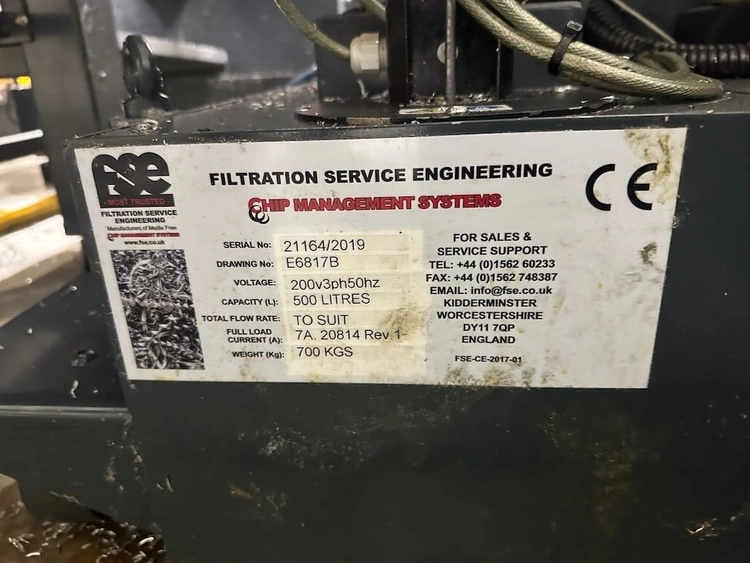

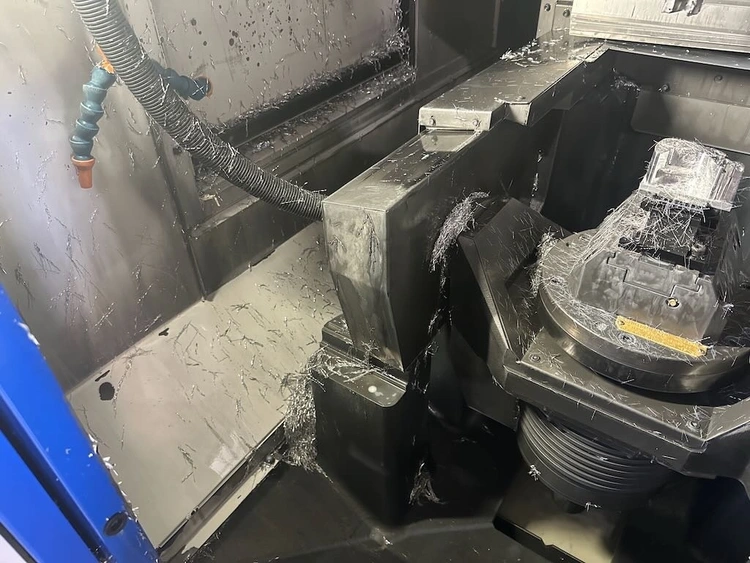

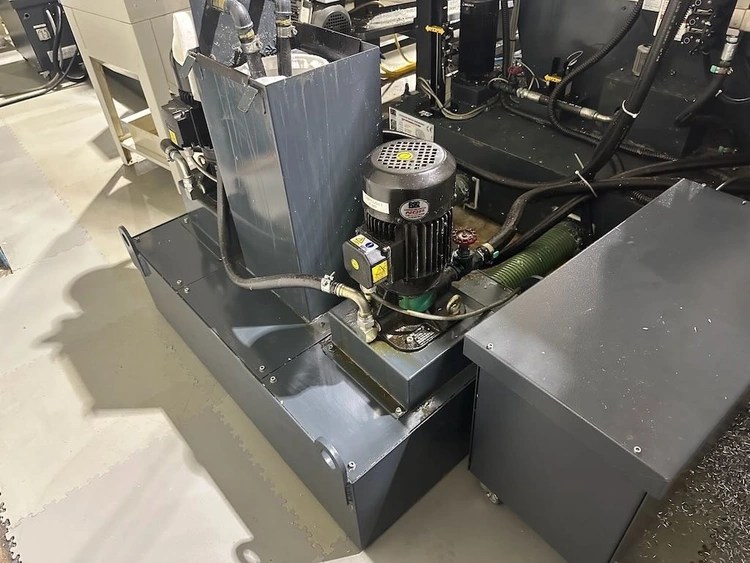

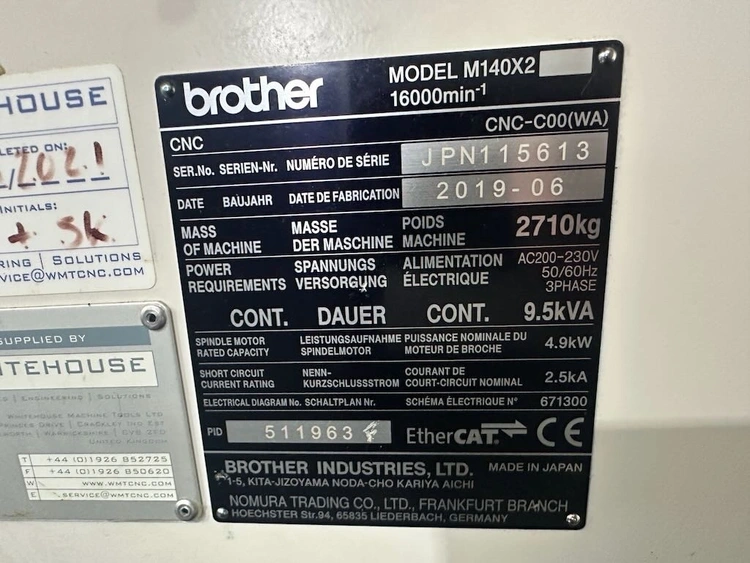

Model: M140X2 (Speedio Series) Type: 4+1-Axis high-speed CNC machining centre / mill-turn type machining centre Control: Brother CNC-C00 control system Travels & 5-axis capability X-axis travel: 200 mm Y-axis travel: 440 mm Z-axis travel: 305 mm A-axis (tilt): –30° to +120° C-axis: 360° rotary table 5-axis configuration (X, Y, Z, A and C axes) Table & capacity Table diameter: 140 mm Maximum table load: approx. 40 kg (table side) Compact table designed for small precision components Spindle specification Optional high-speed spindle: 16,000 rpm Spindle taper: BBT30 (Face and Taper) Spindle motor output: approx. 10.1 kW (10-minute rating) 35 bar Through Spindle Coolant Toolchanger & speeds Tool magazine capacity: 22 tools Tool-to-tool time: approx. 0.9 sec Chip-to-chip time: approx. 1.4 sec Rapid traverse (X/Y/Z): 50 m/min Turning / multi-task capability Integrated C-axis turning spindle Maximum turning spindle speed: 2,000 rpm Designed for one-setup machining of complex parts General specification 5-axis high-speed production machining centre Compact footprint: approx. 1,280 x 3,829 mm Approximate machine weight: 2,700 kg Ethernet / USB / modern CNC interface Rear exit swarf conveyor NOP pumps for washdown and flood coolant, plus bag filtration Air bench mist extraction Full service history ABB Feedio SC3000 Robot Automation System Make: ABB Robotics Model: FlexLoader SC 3000 (often listed as Feedio SC3000) Type: CNC machine-tending robot automation system Application: Automatic loading and unloading of CNC lathes and machining centres General description The ABB FlexLoader SC3000 is a compact pre-engineered robot cell designed to automate machine tool loading and unloading. The system is supplied as a complete ready-to-install solution including robot, safety enclosure, part handling system and control software. It is suitable for both single-machine and twin-machine automation and is widely used in subcontract engineering and production machining environments. Main features Fully integrated robot loading system for CNC machines Can operate one or two machine tools Modular design – expandable as production increases Compact footprint automation cell Plug-and-play installation with pre-programmed robot code Designed for both small-batch and production work Optional integrated vision system for part recognition Robot & handling system 6-axis ABB industrial robot (commonly IRB 1600 or IRB 2600 depending on specification) Automatic part loading and unloading Integrated gripper system Infeed and outfeed conveyor system Part handling system suitable for multiple component sizes Capacity & flexibility Designed for small to medium size workpieces Can handle multiple part types with quick changeover Suitable for turning centres, machining centres, grinders and similar CNC machines Can operate unattended production (up to approx. 20 hours depending on configuration) Control & system Integrated ABB robot controller Pre-engineered safety enclosure and guarding Standardised automation cell supplied ready for installation Vision system and part tracking available (model dependent) Typical applications Ideal for: CNC lathe automation CNC machining centre loading Small to medium batch production Subcontract precision engineering Lights-out machining environments
