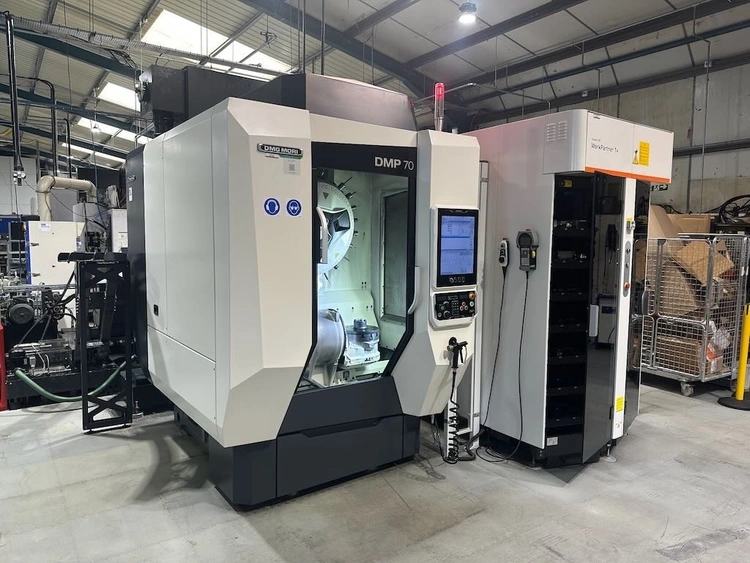

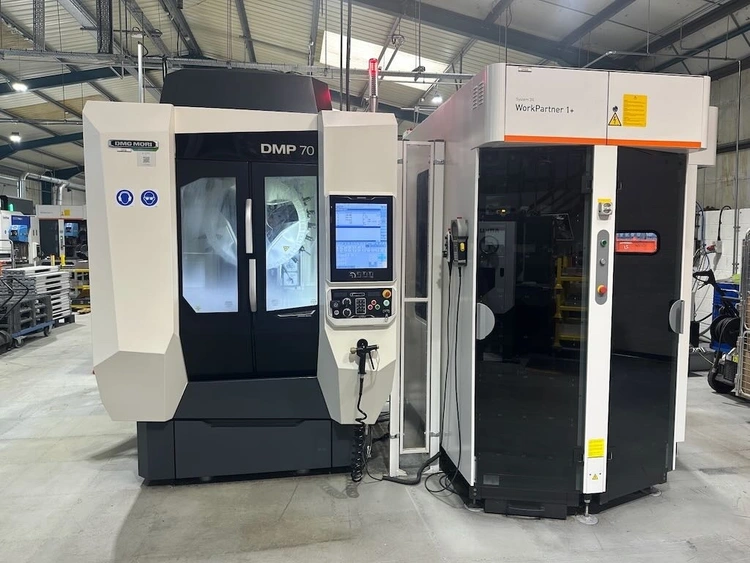

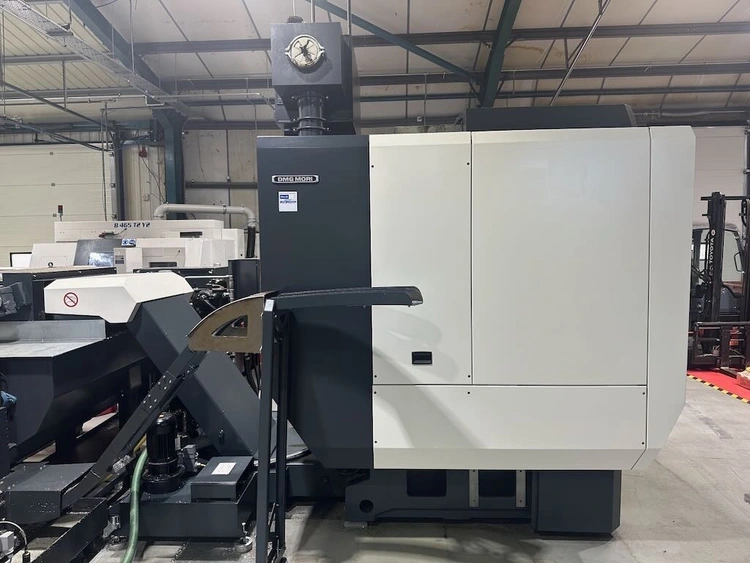

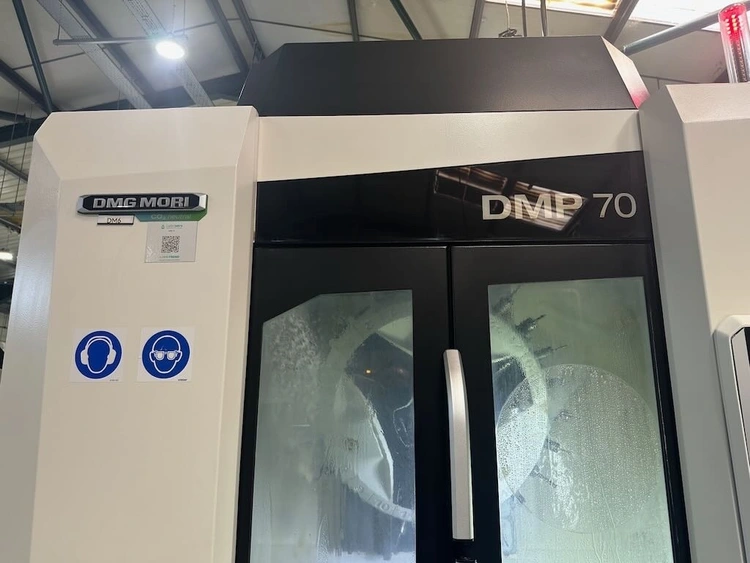

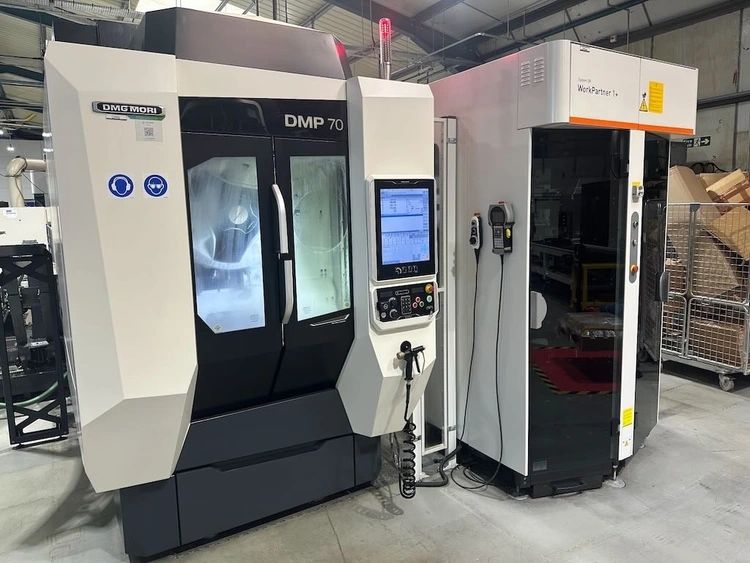

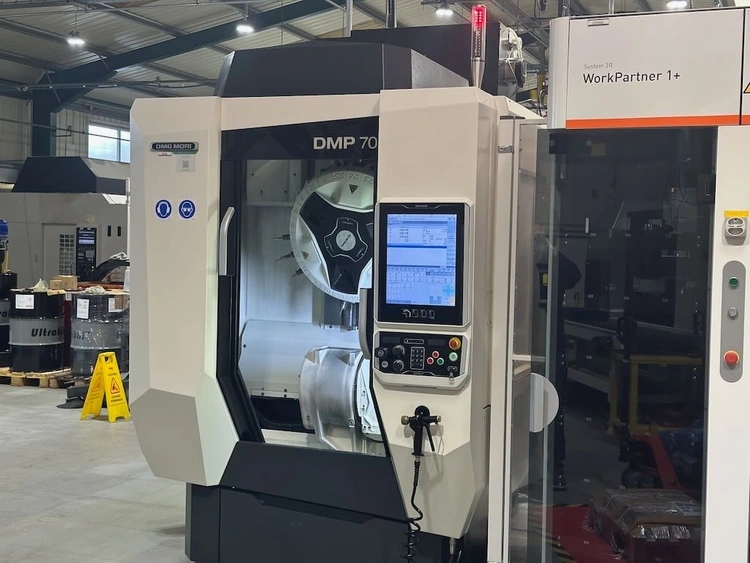

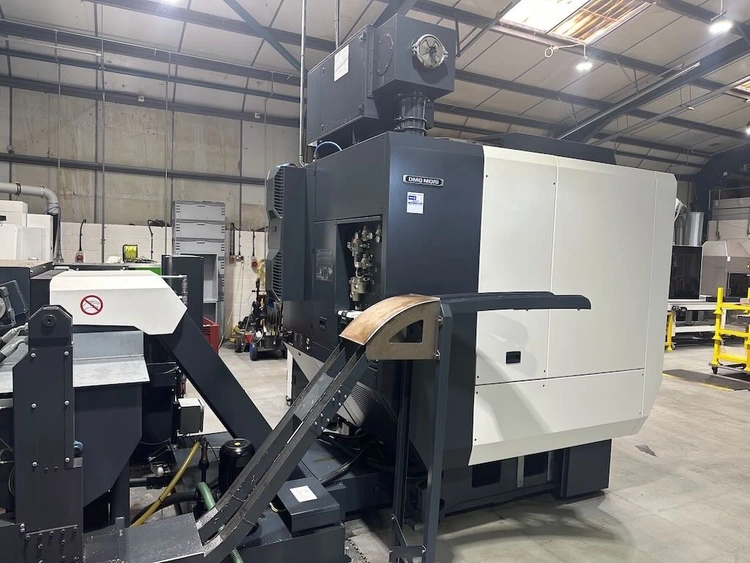

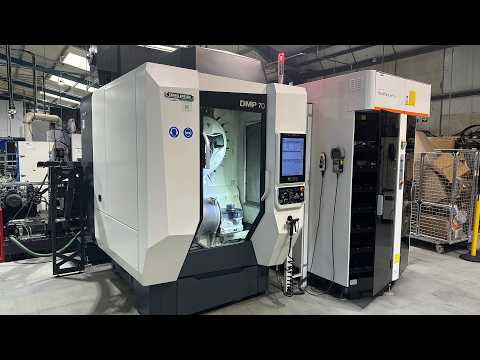

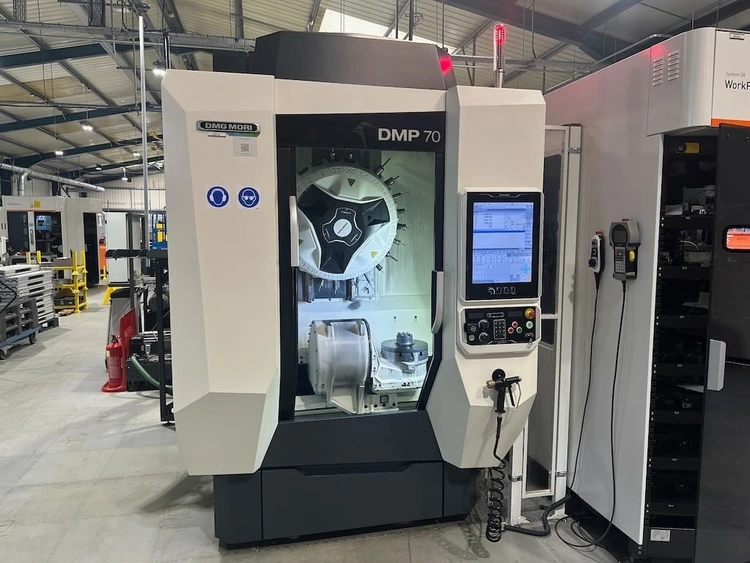

USED 2023 DMG MORI DMP 70 5-axis high-speed vertical machining centre with System 3R WorkPartner 1+ 126 Pallet Automation

Send Inquiry

Overview

Type
Vertical Machining Centers (5-Axis or More)
Manufacturer
DMG MORI
Model

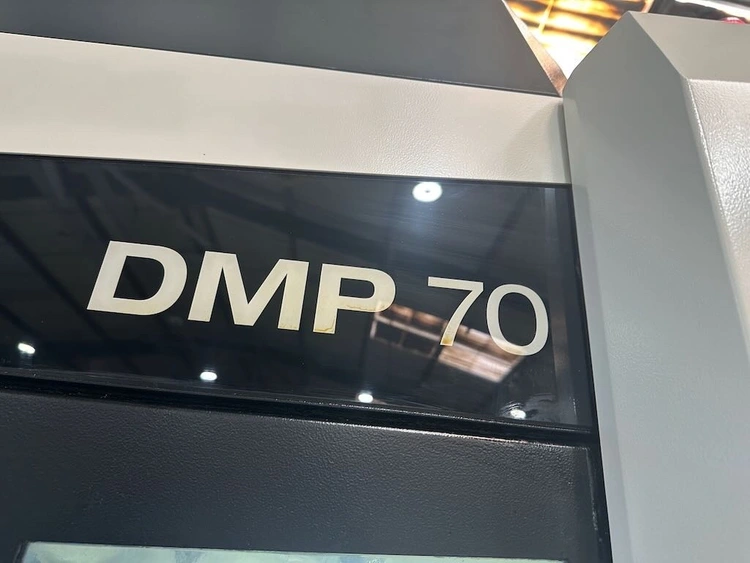

DMP 70
Year
2023
Stock #
95
Status
for sale

Description

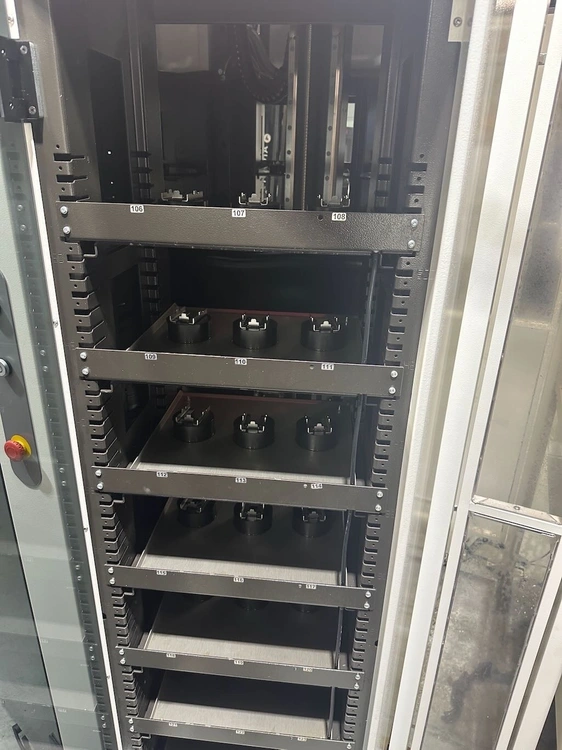

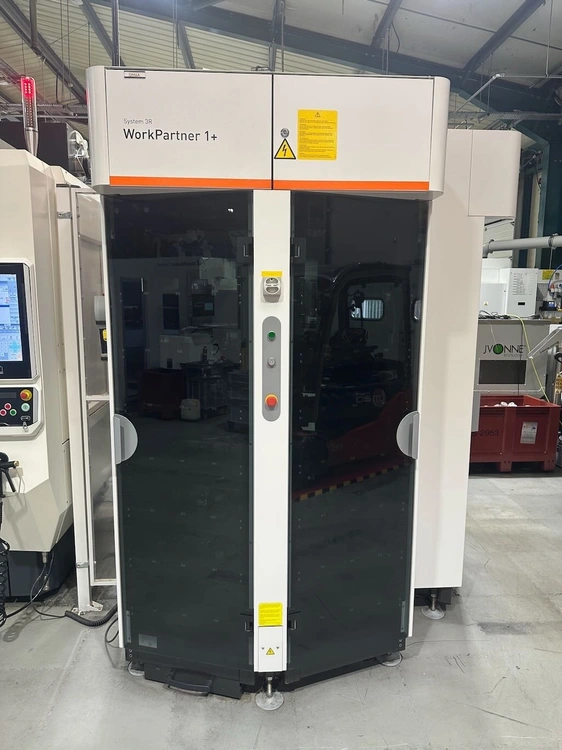

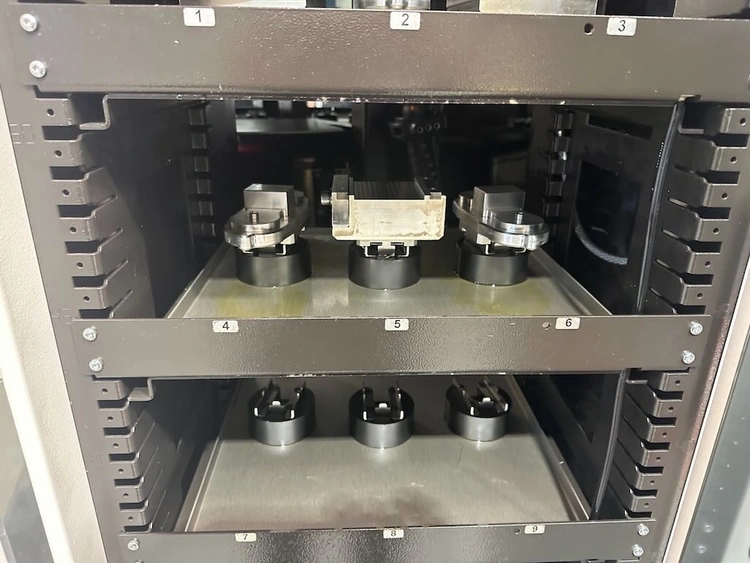

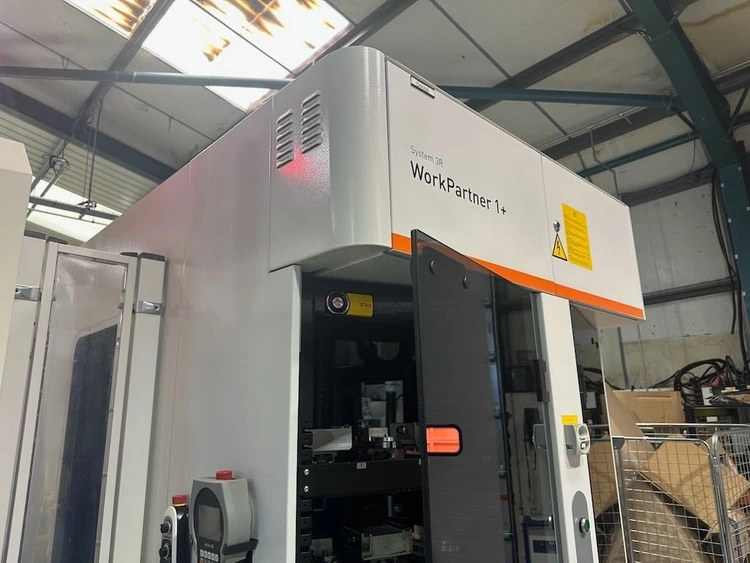

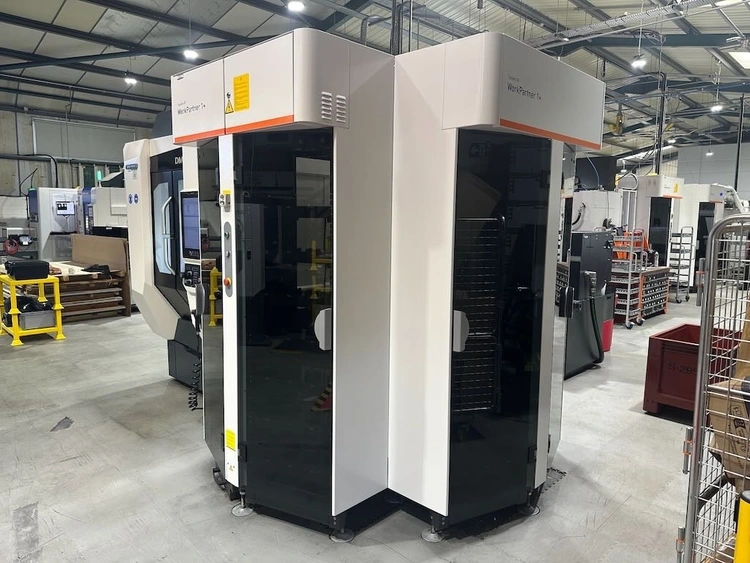

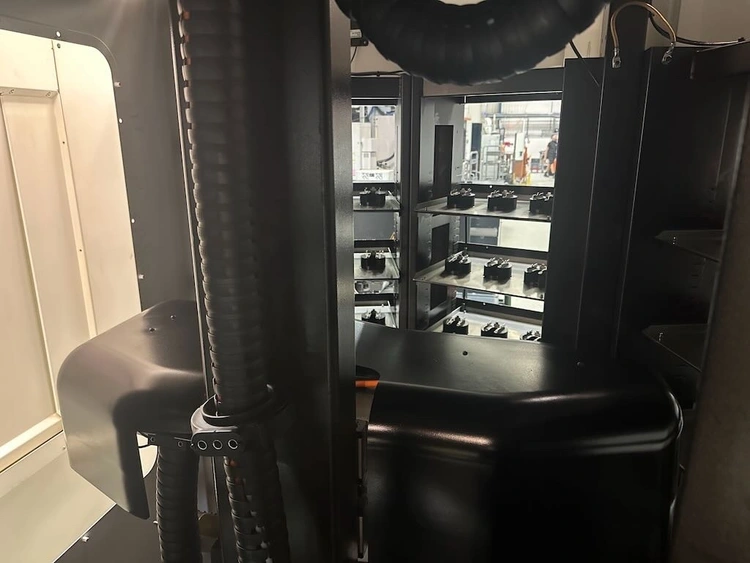

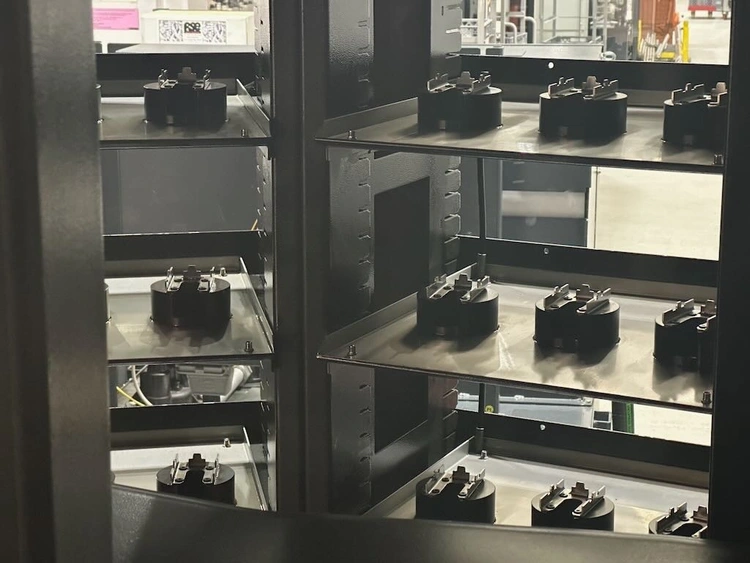

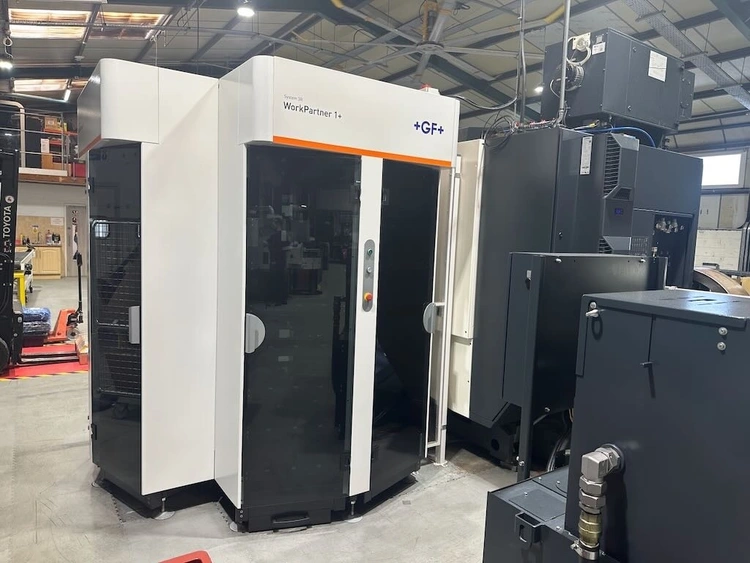

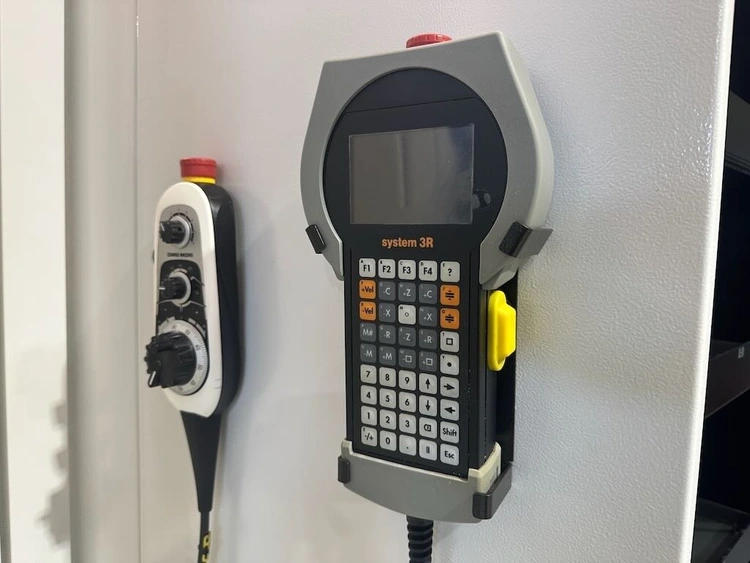

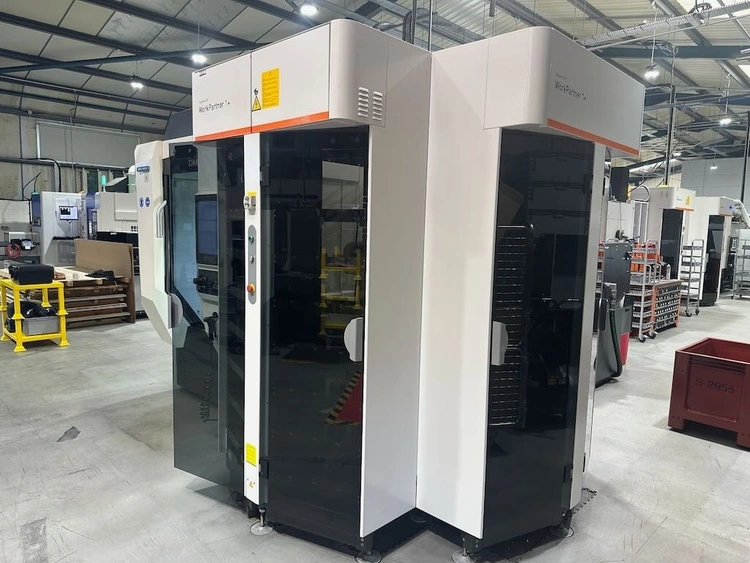

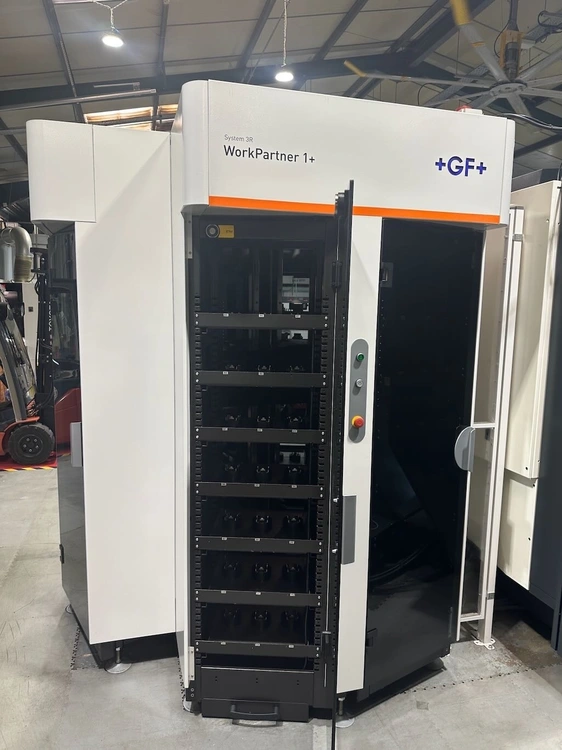

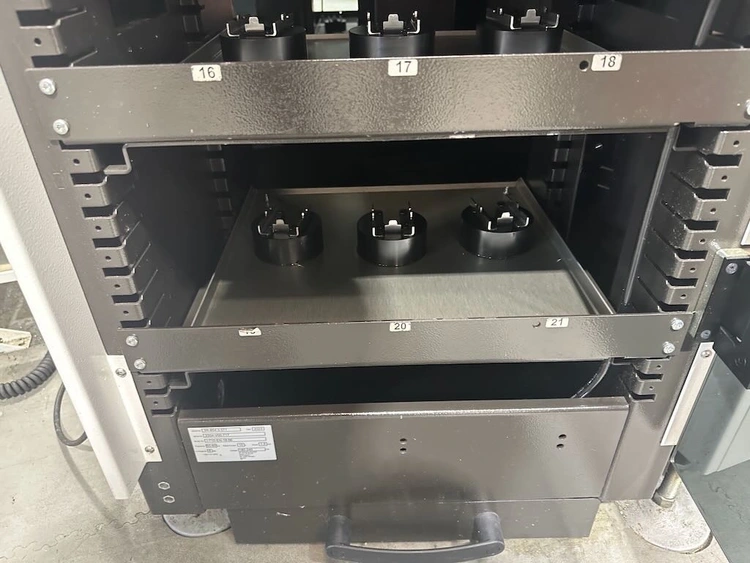

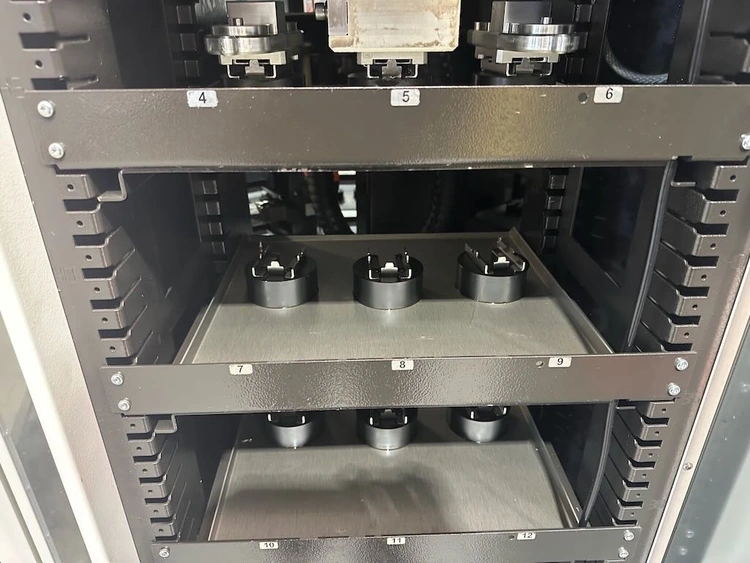

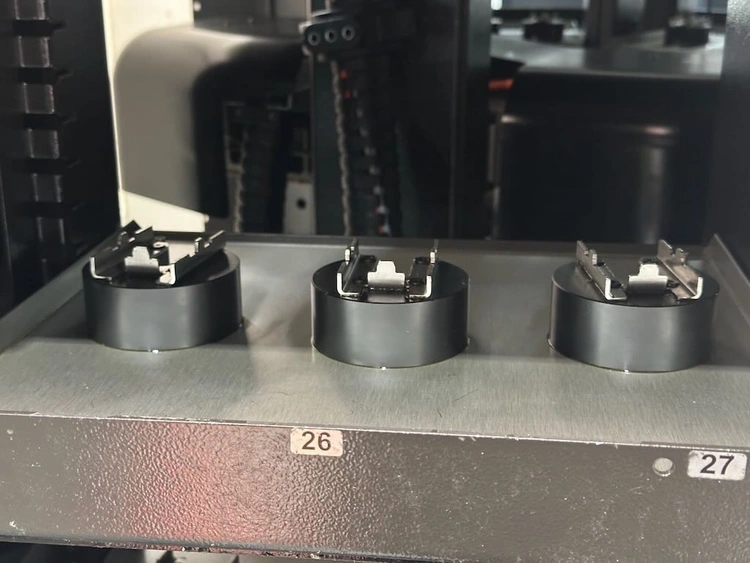

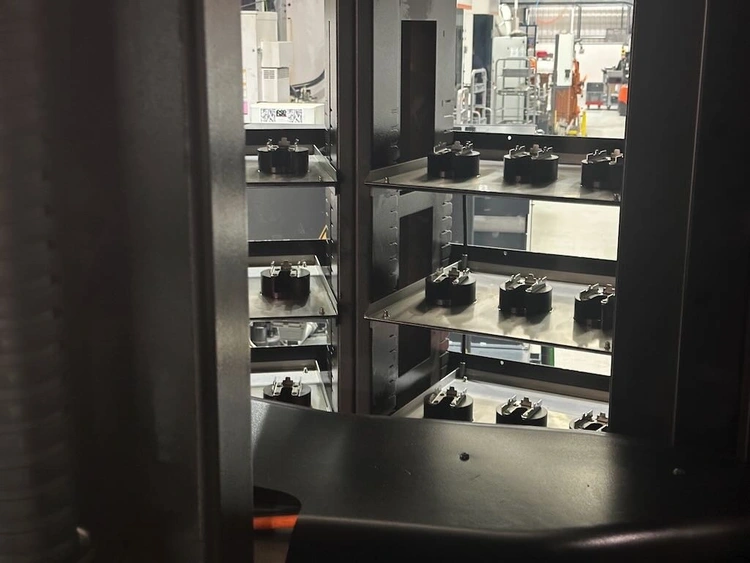

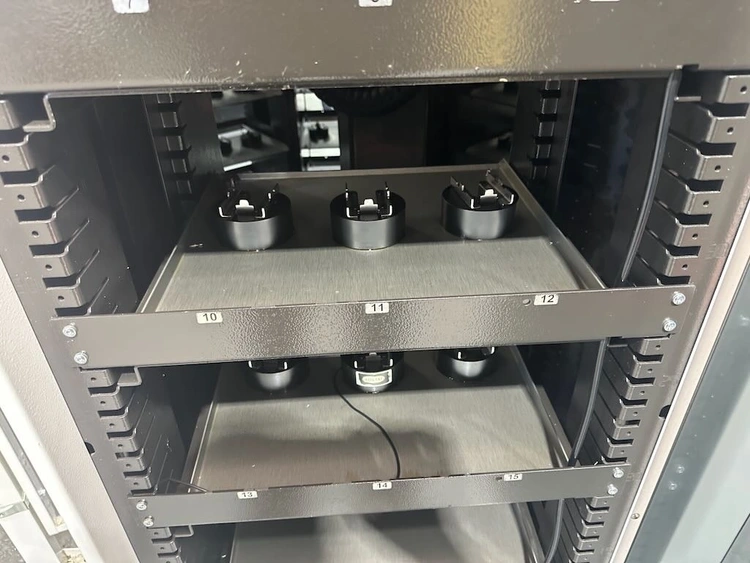

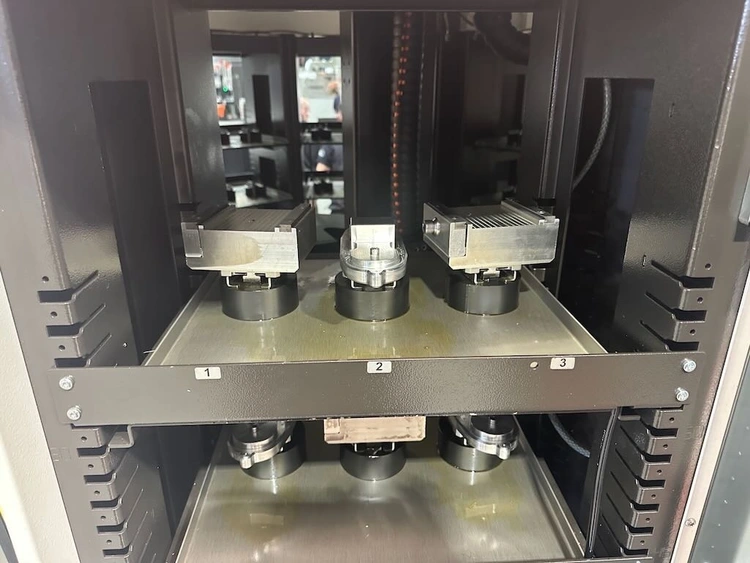

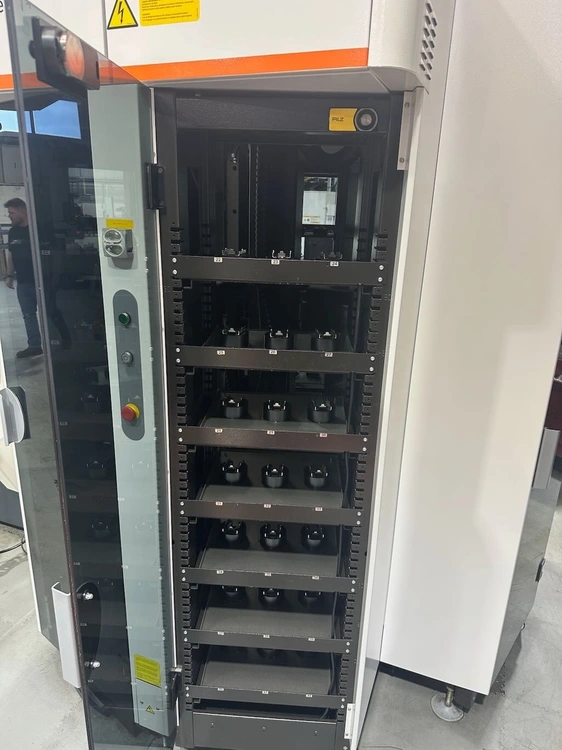

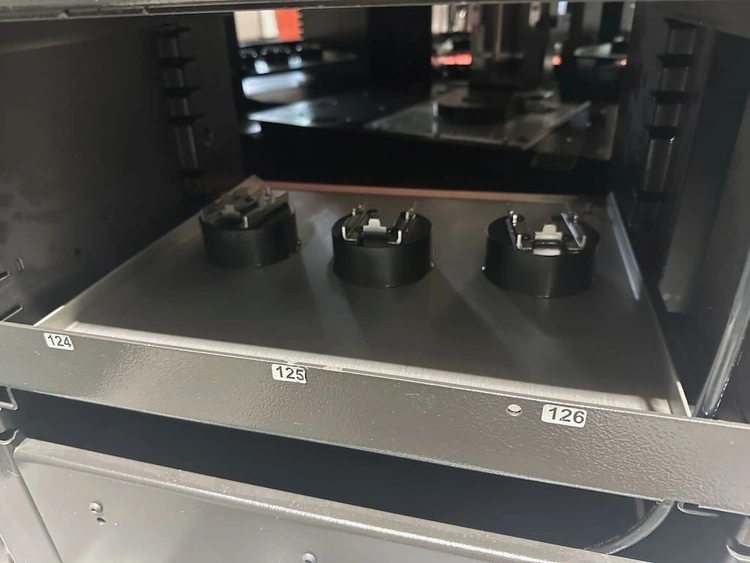

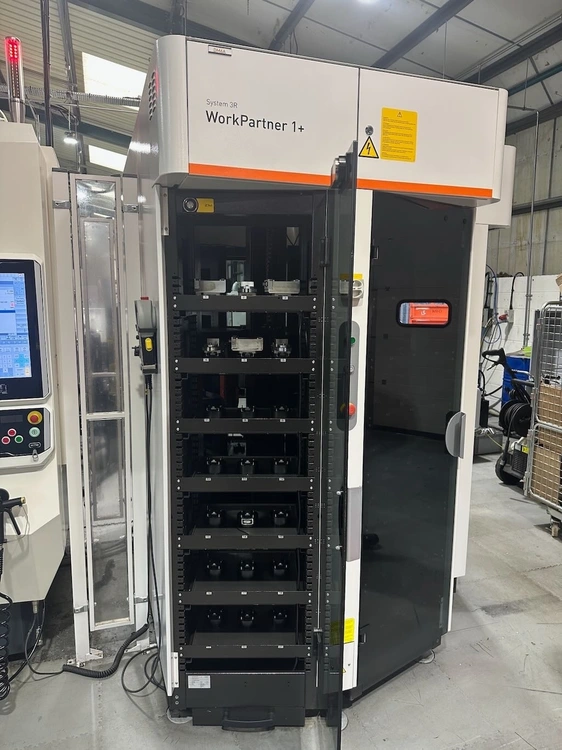

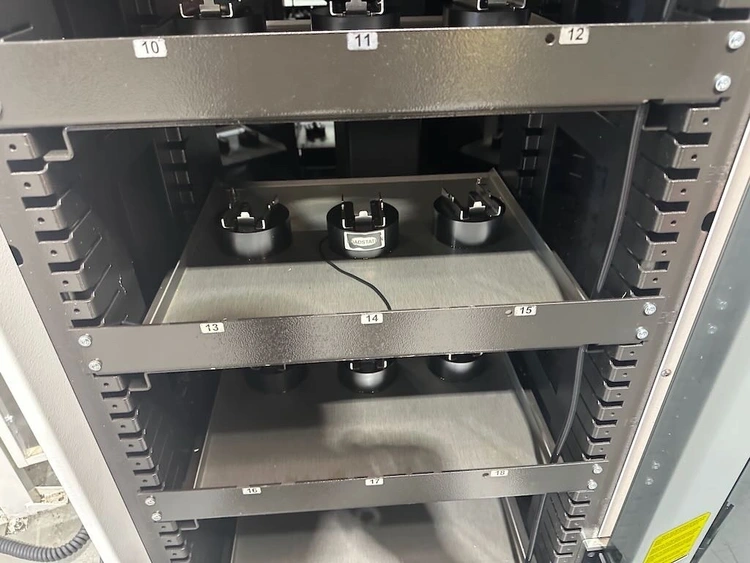

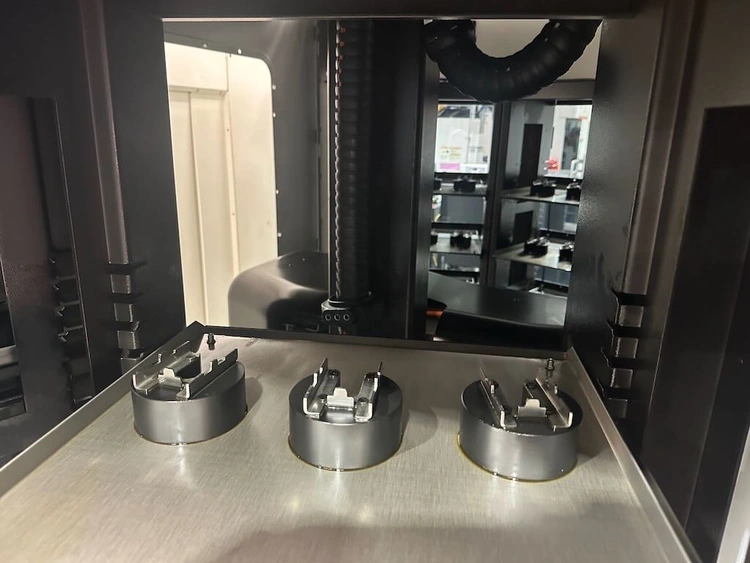

The DMG MORI DMP 70 is a high-speed 5-axis vertical machining centre designed for precision production machining. With 700 mm X-axis travel, rapid traverse rates up to 60 m/min and extremely fast tool-change times, the machine is ideal for subcontract engineering, aerospace and medical component manufacturing. Its compact footprint and high-speed spindle make it suitable for both production and prototype environments. The System 3R WorkPartner 1+ is a flexible pallet automation platform designed to enable unattended machining, improved throughput and 24/7 production in a wide range of manufacturing environments. Its open architecture allows integration with multiple machine tool types and automation components such as AMRs, cell PC and advanced magazine configurations. The system is suitable for both one‑off production and series manufacturing.

Specifications

X27.56"
Y16.54"
Z14.96"
# Axis5
RPM24000rpm

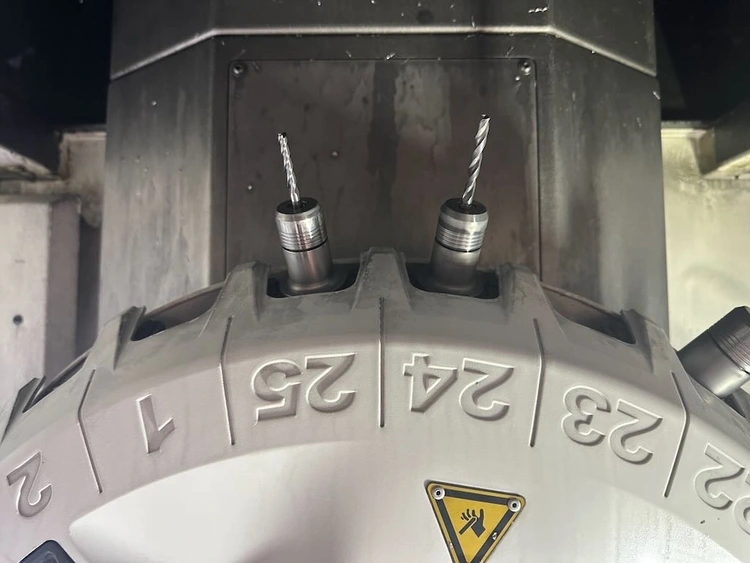

# ATC25
TaperBBT30

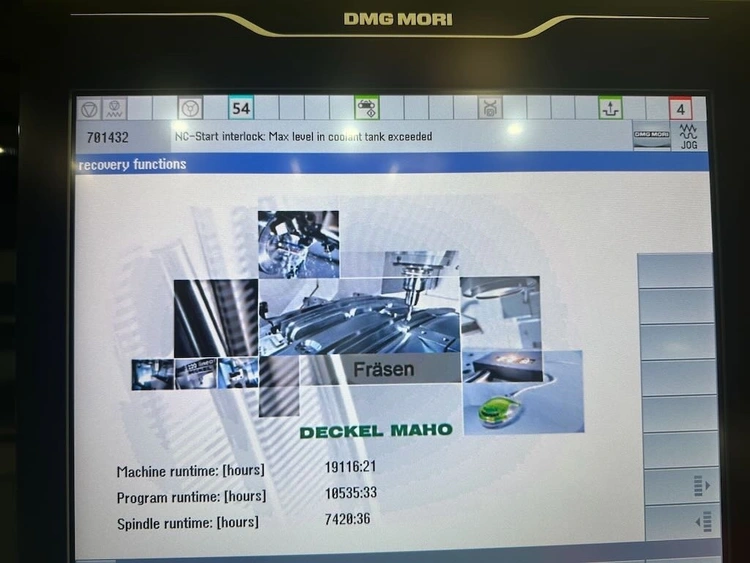

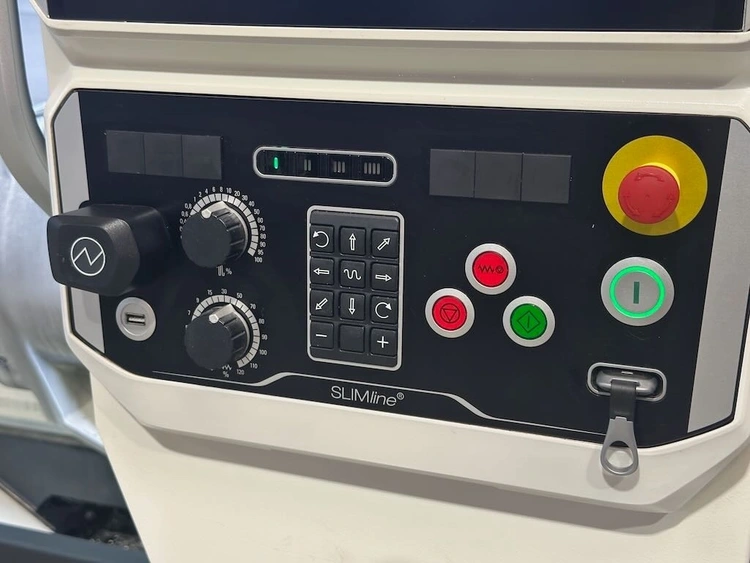

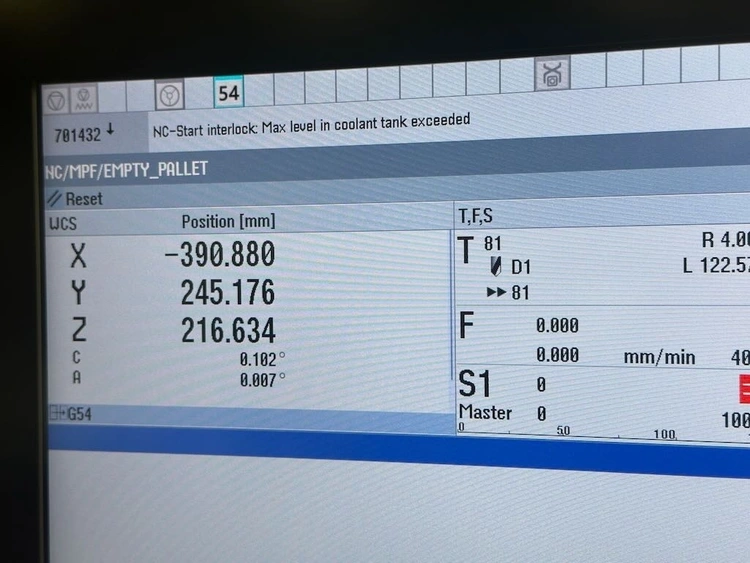

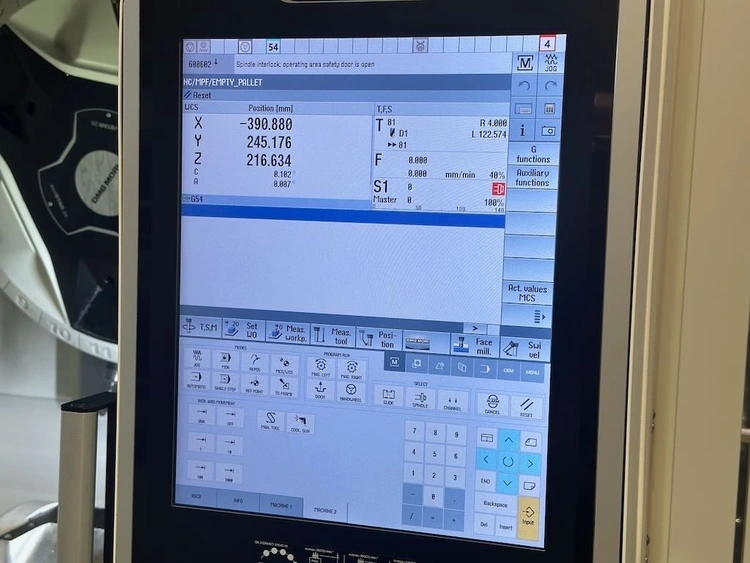

ControlCNC (Siemens Sinumerik 840D)
Dimensions 165" x 165" "
Weight4000kg

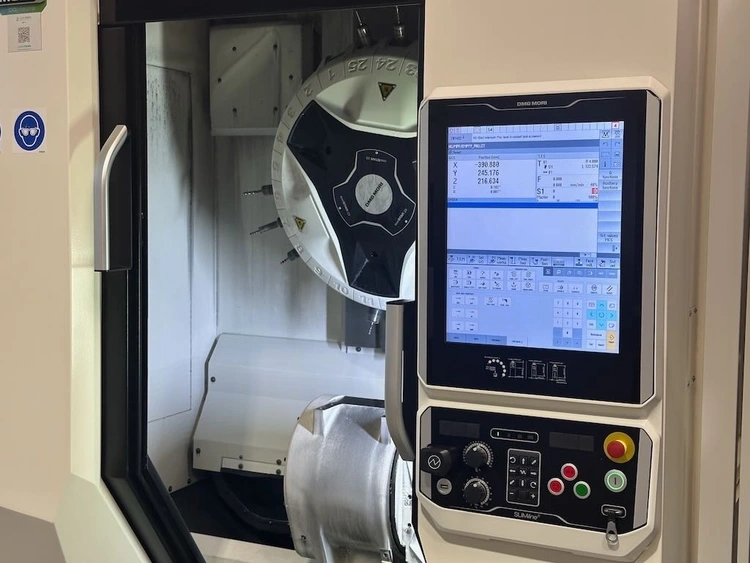

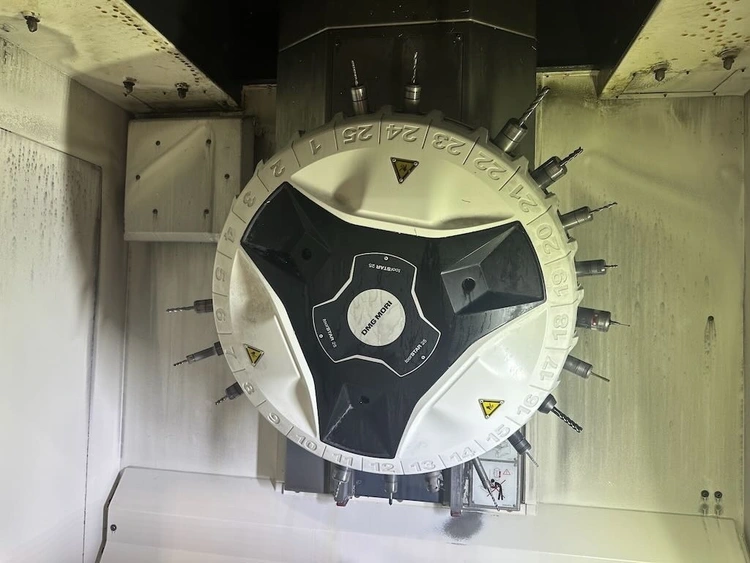

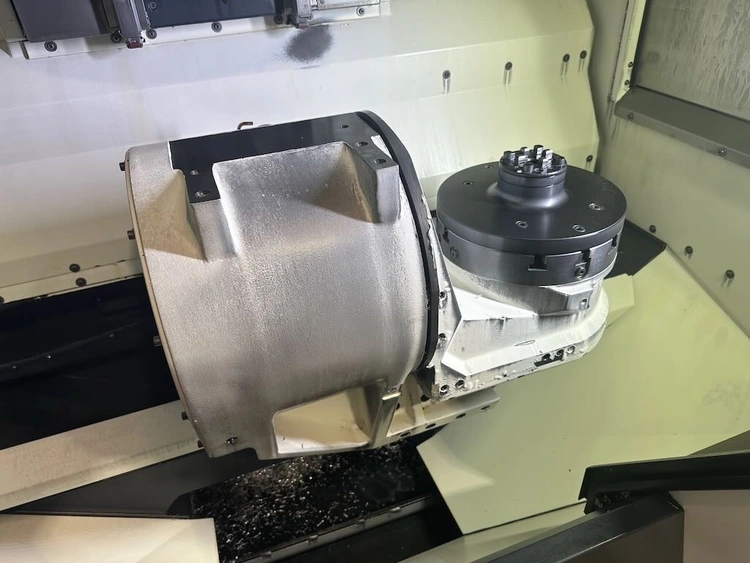

Make: DMG MORI Model: DMP 70 Year: 2023 Type: 5-axis high-speed vertical machining centre Control: Siemens SINUMERIK 840D Solutionline Travels & working area X-axis travel: 700 mm Y-axis travel: 420 mm Z-axis travel: 380 mm Maximum workpiece diameter: 290 mm Maximum workpiece height: 580 mm (approx. 250 mm in 5-axis configuration) Maximum workpiece weight: 400 kg (approx. 100 kg in 5-axis mode) Spindle specification Inline high-speed spindle Maximum spindle speed: 10,000 rpm Optional high-speed spindle: 24,000 rpm High-rigidity spindle design with up to 78 Nm torque High-Pressure Through Spindle Coolant Spindle Taper: BBT30 (Face and Taper) 5-axis capability Simultaneous 5-axis machining capability (optional configuration) Designed for complex 3-axis and 5-axis machining in one setup High-precision axis coupling and dynamic machine design Speeds & performance Rapid traverse: up to 60 m/min in all axes Very fast tool-change system Chip-to-chip time: approx. 1.5 seconds High acceleration machine concept (up to 2g) Workpiece capacity Maximum workpiece length: 840 mm (This is with the 3-axis table on) Maximum workpiece width: 420 mm (This is with the 3-axis table on) Designed for small to medium precision components General specification DMG rear exit conveyor BLUM Probing Compact high-speed production machining centre Small footprint: approx. 4.2 m² Suitable for integration with automation systems Designed for aerospace, medical and precision subcontract machining System 3R Workpartner 1+ 2023 machine 126 Pallet system 126 x Macro pallet 70 x 70 (R-601.7E-P) 126 x Drawbar (3R-605.1EE)
