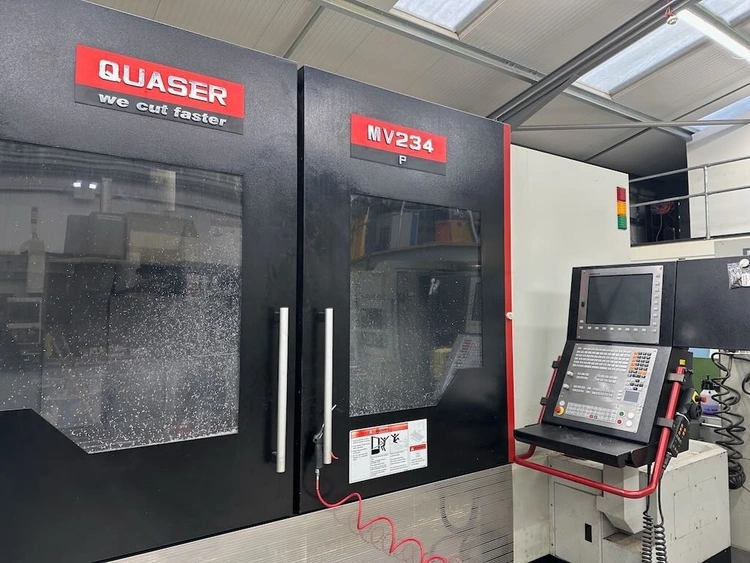

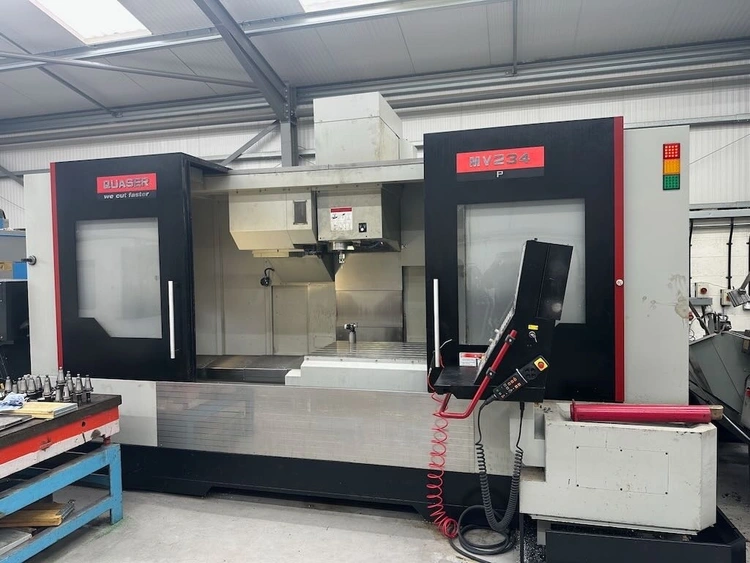

USED 2014 QUASER MV 234 P/12B Vertical Machining Centre with Tooling Package

Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
QUASER
Model
MV 234 P
Year
2014
Stock #
96
Status
for sale

Description

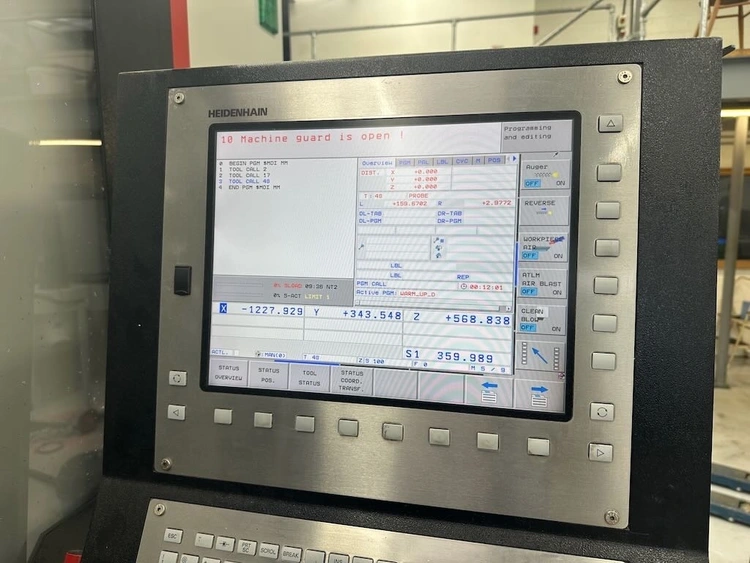

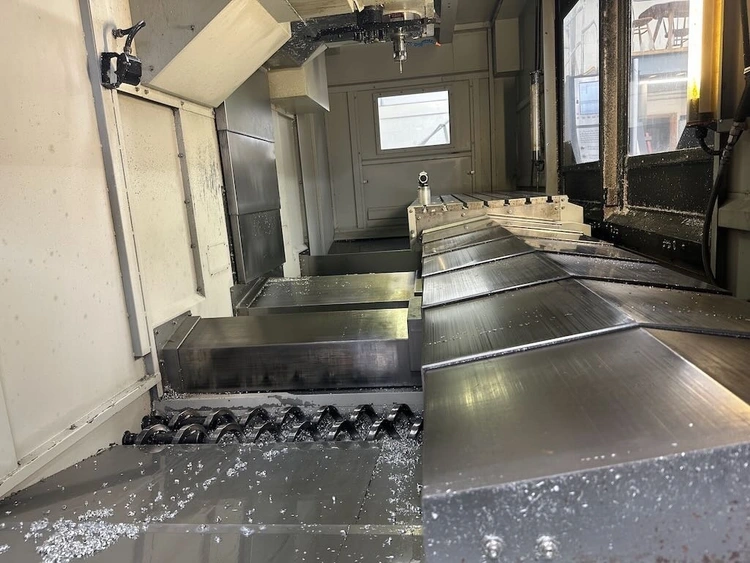

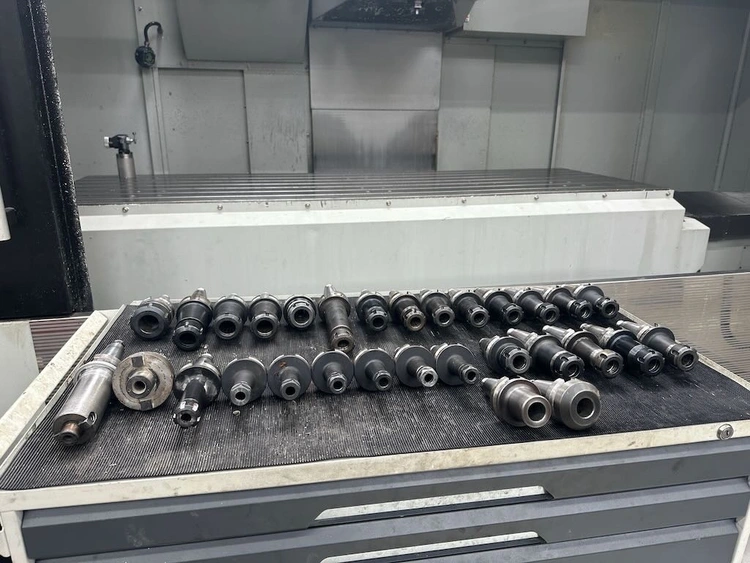

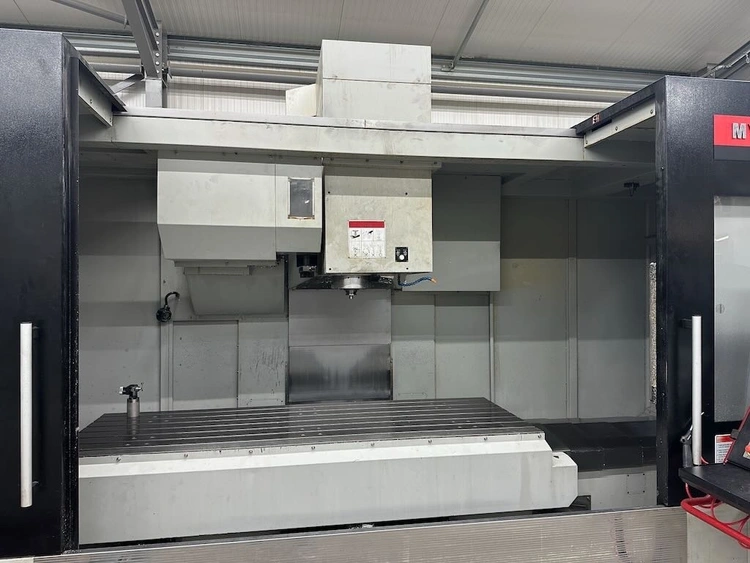

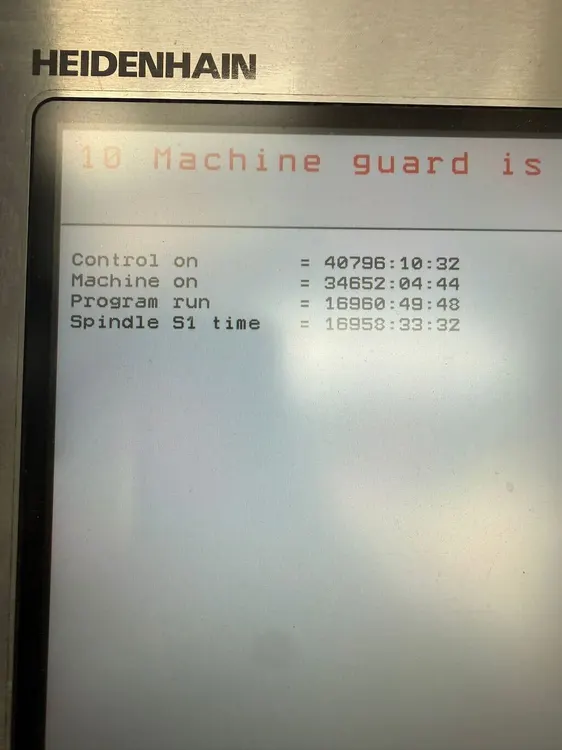

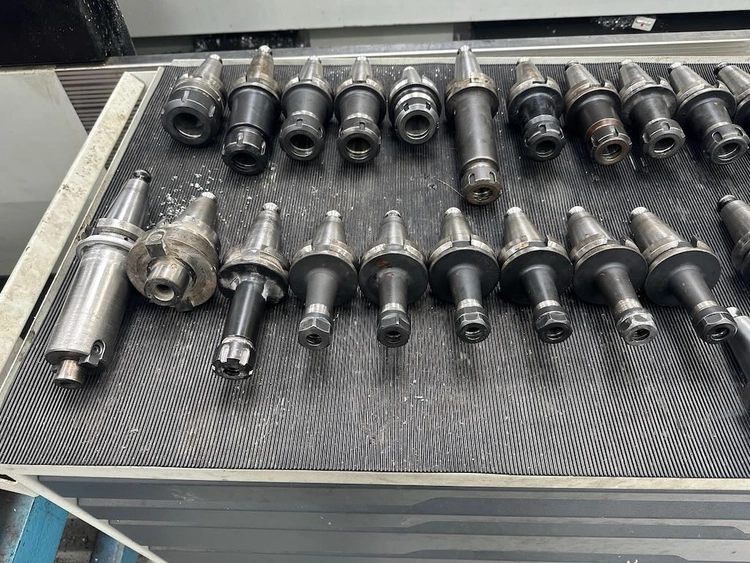

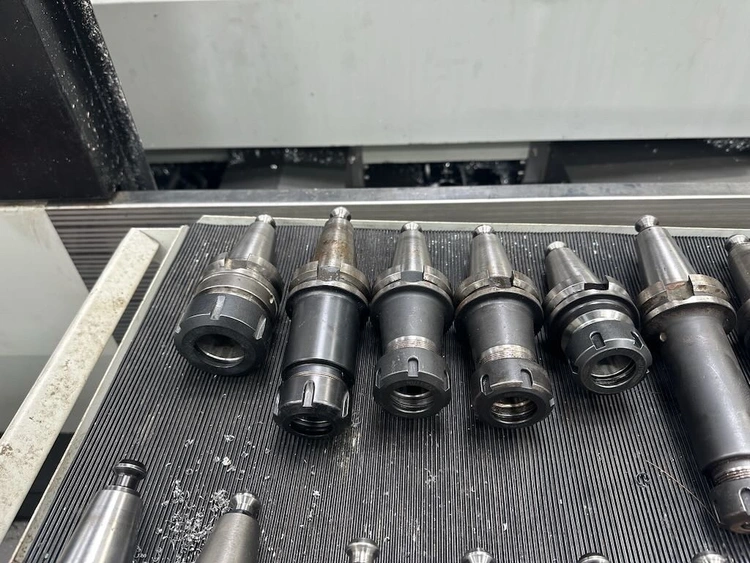

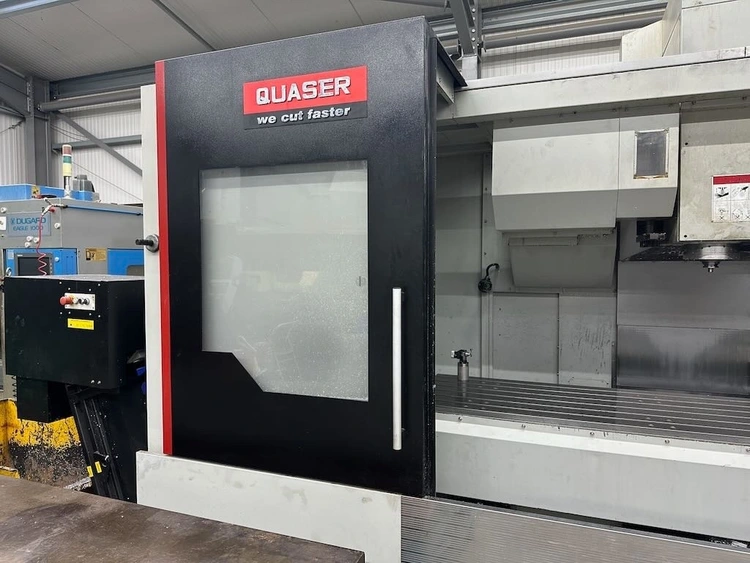

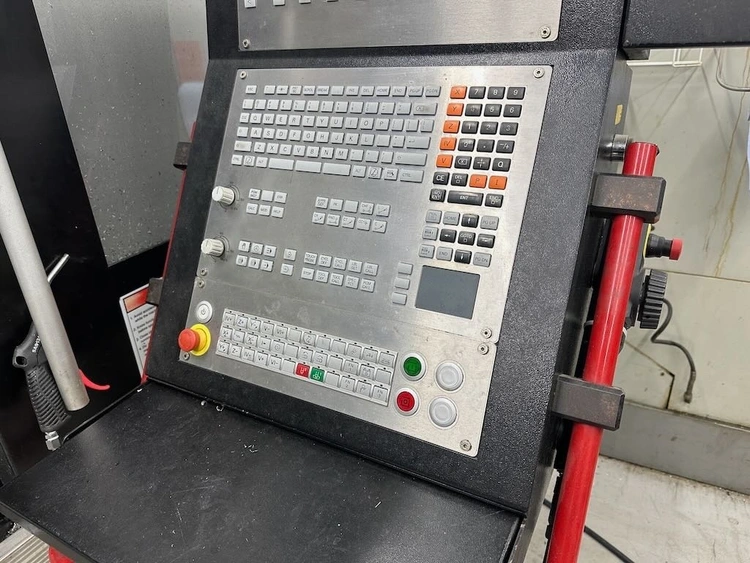

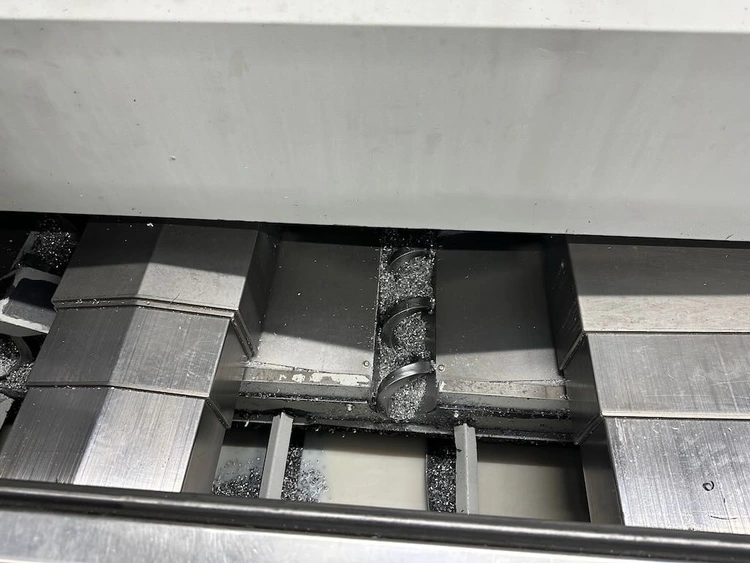

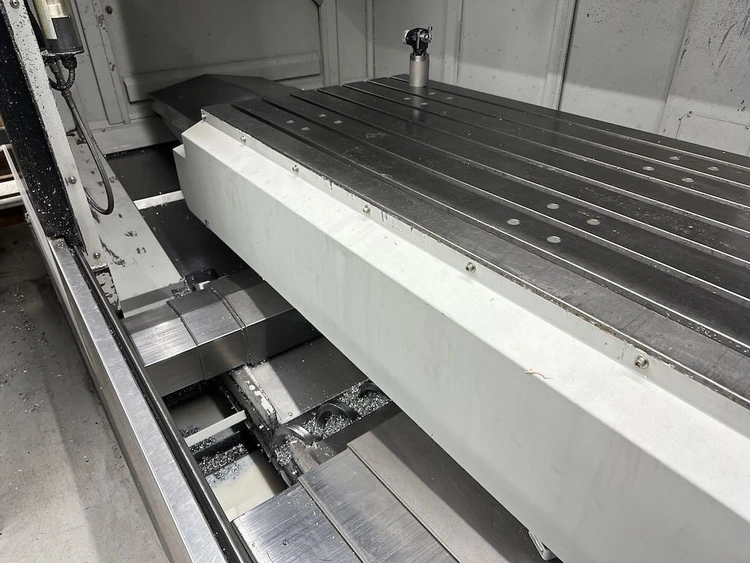

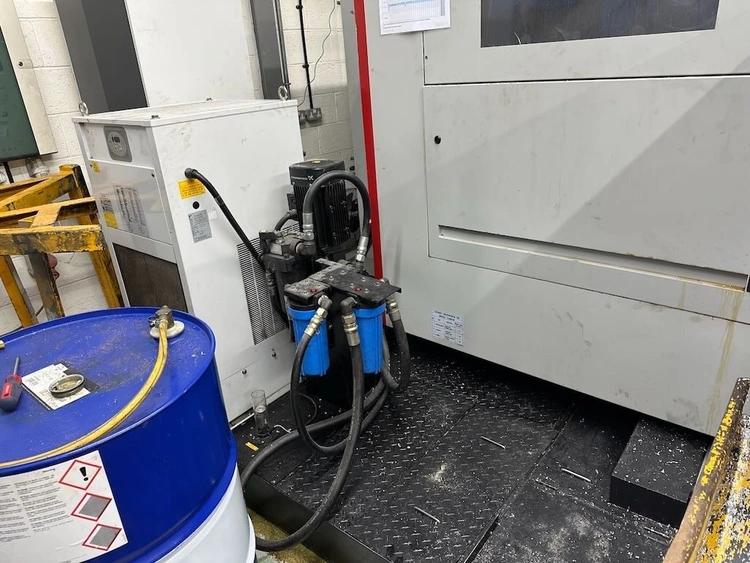

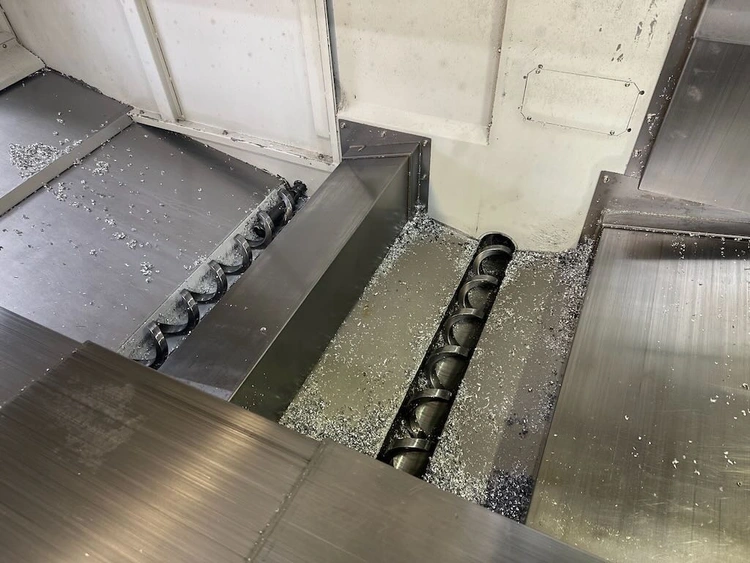

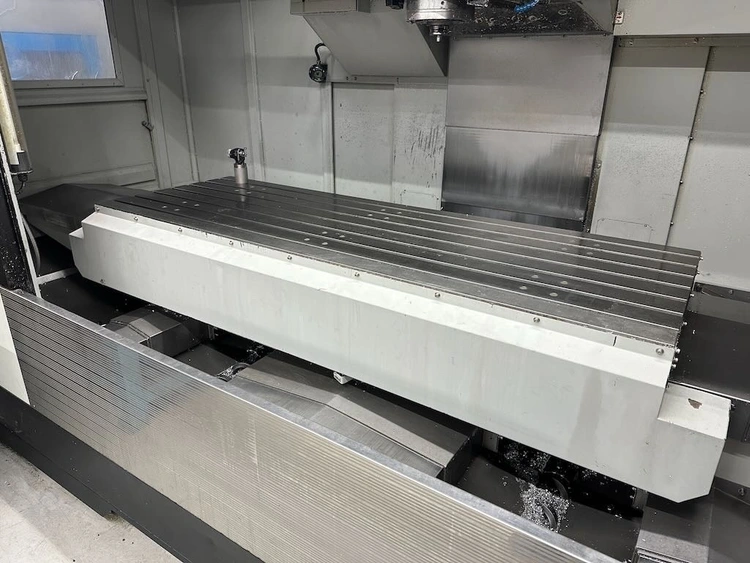

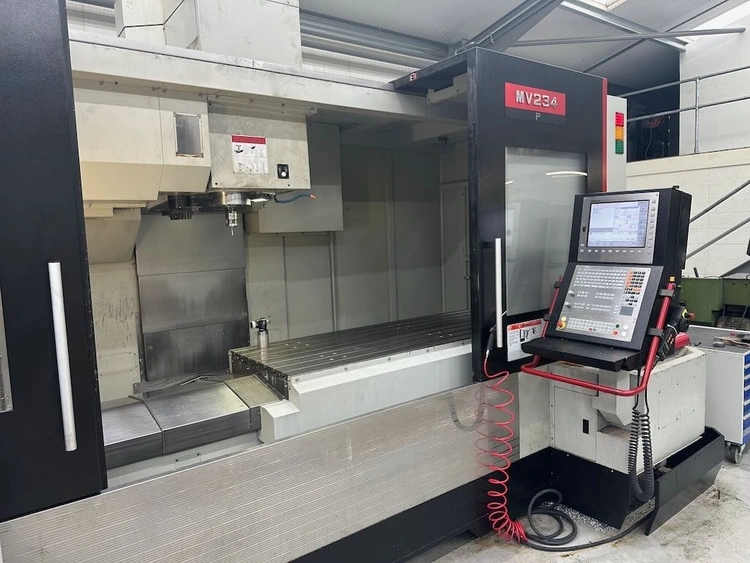

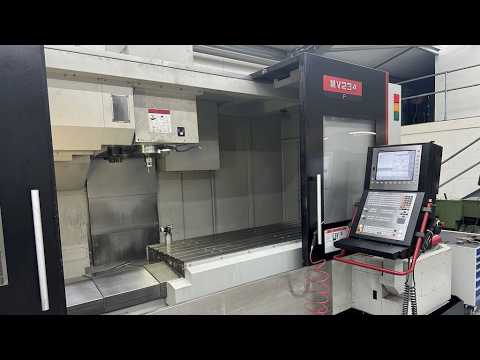

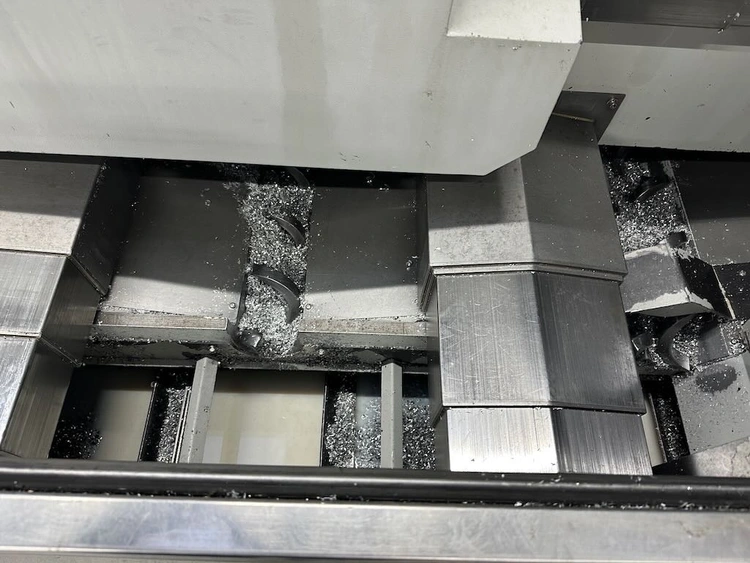

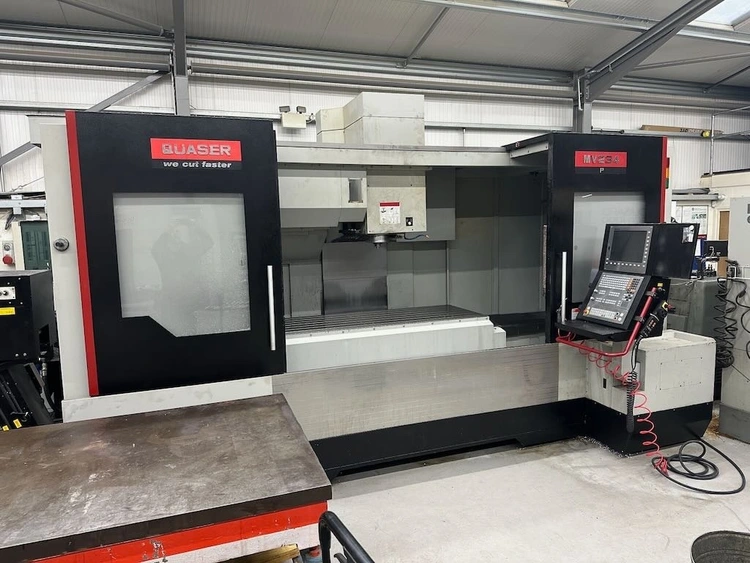

High-spec QUASER MV234P vertical machining centre in very good condition, manufactured November 2014 and equipped with the reliable Heidenhain iTNC530 control. This is a large-capacity VMC with a generous working envelope and a 2-tonne table load, making it ideal for heavy engineering and large component machining. The machine offers 2,040 mm X-axis travel, 762 mm Y-axis and 661 mm Z-axis, with a 2,250 × 800 mm table. It is fitted with a 12,000 rpm BT40 spindle and a 48-station tool changer, giving excellent versatility for both production and one-off work. Additional features include through-spindle coolant, through-spindle air blast, Renishaw table and tool probing, and a scraper-type chip conveyor. Supplied with tooling package, wash-down filtration system and sward skip.

Specifications

X80.315"
Y30"
Z26"
RPM12000rpm
# ATC48
TaperBT40
Table-W88.5823"
Table-L31.4961"
ControlCNC (Heidenhain iTNC530)
Dimensions 5745mm x 3700mm x 3150mm "
Weight13700kg

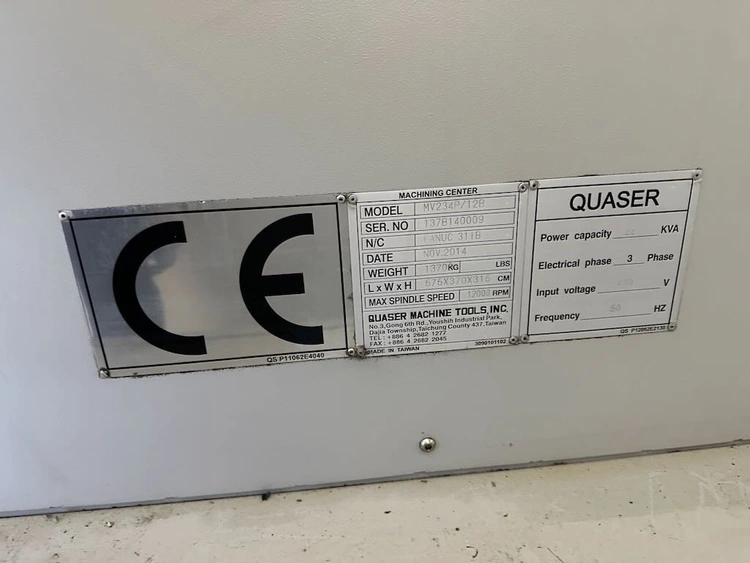

QUASER MV234P Year: Nov 2014 Control: Heidenhain iTNC530 Sn. 137B140009 Key Specifications Work Range * Table size: 2,250 × 800 mm * X travel: 2,040 mm * Y travel: 762 mm * Z travel: 661 mm * Table load capacity: 2,000 kg

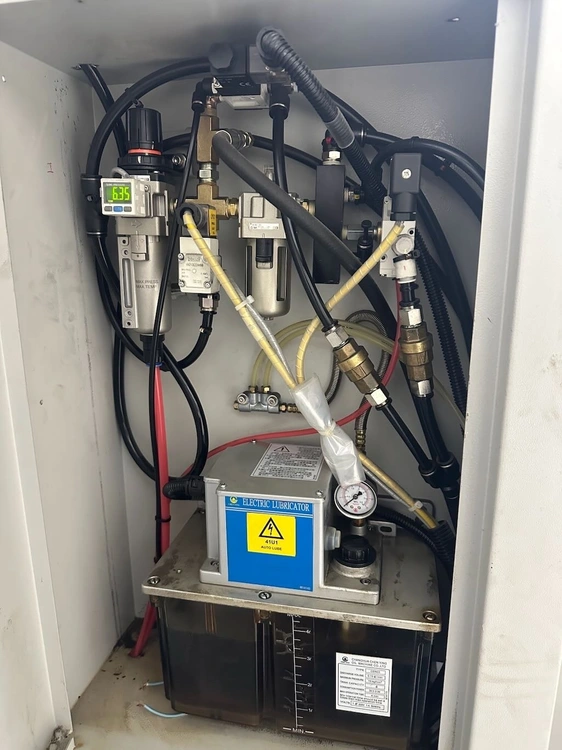

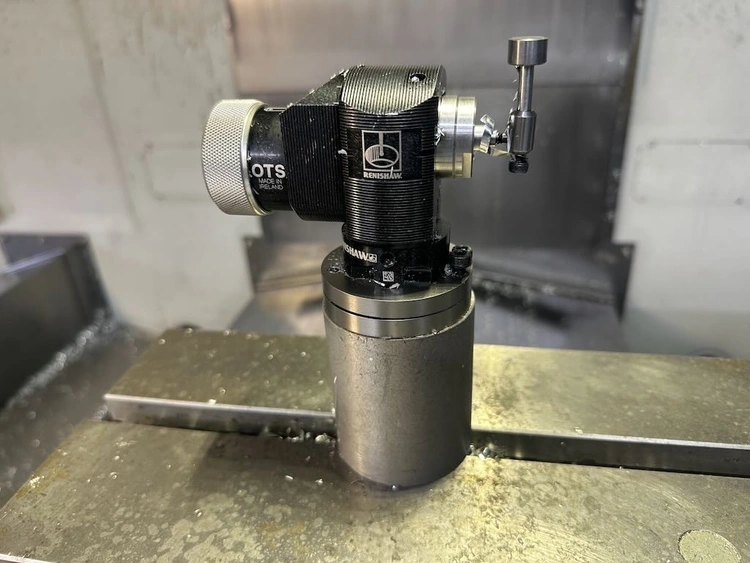

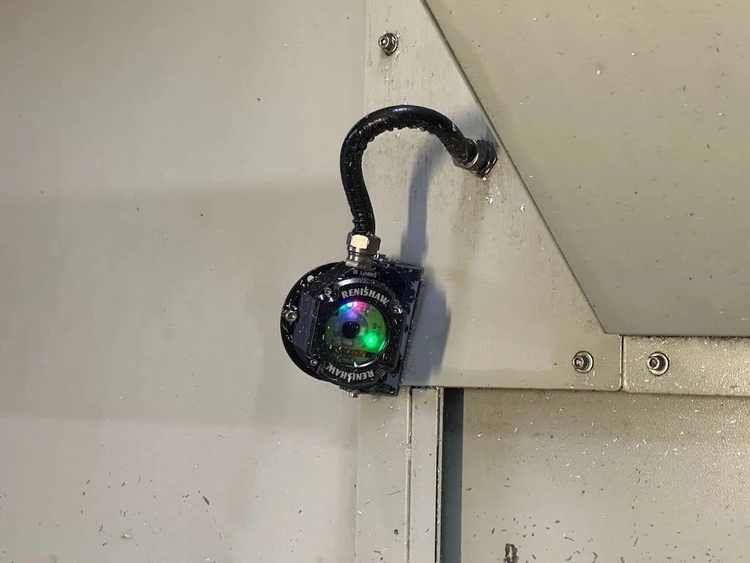

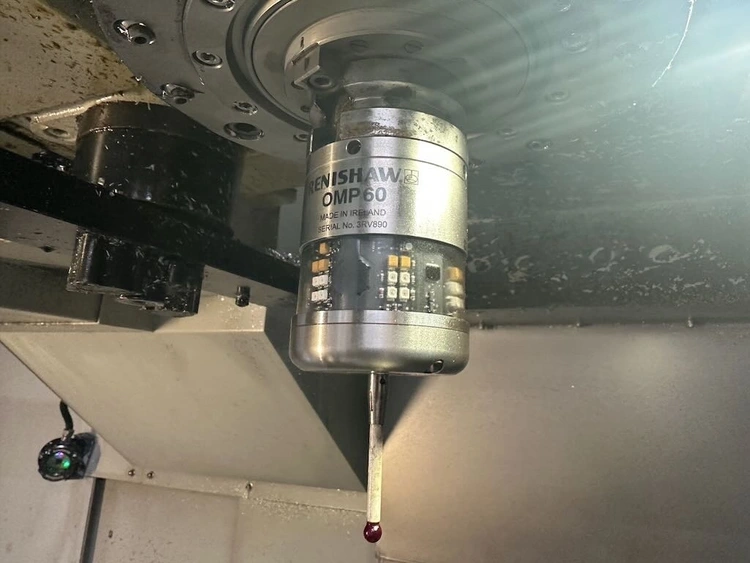

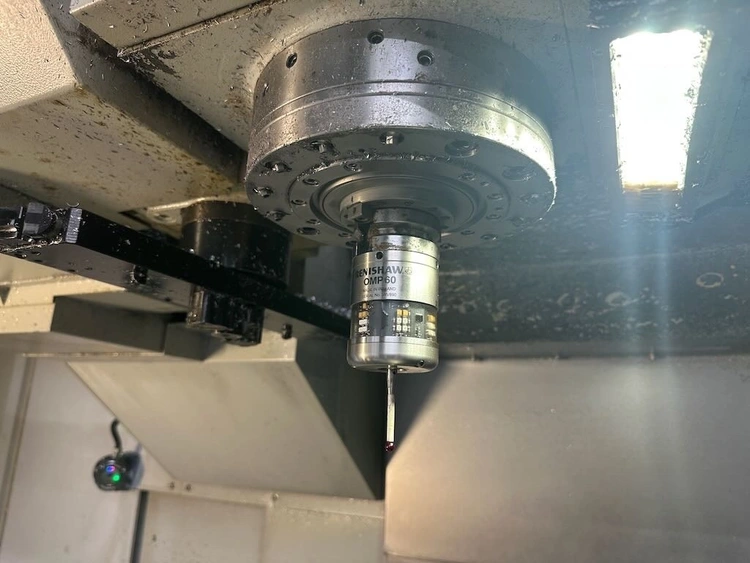

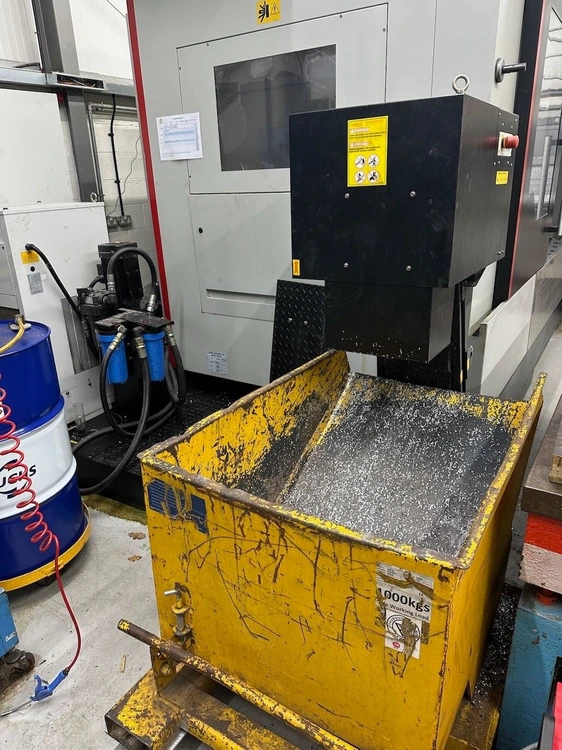

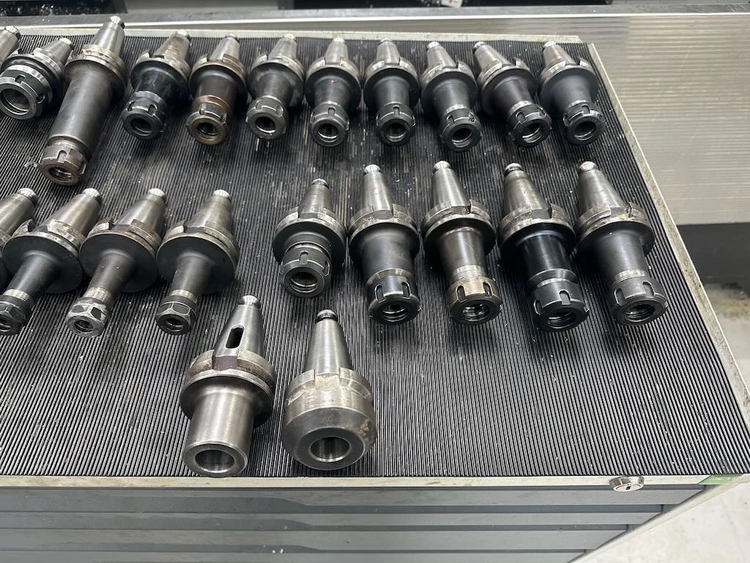

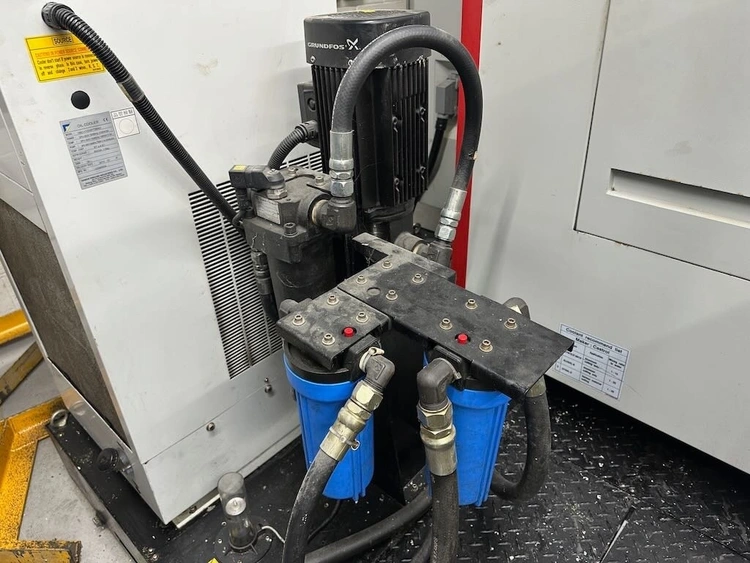

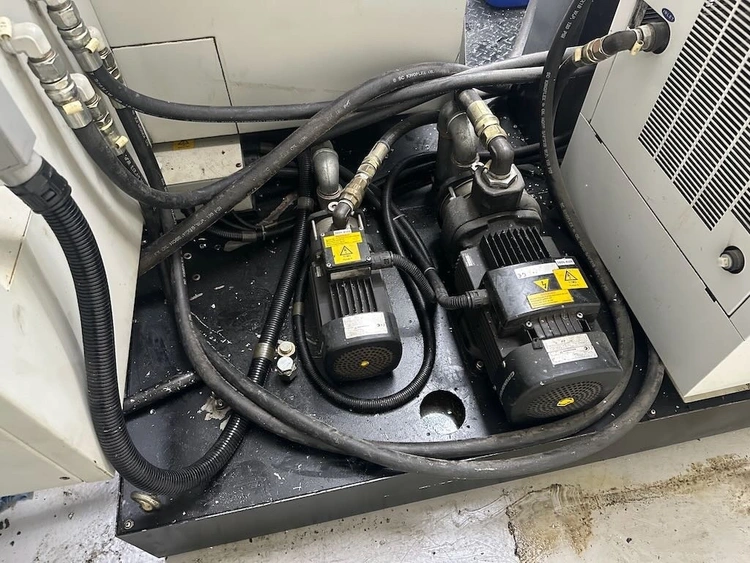

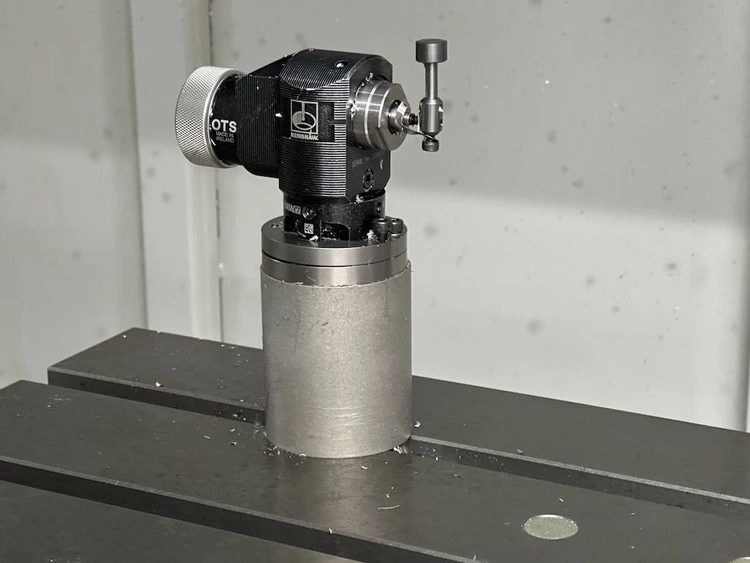

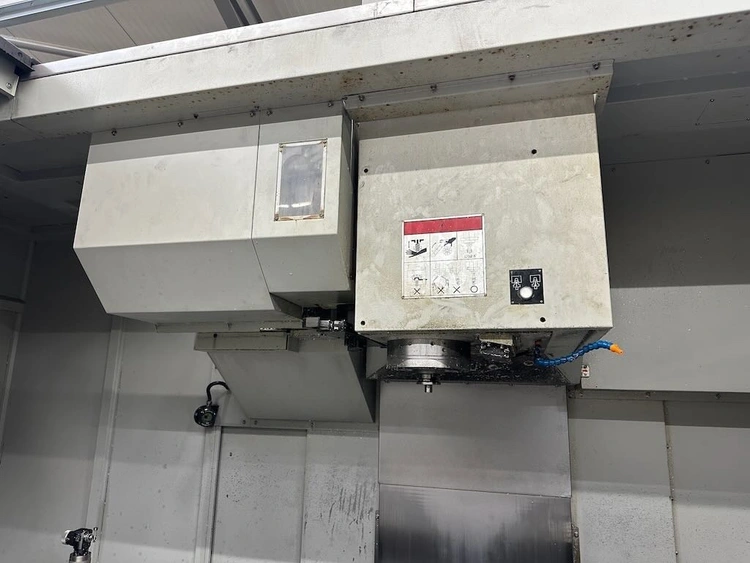

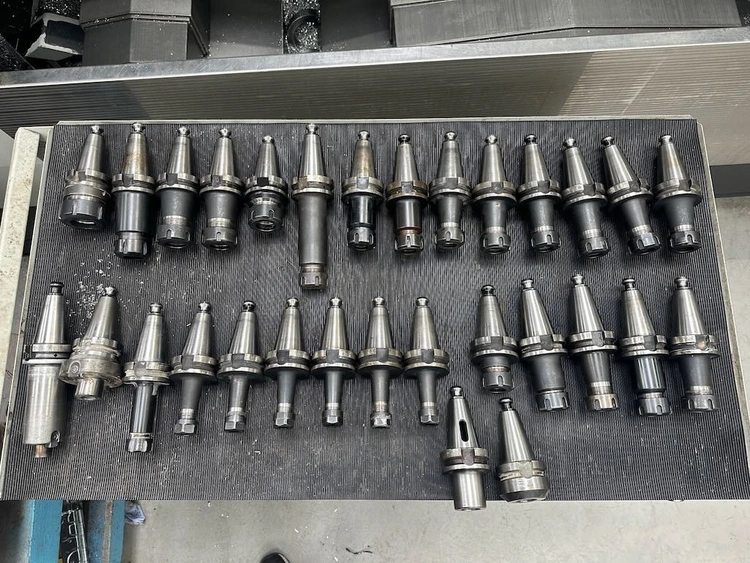

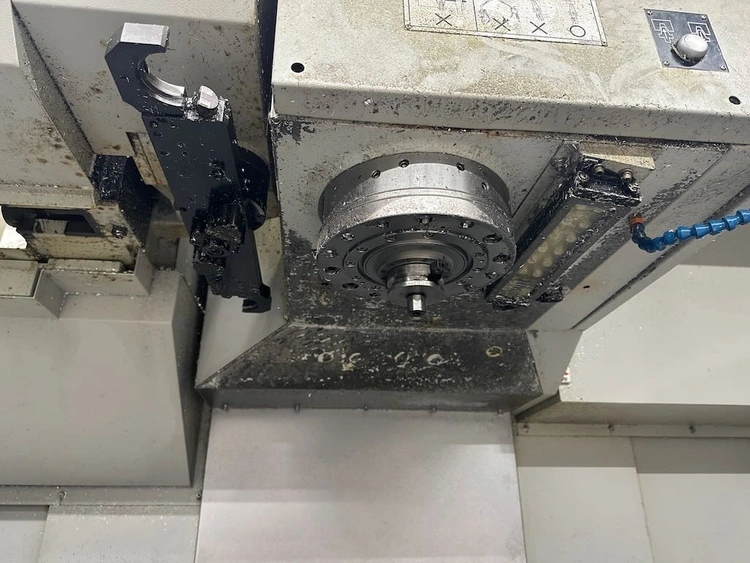

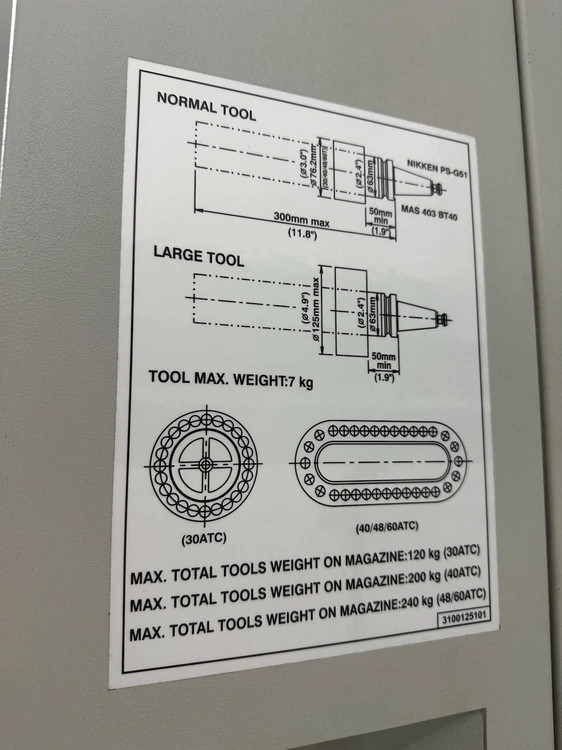

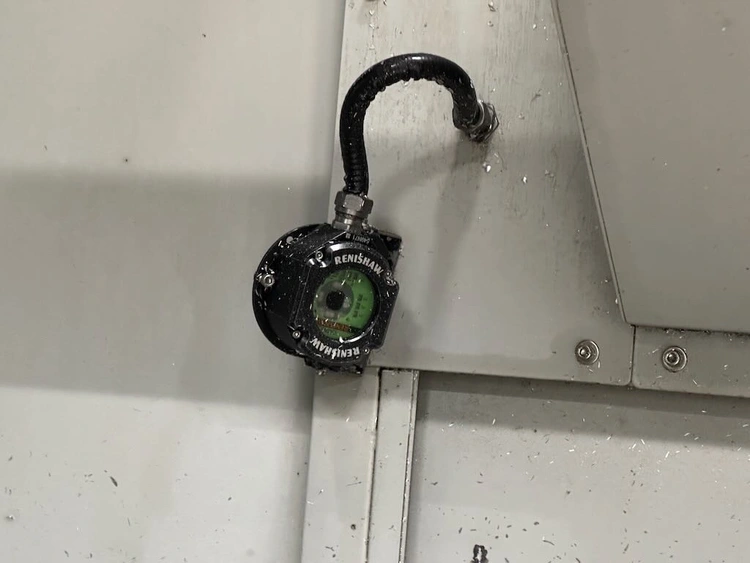

 Spindle * Spindle taper: BT40 taper * Max spindle speed: 12,000 rpm Tool Changer * Magazine capacity: 48 tools * Max tool diameter: 76.2 mm * Max tool diameter (adjacent pots empty): 125 mm * Max tool length: 300 mm Additional information * Spindle nose to table: 150 to 811 mm * Rapid feeds (X/Y/Z): 20 / 20 / 16 m/min * Machine weight: ≈13,700 to 13,800 kg * Floor space: approx 5,745 × 3,700 mm * Coolant tank: 710 L * Through-spindle coolant capability * Through Spindle Air Blast * Accuracy: 0.008 / 0.004 mm positioning/repeatability (ISO) * Auto Lube for Linear Guides Includes * Scraper-type Chip Conveyor * Tooling Package * Can Filter for Wash down and Nozzle * Topping Sward Skip * Renishaw Table and Touch Probing Machine Size * Height: 3150mm * Floor Space: 5745x3700 * Weight: 13700kg
