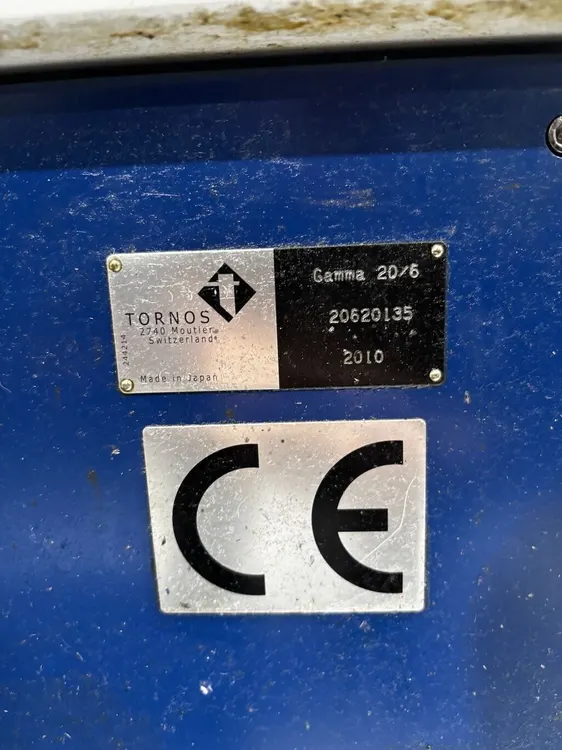

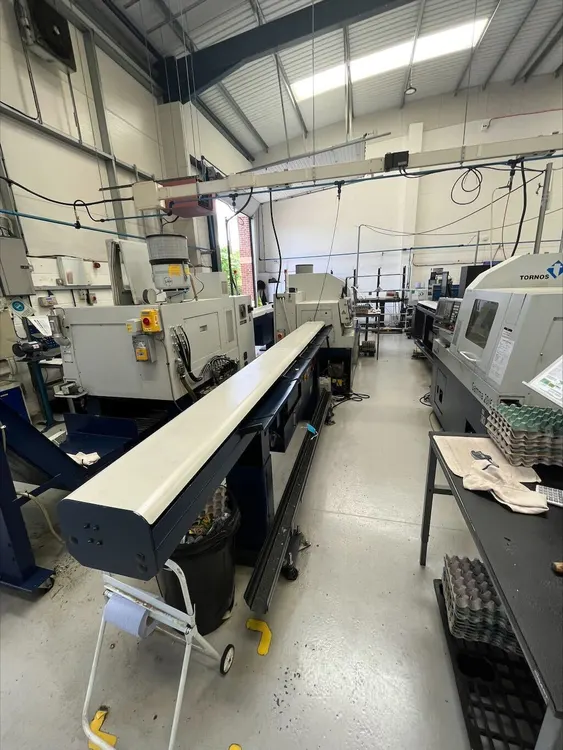

USED 2010 TORNOS GAMMA 20/6 with 3m LNS Turbo HB Barfeed, Filtermist and Tooling Package

£19,500
Send Inquiry

Overview

Type
Swiss Type Automatic Screw Machines
Manufacturer
TORNOS
Model
GAMMA 20/6
Year
2010
Stock #
97
Status
for sale

Description

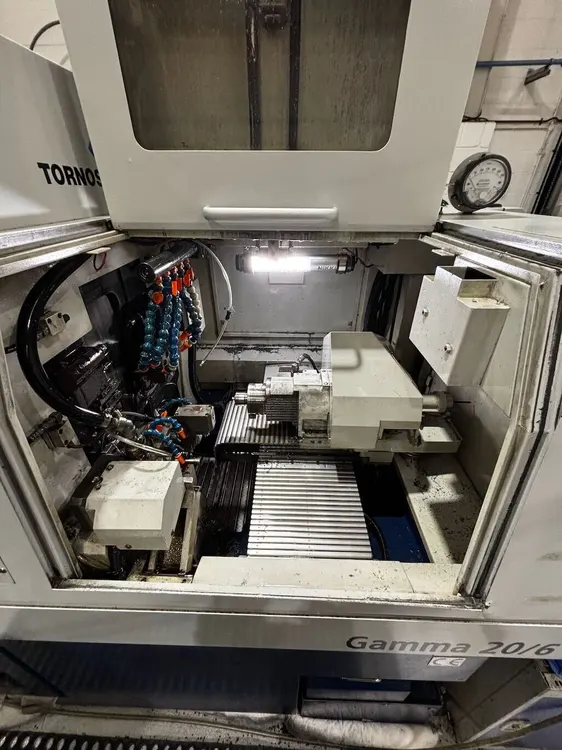

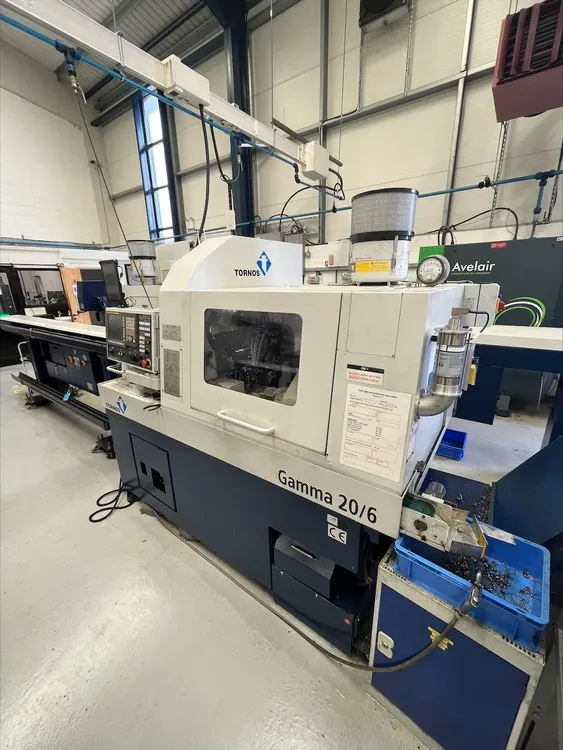

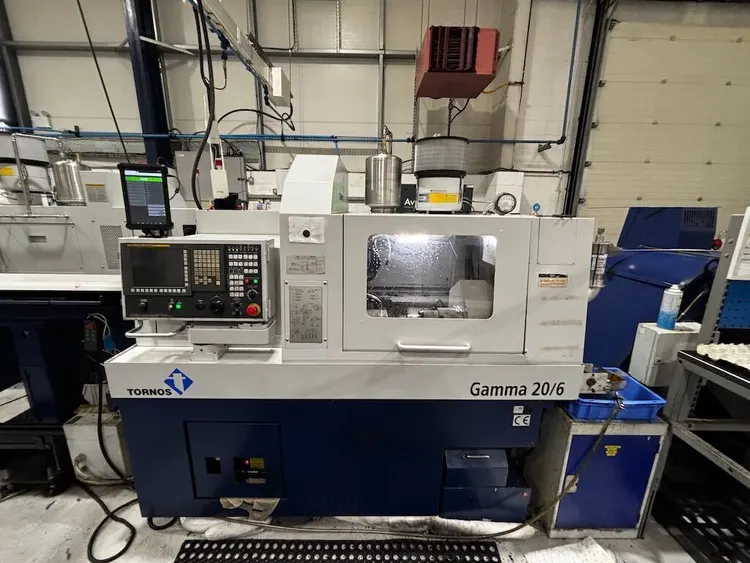

TORNOS GAMMA 20/6 Swiss-Type CNC Lathe – 2010 – Twin Spindle / 6-Axis Well-maintained TORNOS GAMMA 20/6 sliding-head CNC lathe, manufactured in 2010 and designed for high-precision small-part production. This model offers twin spindles with 6-axis capability, making it ideal for complex turned components and high-volume work. The machine has a 20 mm bar capacity and is equipped with main and counter spindles running up to 12,000 rpm, together with a large multi-tool configuration including live tooling for full front and back-working operations. A compact, high-speed Swiss-type machine suitable for precision engineering, medical components, and production subcontract machining.

Specifications

Spindle Hole Dia0.787"
Power4.96hp
RPM12000rpm
# Axis6

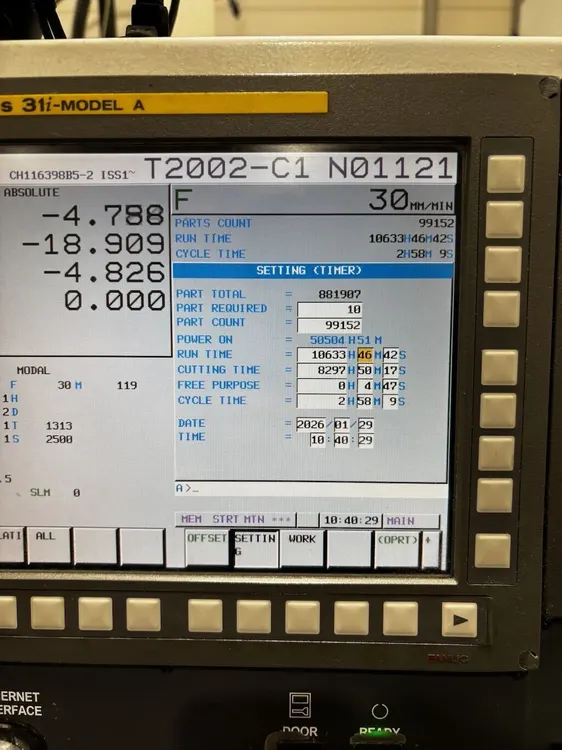

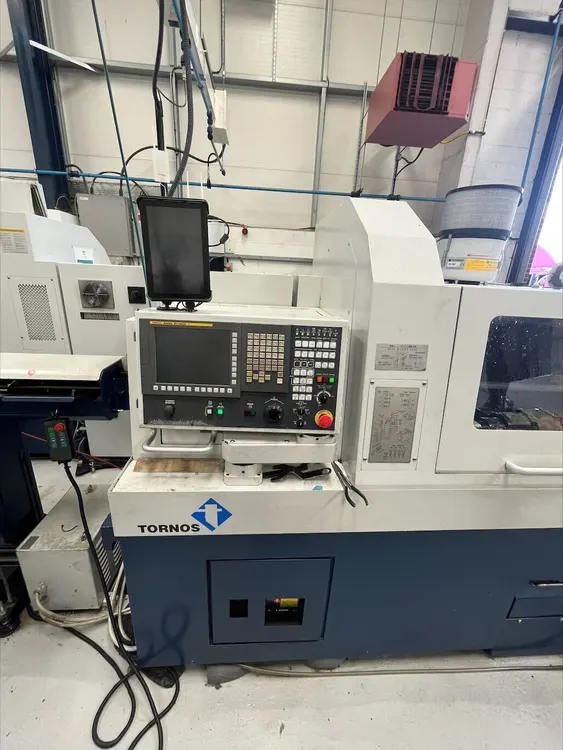

ControlCNC (Fanuc 31i)
Dimensions 2,100 x 1,200 x 1,900 mm "
Weight3800 kg

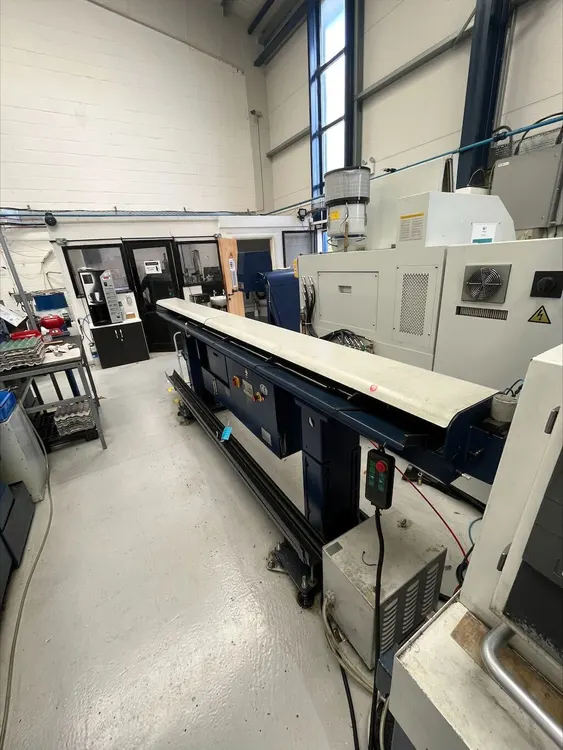

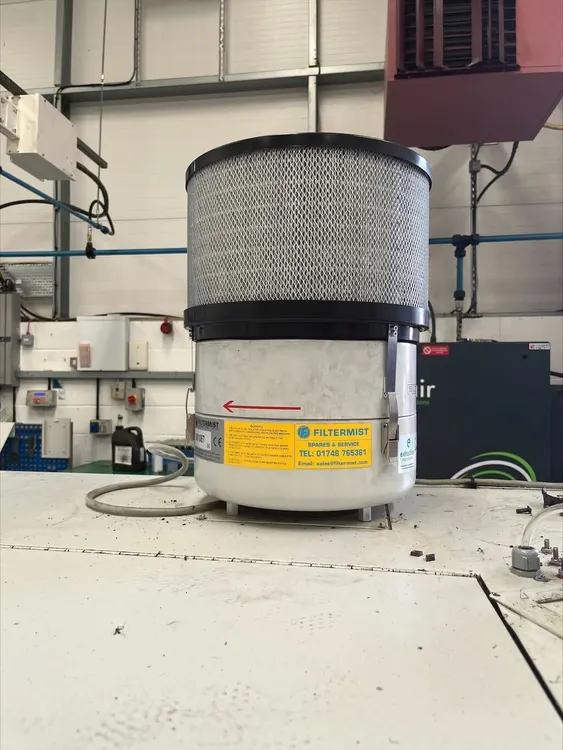

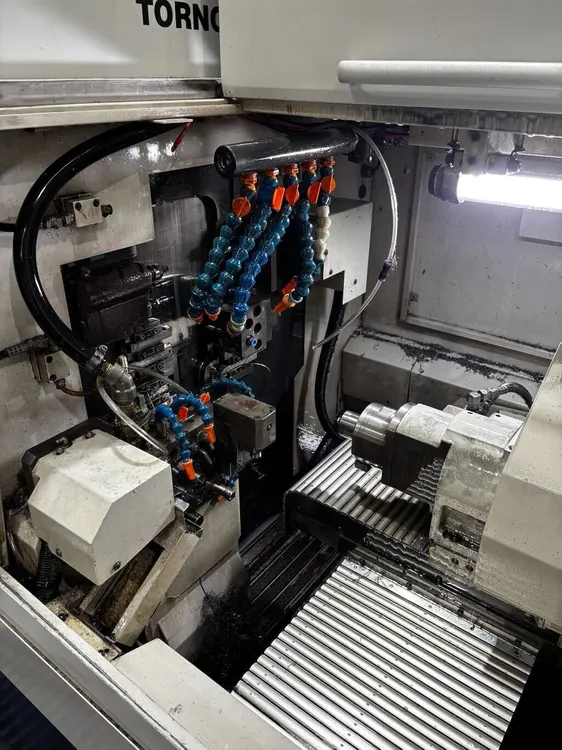

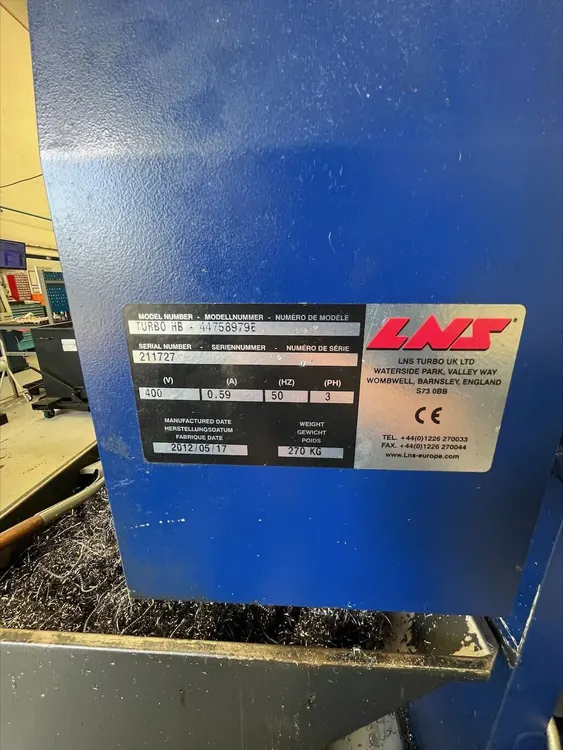

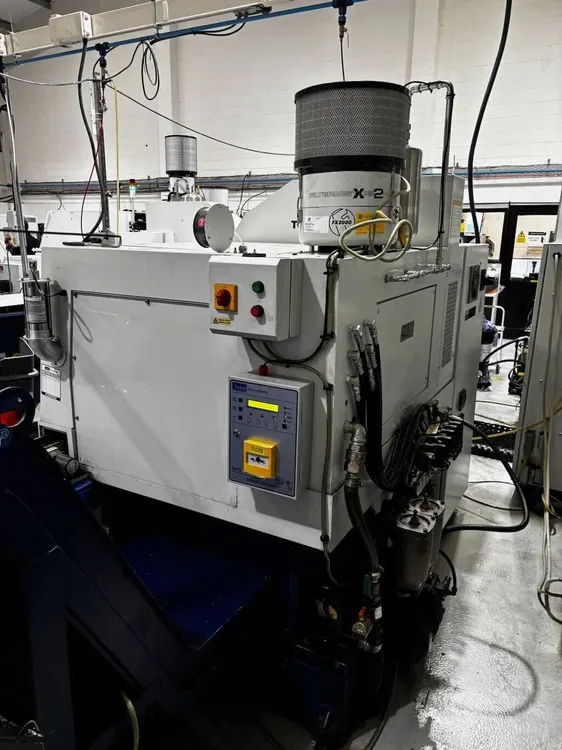

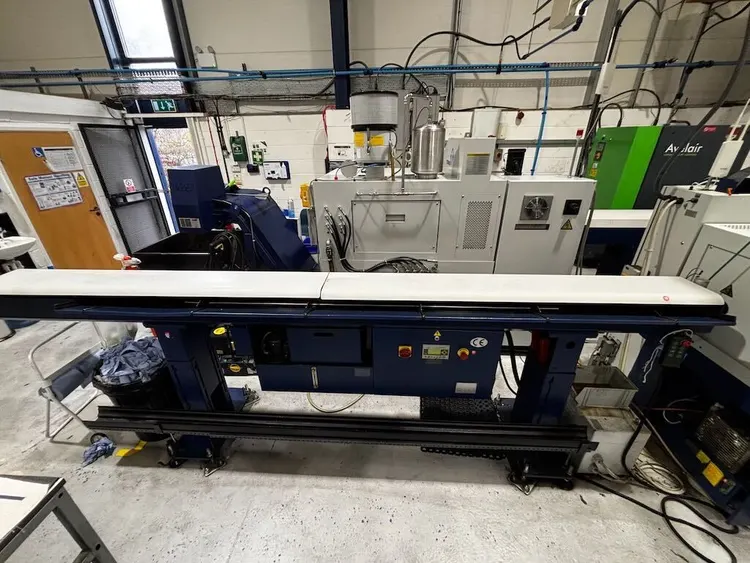

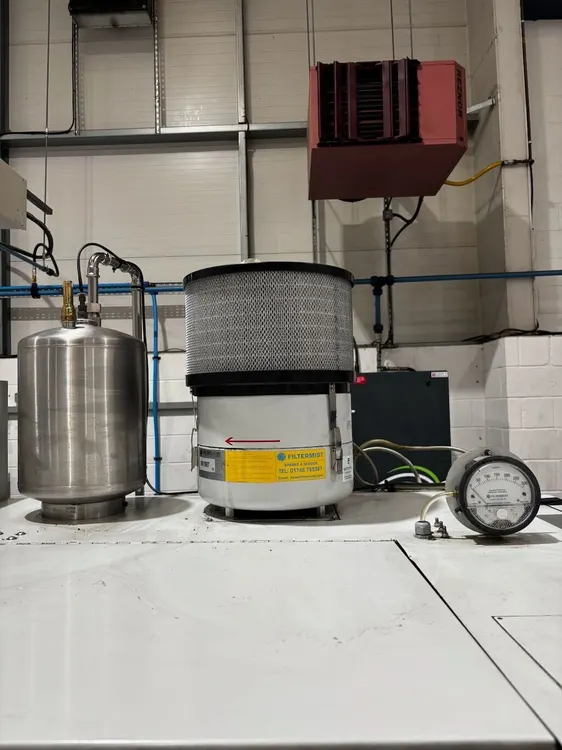

TORNOS GAMMA 20/6 – Swiss-Type CNC Lathe Year: 2010 Control: Fanuc 31i-A General Machine Specification Type: Sliding headstock / Swiss-type CNC lathe Number of axes: 6 linear + 2 C-axes (typical configuration) Number of spindles: 2 (main spindle + counter spindle) Maximum bar diameter: 20 mm Maximum turning length: 210–250 mm (depending on guide bush setup) Maximum number of tools: approx. 39 tools Main Spindle Maximum bar capacity: 20 mm Maximum spindle speed: 12,000 rpm Spindle motor power: approx. 3.7 kW C-axis indexing precision: 0.001° Counter Spindle Maximum bar capacity: 20 mm Maximum spindle speed: 12,000 rpm Spindle motor power: approx. 3.7 kW C-axis indexing precision: 0.001° Tooling System Guide bush holders: 2 Tool positions (front guide bush): 8 positions (3 motorised) Tool positions (rear guide bush): 5 positions (2 motorised) End attachment: 11 tool positions Secondary operation/back working: Up to 16 tool positions Live tooling speed: up to 8,000 rpm Machine Dimensions & Capacity Machine size: approx. 2,100 × 1,200 × 1,900 mm Machine weight: approx. 3,200–3,300 kg Power supply: 400 V Includes Swarf Conveyor LNS Turbo HB 3m Barfeed Filtermist Unit Tooling Package
