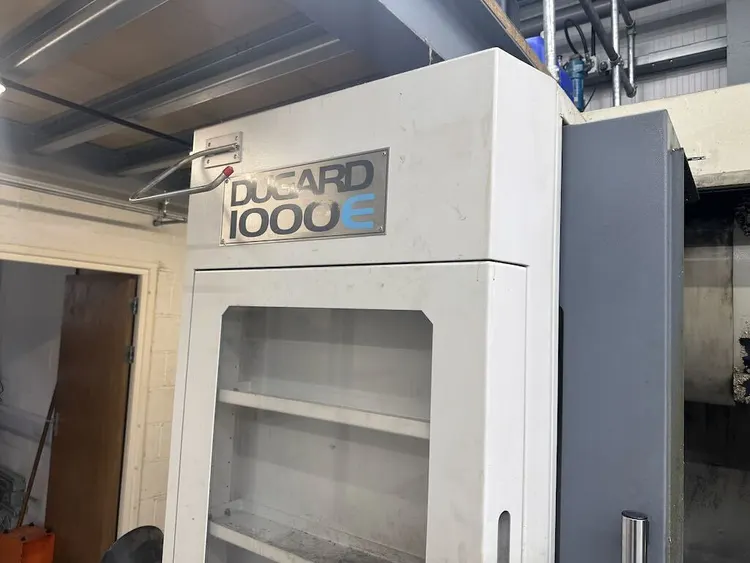

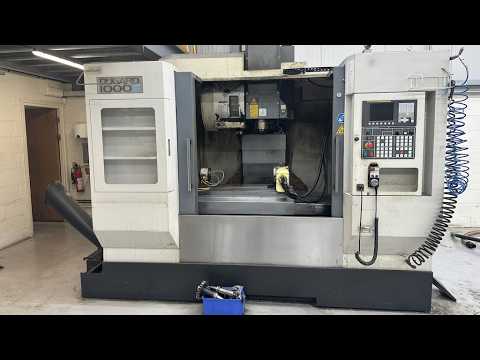

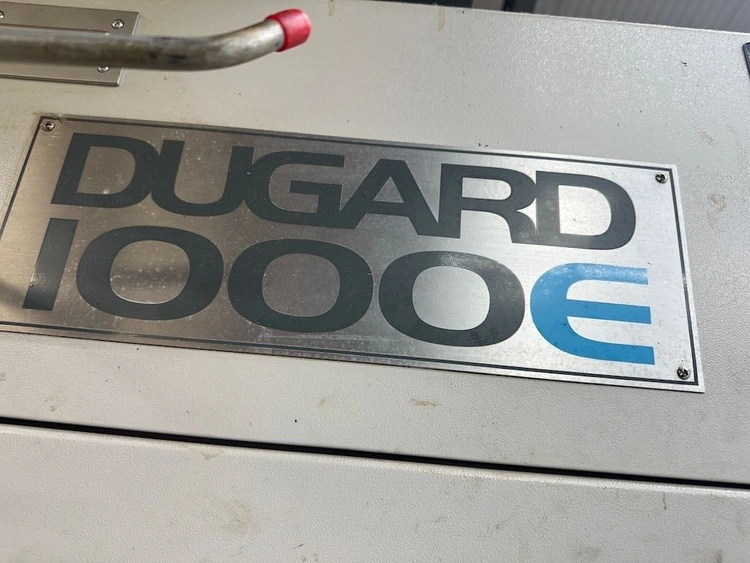

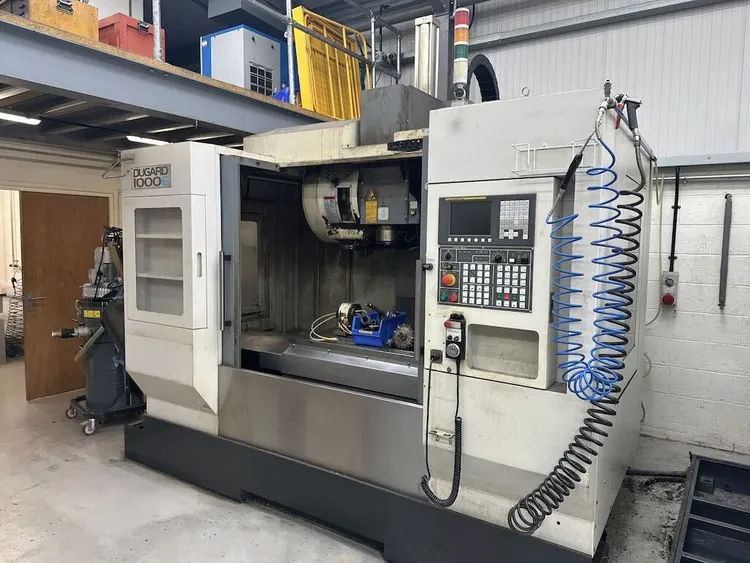

USED 2014 Dugard 1000E Vertical Machining Centre – Fanuc Oi‑MD Control with Nikken 4th Axis

Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
DUGARD
Model
1000E
Year
2014
Stock #
98
Status
for sale

Description

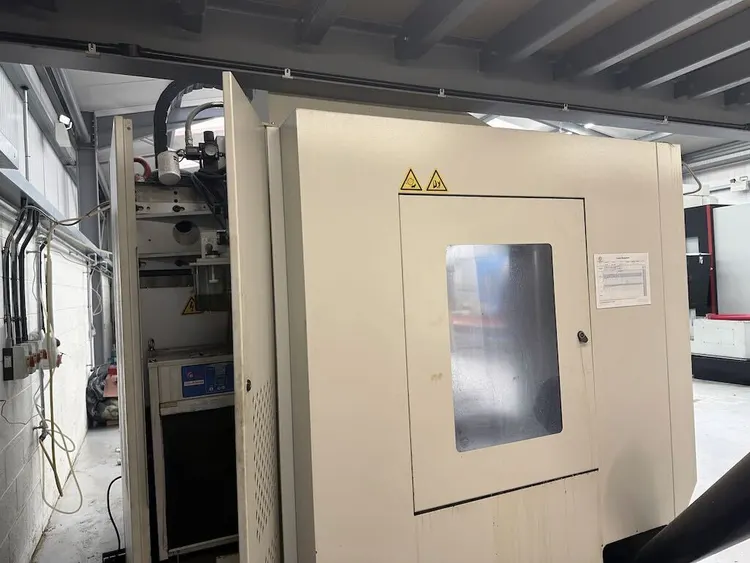

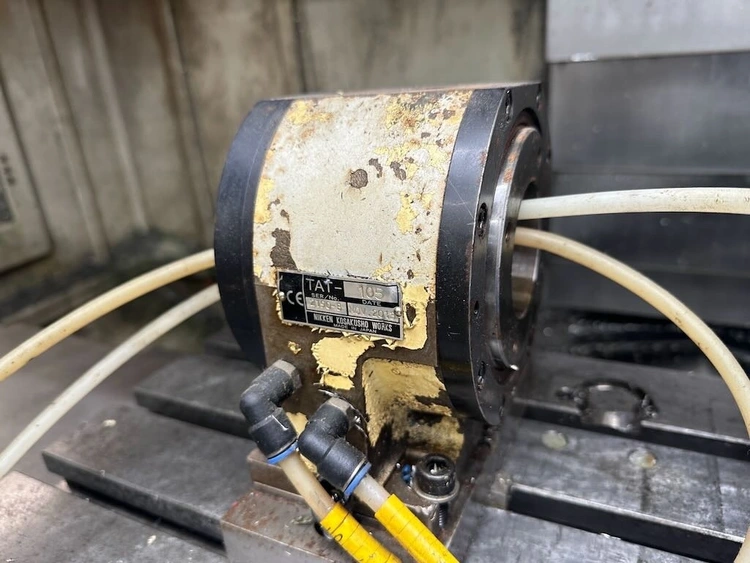

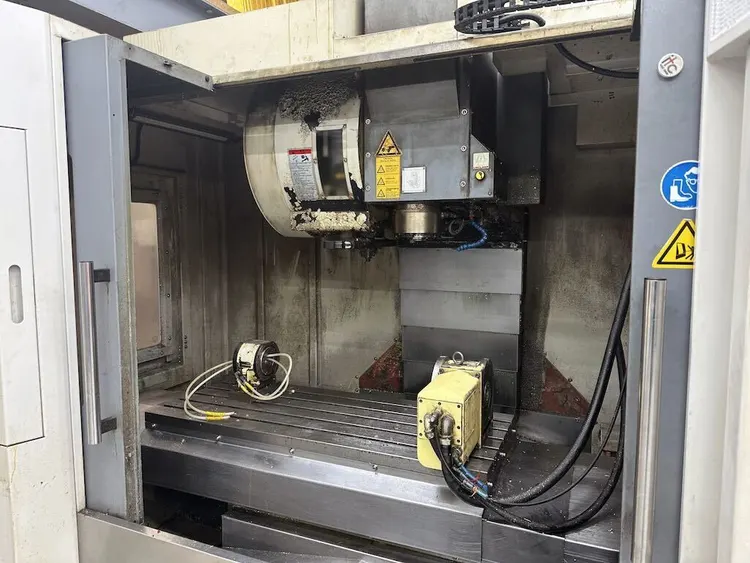

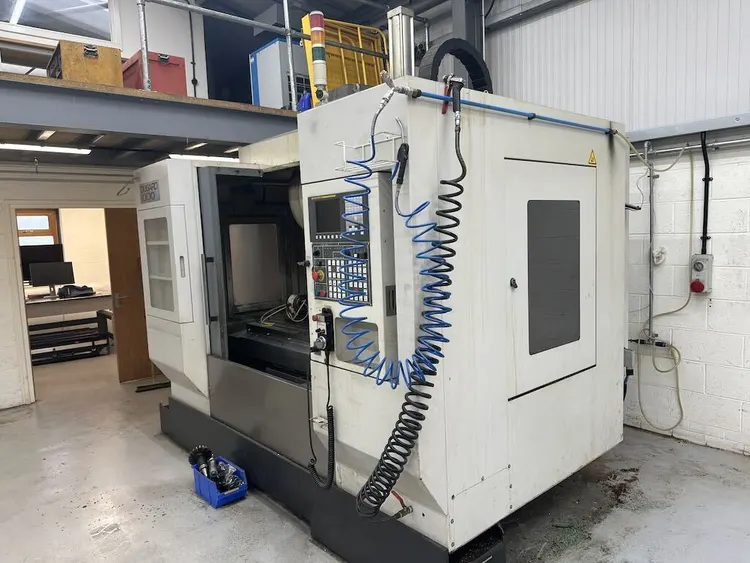

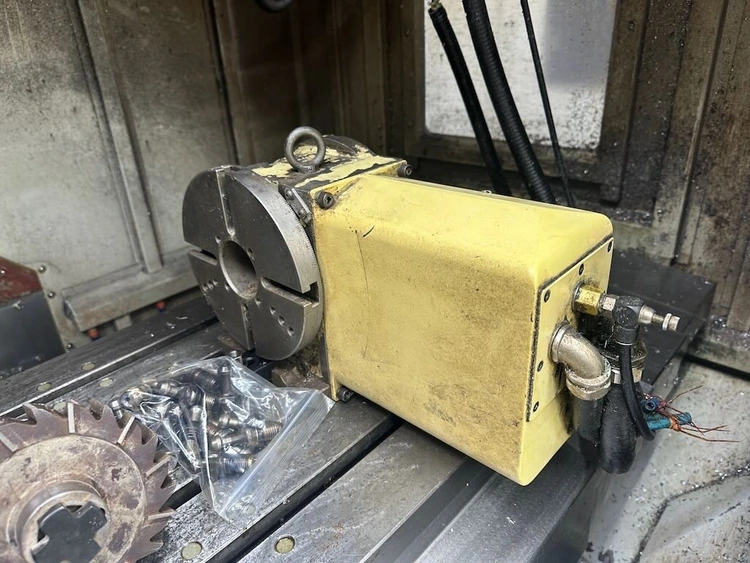

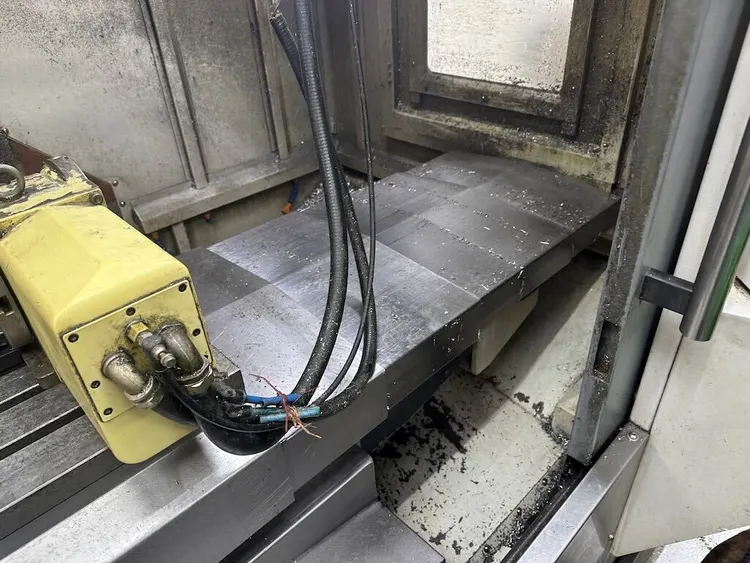

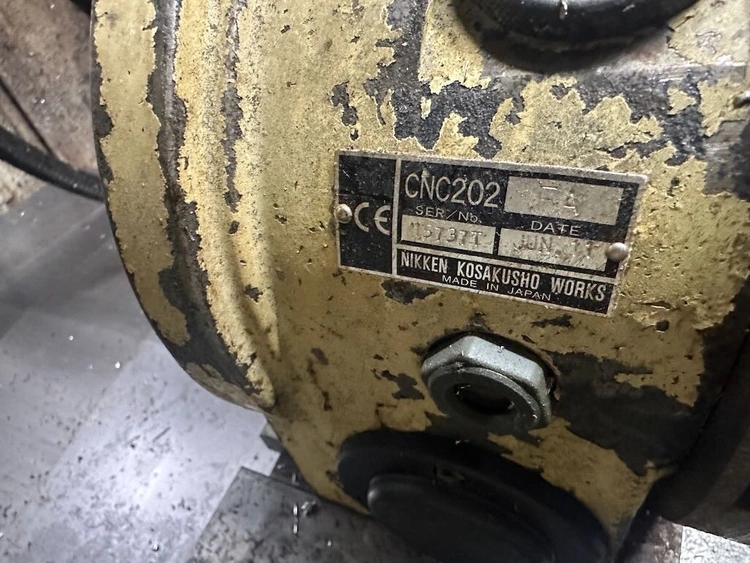

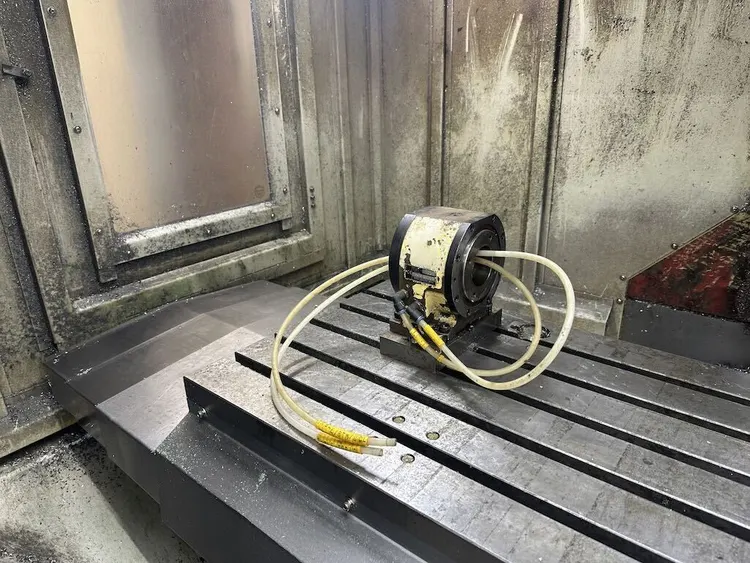

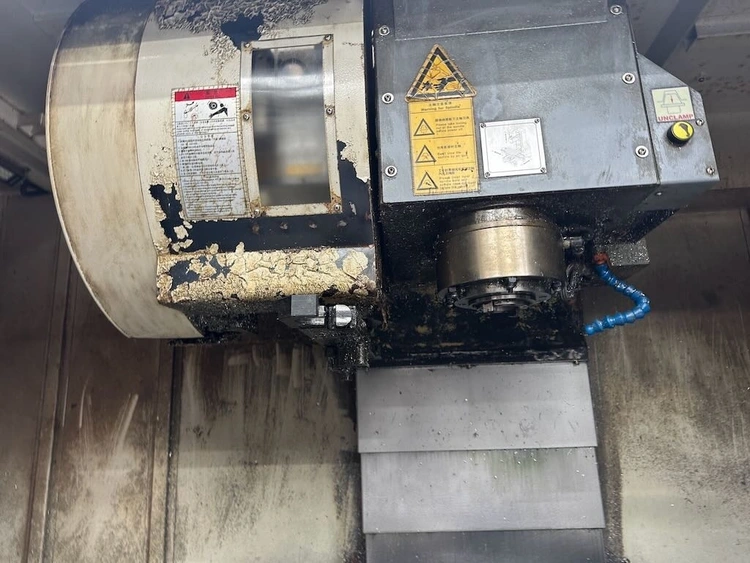

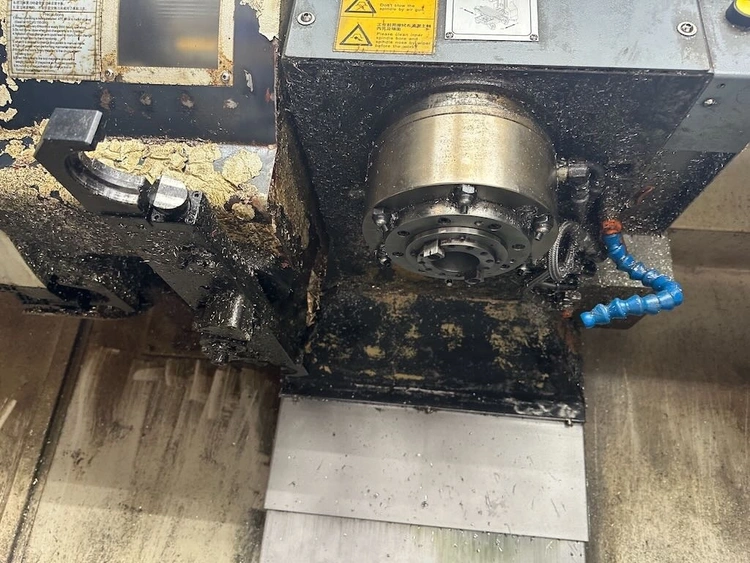

High-performance Dugard 1000E VMC featuring rigid cast-iron construction, fully enclosed guarding, and Fanuc Oi‑MD CNC control. This 3-axis machine offers a large work envelope (X 1,050 × Y 540 × Z 560 mm) and a robust 1,300 kg table load, ideal for precision milling and heavy production work. Equipped with a BT40 spindle (up to 10,000 rpm, 11–15 kW), 24-station automatic tool changer, and a Nikken 4th axis, this machine is perfect for complex, multi-sided machining. Supplied with a full tooling package and manuals, ready for production.

Specifications

X41.34"
Y21.26"
Z22.05"
Power20.1hp
RPM10000rpm
# ATC24
TaperBT40
Table-W18.9"
Table-L47.24"
# Axis3
Dimensions 3300mm × 2280 mm "
Weight6600kg

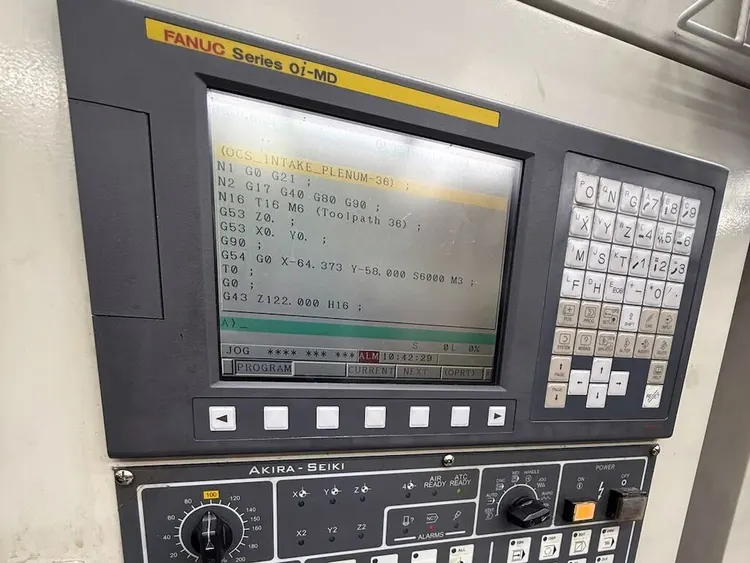

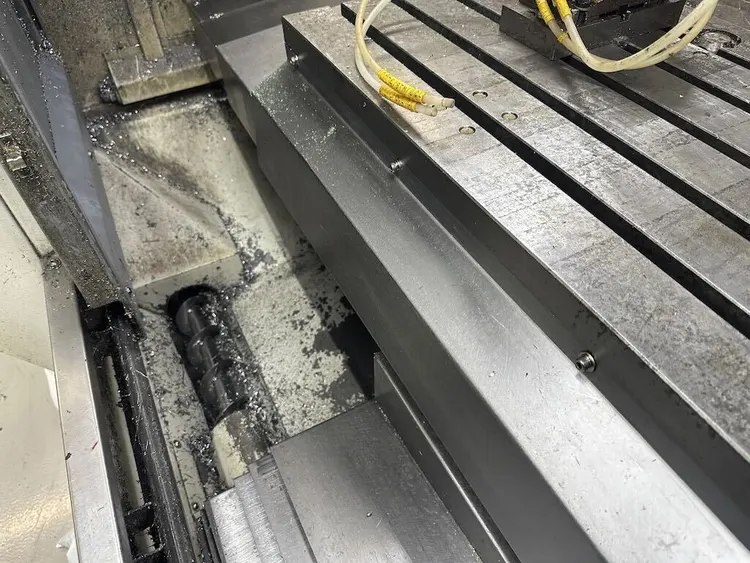

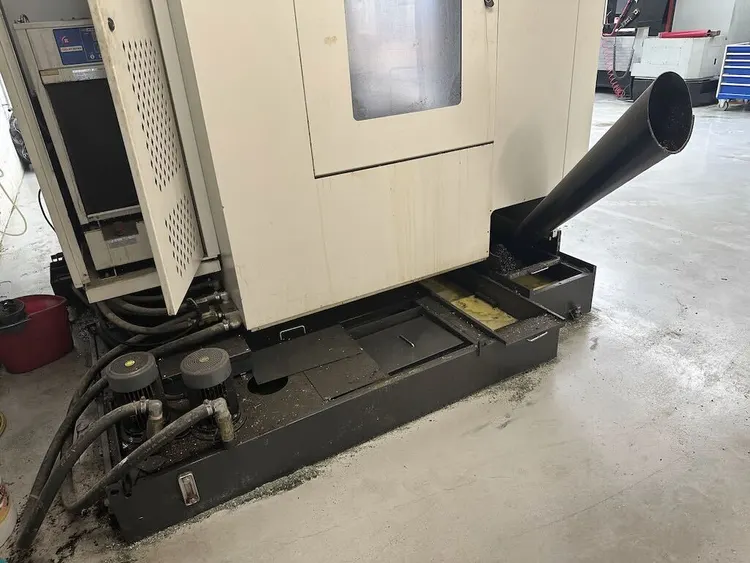

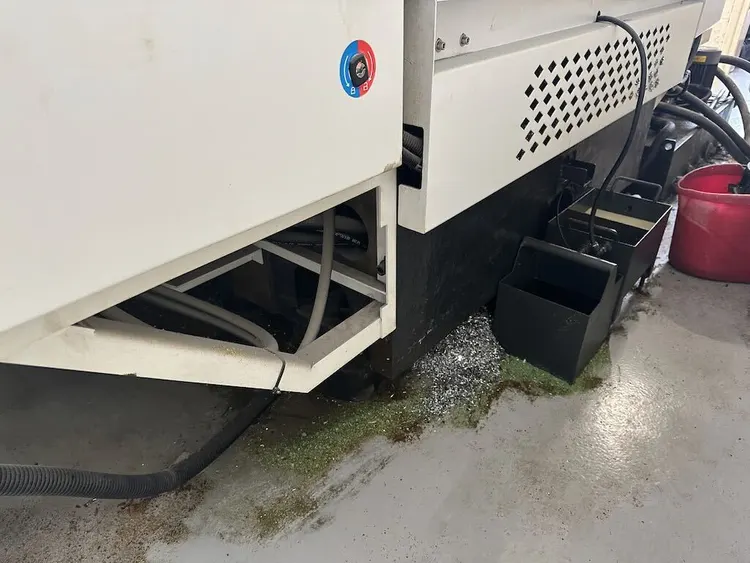

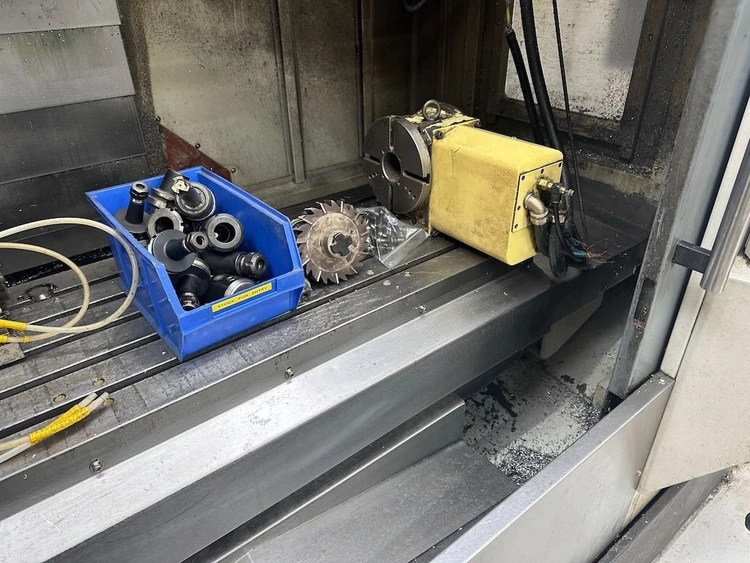

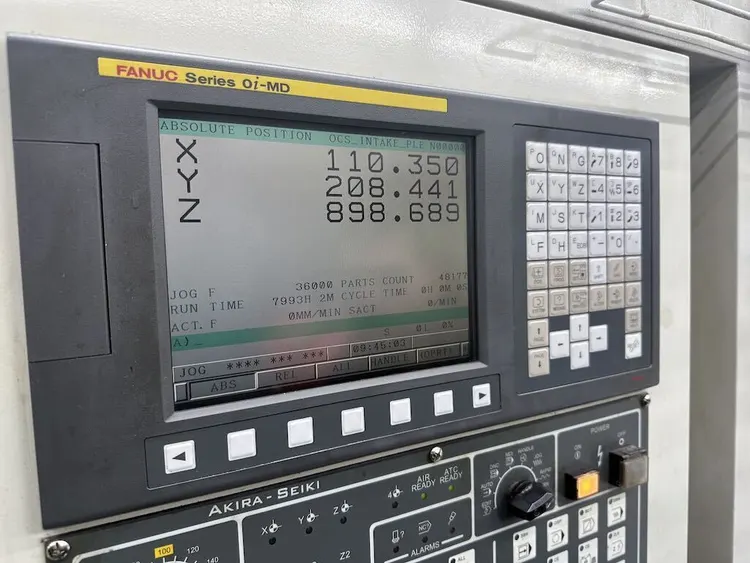

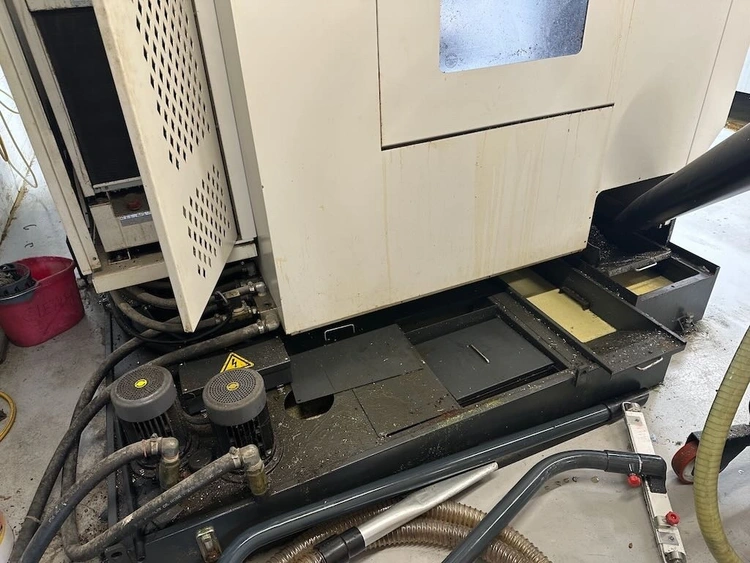

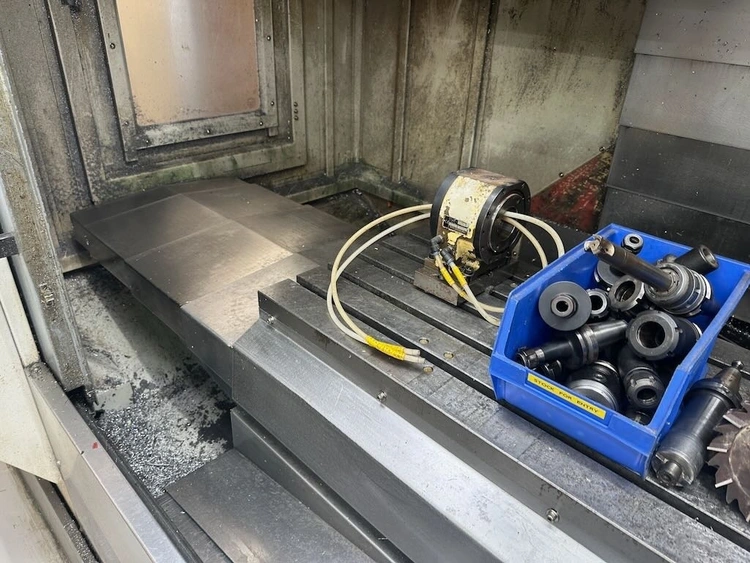

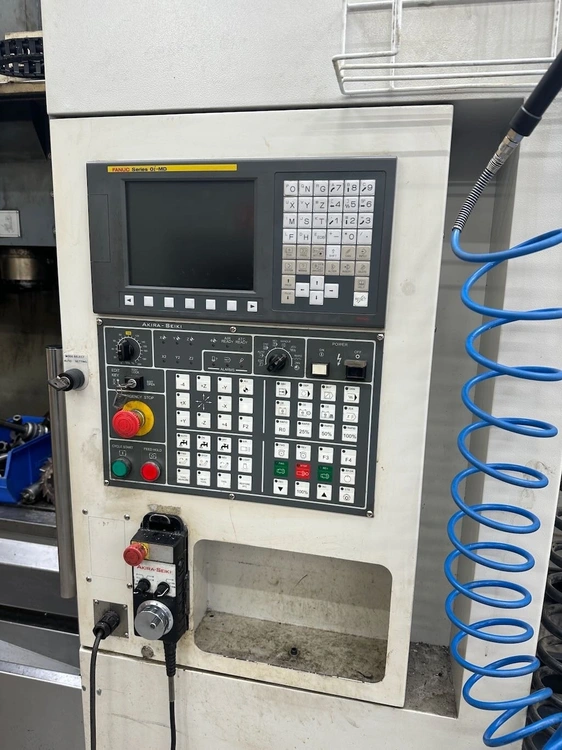

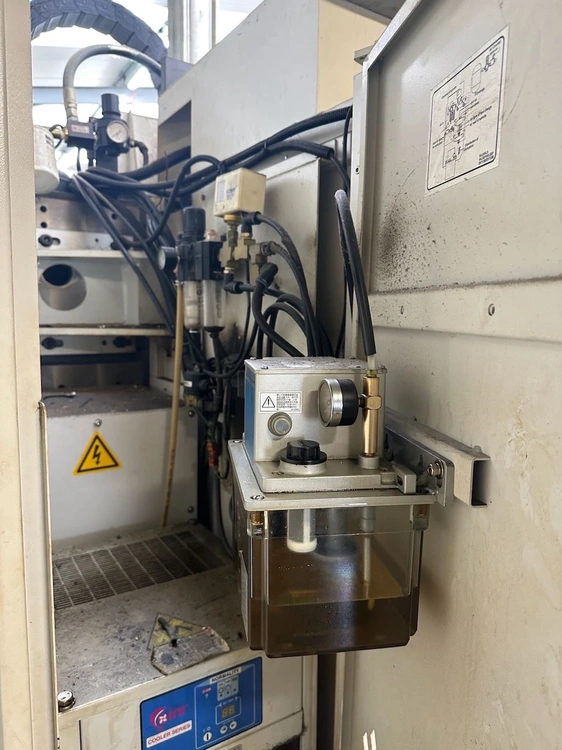

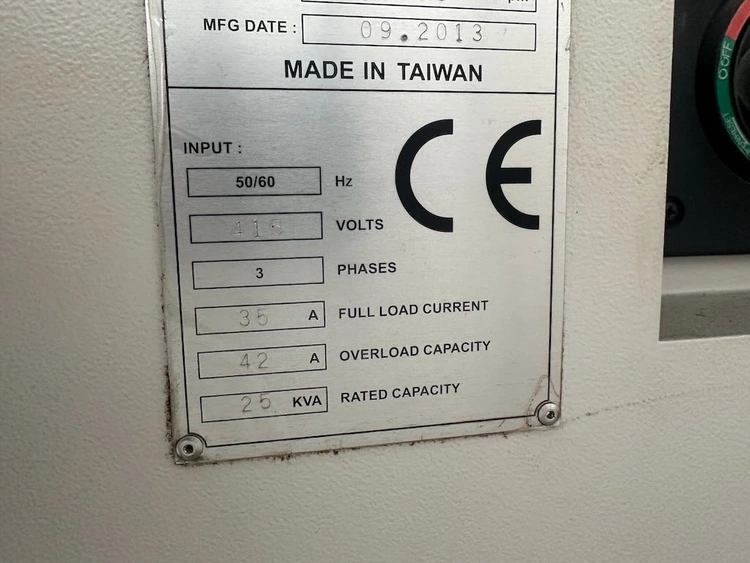

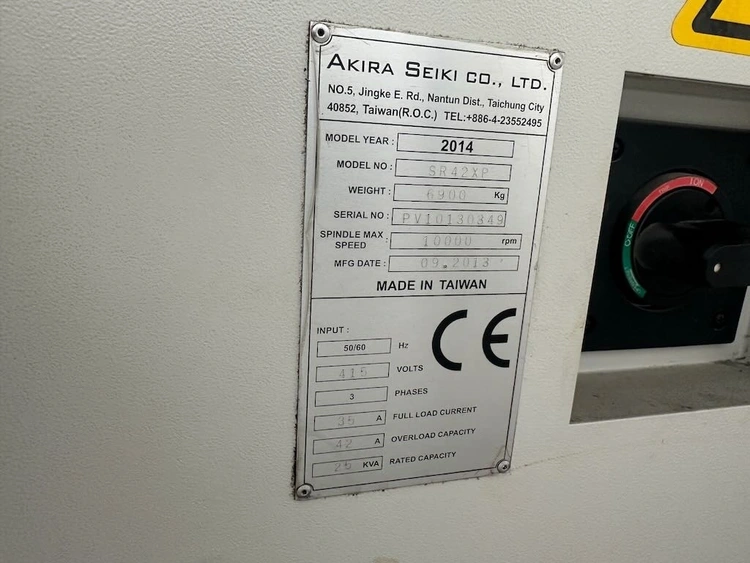

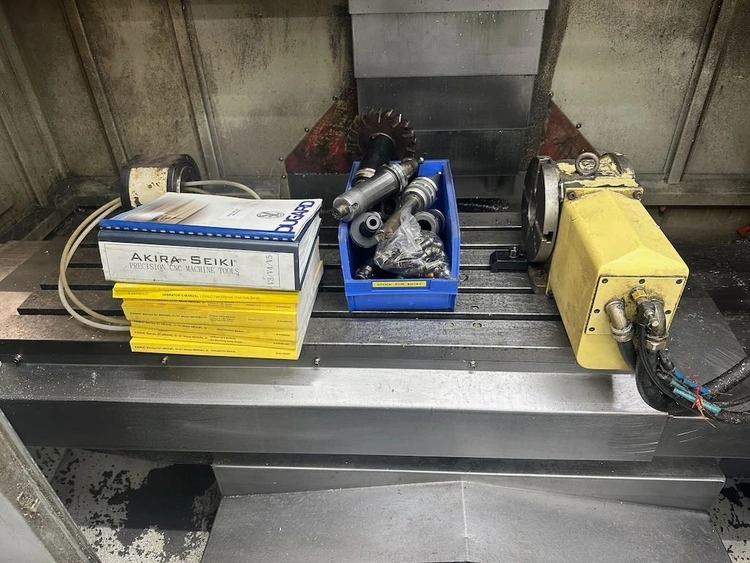

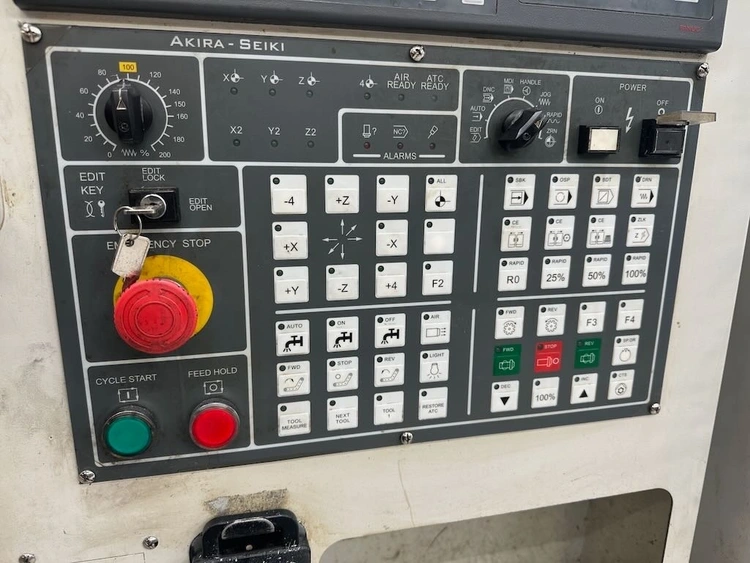

CNC Control: Fanuc Series Oi‑MD Machine Type 3‑Axis Vertical Machining Centre (VMC) Rigid cast‑iron construction, fully enclosed guarding Travels & Work Envelope X‑axis travel: 1,050 mm Y‑axis travel: 540 mm Z‑axis travel: 560 mm Table size: 1,200 × 480 mm Maximum table load: approx. 1,300 kg Spindle Spindle taper: BT40 Max speed: up to 10,000 rpm Spindle motor: approx. 11–15 kW (typical for model) Feeds & Rapid Rates Rapid traverse (X/Y): ~32 m/min Rapid traverse (Z): ~24 m/min Cutting feed: approx. 10 m/min Tool Changer Automatic Tool Changer: 24‑station drum type Max tool diameter (typical): up to ~75–80 mm Max tool length: ~210–250 mm (typical) Capacities & Dimensions Max workpiece weight: ~1,300 kg Machine weight: approx. 6,600 kg Footprint (approx): 3,300 × 2,280 mm Power supply: 400 V three‑phase Additional Features High‑power coolant system & chip auger Fully enclosed guarding for safe CNC operation Fanuc Oi‑MD with colour display and flash card support BT40 Tooling Package Nikken 4th Axis Manuals
