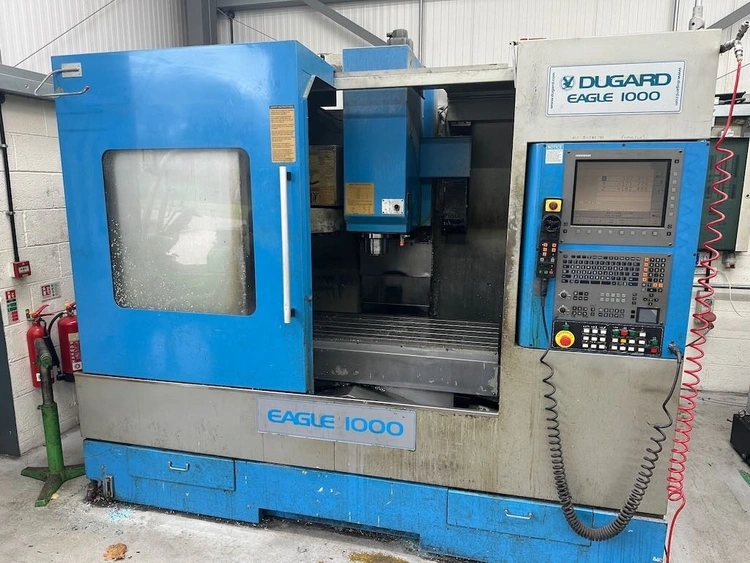

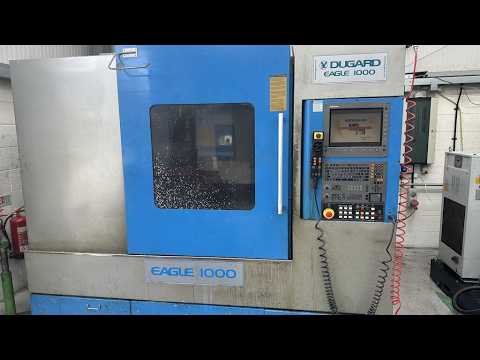

USED 2004 DUGARD 1000 Vertical Machining Centre

£6,000
Send Inquiry

Overview

Type
Vertical Machining Centers
Manufacturer
DUGARD
Model
1000
Year
2004
Stock #
99
Status
for sale

Description

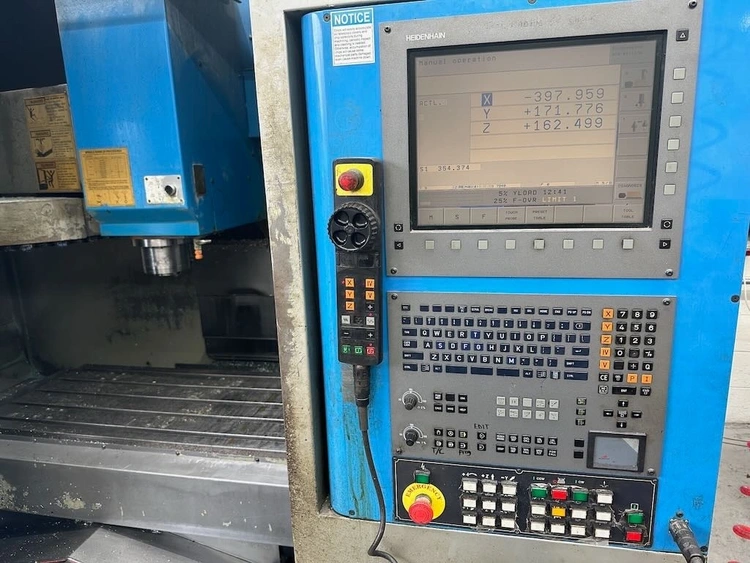

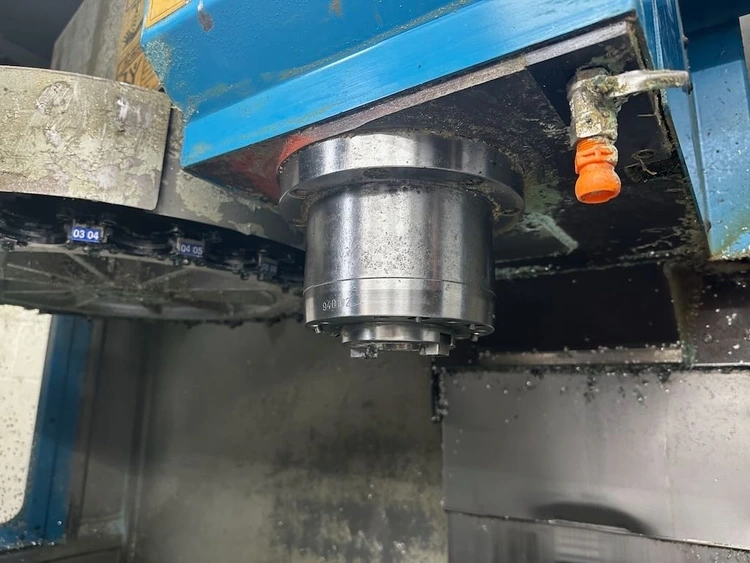

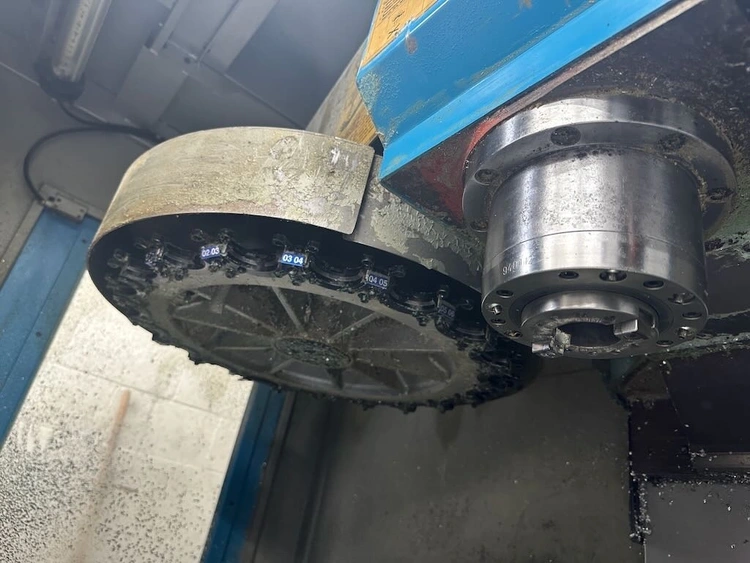

Dugard 1000 VMC featuring a Heidenhain TNC‑530 CNC for conversational and FK programming, with full colour display and extended memory. This rigid 3-axis vertical machining centre offers a large work envelope (X 1,050 × Y 540 × Z 560 mm) and a robust 1,176 kg table load, ideal for precision milling and heavy production work. Equipped with a BT40 spindle (up to 11,000 rpm, 11–15 kW), 24-station automatic tool changer, through-spindle coolant, and chip conveyor, this machine is ready for reliable, high-performance production.

Specifications

X41.34"
Y21.26"
Z22.05"
RPM8000rpm
# ATC24
TaperBT-40

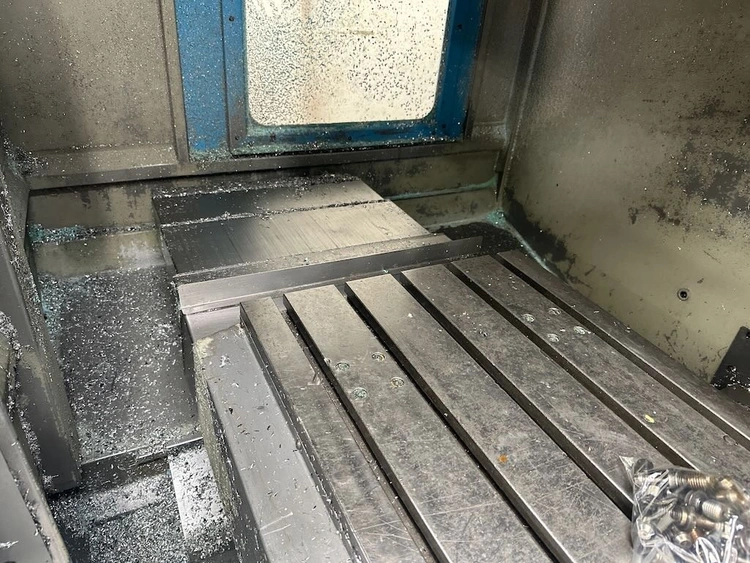

Table-W18.9"
Table-L47.24"
# Axis3

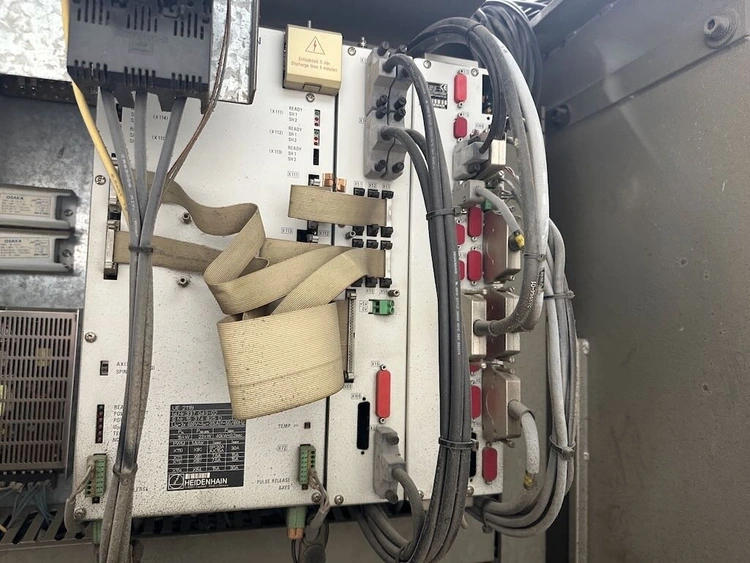

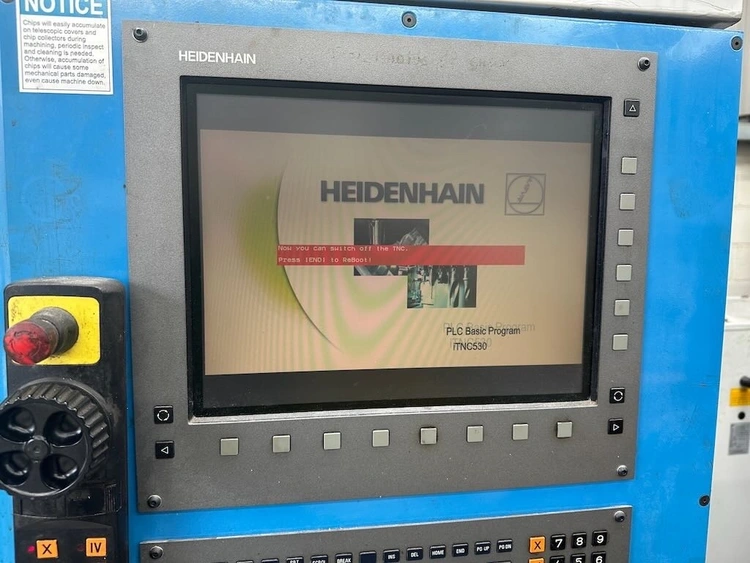

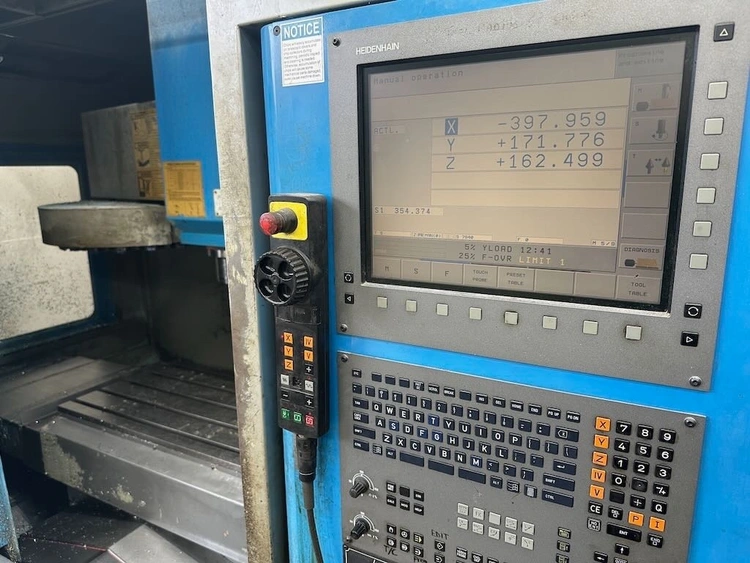

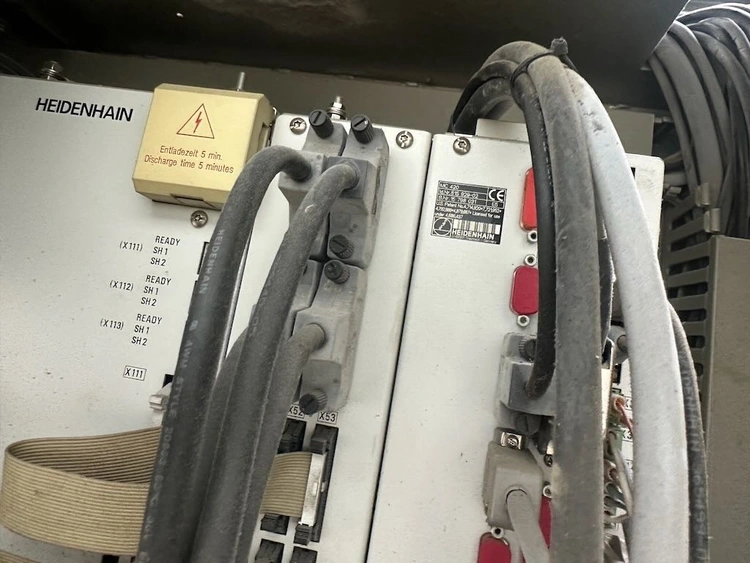

ControlCNC (Heidenhain iTNC530)

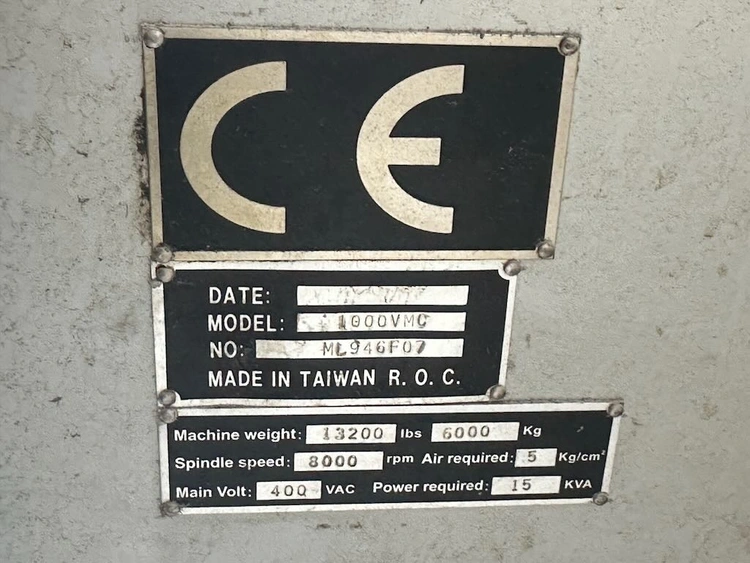

Dimensions 132.68 x 88.18 x 123.22 "

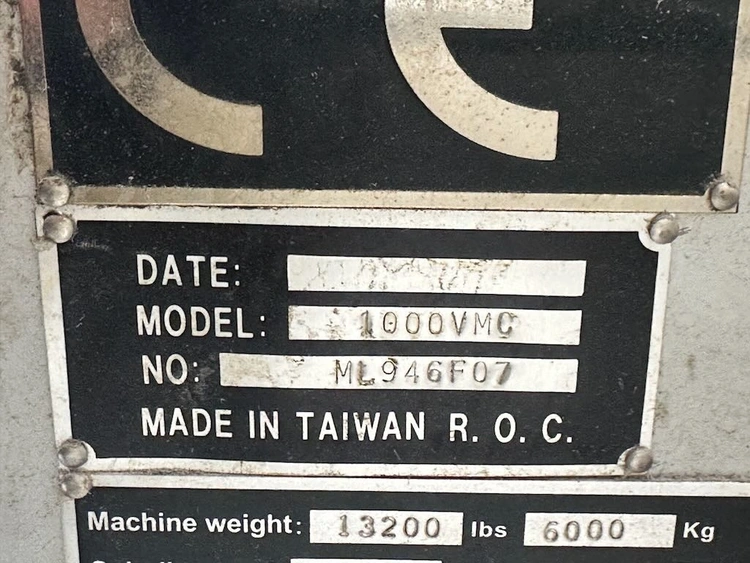

Weight6000kg

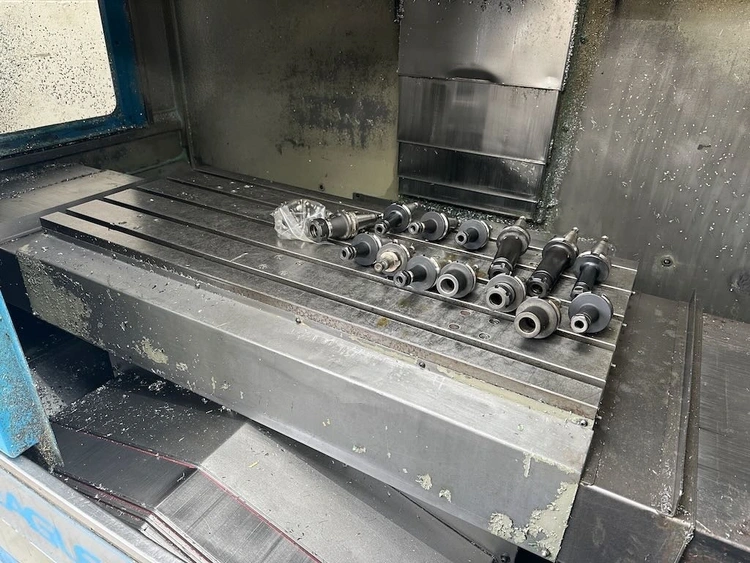

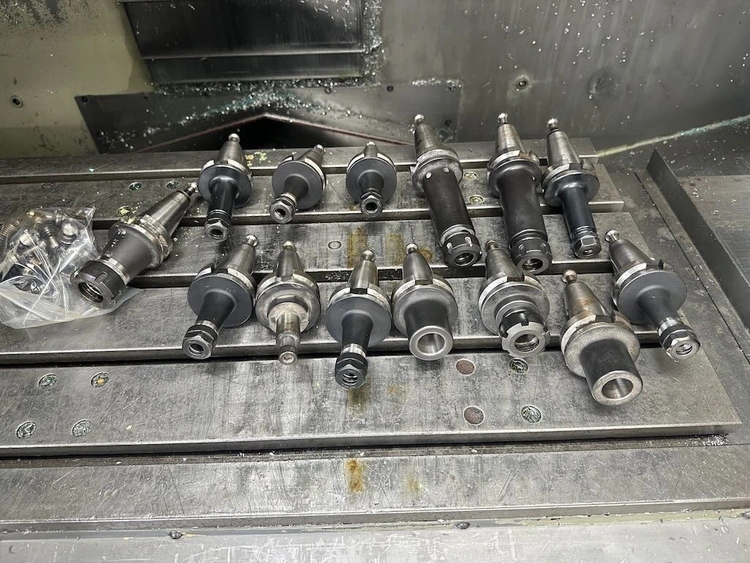

Dugard 1000 Vertical Machining Centre – 2004 – Heidenhain iTNC‑530 Control CNC Control Heidenhain TNC‑530 control with conversational and FK programming support, colour display and extended memory for complex part machining (optional on Dugard 1000 range). Machine Type 3‑Axis Vertical Machining Centre (VMC) with rigid cast‑iron construction and fully enclosed guarding for safe CNC operation. Travels & Work Envelope X‑axis travel: 1,050 mm Y‑axis travel: 540 mm Z‑axis travel: 560 mm Table size: 1,200 × 480 mm Maximum table load: approx. 1,176 kg (All figures typical for Dugard 1000 series) Spindle Spindle taper: BT‑40 Speed range: ~20–8,000 rpm Spindle motor: robust industrial design (typically 11–15 kW on 1000 series) Feeds & Rapid Rates Rapid traverse (X/Y): ~30 m/min Rapid traverse (Z): ~25 m/min Cutting feed: approx. 12 m/min (typical) Tool Changer 24‑station drum-type automatic tool changer Maximum tool diameter: ~80 mm Maximum tool length: ~250 mm Typical tool change time ~2.2 seconds Capacities & Dimensions Machine dimensions (approx): 3,370 × 2,240 × 3,130 mm Machine weight: ~5,800–6,000 kg Includes BT40 Tooling Package
