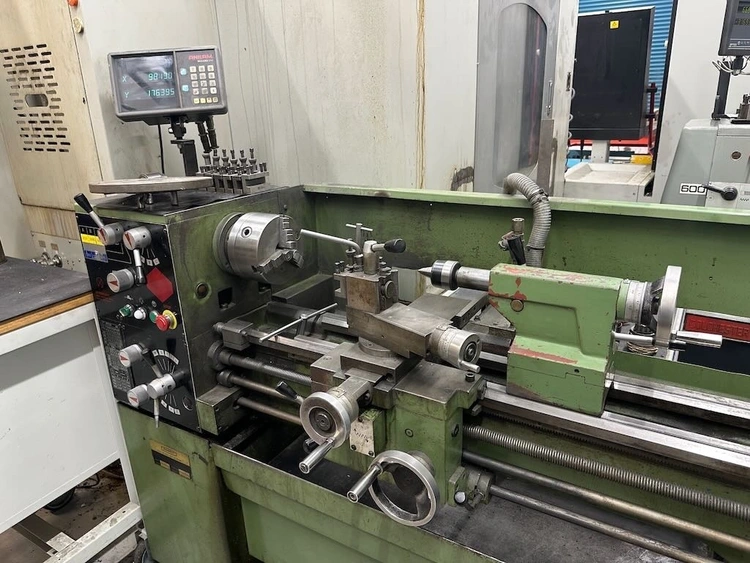

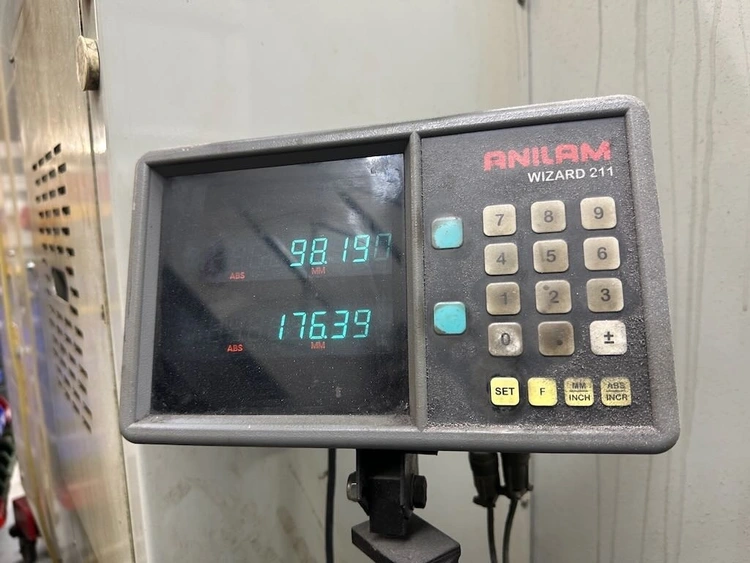

USED EXCEL 1440 GF Lathe, Geared-Head 14" × 40" with DRO

Send Inquiry

Overview

Type
Engine Lathes
Manufacturer
EXCEL
Model
1440 GF
Stock #
100
Status
for sale

Description

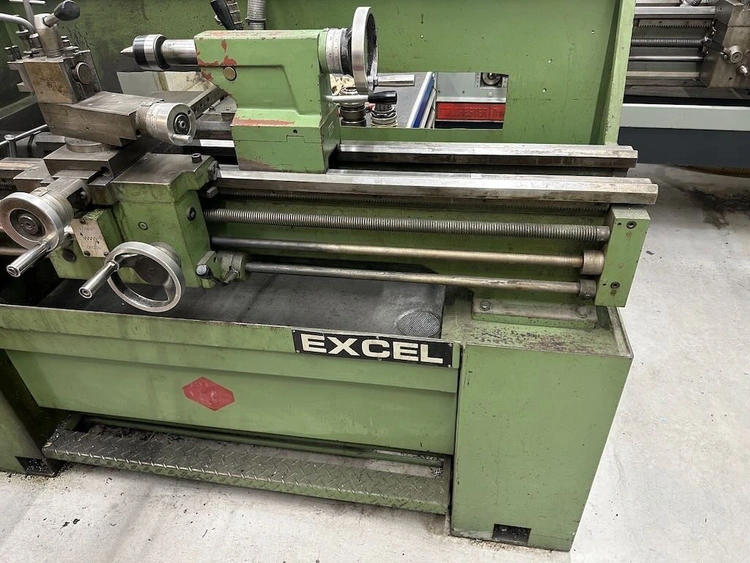

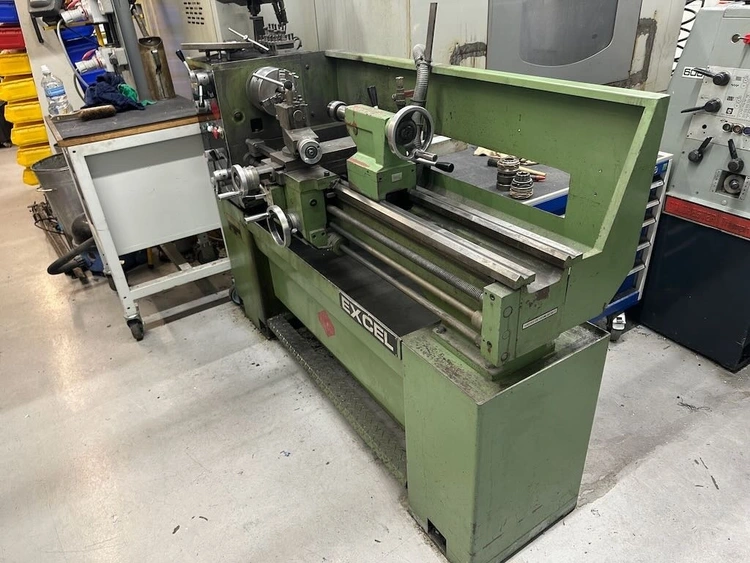

EXCEL 1440 GF Centre Lathe – Geared-Head 14" × 40" Well-maintained EXCEL 1440 GF geared-head centre lathe, ideal for general engineering, toolroom work and precision turning. This popular 14" × 40" machine offers a 356 mm swing over bed and 1,000 mm between centres, providing excellent capacity for a wide range of components.

Specifications

Swing14"
Centers40"
Spindle Bore1.5"
Power2hp
RPM70rpm
Swing Over Cross Slide8"
Dimensions 1900 x 750 x 1200 mm "
Weight900 kg

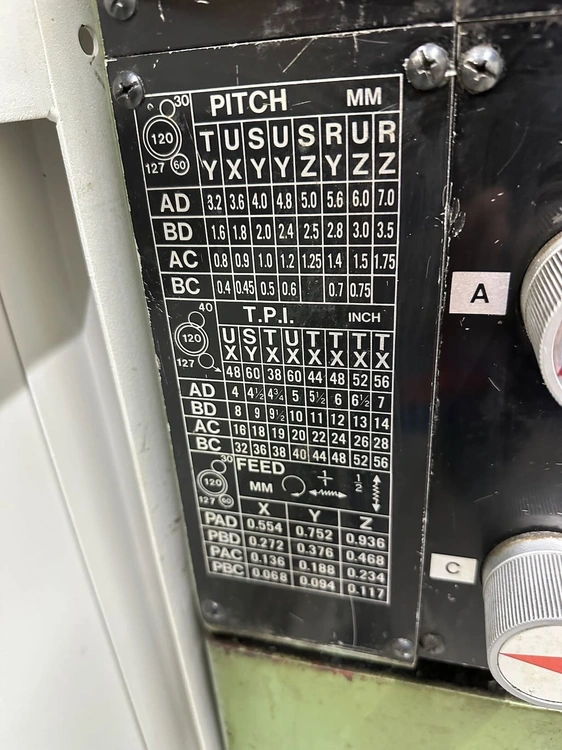

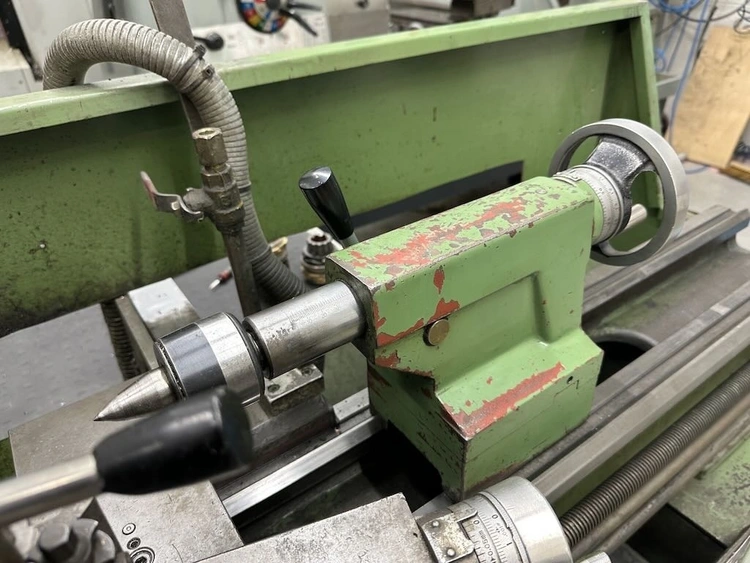

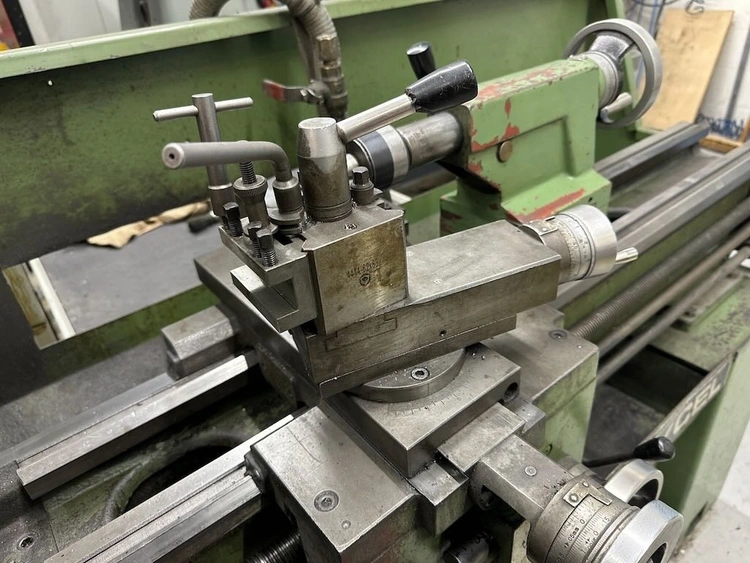

EXCEL 1440 GF Centre Lathe – Typical Specifications General Machine type: Geared-head centre lathe Size class: 14" × 40" lathe Capacity Swing over bed: 356 mm (14") Swing over cross slide: approx. 210 mm (8–8¼") Swing in gap: approx. 500 mm (20") Distance between centres: 1,000 mm (40") Bed width: approx. 260–270 mm Spindle Spindle bore: approx. 40 mm (1.5") Spindle nose: D1-4 camlock Spindle taper: MT-5 Number of speeds: typically 8–16 speeds Speed range: approx. 70–2,000 rpm Feeds & Threading Metric thread range: approx. 0.45–10 mm pitch Imperial thread range: approx. 4–80 TPI Longitudinal feed range: approx. 0.067–1.0 mm/rev Cross feed range: approx. 0.018–0.27 mm/rev Slides & Tailstock Cross slide travel: approx. 160 mm Compound slide travel: approx. 65–70 mm Tailstock taper: MT-3 Tailstock quill travel: approx. 95 mm Motor & Dimensions Main motor: approx. 2–4 HP (model dependent) Machine weight: approx. 900–1,000 kg Overall size: approx. 1,900 × 750 × 1,200 mm
