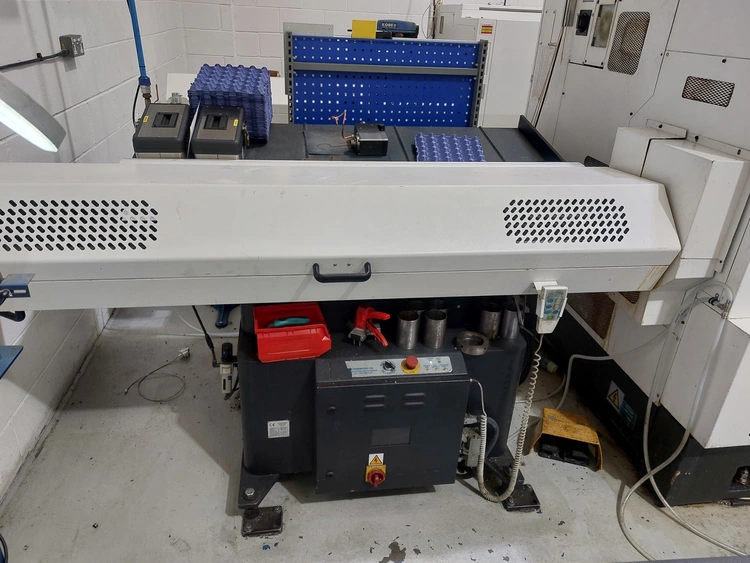

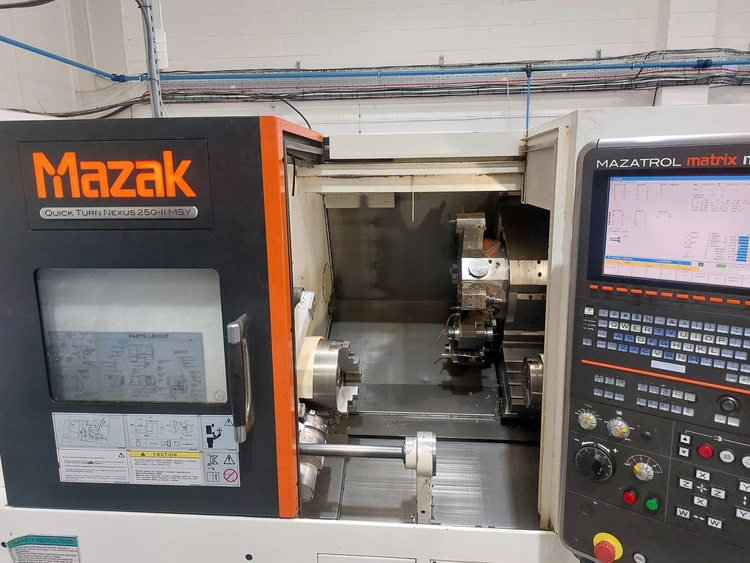

USED 2012 MAZAK QUICK TURN NEXUS 250-II MSY with Barfeed and Tooling Package

Send Inquiry

Overview

Type
CNC Lathes
Manufacturer
MAZAK
Model
QUICK TURN NEXUS 250-II MSY
Year
2012
Stock #
101
Status
for sale

Description

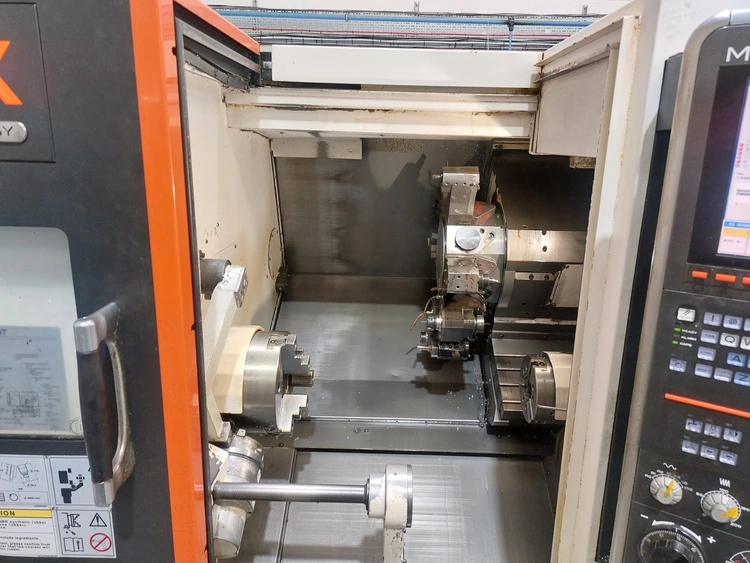

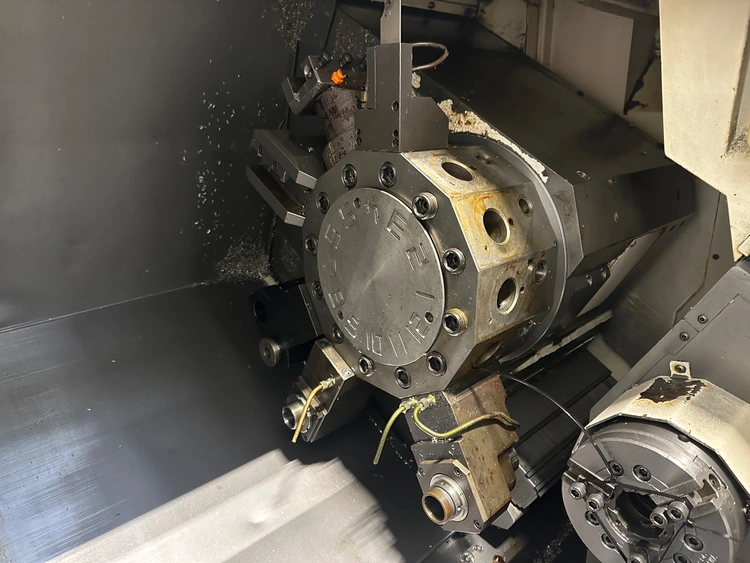

High-spec Mazak Quick Turn Nexus 250-II MSY, manufactured in 2012 and designed for fast, accurate multi-task machining. This machine features twin spindles, full Y-axis capability, and live tooling, making it ideal for complex turned-and-milled components in a single setup. With a 10" chuck main spindle, 77 mm bar capacity, 12-station live tooling turret, and powerful Mazatrol control, the machine is perfectly suited to precision engineering and high-volume production work. A versatile “done-in-one” CNC turning centre ready for production.

Specifications

Swing26.5"
Machining Length21.3"
# Axis4

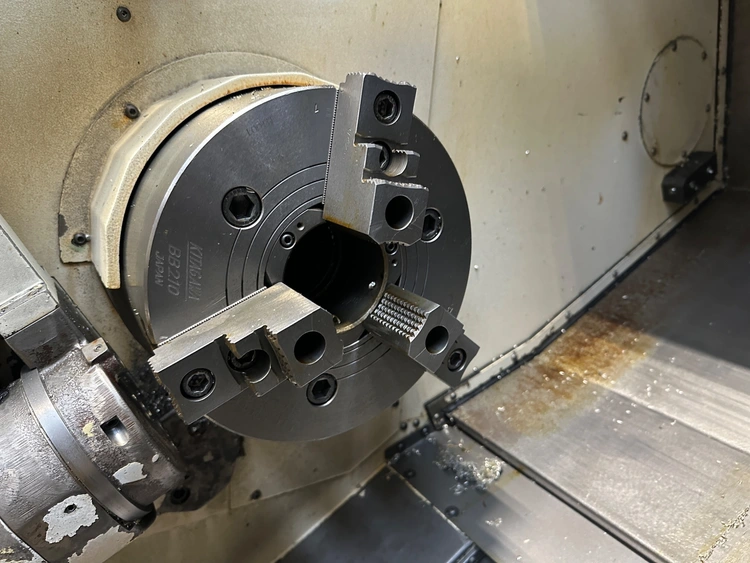

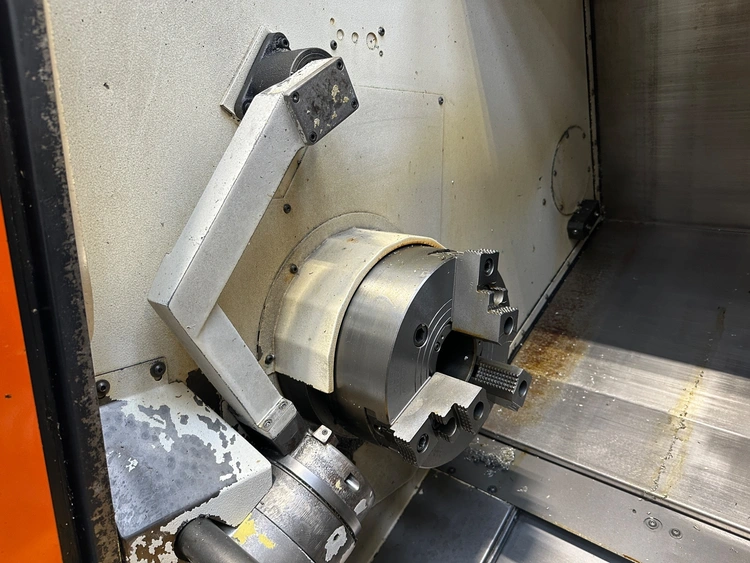

Chuck Size10"
Bar Capacity3"
Power35hp
Max RPM4000rpm
Turning Dia14.75"
Live ToolingYes
Sub SpindleYes

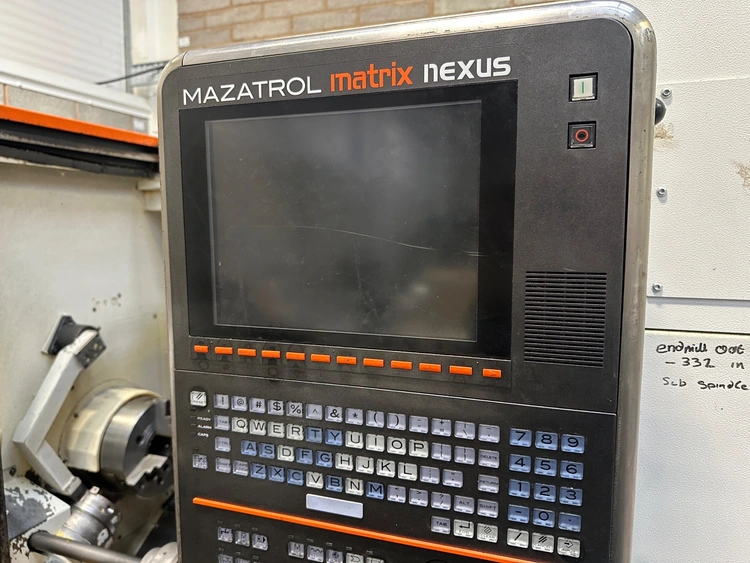

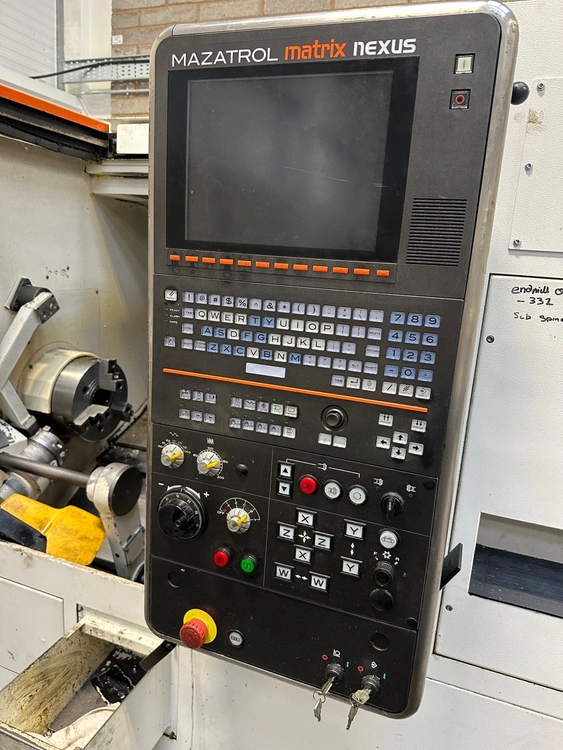

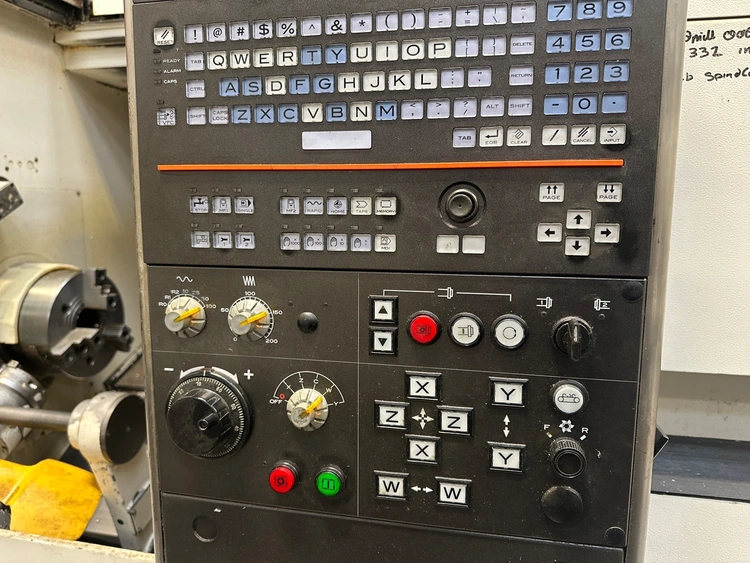

ControlCNC (Mazatrol Matrix Nexus)
Dimensions 2800 x 1850 x 1850 mm "
Weight5500 kg

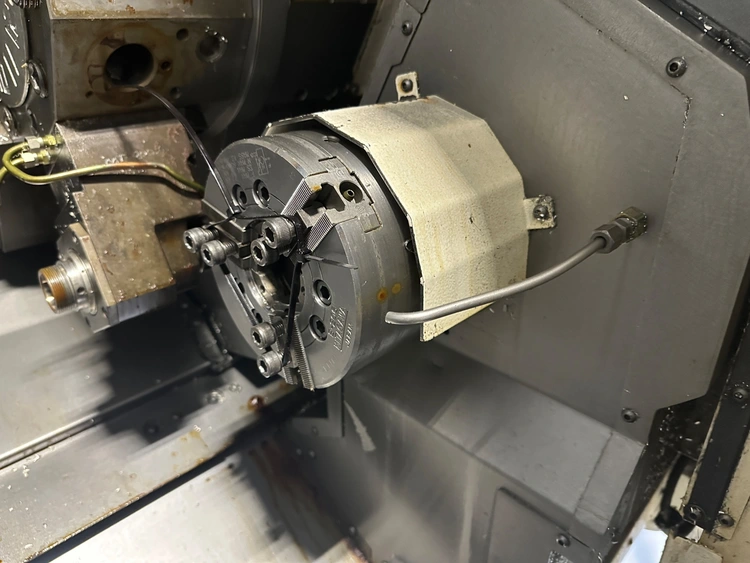

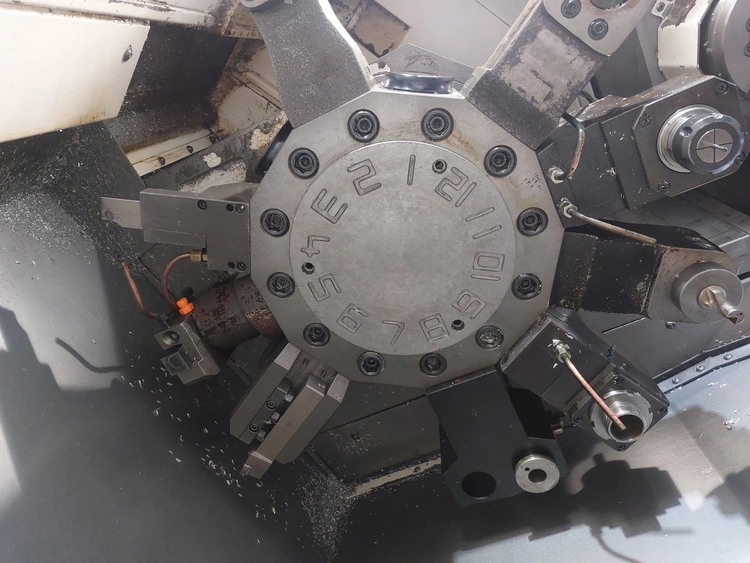

MAZAK QUICK TURN NEXUS 250-II MSY – 2012 Type: CNC Turning Centre with Y-axis, Sub-spindle & Live Tooling Control (typical for 2012): Mazatrol Matrix Nexus CNC Capacity Maximum swing: 675 mm (26.5") Maximum machining diameter: 380 mm (14.75") Maximum machining length: 541 mm (21.3") Maximum bar capacity: 77 mm (3") Chuck size (main spindle): 10" Main Spindle Maximum speed: 4,000 rpm Spindle motor power: 26 kW / 35 hp Spindle bore: approx. 88 mm C-axis indexing: 0.001° Sub (Counter) Spindle Chuck size: 6" Maximum speed: 6,000 rpm Spindle motor power: 11 kW / 7.5 hp C-axis indexing: 0.001° Turret & Milling Capability Tool stations: 12-station turret Live tooling: Yes (all stations capable) Live tool speed: up to 4,500 rpm Live tool motor: approx. 5.5–7.5 kW Axis Travels X-axis travel: 230 mm (9") Y-axis travel: ±50 mm (total 100 mm / 4") Z-axis travel: 575 mm (22.6") W-axis (sub-spindle travel): 585 mm (23") Feeds & Performance Rapid traverse (X / Z / W): approx. 30 m/min Rapid traverse (Y): approx. 21 m/min Machine Size & Capacity Machine weight: approx. 5,000–5,500 kg (11,000–12,000 lb) Machine dimensions (approx): 2,800 × 1,850 × 1,850 mm Key Features (MSY version) Twin spindles (main + sub spindle) Y-axis milling capability Live tooling turret
