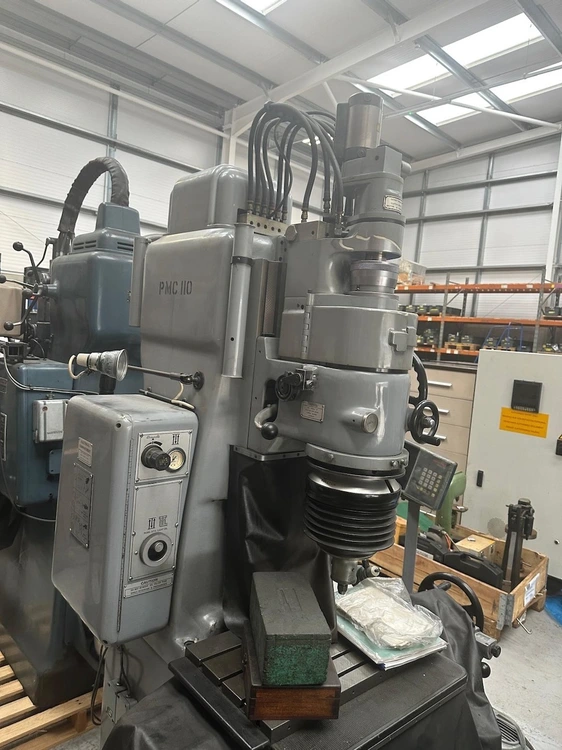

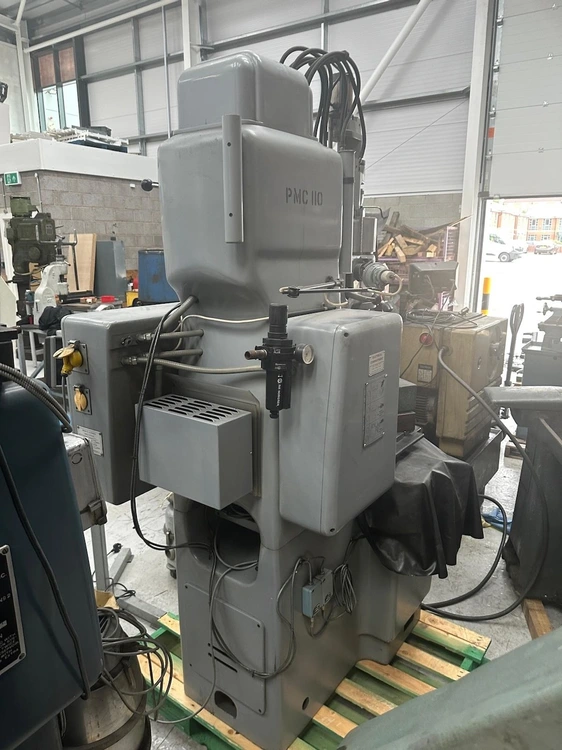

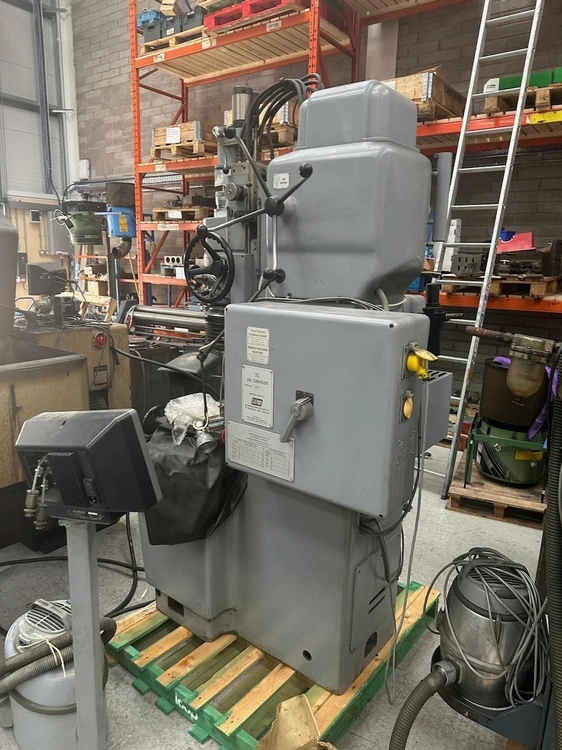

USED MOORE #2 JIG GRINDER

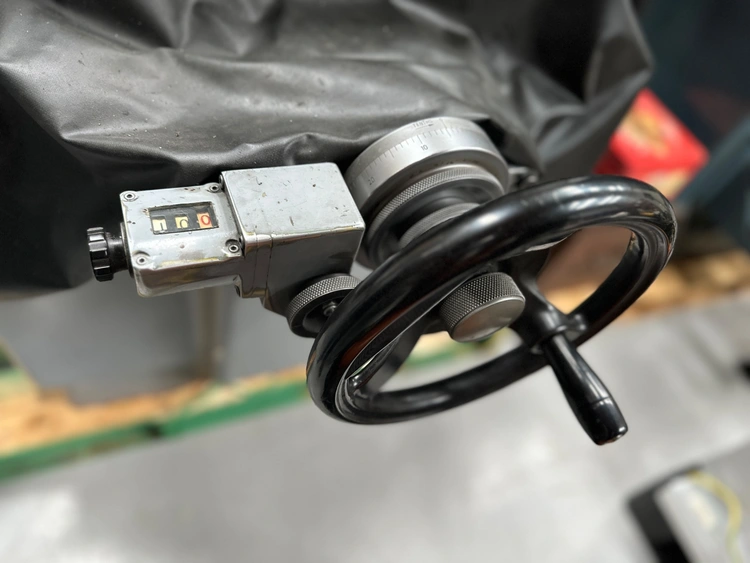

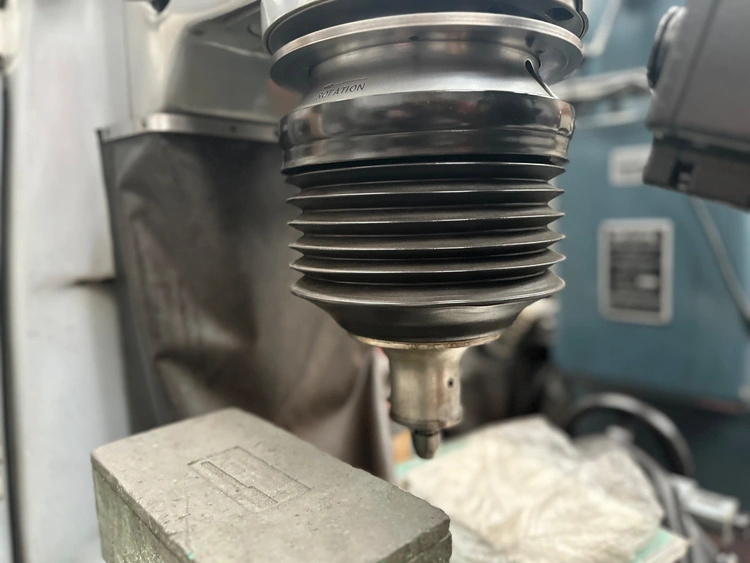

Moore No. 2 Jig Grinder – Typical Specifications Machine Type Precision Jig Grinder — Designed for high‑accuracy grinding of jigs, fixtures, dies, and precision components. Work Capacity Swing over table: Approx. 16–18" (406–457 mm) Max grinding diameter: Approx. 14–16" (355–406 mm) Grinding spindle travel (longitudinal): Approx. 12–16" (305–406 mm) Table size: Approx. 18 × 16" (457 × 406 mm) Note: Actual capacities vary slightly with model revisions and optional attachments. Table/Work Movements Table longitudinal travel: Approx. 10–14" (254–356 mm) Table cross travel: Approx. 10–12" (254–305 mm) Table swivel: Often ±30° or continuous indexing (model dependent) Spindle Grinding spindle type: Precision, air‑bearing or hydrostatic (depending on build) Spindle speeds: Variable, up to approx. 30,000–35,000 rpm (with high‑speed attachments) Spindle taper: Usually NMTB T‑slot with optional adapters (model dependent) Features Precision Air/Ball bearing spindles — for high surface finish and repeatability Fine micrometer feeds — for accurate material removal Workhead and tailstock — attachable for round grinding operations Universal slide tables — for multi‑axis positioning Ground ways and precision feed screws — designed for long‑term accuracy Machine Physicals Approx. weight: 1,800–2,500 lb (800–1,130 kg) Approx. footprint: ~60" × 40" (1,525 × 1,015 mm) Power requirements: Standard 3‑phase machine supply (varies by installation) Typical Uses Moore No. 2 Jig Grinders are widely used in: Precision hole grinding Die and mould finishing Toolroom and aerospace components High‑accuracy surface and profile grinding Includes Extraction Unit. Accessories
