USED COLCHESTER TRIUMPH 2000

Send Inquiry

Overview

Type
Gap Lathes
Manufacturer
COLCHESTER
Model
TRIUMPH 2000
Stock #
104
Status
for sale

Description

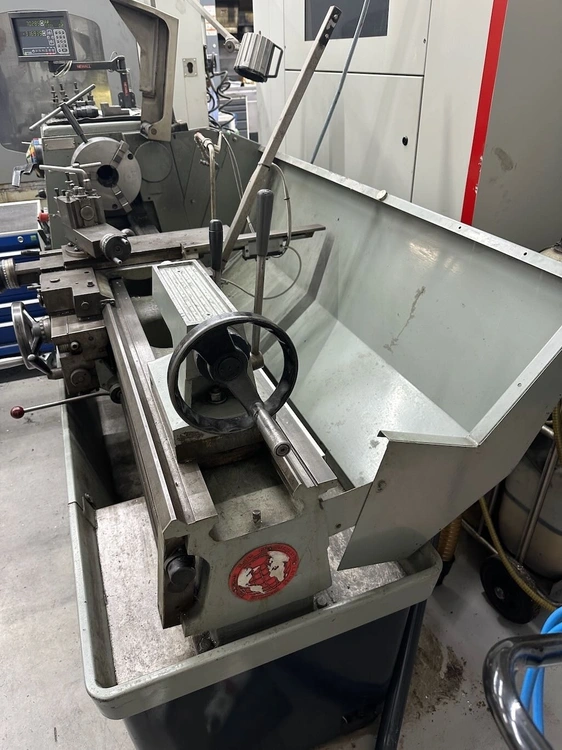

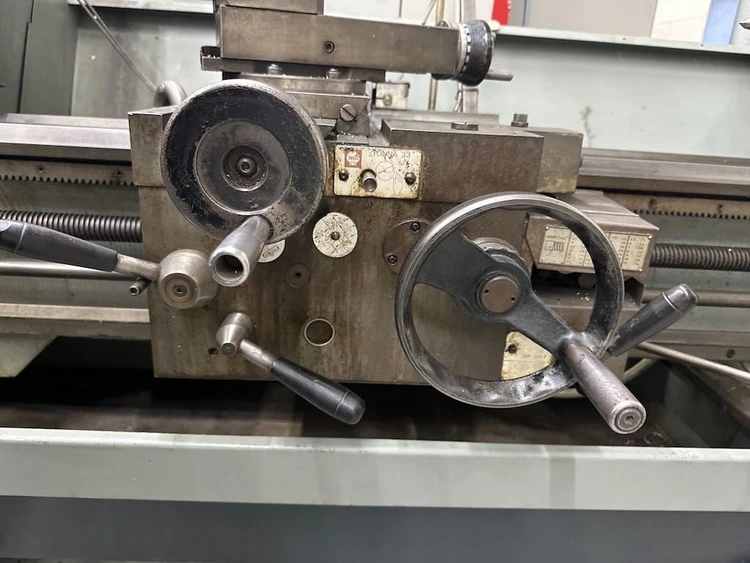

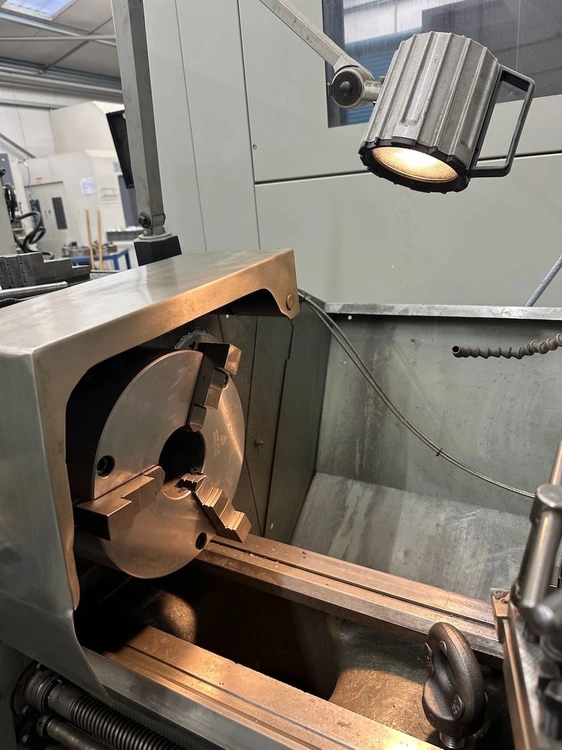

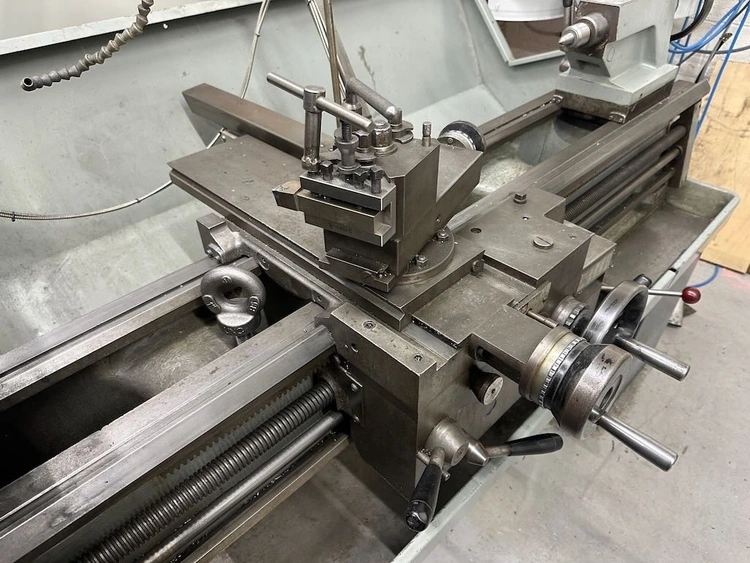

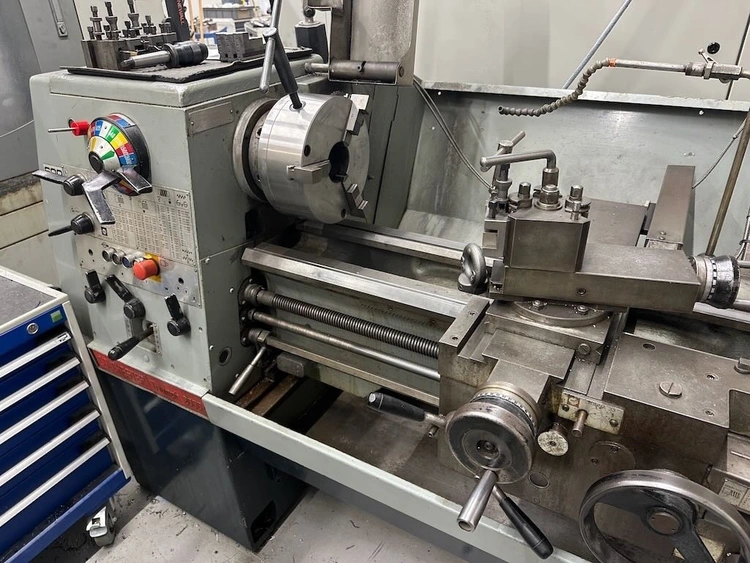

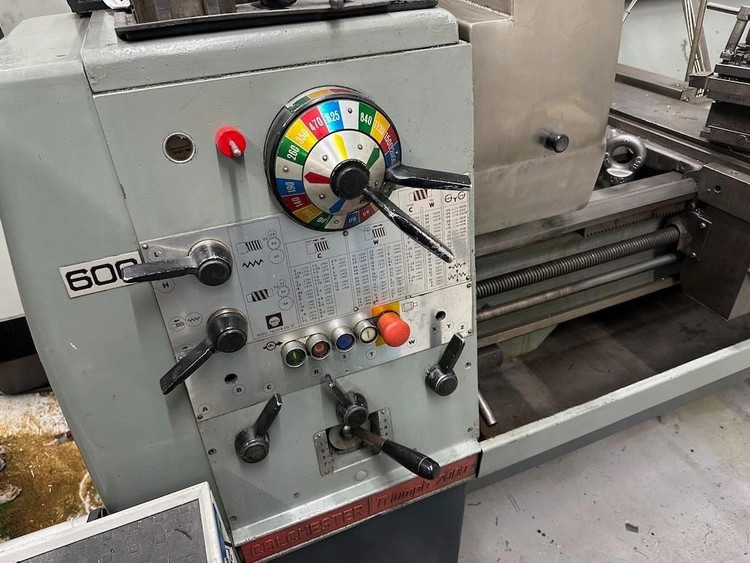

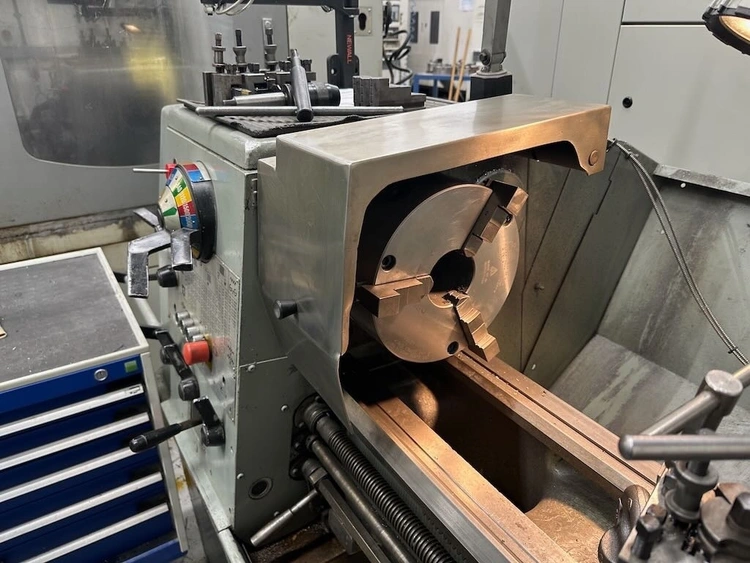

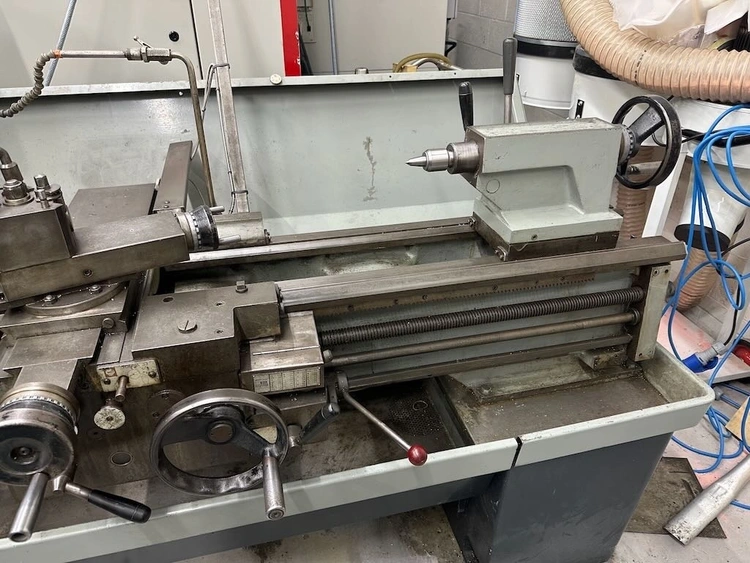

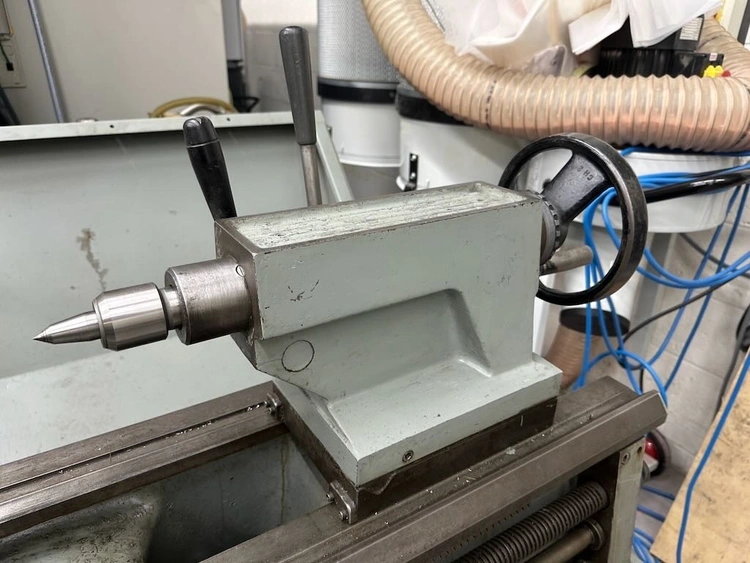

Robust Colchester Triumph 2000 centre lathe, ideal for general turning, facing, and threading operations. Features a geared headstock, swing over bed of approx. 380 mm, and distance between centres of 762 mm, with sturdy cast-iron construction for long-term precision. Equipped with cross and top slides, tailstock, and optional accessories such as a 3‑ or 4‑jaw chuck and DRO, making it perfect for toolroom, production, and maintenance work.

Specifications

Swing15"
Gap Swing22.5"
Centers30"
Spindle Bore2.125"
RPM2000rpm
Power7.5hp
TaperMT‑4 or MT‑5
Dimensions 1.90 m length "
Weight1,600 kg

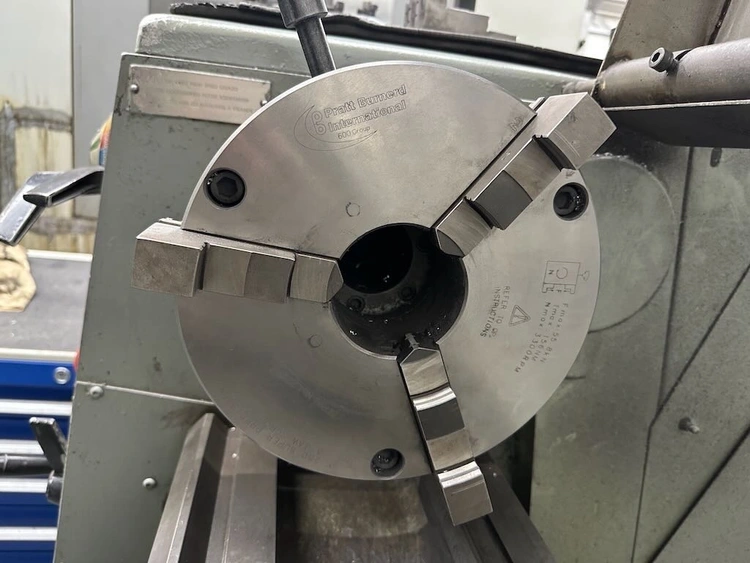

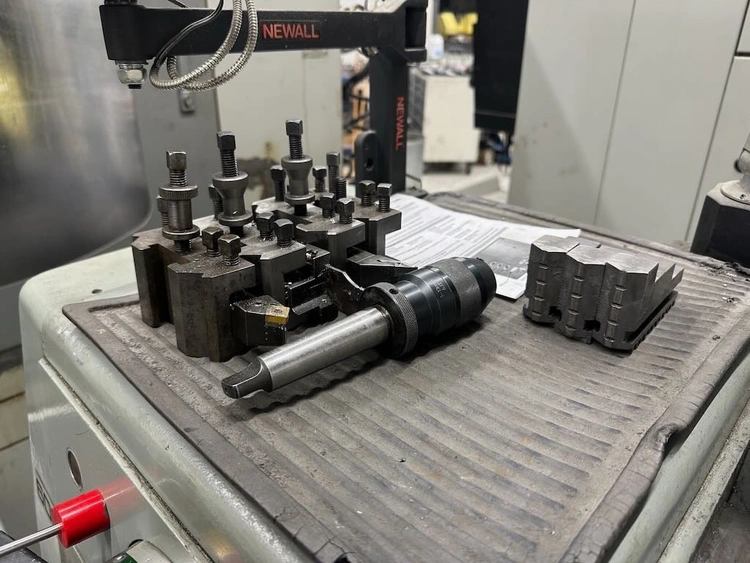

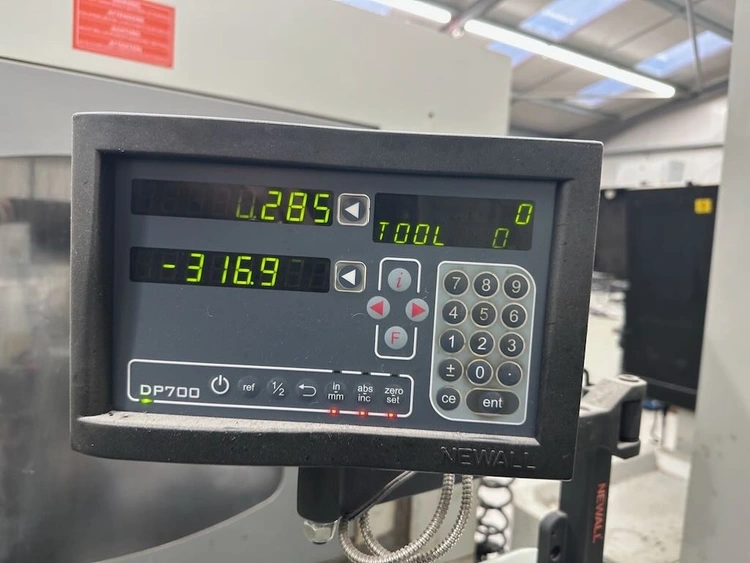

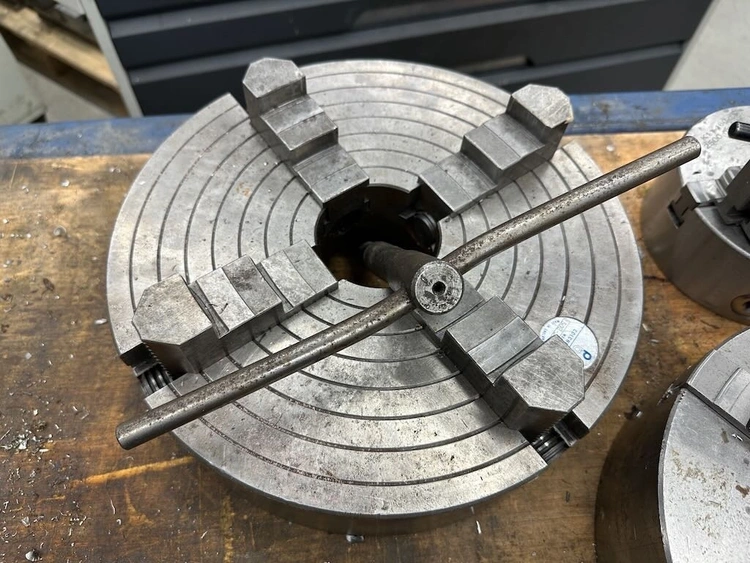

Colchester Triumph 2000 Centre Lathe – Typical Specifications Machine Type Manual centre lathe with geared headstock — robust, workshop‑proven British lathe. Capacity Distance between centres: approx. 762 mm (30″) Height of centres: approx. 190 mm (7.5″) Swing over bed: approx. 380–390 mm (15″) Swing over cross slide: approx. 241 mm (9″) Swing in gap: approx. 580–585 mm (22–23″) when gap piece fitted Spindle & Speeds Spindle bore: 54–55 mm (approx. 2 ⅛″) Spindle nose: D1‑6 Camlock Spindle speed range: approx. 25–2,000 rpm (16‑step geared) Feeds, Threads & Drives Metric threads: ~0.2–14 mm pitch Imperial threads: ~2–72 tpi Diametral pitches: ~8–44 DP Sliding feed range: ~0.0015–0.040″/rev Surfacing feeds: ~0.00075–0.020″/rev Slides & Tailstock Cross slide travel: ~235–250 mm Top slide travel: ~120–130 mm Tailstock quill travel: ~155–178 mm Tailstock taper: MT‑4 (or MT‑5 on some units) Motor & Construction Spindle motor: approx. 5.6 kW (7.5 hp) (typical) Sturdy cast‑iron construction with geared headstock for torque and precision. Standard Features / Accessories Quick change toolpost and holders Chuck(s): 3‑jaw, 4‑jaw Coolant system Fitted 2‑axis Digital Readout (DRO) Tailstock Dimensions & Weight Machine weight: approx. 1,600 kg Footprint: typically around 1.90 m length
