Private Treaty

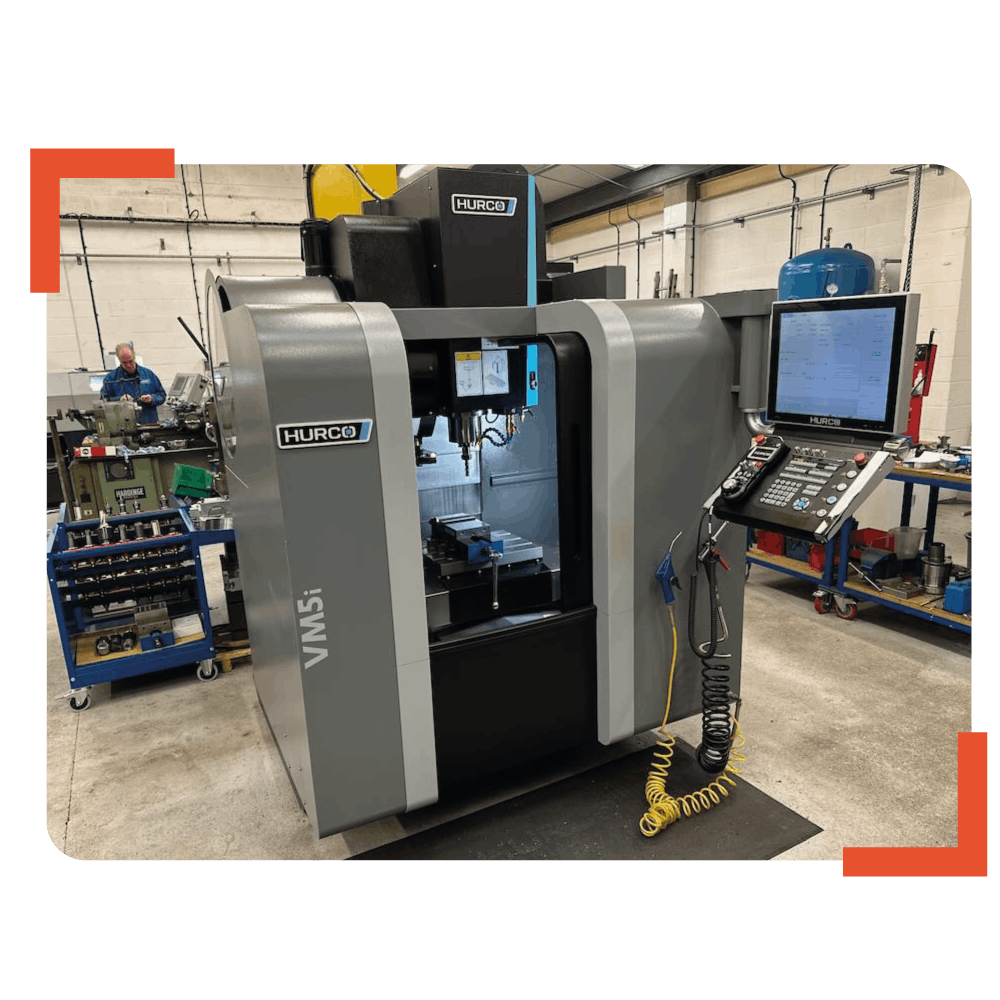

Hurco VM5i VMC (2017)
Opportunity to purchase a Hurco VM5i VMC (2017). This machine is available to purchase immediately and can be viewed under power by appointment only.
Send Inquiry
Summary
This Hurco VM5i VMC (2017) is in GREAT condition and is available to purchase immediately. All viewings are by appointment only. Can be loaded for free to suitable transport
Comes with:
16 ATC Machining Centre
Air Hose and Pistol Assembly
Anti Fatigue Mat
74GB Solid State Hard Drive
2GB Ram
True Type Engraving
High Resolution 3D Rendered Graphics
Real Time Tool Simulation
USB Port
High Speed Profiling software with S-curve acceleration, with selectable surface finish quality
Ultimotion Advanced Velocity Software
Options Included:
Ultipocket, Helical Ramp & Adaptipath
Tool & Material Library
Programmable Air Blast
Rigid Tapping
16 x SK40 ER 25 Spindle Tool Package (8 x ER25 Long Series Collet Chucks and 8 x ER25 Short Series Collet Chucks)
16 Retention Studs
Single Screen Winmax MAX5 Control
Location: Burton on Trent
Specifications
- X Axis Travel:
457mm
- Y Axis Travel:
356mm
- Z Axis Travel:
356mm
- Control:
Single Screen Winmax MAX5 Control
- T-slot Size:
3 x 18mm
- Table Size:
457mm x 356mm
- Max Weight on Table:
250kg
- Spindle Nose to Table:
101.6mm
- Max Spindle Speed:
8000rpm
- Spindle Power:
7.5kW @ 1,450 rpm
- Spindle Torque:
48.8Nm @ 1,450 rpm
- Tool Type:
CAT 40
- Number Of Tools:
16
- Max Tool Diameter:
90mm
- Max Tool Length:
200mm
- Max Tool Weight:
7kg
- X, Y Z Axis Rapid Traverse:
19m/minute
- Dimensions:
1,633.2mm x 2,903.2mm x 2,390.1mm (L x W x H)
- Machine Weight:
2,636kg
