Available
Private Treaty

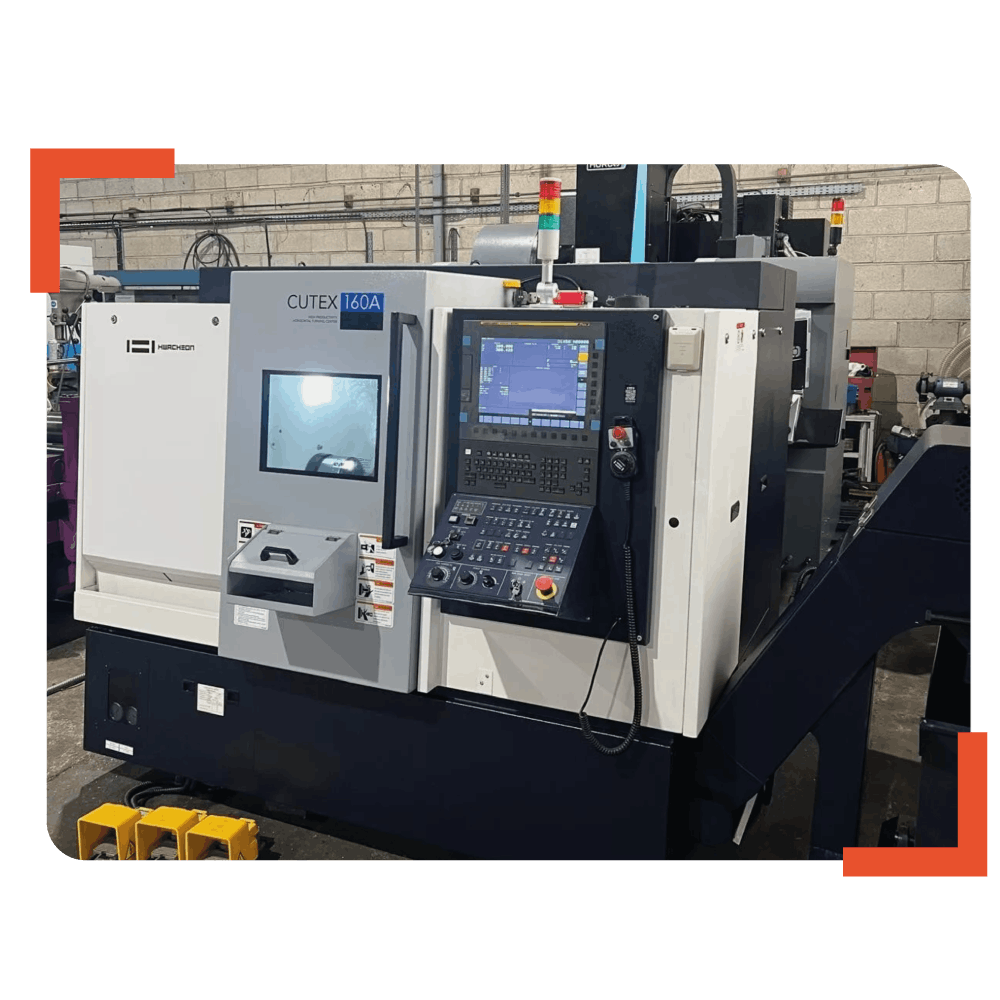

Hwacheon Cutex 160A CNC Lathe, with Renishaw Tool Probe
Opportunity to purchase a Hwacheon Cutex 160A CNC Lathe, with Renishaw Tool Probe. This machine is in excellent condition and is available to purchase immediately. View under power by appointment only.
Send Inquiry
1 / 0
Summary
This Hwacheon Cutex 160A CNC Lathe,with Renishaw Tool Probe is available to purchase Immediately. All viewings are by appointment only.
The machine is still under power and can be viewed in operation by appointment.
Specifications
- Hours:
789 Hours from new
- Year:
2022
- Control:
CNC Fanuc 0i-TF Plus
- Swing Over Bed:
550mm
- Max Cutting Diameter:
300mm
- Chuck SIze:
6"
- Spindle Nose:
A2-5
- Max Spindle Speed:
6000rpm
- Through spindle hole diameter:
56mm
- Max bar size:
45mm
- Spindle Bearing Inner Diameter:
90mm
- Spindle Motor:
15kW
- Number of tool station:
12
- Tool Size:
25 x 40mm
- Turret Indexing time:
0.15 sec
- Rapid Feedrate:
36 / 36m/min
- Max Stroke:
170 / 335mm
- Feed Motor:
1.8 / 1.8 kW
- Quill Diameter:
60mm
- Quill Stroke:
80mm
- Quill Taper:
4MT
- Lubrication tank Capacity:
2L
- Hydraulic tank capacity:
11L
- Coolant tank Capacity:
81L
- Power Requirement:
20kVa
- Dimensions:
2373mm x 1520mm x 1720mm (L x W x H)
- Weight:
3550kgs
Finance Options
Finance is available - please contact us for further details in regards to how you can acquire finance for this machine.
