Available
Private Treaty

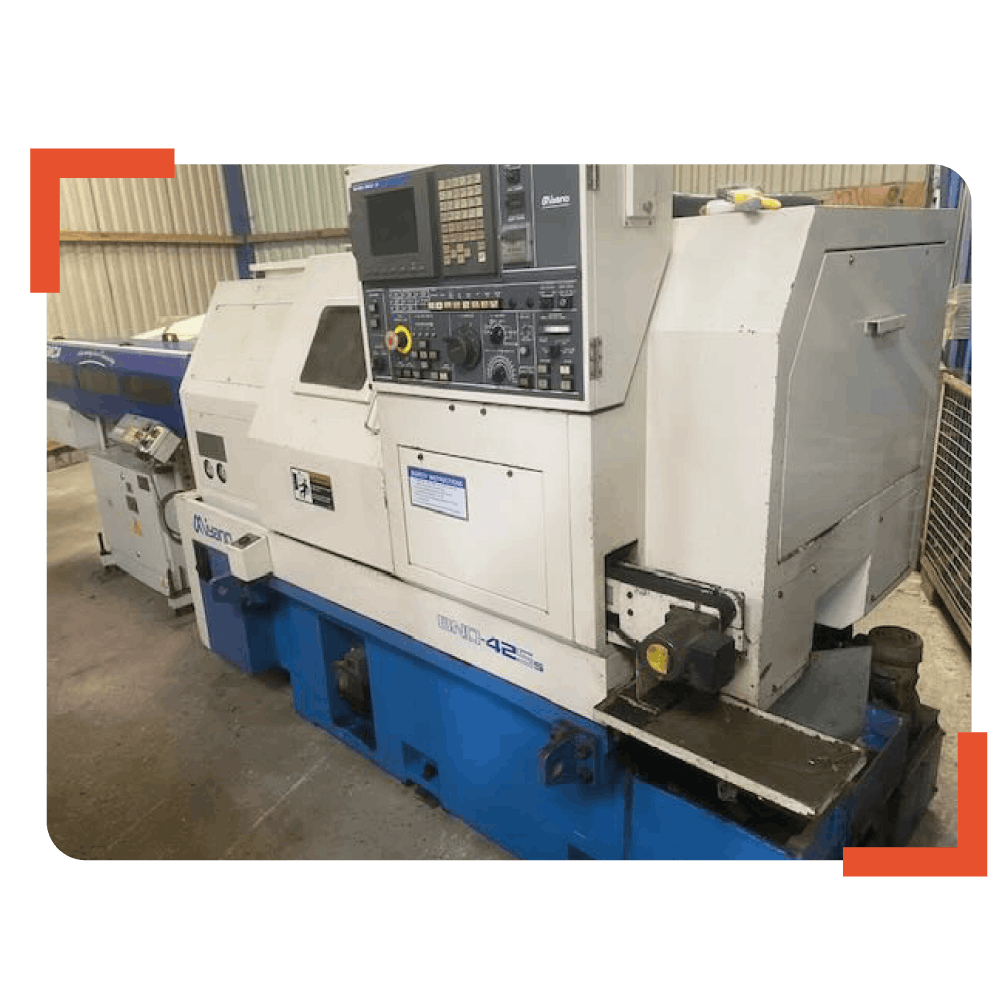

Miyano BND 42 S5 (2001)
Opportunity to purchase a Miyano BND 42 S5 (2001). This machine is available to purchase immediately and can be viewed under power by appointment only.
Send Inquiry
1 / 0
Summary
This machine is in GOOD condition and is available to purchase immediately. All viewings are by appointment only. Can be loaded for free to suitable transport
Comes with:
Fanuc 21 CNC
Imeca Bar Feed
Parts conveyor
Full C-axis on main and sub spindles
Location: Crewe, UK
Specifications
- Max turning diameter:
42mm
- Max turning length:
125mm
- Bar capacity:
33mm (Bar) / 41mm (Chuck)
- X Axis travel:
140mm
- Z Axis travel:
280mm
- Spindle speed range:
170-5,000 RPM
- Spindle motor:
5.5kW / 7.5kW
- Spindle motor (Sub):
2.2kW / 3.7kW
- Turret capacity:
12 stations, live tooling capability
- Weight:
3,810kg
Finance Options
Finance is available - please contact us for further details in regards to how you can acquire finance for this machine.
