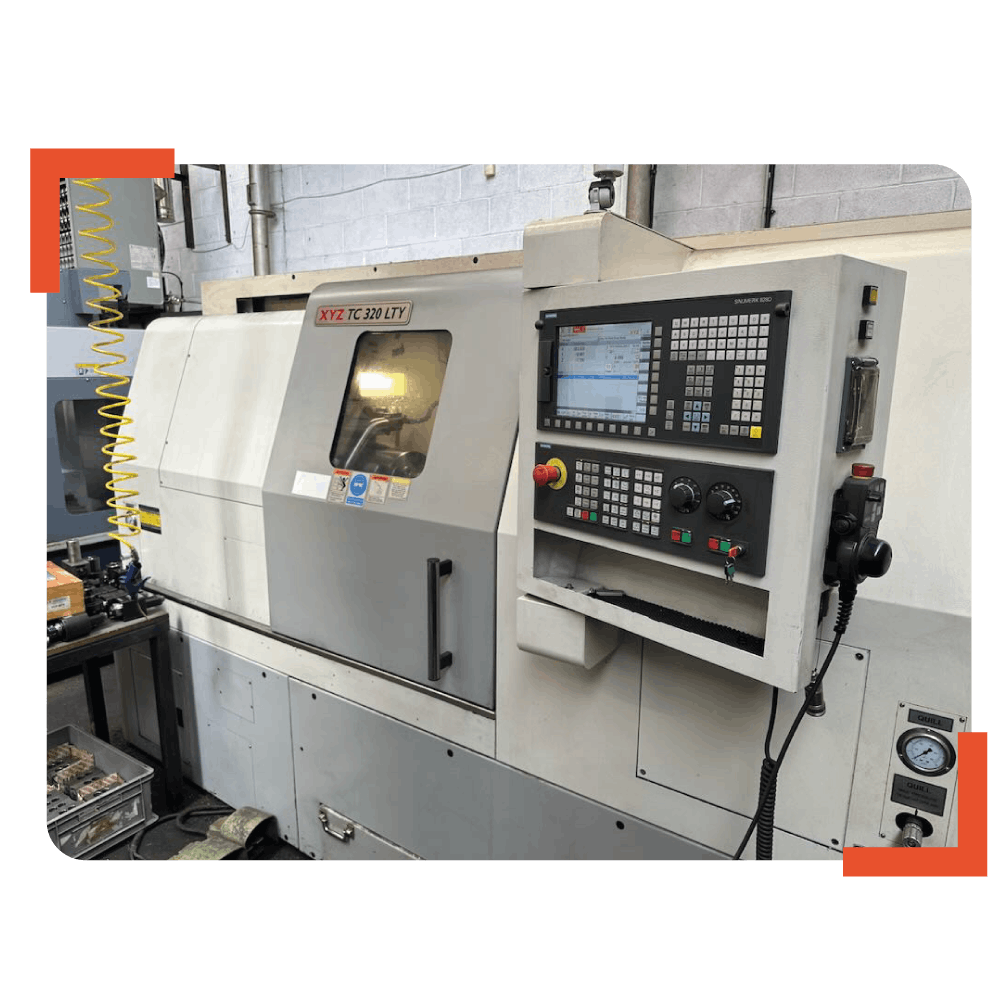

XYZ TC 320 LTY (2014)
Opportunity to purchase a XYZ TC 320 LTY (2014). This machine is available to purchase immediately and can be viewed under power by appointment only.
Send Inquiry
1 / 0
Summary
This machine is in GREAT condition and is available to purchase immediately. All viewings are by appointment only. Can be loaded for free to suitable transport
Location: Nelson, UK
Specifications
- Model:
XYZ TC 320 LTY
- Power Chuck Diameter:
300mm
- Maximum Swing:
450mm
- Swing Over Carriage Cover:
450mm
- Maximum Turning Diameter:
320mm
- Maximum Turned Length:
550mm
- X Axis Travel:
270mm
- Y Axis Travel:
100mm (+/- 50mm)
- Z Axis Travel:
600mm
- Spindle Centre Height from Floor:
1,230mm
- Height from Floor to Spindle Centre:
1,040mm
- Spindle Nose:
A2-8
- Spindle Bore (Drawtube Capacity):
91mm (78mm)
- Spindle Front Bearing Internal Diameter:
130mm
- Spindle Speeds:
3,300rpm
- Spindle Motor:
32kW
- Minimum Speed for Full Power:
1,500 rpm
- Rapid Feedrate:
20 M/min
- Ballscrew:
X= 40mm Y= 36mm Z= 45mm
- Servo Motor:
X = 11 Nm / Y = 11 Nm / Z = 16 Nm
- Toolchanger:
12 Station 40 VDI Turret
- Tool Section Size:
25 x 25mm
- Max Boring Bar Diameter:
40mm
- Tailstock Quill Taper:
MT5
- Quill Diameter:
95mm
- Quill Travel:
125mm
- Max quill thrust:
2,300kg
- Coolant Tank Capacity:
200L
- Coolant Pump Delivery:
16L/min @ 2.5 Bar
- Machine Weight:
6,950Kg
- Footprint:
4,120 x 2,480 x 2,300mm
